Description

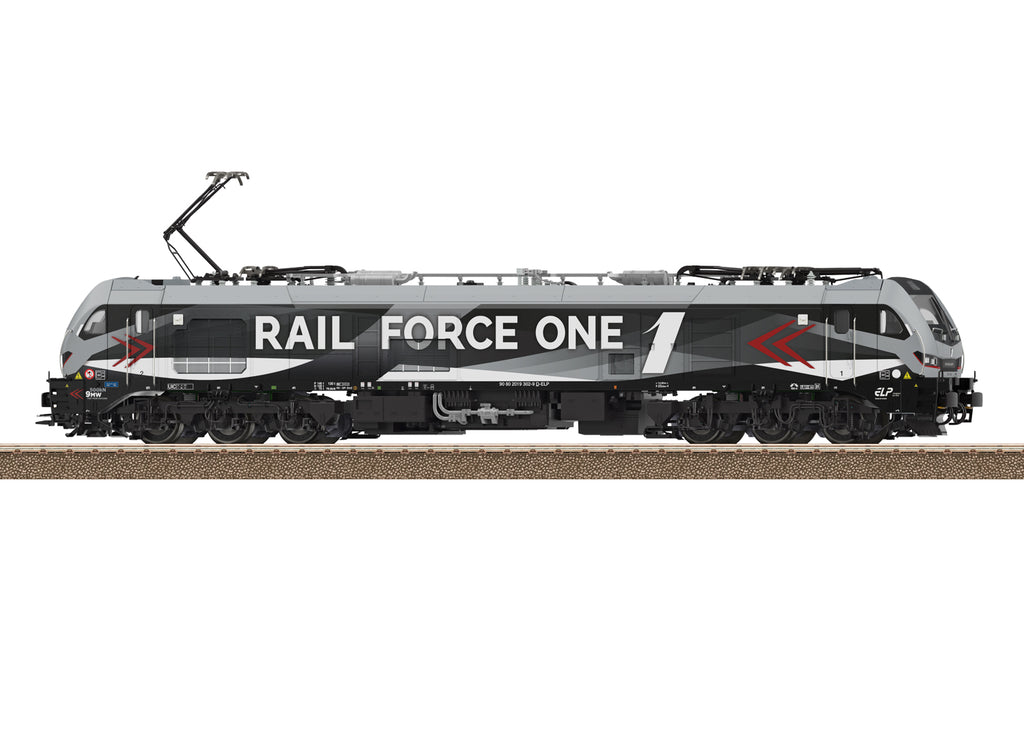

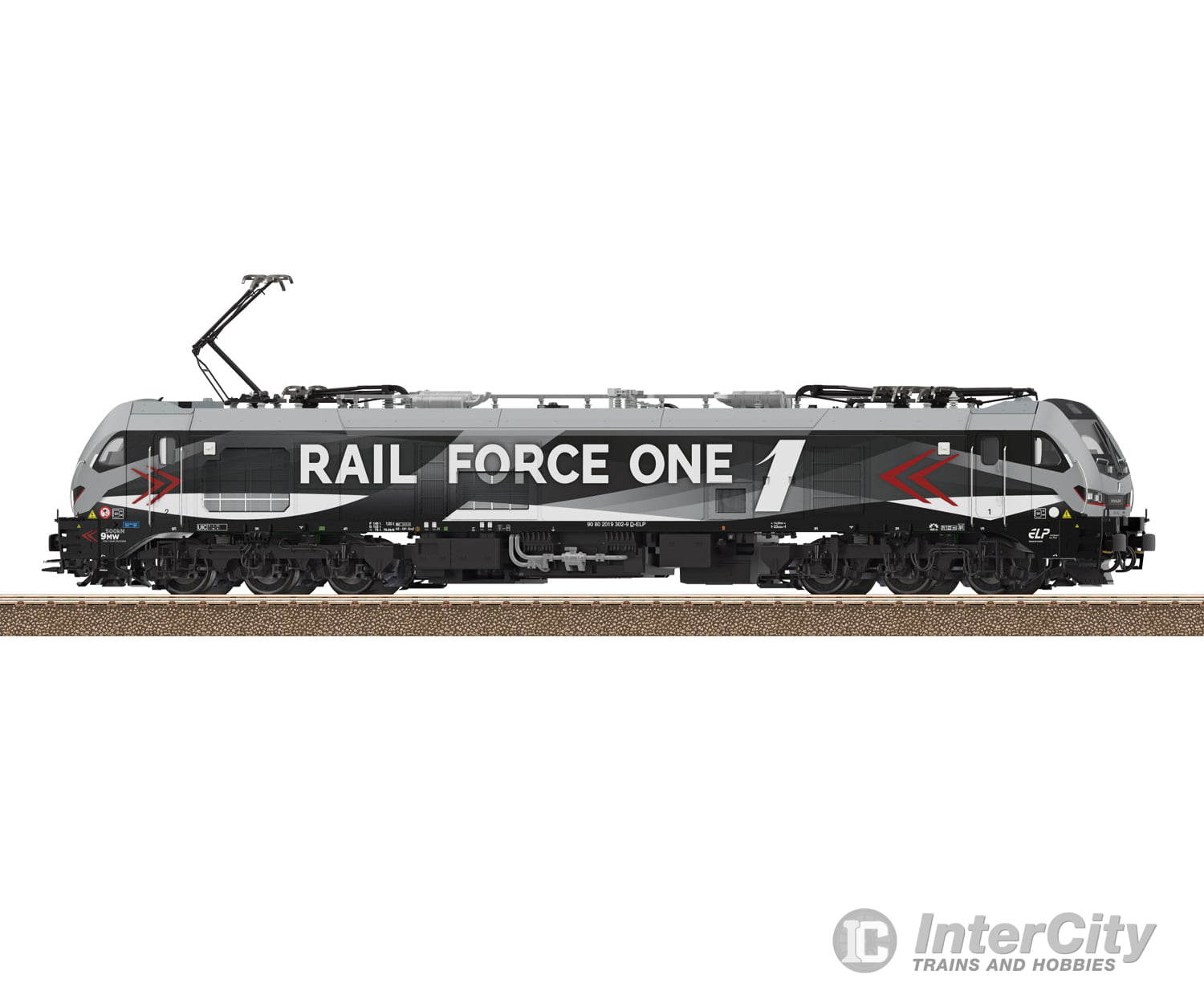

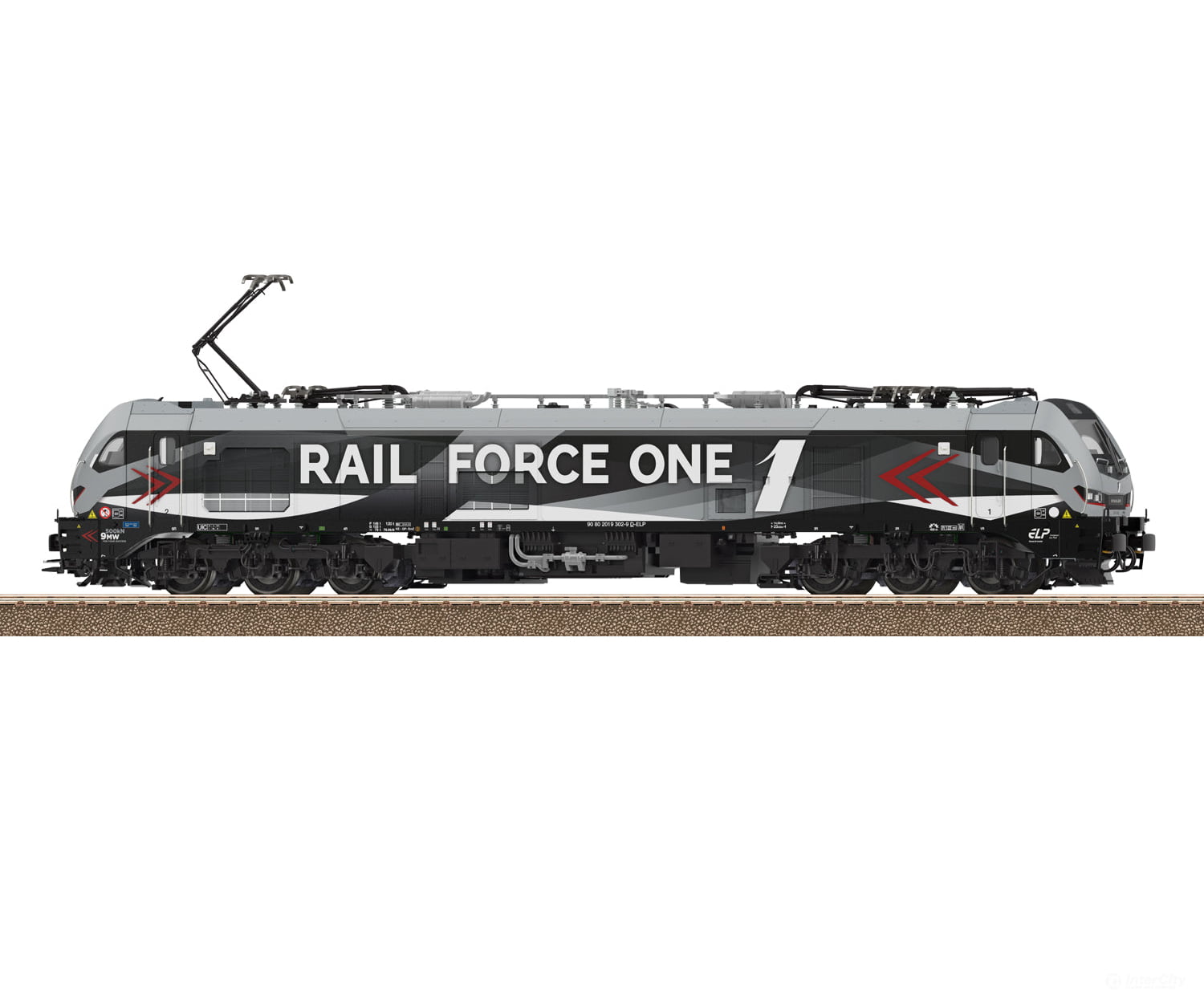

Prototype: Class 2019 dual power locomotive (Stadler Euro9000) of the European Locomotive Pool, Inc. (ELP), leased to Rail Force One. Gray/black basic paint scheme in attractive RFO design. Road number 2019 302-9. The locomotive looks as it did starting in 2023.
Highlights
- Completely new tooling with highly detailed metal construction.
- First time all four pantographs can be raised and lowered separately in digital operation.
- Many separately applied details.
- Long-distance lights and cab lighting can be controlled digitally.
- Coupler area lighting can be controlled digitally.
- Controllable switching and special lights for the Netherlands, Belgium, Switzerland, and Italy.
- Powered vents on the roof.
- Highly detailed roof equipment.
- Digital decoder with extensive operation and sound functions.
- DCC, mfx, and RailCom capable.
- Buffer height conforms to the NEM.
- Buffer capacitor included to bridge over short areas without current.
Model: The locomotive has an digital decoder and extensive sound functions. It also has controlled, high-efficiency propulsion with a flywheel, centrally mounted. Two axles in each truck powered using cardan shafts. Traction tires. Triple headlights and dual red marker lights change over with the direction of travel, will work in conventional operation, and can be controlled digitally. Long-distance headlights can be controlled. The headlights / marker lights at Locomotive Ends 2 and 1 can be turned off separately in digital operation. There is a double "A" light function. Cab lighting changes over with the direction of travel and different switching and special lights can be controlled digitally. Coupler area lighting can also be controlled digitally with the direction of travel. Maintenance-free, warm white and red LEDs are used for the lighting. A buffer capacitor is included. There are many separately applied parts such as grab irons, sandboxes, UIC sockets, and roof conductors. The roof equipment is detailed with four newly designed pantographs with different contact strips for use in Germany, the Netherlands, Belgium, Switzerland, and Italy. All four pantographs can be raised and lowered digitally independently of each other. The vents on the roof are powered and can be controlled digitally. The buffer height conforms to the NEM. Brake lines, prototype couplers, and closed rail clearance devices are included separately for installation on the locomotive. Length over the buffers 26.4 cm / 10-3/8".
DCC | SX2 | SX | MFX | |
---|---|---|---|---|
Headlight(s) | * | * | ||
Pantograph control | * | * | ||
Locomotive operating sounds | * | * | ||
Horn | * | * | ||
Pantograph control | * | * | ||
Direct control | * | * | ||
Sound of squealing brakes off | * | * | ||
Pantograph control | * | * | ||
Pantograph control | * | * | ||
Headlights locomotive end 2 off | * | * | ||
Whistle for switching maneuver | * | * | ||
Switching range + switching light | * | * | ||
Headlights locomotive end 1 off | * | * | ||
Engineer's cab lighting | * | * | ||
Long distance headlights | * | * | ||
Light Function | * | * | ||
Blower motors | * | * | ||
Blower motors | * | * | ||
Blower Drive | * | * | ||
Compressor | * | * | ||
Letting off Air | * | * | ||
Light Function - Dutch switching light | * | * | ||
Light function for warning light for Switzerland | * | * | ||
Light Function | * | * | ||
Light Function | * | * | ||
Horn | * | * | ||
Horn | * | * | ||
SIFA warning sound | * | * | ||
Train control warning sound | * | * | ||
Replenishing diesel fuel | * | * | ||
Opening cab door | * | * |
