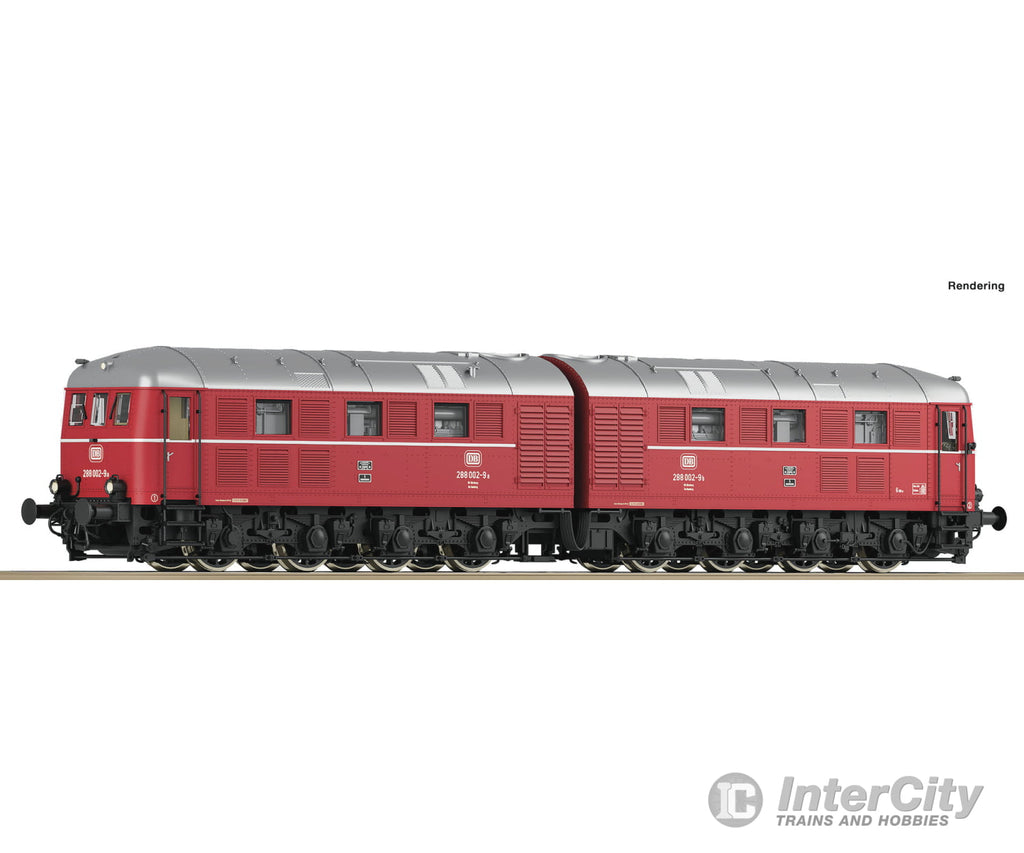

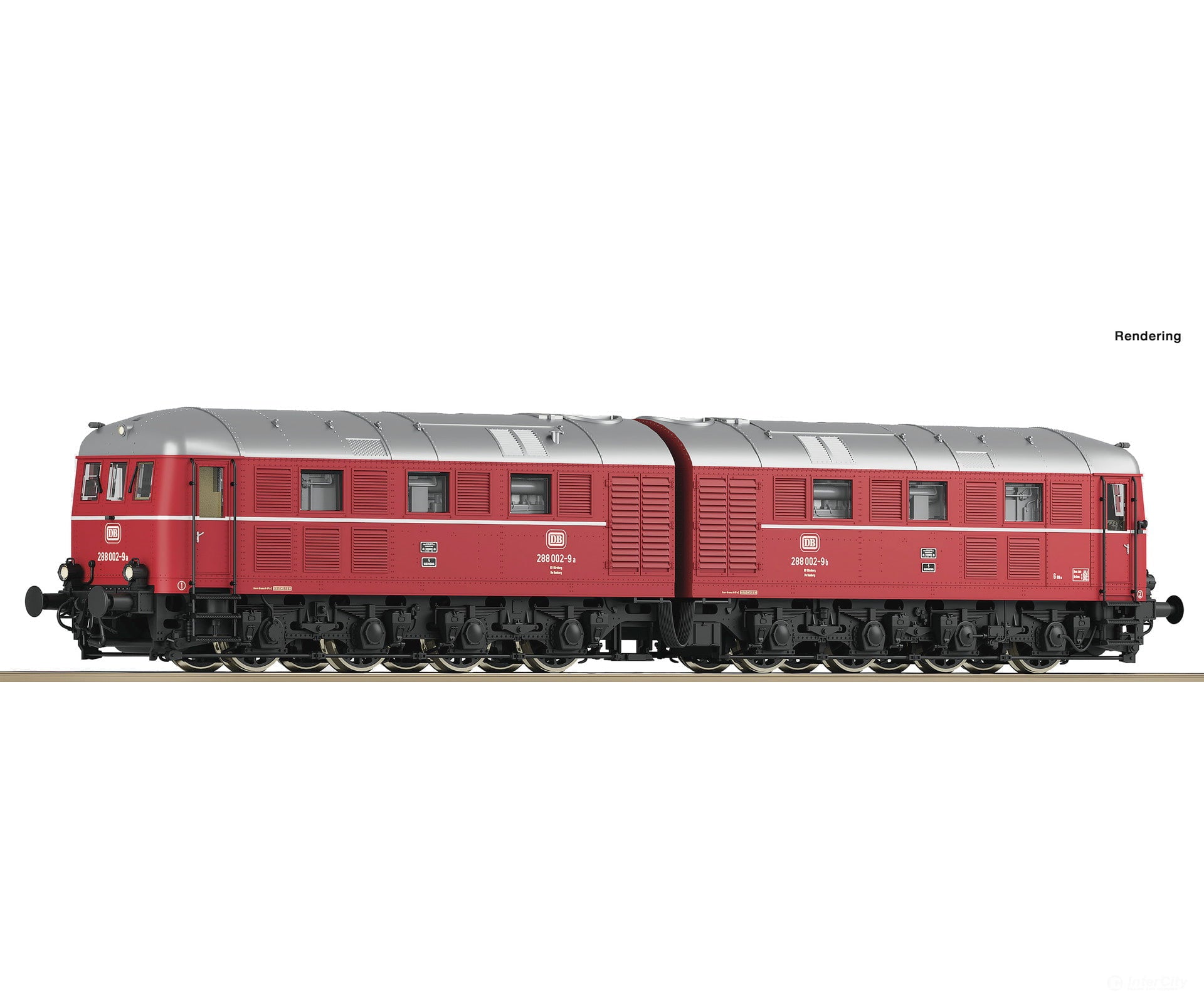

Roco 78116 HO Diesel-electric double locomotive 288 002-9, DB (Marklin AC Digital Sound Version)

Diesel-electric double locomotive 288 002 of the German Federal Railway.

Edition model!

Completely new design!

• Double locomotive formed by two units coupled together; both units fully equipped with a motor and sound decoder respectively
• Full reproduction of the transition area between the two units
• Elaborately reproduced engine room
• Finely-detailed model with many separately attached plug-in parts
• Roofs with additional fan grilles in the roof curves
• Frame with four sandboxes each and INDUSI reproduction
• 3 headlights depending on direction of travel and two red tail lights
• Roof fan grilles are broken through
• Digital versions feature motor-powered fans
• Switchable driver's cab, driver's console and control box lighting as well as engine room lighting in digital mode
• "Dynamic Sound" package for even better depth of sound

In 1941 and 1942, a total of four type D 311 double locomotives were put into service by the Deutsche Wehrmacht. They were constructed to haul heavy railroad guns. Two locomotives, the V 188 001 a/b and the V 188 002 a/b, were retained by the German Federal Railway following the war. A third locomotive was used to provide spare parts. These locomotives proved their worth in heavy freight train and shunting services, mainly on the Spessart-Rampe. After damage to the generator, the V 188 001 was phased out in 1968. The V 188 002, later the 288 002, remained in operation in the Franconian region until 1972. Both locomotives were scrapped in 1973.

General data

• Coupling: NEM shaft 362 with close coupling mechanism
• Minimum radius: 358 mm
• Flywheel: yes
• Traction tyres: 4
• Number of driven axles: 4
• Article number: 78116
• Scale: H0
• Epoch: IV
• Railway Company: DB

Electrical

• Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
• LED head light: yes
• Additional light function: yes
• Interior lighting: Yes, LED, Digital switchable, Driver's cab lighting, Engine room lighting
• Control: AC
• Interface: Electrical interface for traction units PluX22
• Digital decoder: PluX22
• Decoder-Type: MS450P22
• Sound: yes
• Buffer capacitor: yes

Measurements

• Length over buffer: 259 mm
