Description

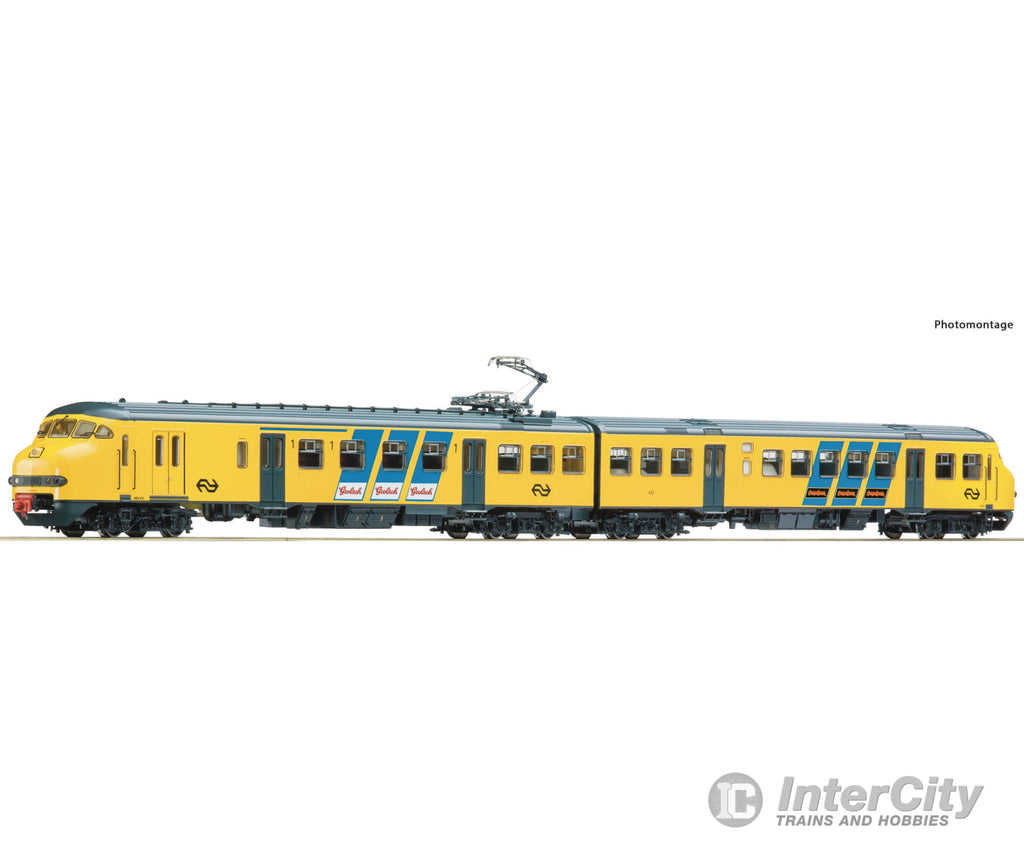

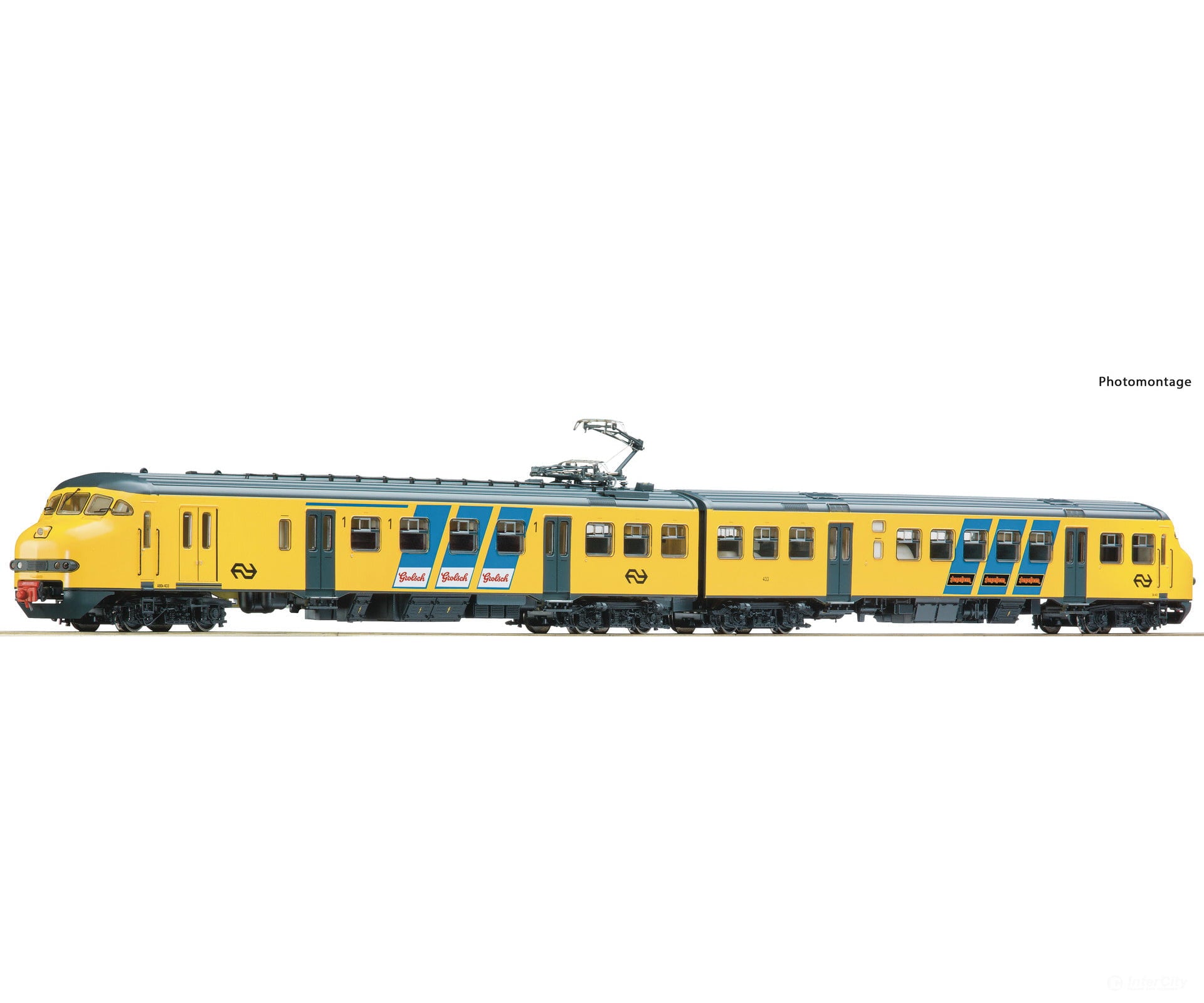

Electric multiple unit Plan V of the Dutch State Railways.
Version with dark grey chassis
Authentic filigree pantographs
Rich detailing on the model with many separately applied plug-in parts
In digital operation with switchable interior lighting
The model is equipped with a sound and a function decoder
The two-part Dutch Electric Multiple Unit Plan V that was better known in the Netherlands as "Mat '64" or under the nickname Apekop (Monkey Head), became one of the standard local trains of the Dutch State Railways in the mid-1960s. With 246 units, it was the NS's most-built multiple unit at the time.
Plan V1 and V2 were delivered in a green colour scheme with sand-yellow decorative stripes. The Plan V of the 3rd construction series was painted yellow from the factory in 1968. The multiple units delivered earlier were then also repainted yellow between 1969 and 1973. They operated on nearly all electrified railway lines in the Netherlands until their withdrawal from service.
- Coupling: In-house produced coupling
- Minimum radius: 419 mm
- Flywheel: yes
- Number of driven axles: 2
- Number of axles with traction tyres: 1
- Article number: 7720015
- Interior fitting: Model with interior furnishing
- Scale: H0
- Epoch: IV
- Railway Company: NS
General data
- Motor: 5-pole motor
- Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
- LED head light: yes
- Interior lighting: Yes, LED, Digital switchable
- Control: AC
- Interface: Electrical interface for traction units PluX22
- Digital decoder: PluX22, Function decoder
- Sound: yes
- Buffer capacitor: yes
Electrical
- Length over buffer: 599 mm
Measurements
