Description

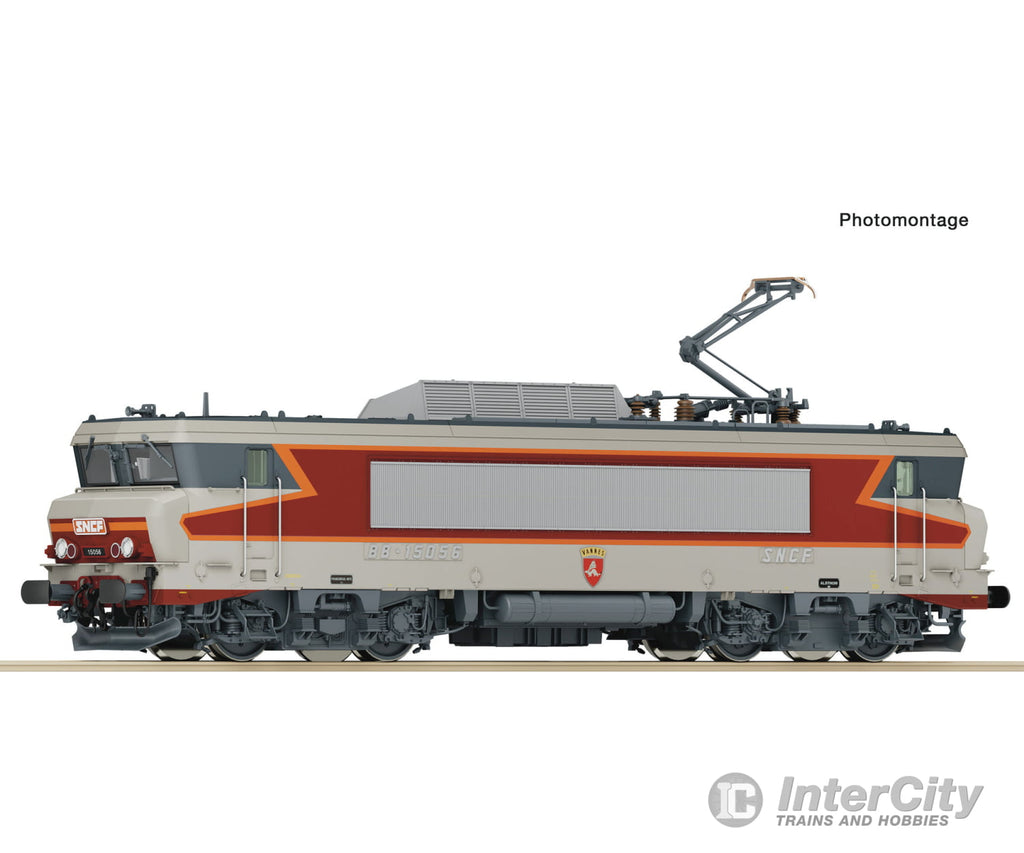

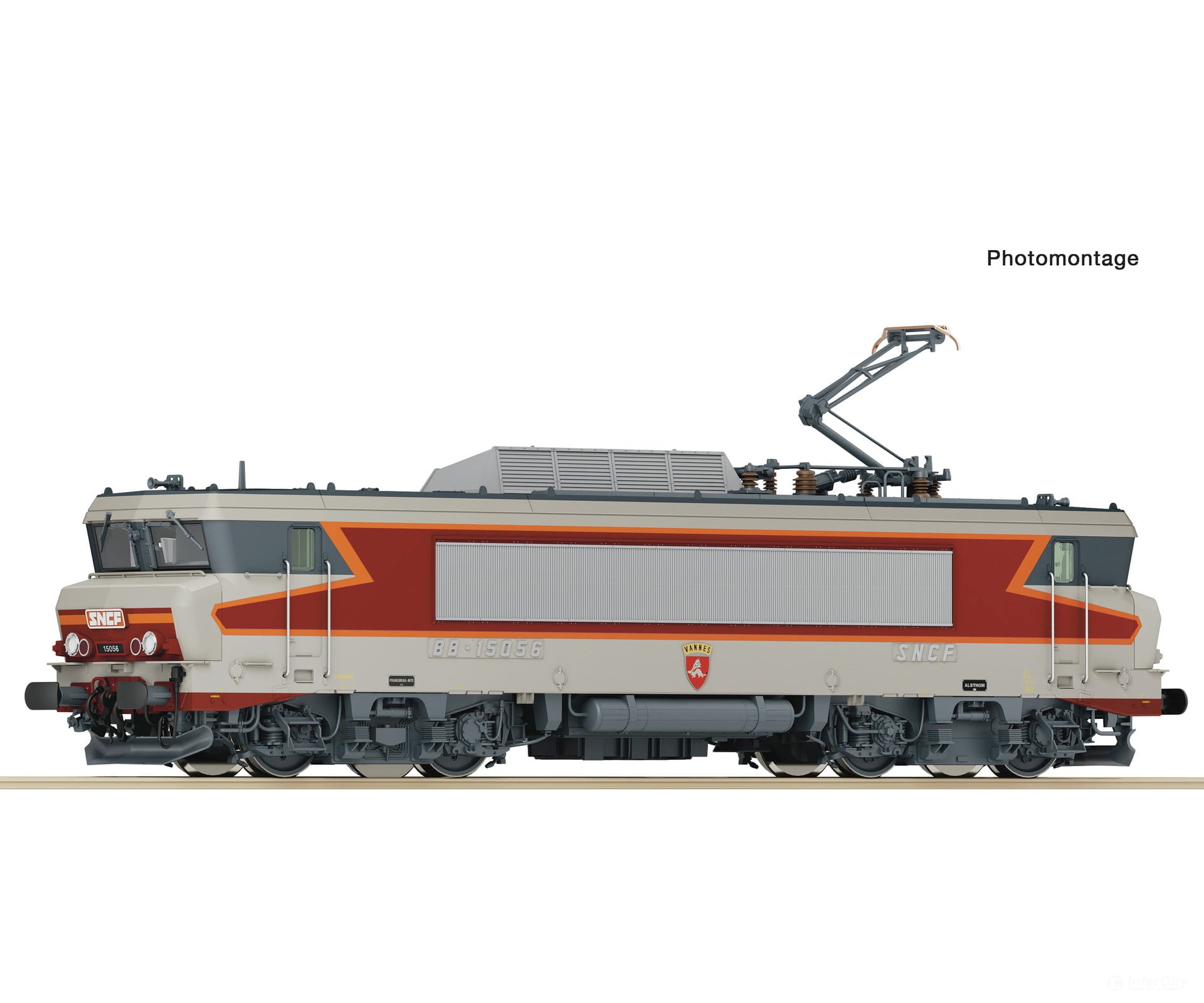

Electric locomotive BB 15056 of the French State Railways.
Mold variant!
Update!
Authentic roof design with all details
Filigree design of the pantograph
Grand Comfort colour scheme
With raised SNCF logos and running numbers on the side wall
With the coat of arms "Vannes"
Rich detailing on the model with many separately applied plug-in parts, some made of metal
In digital operation, with headlights switchable according to the French model and driver's cab illumination
The BB 15000 is a French electric locomotive series which can be used on the AC network (25 kV 50 Hz). The design of the locomotives with the so-called "nez cassé" ("broken nose") comes from the hand of Frenchman Paul Arzens, who was responsible for the design of several SNCF locomotives at the time. From 1971 until 1976, Alstom built a total of 65 locomotives. The locomotives were the first French mainline locomotives with two driver's cabs and only one pantograph and were the last SNCF electric locomotives to be designed for the AC system only.
- Coupling: NEM shaft 362 with close coupling mechanism
- Minimum radius: 358 mm
- Flywheel: yes
- Number of driven axles: 2
- Number of axles with traction tyres: 2
- Article number: 7520136
- Scale: H0
- Epoch: IV
- Railway Company: SNCF
General data
- Motor: 5-pole motor
- Head light: Two direction dependent tail lights and dual headlights.
- LED head light: yes
- Additional light function: yes
- Interior lighting: Yes, LED, Digital switchable, Driver's cab lighting
- Interface: Electrical interface for traction units PluX22
- Digital decoder: PluX22
- Sound: yes
- Buffer capacitor: yes
Electrical
- Length over buffer: 201 mm
Measurements
