Description

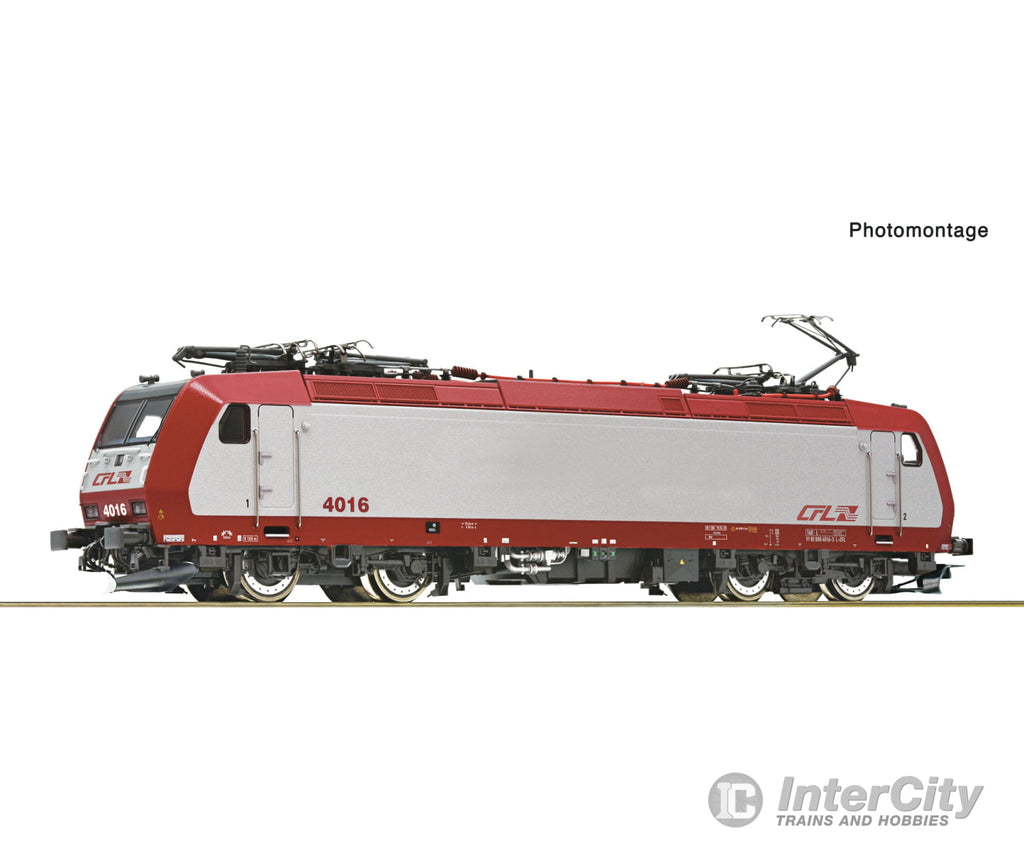

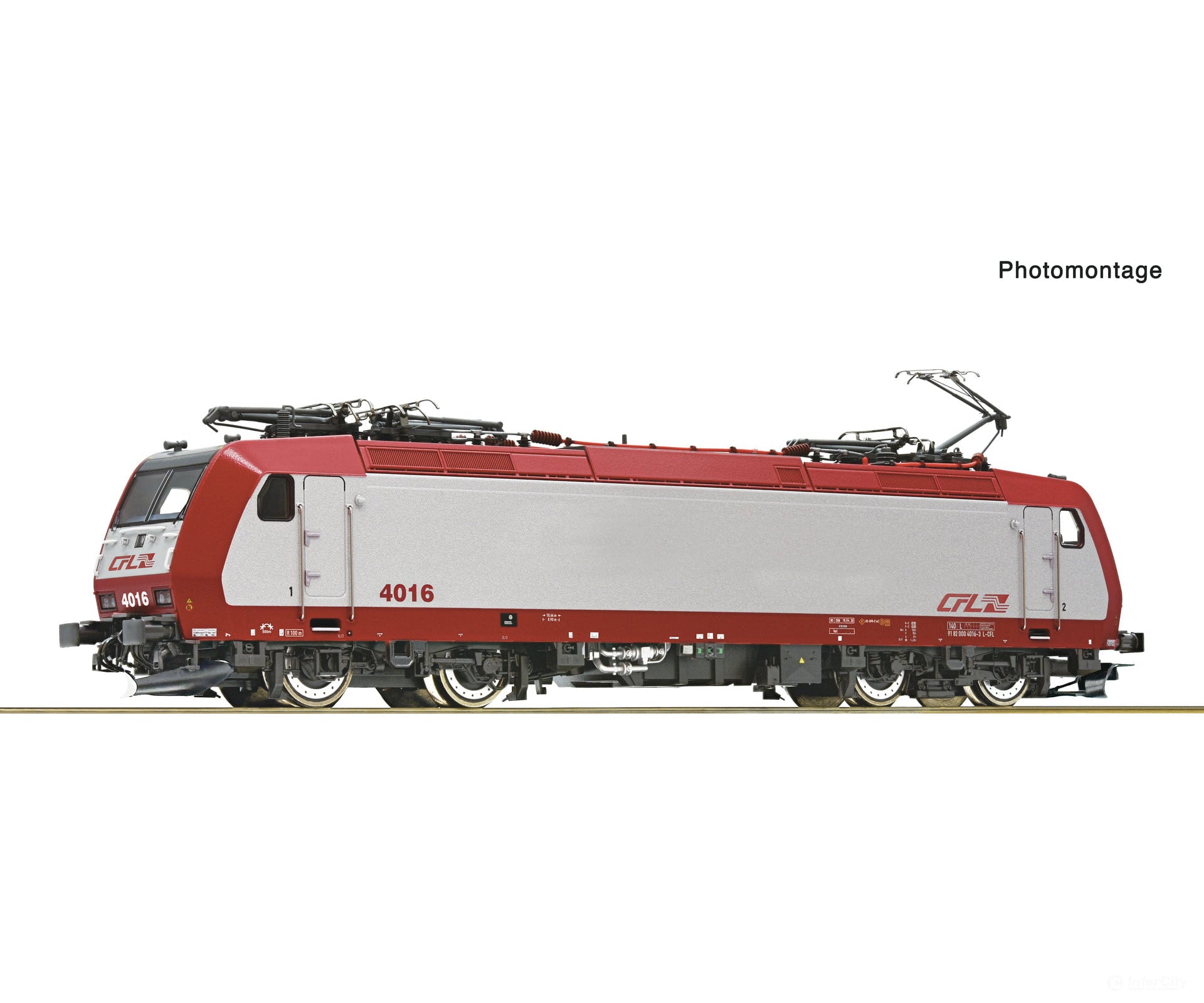

Electric locomotive 4016 of the Luxembourg State Railways.
Pantograph with innovative fastening
Extra applied windscreen wipers
Cowcatcher mounted on the chassis
In digital operation with switchable high beam and separately switchable headlights/taillights
The TRAXX AC1 is an electric locomotive series primarily designed for transporting goods. The designation "TRAXX" stands for "Transnational Railway Applications with eXtreme fleXibility". Based on the 145 series but with a modified design and series designation, this locomotive can operate on both the 15 kV/16 2/3 Hz and 25 kV/50 Hz AC voltage systems commonly used in Europe. It weighs 84 tonnes, has a continuous output of 5.6 MW and is authorised to operate at speeds up to 140 km/h.
- Coupling: NEM shaft 362 with close coupling mechanism
- Minimum radius: 358 mm
- Flywheel: yes
- Number of driven axles: 4
- Number of axles with traction tyres: 1
- Article number: 7510141
- Scale: H0
- Epoch: VI
- Railway Company: CFL
General data
- Motor: 5-pole motor
- Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
- LED head light: yes
- Additional light function: yes
- Control: DC Digital
- Interface: Electrical interface for traction units PluX22
- Digital decoder: PluX22
- Sound: yes
- Buffer capacitor: yes
Electrical
- Length over buffer: 217 mm
Measurements
