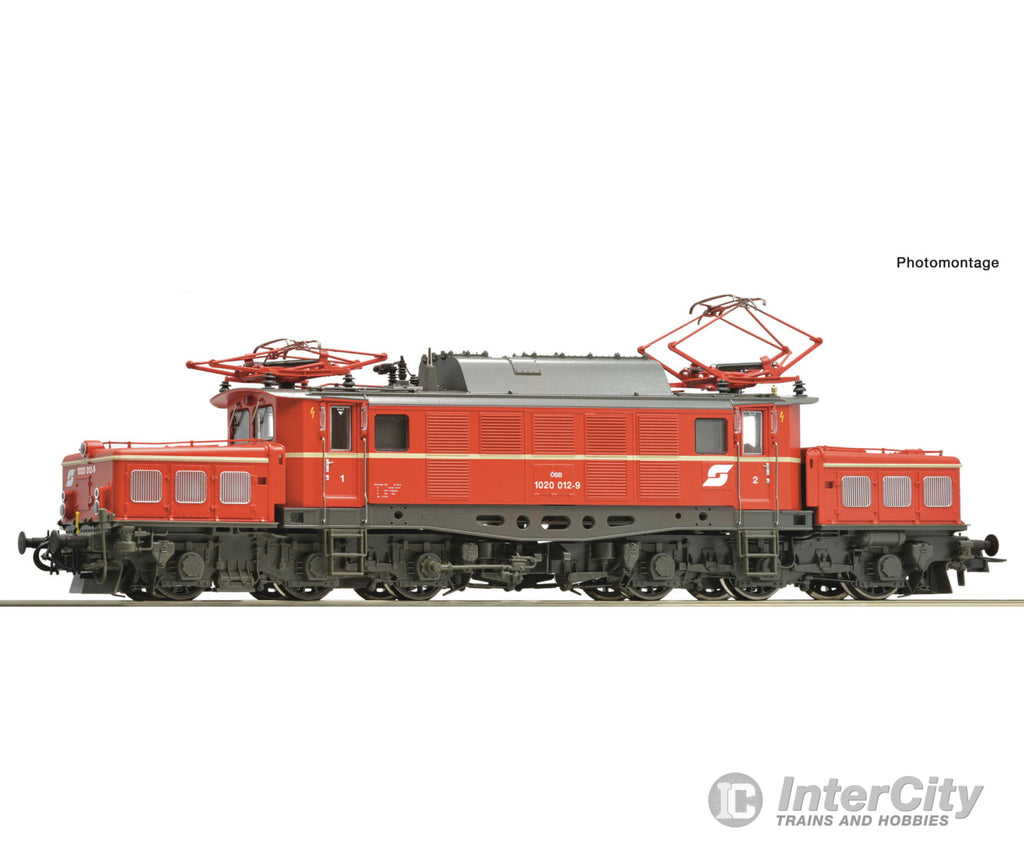

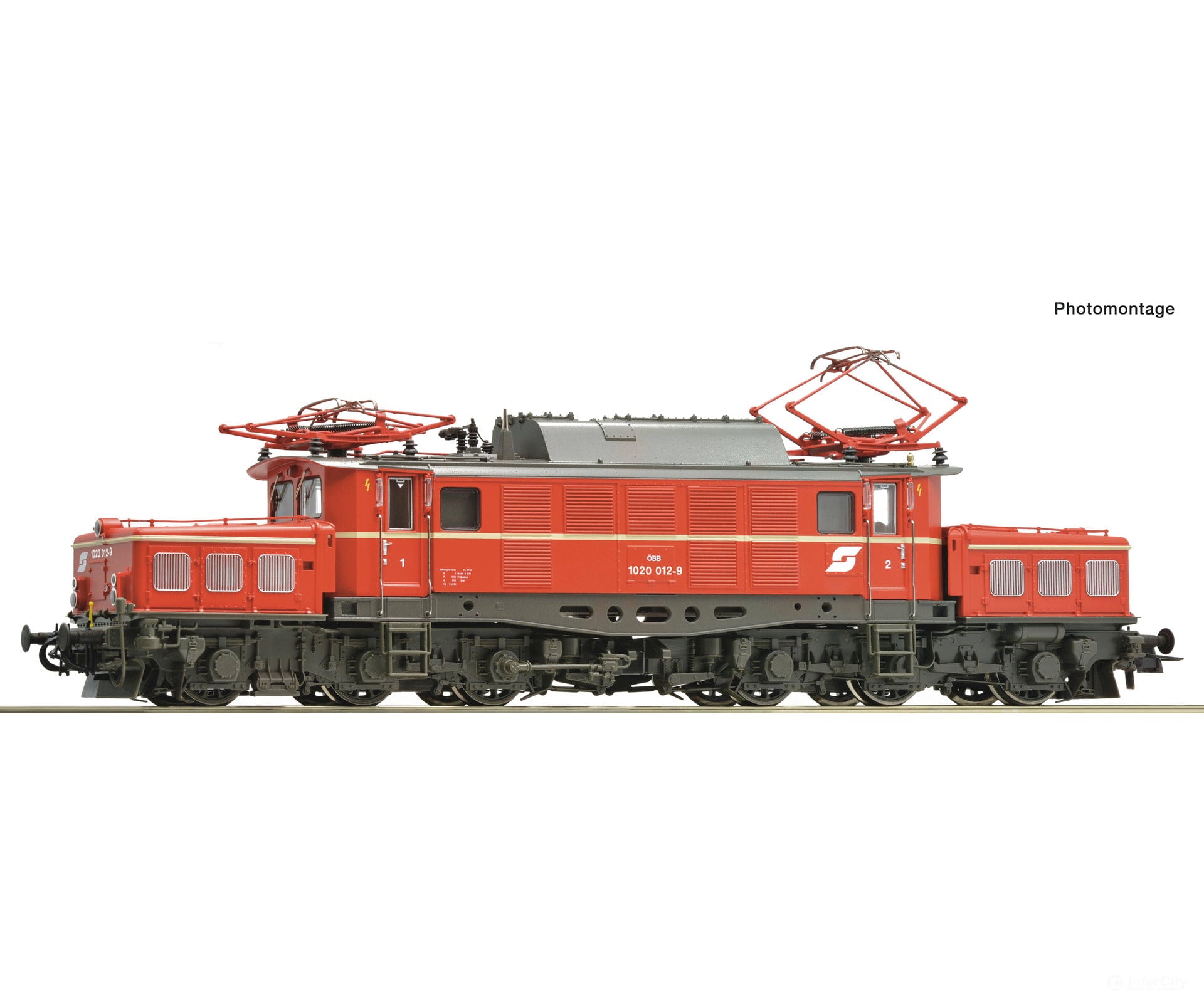

Roco 7500125 HO Electric locomotive 1020 012-9, ÖBB , DC Analog

Electric locomotive 1020 012 of the Austrian Federal Railways.

• Version in blood orange paintwork with umbra grey roof and chassis
• Metal grab rails and handrails
• Wheelsets with low wheel flanges
• Headlights/taillights switchable with a DIP switch

After the war, there were 44 DRG class E 94 locomotives in Austria. In 1952 the ÖBB ordered three more locomotives. The class designation was changed from E 94 to 1020 in 1954. The class 1020 was used for more than five decades in the goods and ramp service, almost everywhere in Austria.

General data

• Coupling: NEM shaft 362 without close coupling mechanism
• Minimum radius: 358 mm
• Flywheel: yes
• Number of driven axles: 6
• Number of axles with traction tyres: 2
• Article number: 7500125
• Scale: H0
• Epoch: IV
• Railway Company: ÖBB

Electrical

• Motor: 5-pole motor
• Head light: 3-headlight depending on driving direction / 3 tail lights, depending on driving direction
• LED head light: yes
• Control: DC Analog
• Interface: Electrical interface for traction units PluX22

Measurements

• Length over buffer: 213 mm
