Description

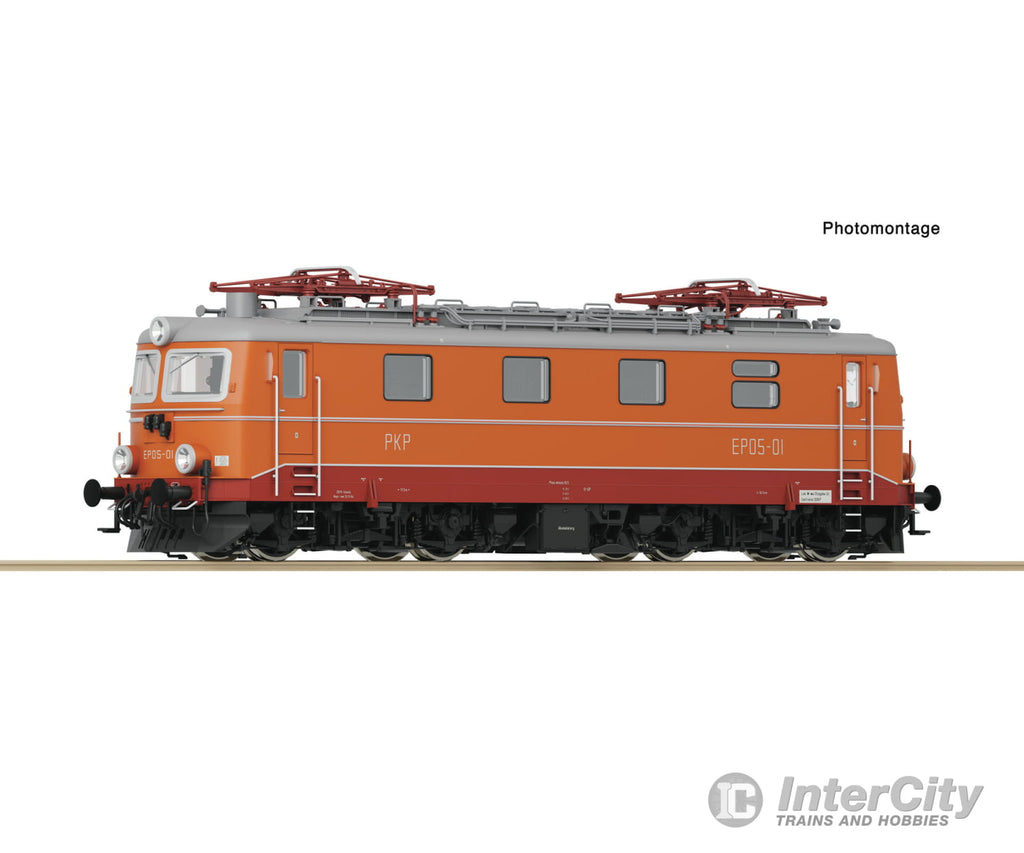

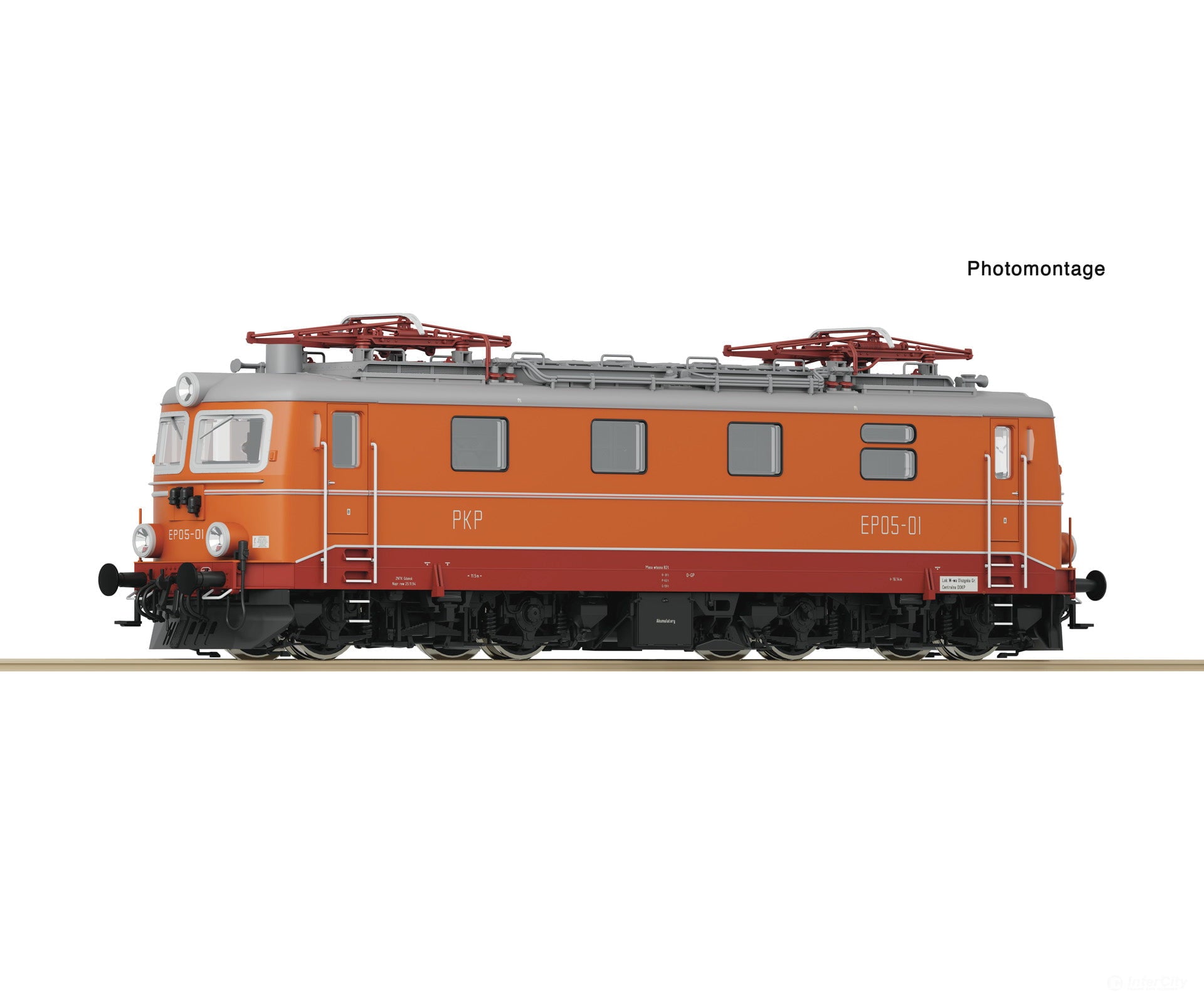

Electric locomotive EP05-01 of the Polish State Railways.
New design!
Elaborate painting and printing
Delicate design of the bogies and the spoked wheels
Fine metal wheels with low wheel flanges
Completely newly developed pantographs with an innovative fastening
In 1961, the Polish State Railways (PKP) acquired thirty-four four-axle electric locomotives from Skoda in Pilsen, Czechoslovakia, which were integrated in their vehicle fleet and designated as Class EU05. This series was a slightly modified version of the E 499.1 locomotives from the Czechoslovak State Railways (CSD).
To facilitate their operation on the Centralna Magistrala Kolejowa line, which connects Warsaw with Kraków and Katowice and was built between 1971 and 1977, the EU05 locomotives were modified to achieve a maximum speed of 160 km/h. This conversion took place at the Gdańsk repair works between 1973 and 1977, where the gear ratio was adjusted. Due to their role in express train services, these locomotives received the new class designation EP05 and were repainted in orange livery, replacing their previous two-tone green paint scheme.
- Coupling: NEM shaft 362 with close coupling mechanism
- Minimum radius: 358 mm
- Flywheel: yes
- Number of driven axles: 4
- Number of axles with traction tyres: 1
- Article number: 7500083
- Scale: H0
- Epoch: IV-V
- Railway Company: PKP
General data
- Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
- LED head light: yes
- Control: DC Analog
- Interface: Electrical interface for traction units PluX22
Electrical
- Length over buffer: 186 mm
Measurements
