Description

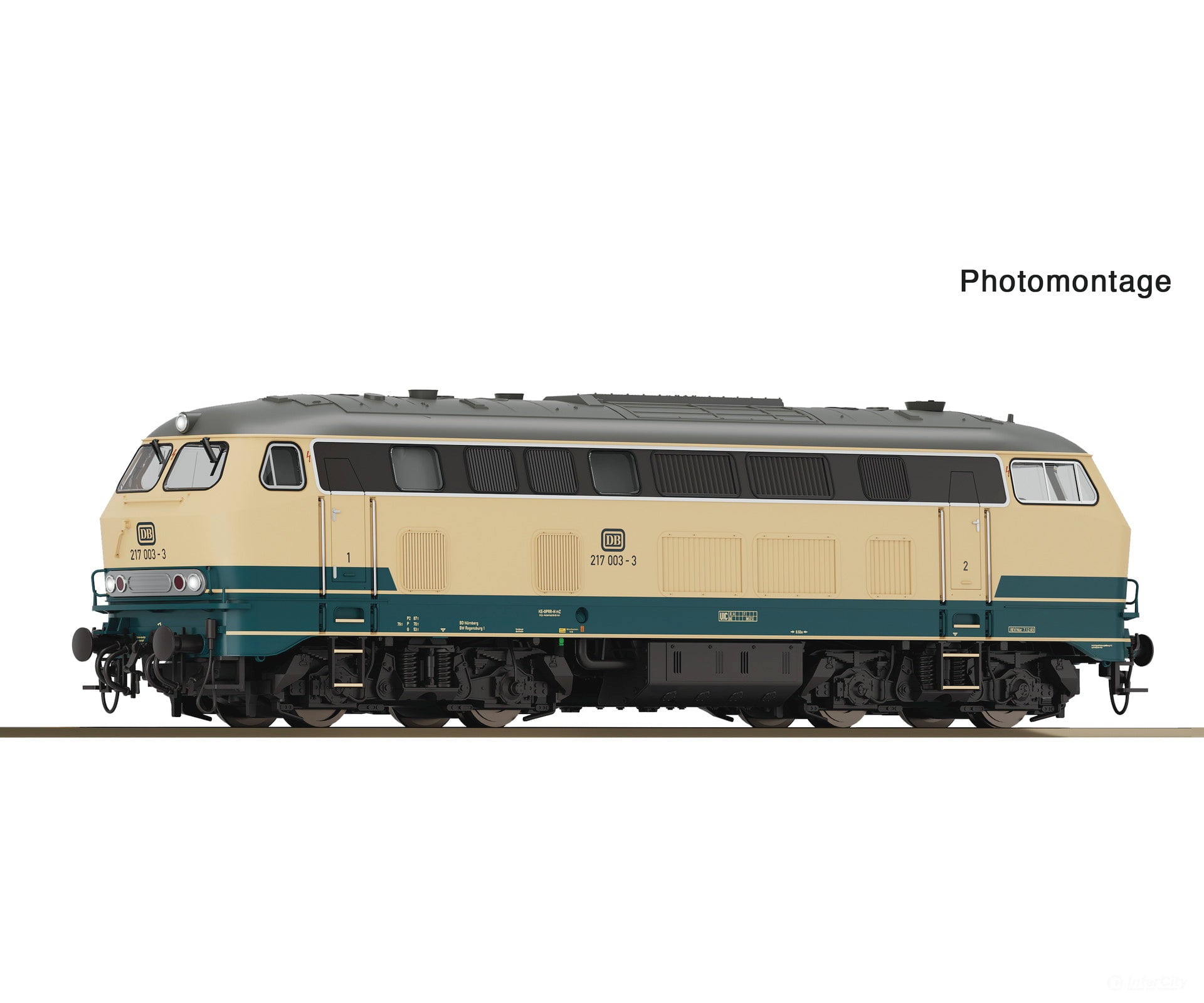

Diesel locomotive 217 003 of the German Federal Railways.
New design!
All modifications correctly reproduced in the model
Separately applied plug-in parts, in part using etching technology
With switchable headlight/rear light, driver's cab lighting and machine room lighting in digital mode
Model has prototypical low wheel flanges
Wheel sets with 1.2 mm high wheel flanges available as spare parts (art. no. 145433, 145435)
Class 217 of the German Federal Railways (DB) was a more powerful advancement of the well-known V-160 family and was a technical interim solution to meet a specific operational need: the use of heavy push-pull trains with electric train heating on non-electrified lines.Between 1965 and 1968, a total of 15 locomotives were built by Krauss-Maffei. These engines are considered the technical precursors of the later class 218, which was equipped with an integrated heating generator at the factory. The locomotives were divided into so-called prototypes (217 001 - 003) and pre-series machines (217 011 - 022).
- Coupling: NEM shaft 362 with close coupling mechanism
- Minimum radius: 358 mm
- Flywheel: yes
- Number of driven axles: 4
- Number of axles with traction tyres: 1
- Article number: 7310068
- EAN: 9005033073831
- Scale: H0
- Epoch: IV
- Railway Company: DB
General data
- Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
- LED head light: yes
- Additional light function: yes
- Interior lighting: Yes, LED, Digital switchable, Driver's cab lighting, Engine room lighting
- Control: DC Digital
- Interface: Electrical interface for traction units PluX22
- Digital decoder: PluX22
- Sound: yes
Electrical
- Length over buffer: 189 mm
Measurements
