Roco 7300102 HO Diesel-electric double locomotive V 188 002, DB, DC Analog

Roco HO 7300102

Price:
Sale price$554.95 CAD

Shipping calculated at checkout

Stock:
Backorder/Pre-Order

RELEASE: 2025 Fall New Item

CONDITION: New

SCALE: HO

RAILWAY: DB (Germany)

COUNTRY: Germany

ERA: Era 3 (1945-1970)

UPC: 9005033392345

Description

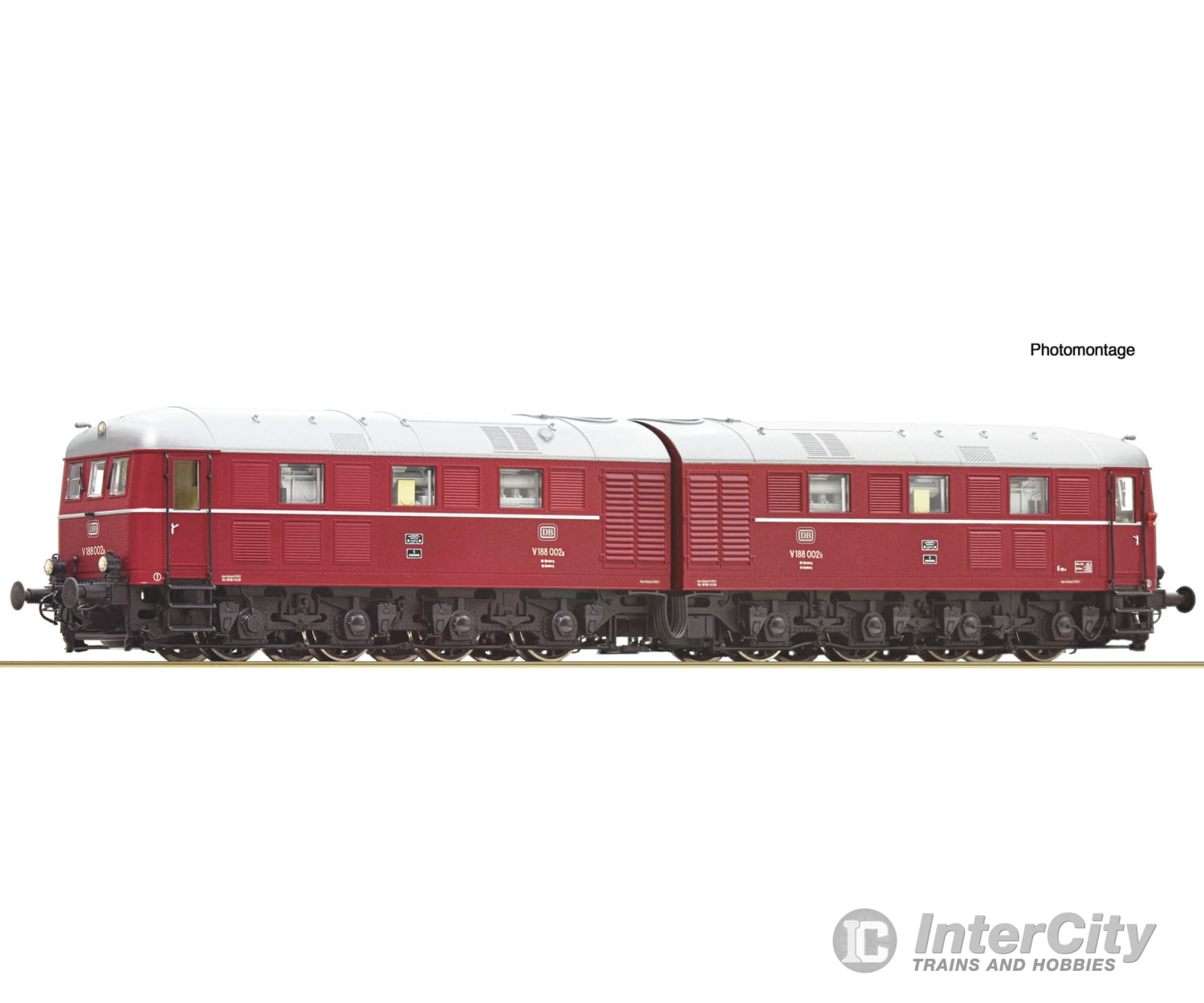

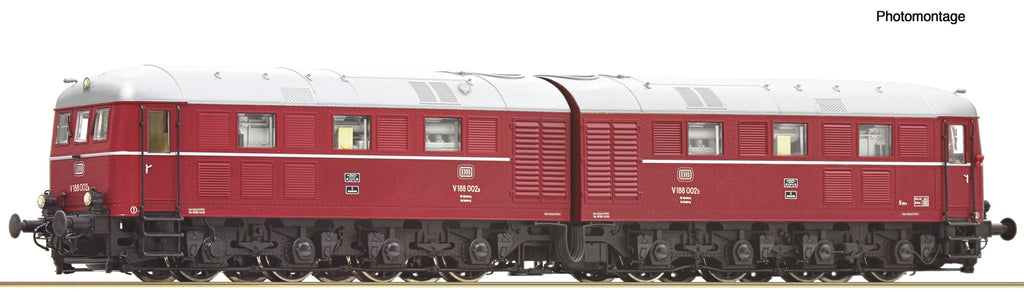

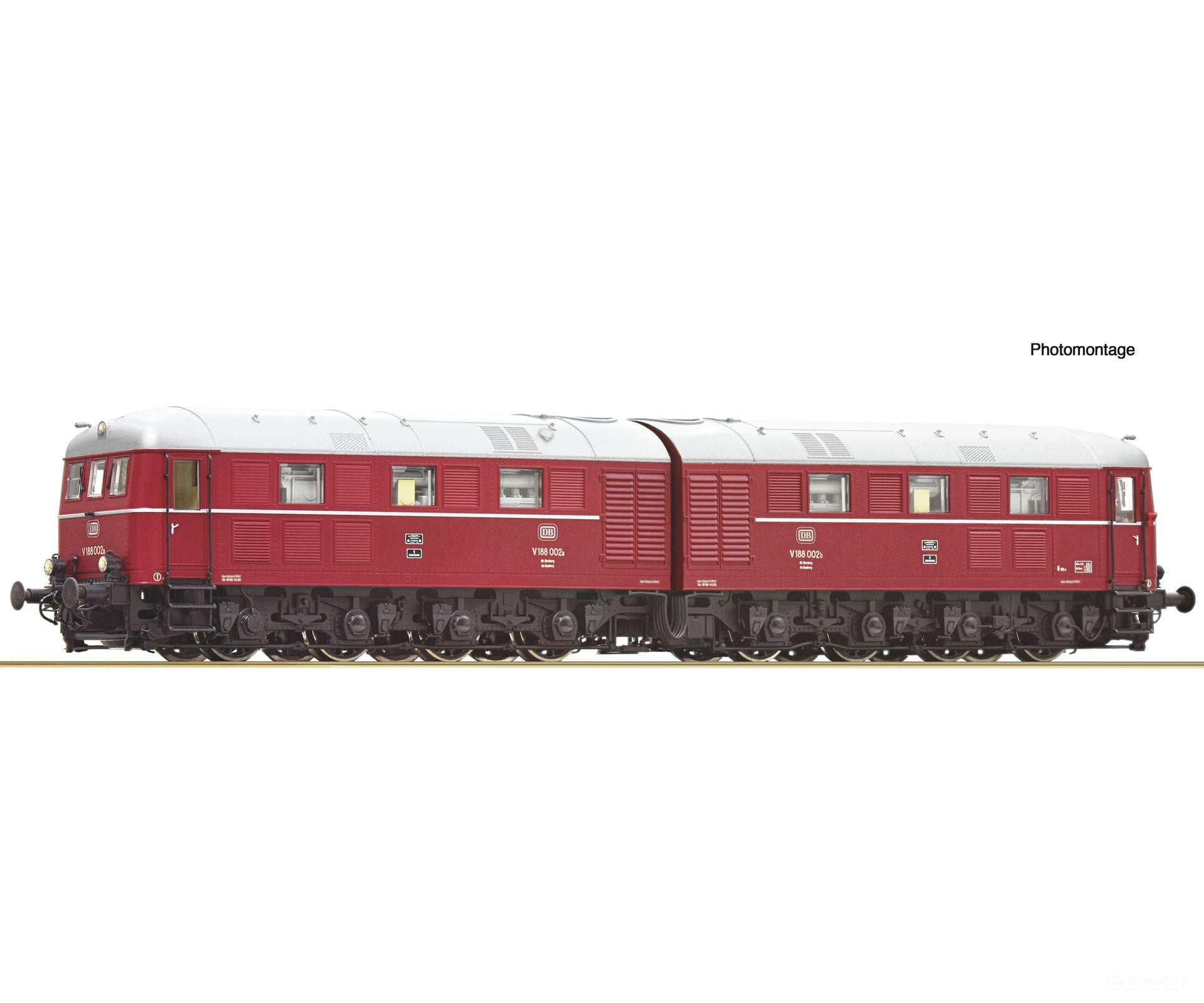

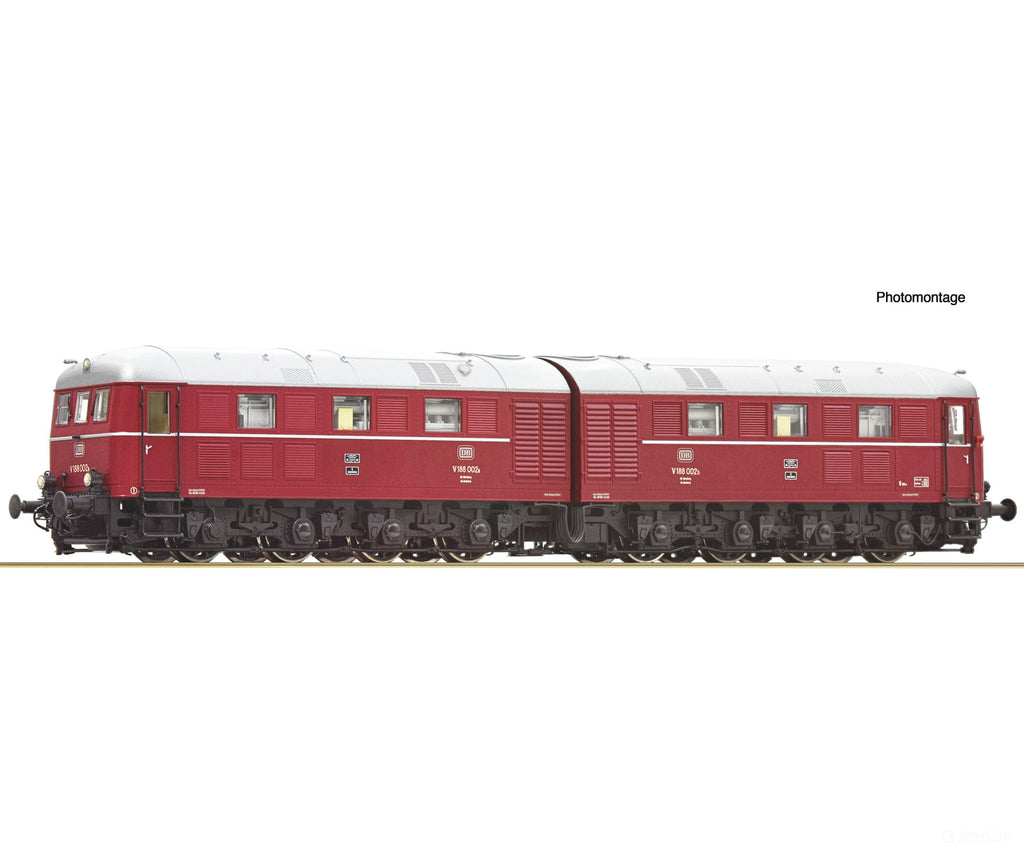

Diesel-electric double locomotive V 188 002 of the German Federal Railway.



Edition model!
Mold variant!

• Epoch IIIb version in red paintwork
• Ventilation component on the roof, pipe with mushroom-shaped cover
• One battery box on the right rear of each locomotive half
• Double locomotive formed by two units coupled together; both units fully equipped with a motor
• Full reproduction of the transition area between the two units
• Elaborately reproduced engine room
• Finely-detailed model with many separately attached plug-in parts
• Frame with four sandboxes each
• 3 headlights depending on direction of travel and two red tail lights
• Roof fan grilles are broken through
• Driver's cab, driver's console and control box lighting as well as engine room lighting installed; switchable in digital mode

In 1941 and 1942, a total of four type D 311 double locomotives were put into service by the Deutsche Wehrmacht. They were constructed to haul heavy railroad guns. Two locomotives, the V 188 001 a/b and the V 188 002 a/b, were retained by the German Federal Railway following the war. A third locomotive was used to provide spare parts. These locomotives proved their worth in heavy freight train and shunting services, mainly on the Spessart-Rampe. After damage to the generator, the V 188 001 was phased out in 1968. The V 188 002, later the 288 002, remained in operation in the Franconian region until 1972. Both locomotives were scrapped in 1973.


    General data

  • Coupling: NEM shaft 362 with close coupling mechanism
  • Minimum radius: 358 mm
  • Flywheel: yes
  • Traction tyres: 4
  • Number of driven axles: 4
  • Article number: 7300102
  • EAN: 9005033392345
  • Scale: H0
  • Epoch: III
  • Railway Company: DB

    Electrical

  • Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
  • LED head light: yes
  • Control: DC Analog
  • Interface: Electrical interface for traction units PluX22

    Measurements

  • Length over buffer: 259 mm
