Description

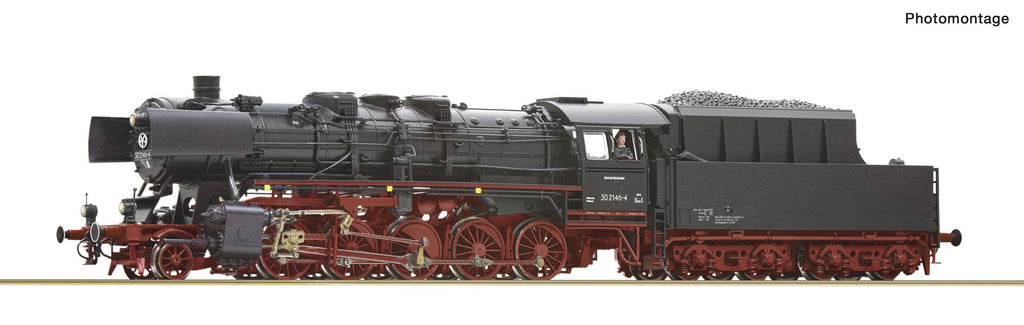

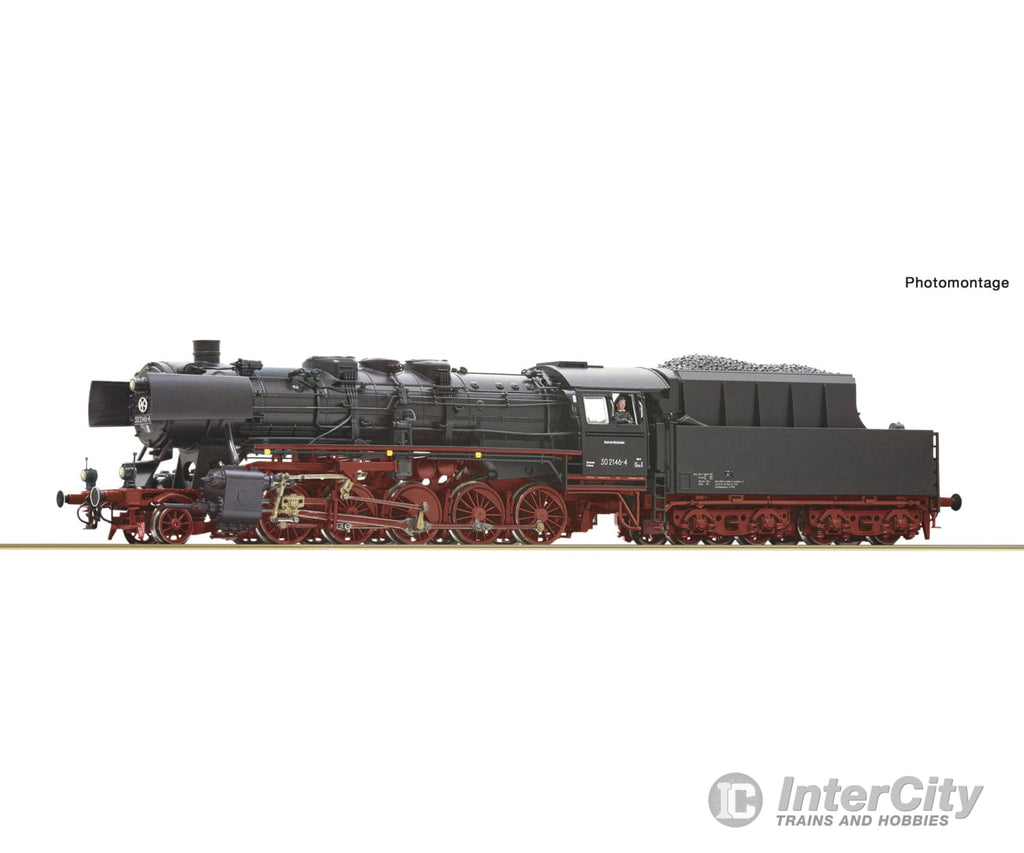

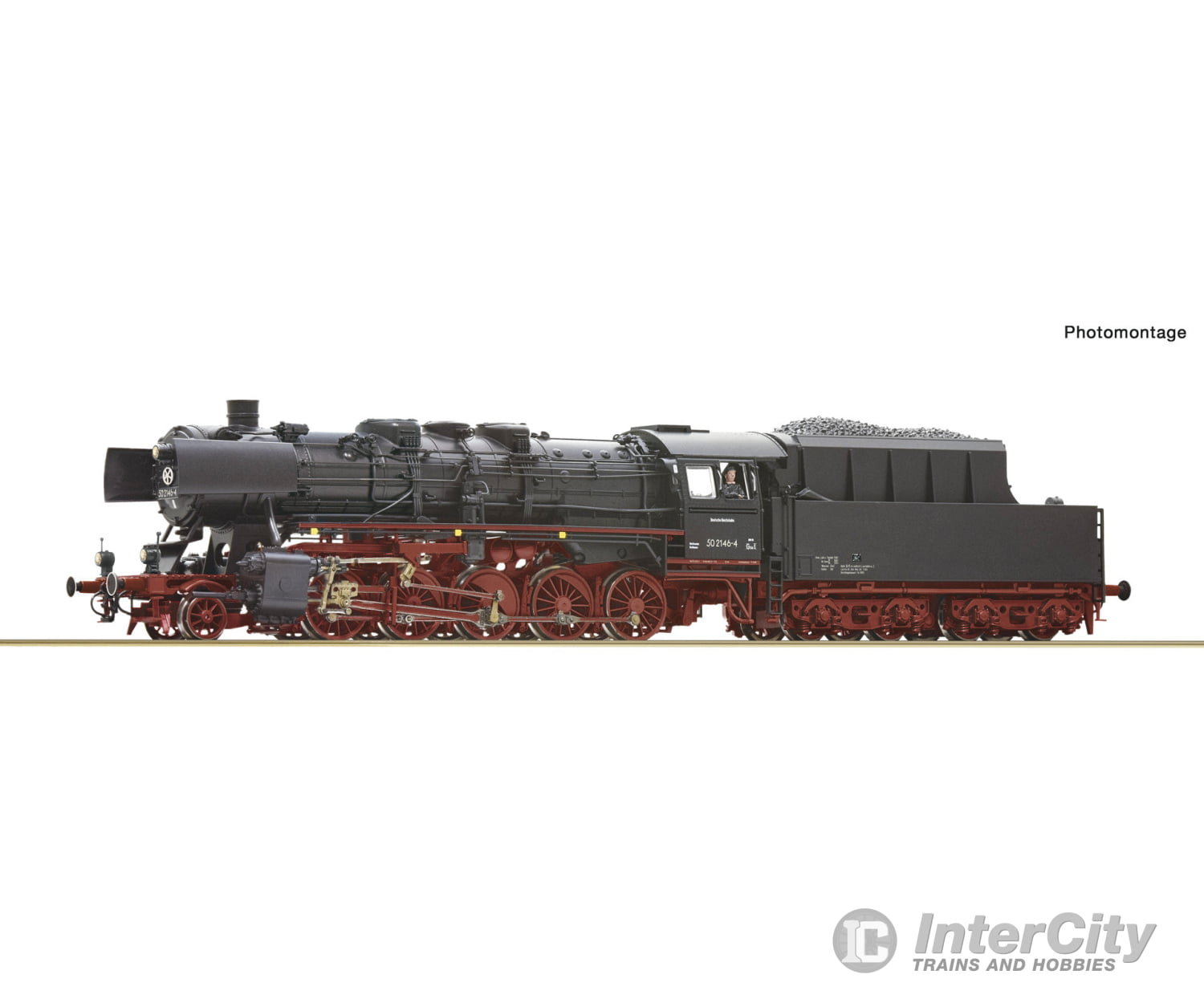

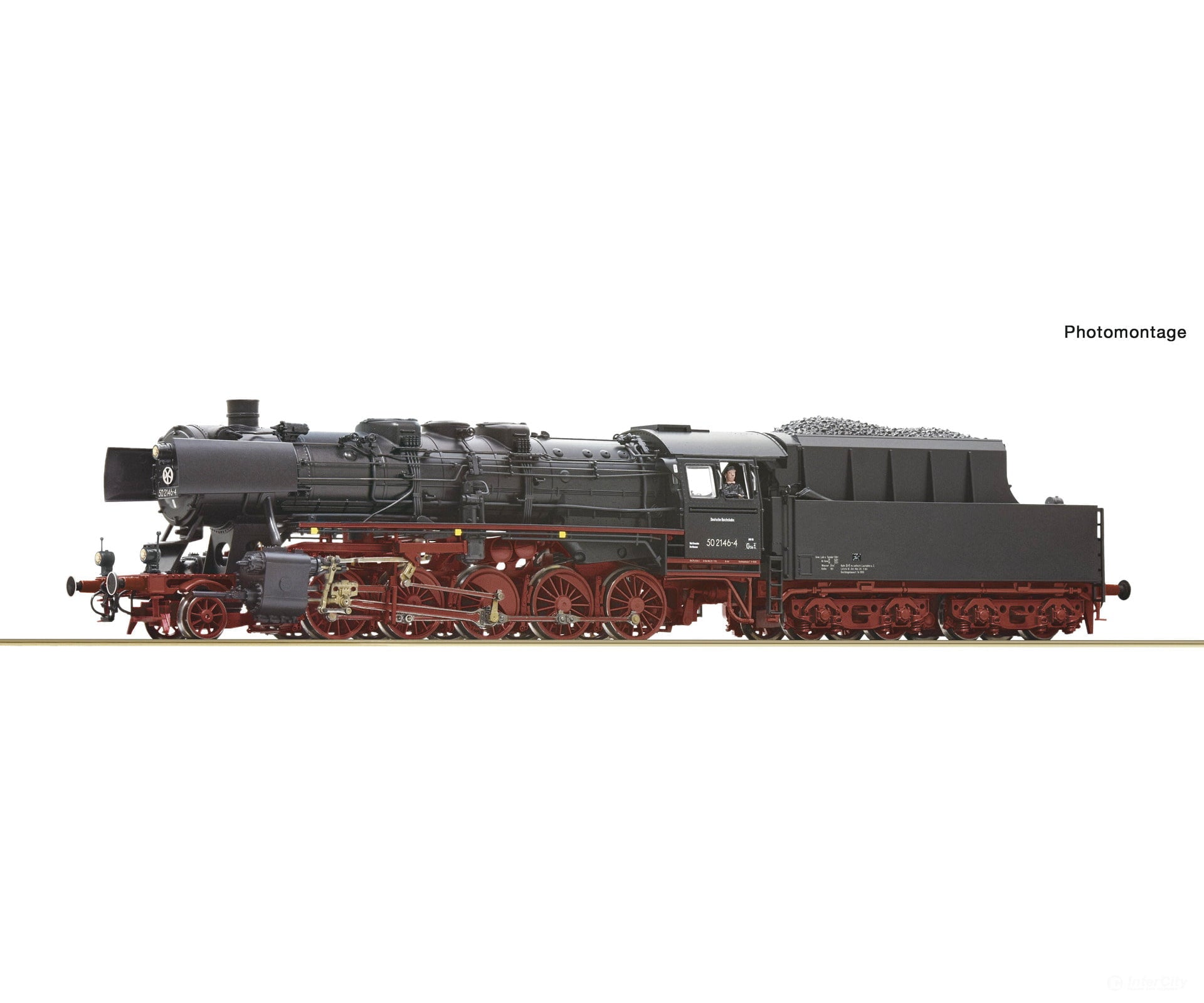

Steam locomotive 50 2146 of the Deutsche Reichsbahn.
Drive on two axles of the tender and via a cardan shaft on all five drive axles of the locomotive.
Three-domed boiler with Witte smoke deflectors
Chassis in red-brown livery
Lamps with grab rails on the front buffer beam
Version with new build-tender
Fine metal wheelsets
Assigned to the Rbd Dresden and the Bw Zwickau
The Class 50 played a more significant role in eastern Germany than in the west. In purely numerical terms, relatively few locomotives remained in the Soviet occupation zone at the end of the war, with only 354 units still present.
Over time, various locomotive-tender combinations emerged. New tenders from Classes 23.10 and 50.40 were increasingly paired with older Class 50 locomotives after they were withdrawn from service. However, because they lacked a continuous rear wall, this combination was not particularly popular with personnel, especially in winter.
- Coupling: NEM shaft 362 with close coupling mechanism at the tender
- Minimum radius: 358 mm
- Flywheel: yes
- Number of driven axles: 7
- Number of axles with traction tyres: 2
- Article number: 7120039
- EAN: 9005033384685
- Scale: H0
- Epoch: III-IV
- Railway Company: DR
General data
- Head light: Both sides of the vehicle are equipped with direction dependent triple headlights.
- LED head light: yes
- Control: AC
- Interface: Electrical interface for traction units PluX16
- Digital decoder: PluX16
- Sound: yes
Electrical
- Length over buffer: 265 mm
Measurements
