Description

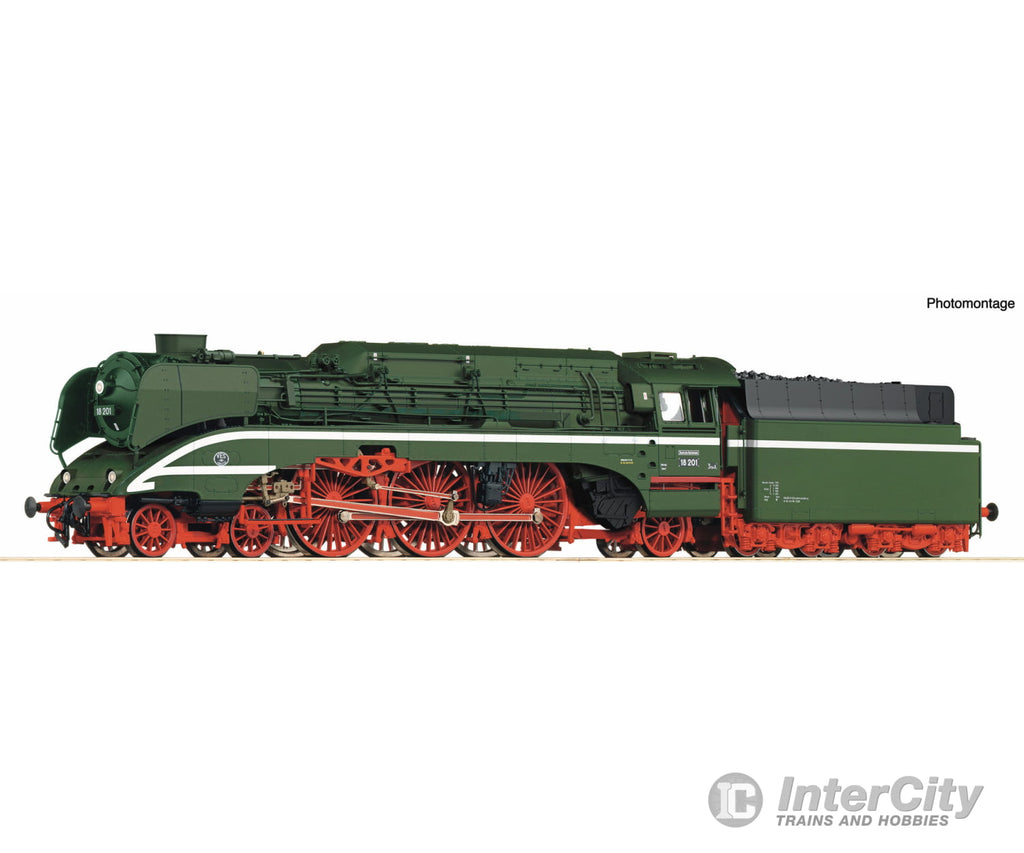

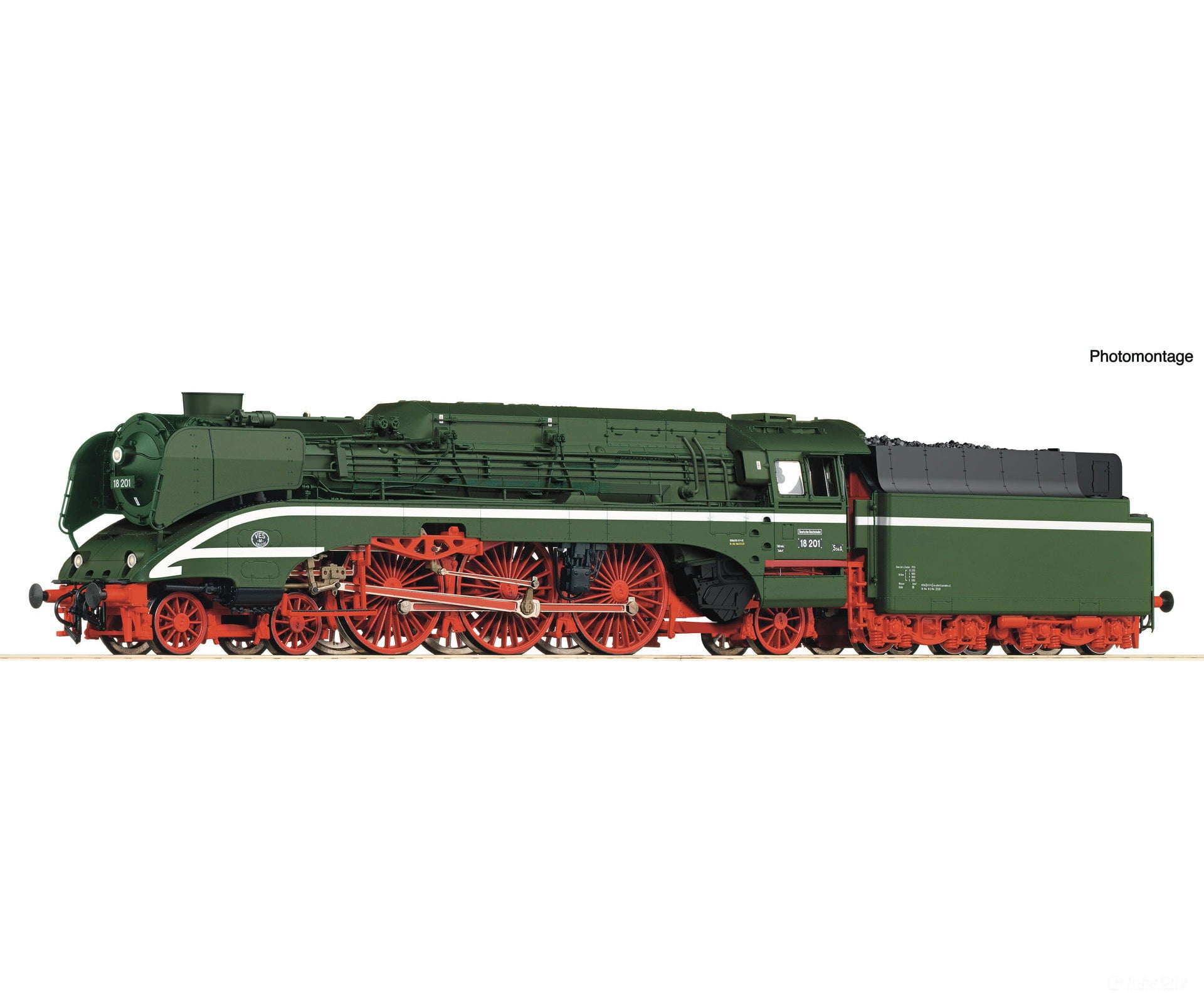

High-speed steam locomotive 18 201, coil-fired of the German State Railway.
Drive on two axles of the tender and via cardan shaft on all three locomotive driving axles.
Edition model!
Form variation!
Update!
Prototypical implementation of the design with coal firing
For the first time with PluX16 interface and LED lighting
Trim line with triple tip
Finely-detailed metal wheelsets
Driver's cab and valve gear lighting switchable in digital mode
Smoke generator can be retrofitted
The Halle Research Institute needed another high-speed steam locomotive to test new passenger coaches in the 1960s. The new engine 18 201 was created from high-speed tender locomotive 61 002 and parts of high-pressure test locomotive H 25 024. The steam generator was a modified new boiler construction of the 22 class with an extended smoke chamber and Giesl ejector. The machine was equipped with a counter-pressure brake to ensure that the speed was maintained precisely when travelling at high speed. Fast travel meant up to 175 km/h, because the 18 201 was initially approved for this maximum speed - later 180 km/h - but of course only forwards.
- Coupling: NEM shaft 362 with close coupling mechanism at the tender
- Minimum radius: 358 mm
- Flywheel: yes
- Number of driven axles: 5
- Number of axles with traction tyres: 2
- Article number: 7120006
- Scale: H0
- Epoch: III
- Railway Company: DR
General data
- Smoke generator Article number (digital): Seuthe steam unit no. 11
- Smoke generator retrofittable: yes
- Head light: Direction dependent triple front headlights and dual rear headlights.
- LED head light: yes
- Interior lighting: Yes, LED, Digital switchable, Driver's cab lighting
- Control: AC
- Interface: Electrical interface for traction units PluX16
- Digital decoder: PluX16
- Sound: yes
Electrical
- Length over buffer: 289 mm
Measurements
