Description

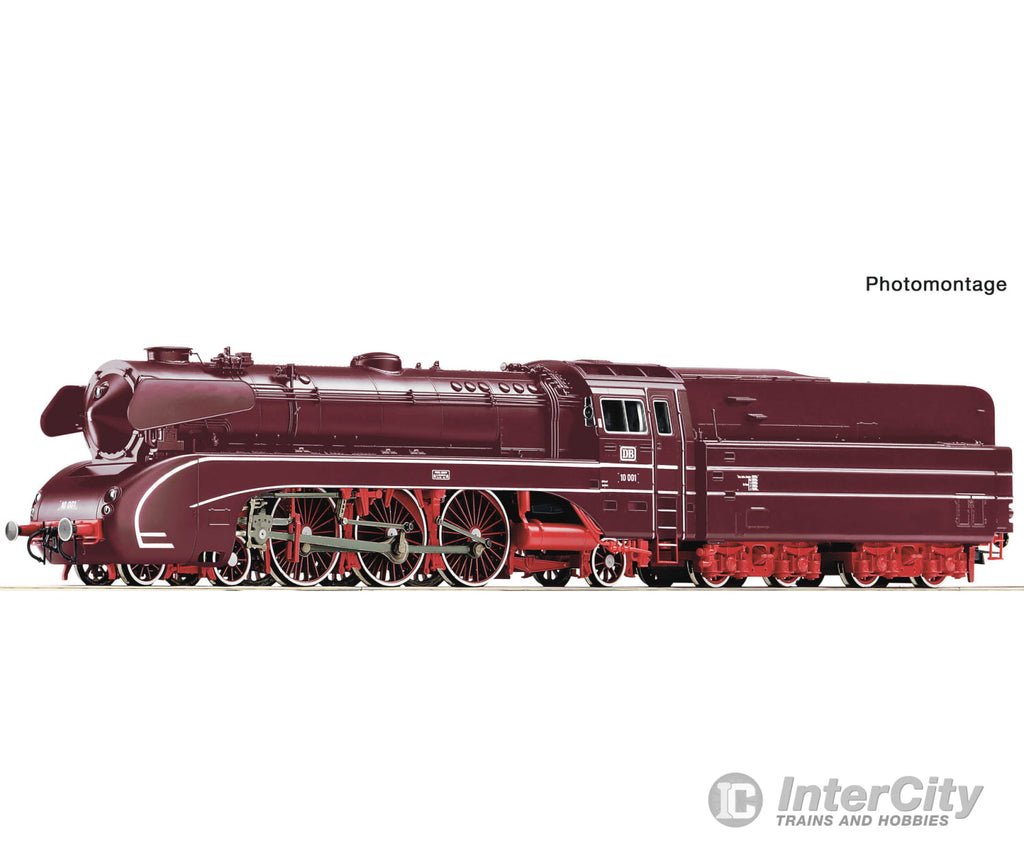

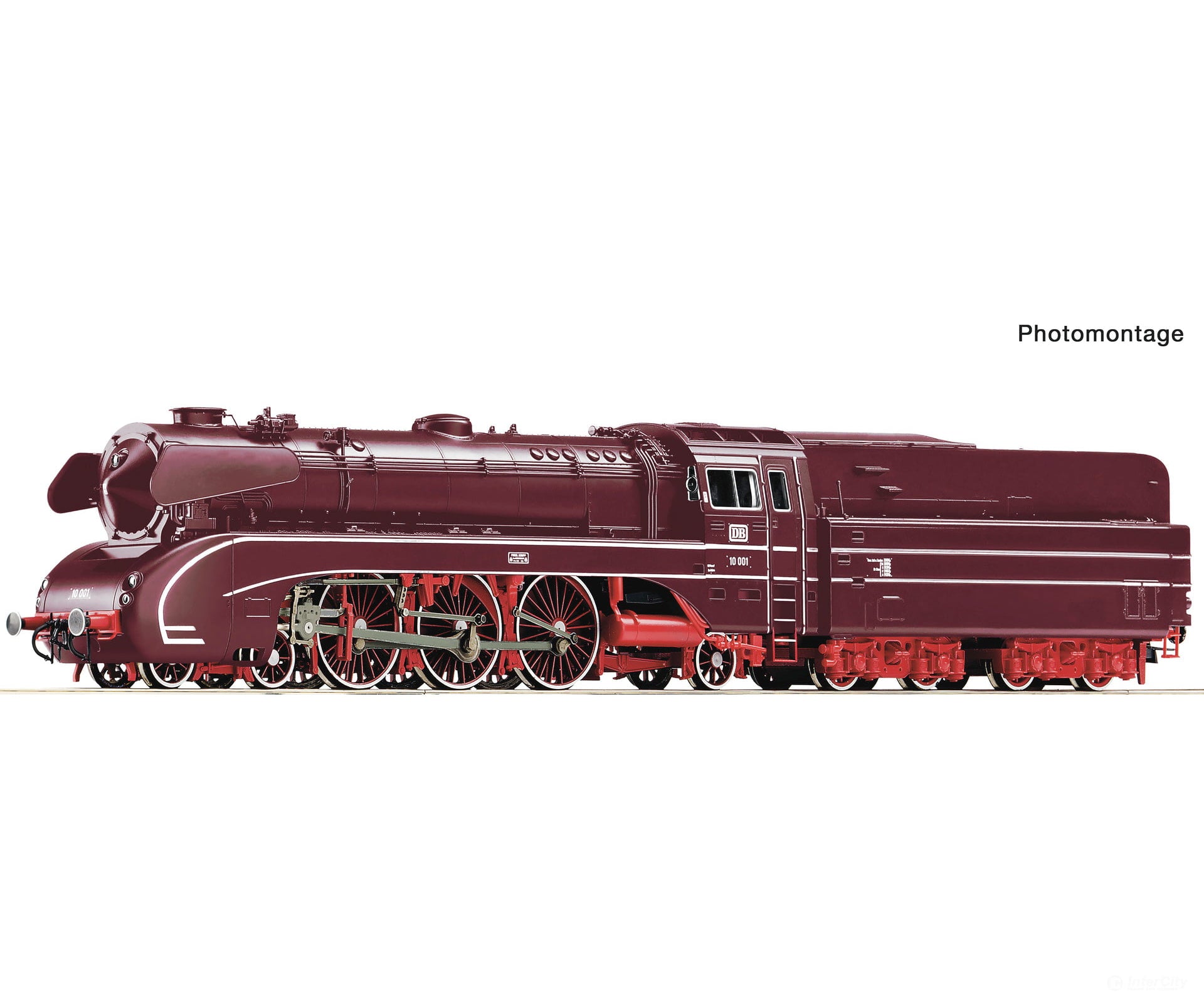

Steam locomotive 10 001 of the Deutsche Bundesbahn.
Edition model!
Design study - Version Eßlingen 1
Cylinder-stroke-synchronous, dynamic steam exhaust
Steam release also at the cylinders
With driver's cab and engine illumination
Raised, chrome-plated decorative lines
Fine-spoked metal wheels on the locomotive
LED headlights white/red change with the direction of travel
The new Pacific Class 10 express steam locomotive of the Deutsche Bundesbahn was expected, of course, to be elegant in both design and appearance. So the locomotive builders and the Technical Joint Office of the Locomotive Industry (TGB) were invited to present various design variants. 36 were published.
The first proposal, from Maschinenfabrik Eßlingen, was an extremely dynamic-looking locomotive in a rust-red livery (like the class 05). Future colour schemes were discussed at meetings of the Locomotive Committee between December 1955 and February 1956, but no decision was taken as to which designs should be chosen.
- Coupling: NEM shaft 362 with close coupling mechanism at the tender
- Minimum radius: 419 mm
- Flywheel: yes
- Number of driven axles: 2
- Number of axles with traction tyres: 2
- Article number: 7110015
- Scale: H0
- Epoch: III
- Railway Company: DB
General data
- Motor: 5-pole motor
- Switchable smoke generator: yes
- Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
- LED head light: yes
- Additional light function: yes
- Interior lighting: Yes, LED, Digital switchable, Driver's cab lighting
- Control: DC Digital
- Interface: Electrical interface for traction units PluX22
- Digital decoder: PluX22
- Sound: yes
- Buffer capacitor: yes
Electrical
- Length over buffer: 305 mm
Measurements
