Roco 7100046 HO Steam locomotive 50 1751, DB , DC Analog

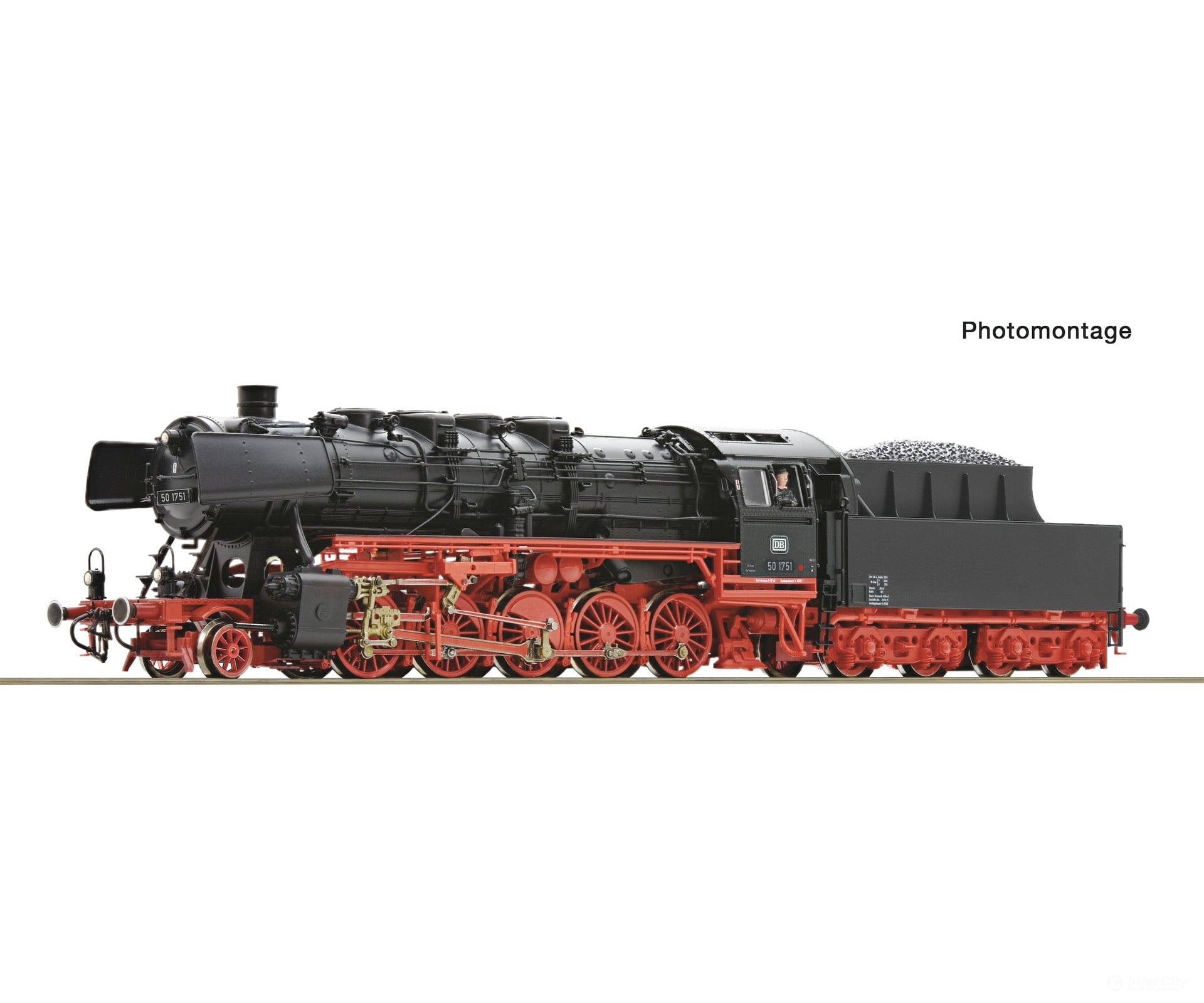

Steam locomotive 50 1751 of the Deutsche Bundesbahn

Drive on two axles of the tender and via cardan shaft to all five driving axles of the locomotive.

• 4-dome boiler design without bell
• With small lamps on the front buffer beam
• Fine metal wheel sets and drive and coupling rods made of cast metal

Originally, the class 50 locomotives were equipped with a bell. During the implementation of safety compliance measures, the bell was removed. Later, due to boiler replacements and conversions, locomotives with lower numbers were also found to be without bells.

General data

• Coupling: NEM shaft 362 with close coupling mechanism at the tender
• Minimum radius: 358 mm
• Flywheel: yes
• Number of driven axles: 7
• Number of axles with traction tyres: 2
• Article number: 7100046
• EAN: 9005033385965
• Scale: H0
• Epoch: III
• Railway Company: DB

Electrical

• Head light: Both sides of the vehicle are equipped with direction dependent triple headlights.
• LED head light: yes
• Control: DC Analog
• Interface: Electrical interface for traction units PluX16

Measurements

• Length over buffer: 265 mm
