Description

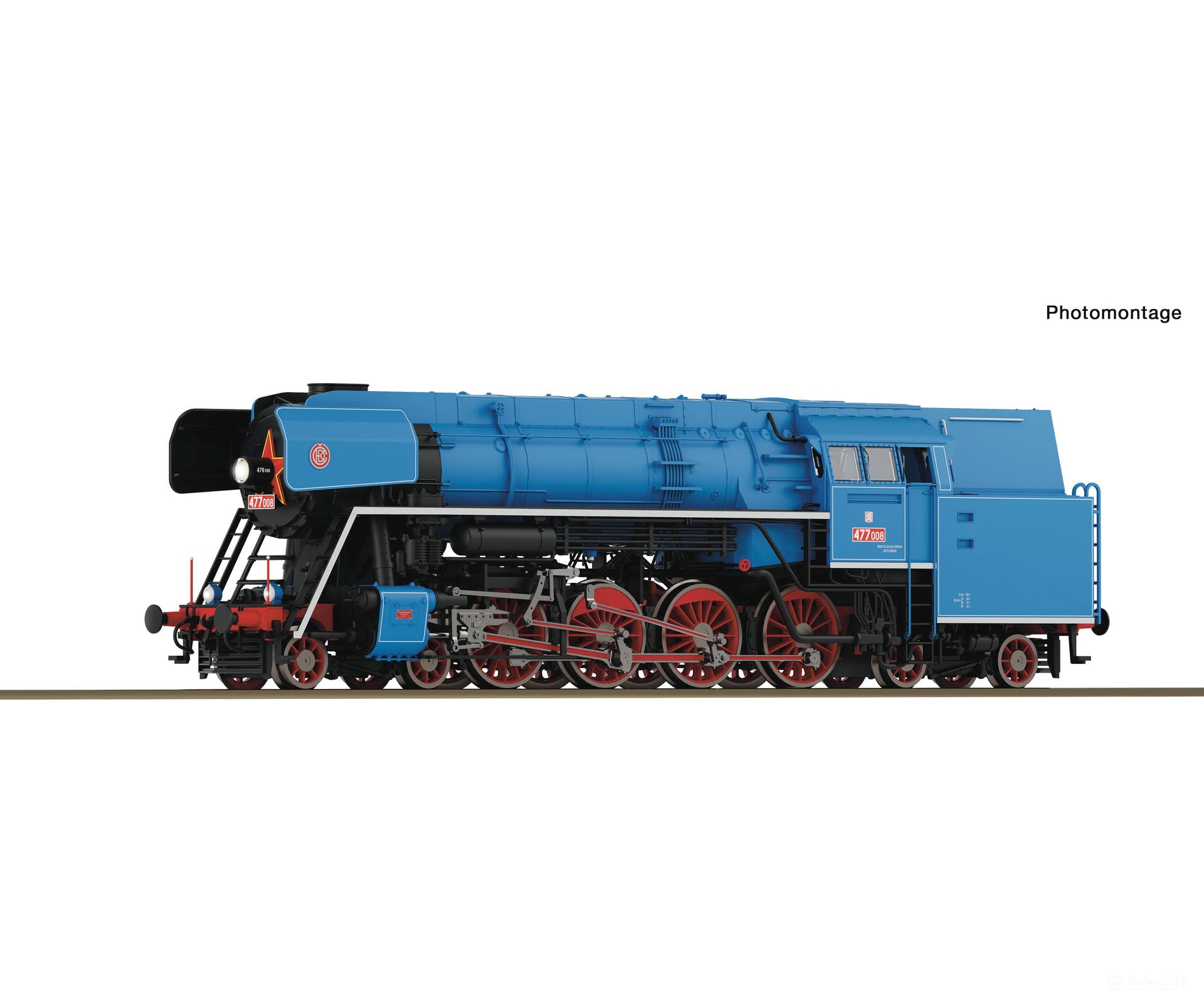

Steam locomotive 477 008 of the Czechoslovak State Railways.
Edition model!
Completely new design
First series version
Completely unobstructed view between the boiler and frame
Particularly delicate piping under the boiler
Striking star attached to the smoke box door
Delicate spoked wheels
Parts of the model made of metal
Detailed design of the driver's cab
Striking blue paintwork with white decorative elements
CSD class 477.0 is the last and most technically sophisticated steam locomotive class of the Czechoslovak State Railways (ČSD). A total of 60 models were manufactured by the CKD (CKD Sokolovo in Prague) between 1951 and 1955 and were developed from the previous class 476.1. The engines were designed as powerful express train tank locomotives with a 2'D2' axle arrangement for heavy slow train service and, with a weight in working order of around 131 tonnes, were considered one of the heaviest tank locomotives in Europe at the time.The three-cylinder engines reached a maximum speed of around 100 km/h and had a starting tractive force of almost 110 kN. Visually, class 477.0 was characterised by striking lines with an aerodynamic smoke box, Witte smoke-shield plates and elegant, predominately colourful paintwork with decorative lines. This earned it the nickname ‘Papousek' (parrot) in everyday operation.
- Coupling: NEM shaft 362 with close coupling mechanism at the tender
- Minimum radius: 358 mm
- Flywheel: yes
- Number of driven axles: 4
- Number of axles with traction tyres: 1
- Article number: 7100033
- EAN: 9005033077617
- Scale: H0
- Epoch: III
- Railway Company: CSD
General data
- Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
- LED head light: yes
- Control: DC Analog
- Interface: Electrical interface for traction units PluX22
Electrical
- Length over buffer: 199 mm
Measurements
