Description

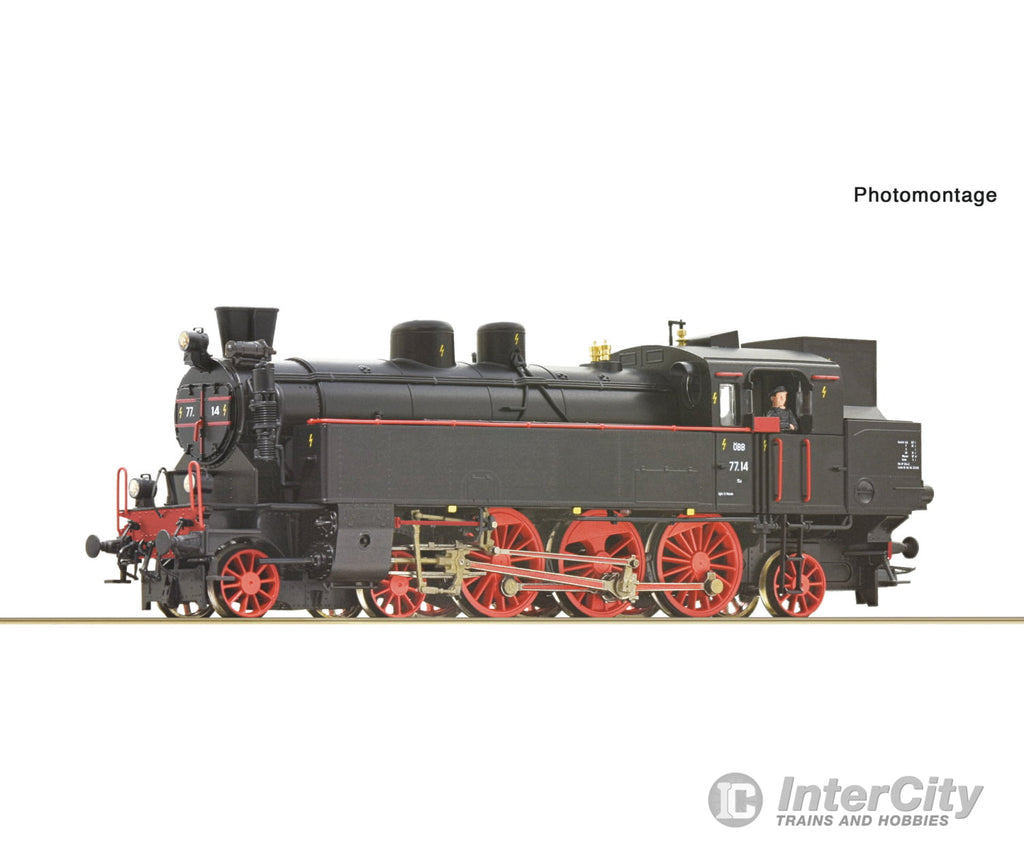

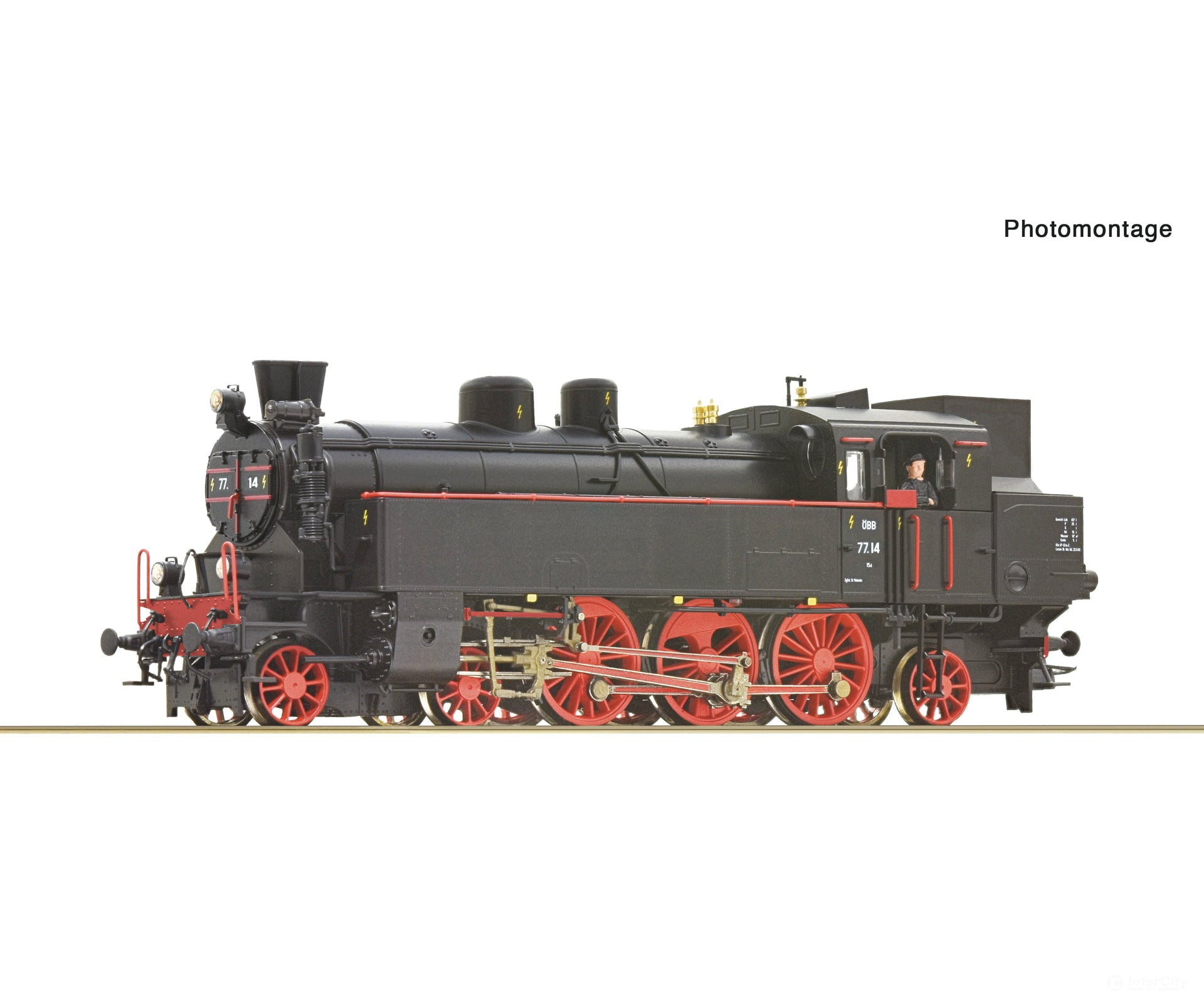

Steam locomotive 77.14 of the Austrian Federal Railways.
Design with Giesl ejector
Without valve on the steam dome
Version with third headlight
Finest wheels with low wheel flanges
Metal buffer
Drive and coupling rods made from fine cast metal
The passenger train tender locomotive designated as class 77 by the Austrian Federal Railways was procured in several classes from 1913 (SB/kkStB class 629) until 1927. The Pacific type 2'C1' h2t steam locomotive was authorised for a maximum speed of 85 km/h. With full water tanks and coal bunkers, a range of up to 200 kilometres was possible. Practically every train haulage operation in Austria was equipped with class 77 locomotives at some point.
The 77.14, which was designed later, was delivered to BBÖ as the 629.29 with factory number 4379 by the StEG machine factory in 1922. After an eventful fifty years, it was taken out of service in November 1972.
- Coupling: NEM shaft 362 with close coupling mechanism
- Minimum radius: 358 mm
- Flywheel: yes
- Number of driven axles: 3
- Number of axles with traction tyres: 1
- Article number: 70077
- Scale: H0
- Epoch: III
- Railway Company: ÖBB
General data
- Head light: Both sides of the vehicle are equipped with direction dependent triple headlights.
- LED head light: yes
- Control: DC Analog
- Interface: Electrical interface for traction units PluX22
Electrical
- Length over buffer: 153 mm
Measurements
