Marklin 55125 1 DR Class 18 Steam Locomotive MFX Digital Sound

Marklin 1 55125

Price:
Sale price$4,935.00 CAD

Shipping calculated at checkout

Stock:
Sold out / Backorder

CONDITION: New

SCALE: 1

RAILWAY: DR (Germany)

COUNTRY: Germany

ERA: Era 3 (1945-1970)

UPC: 4001883551258

Description

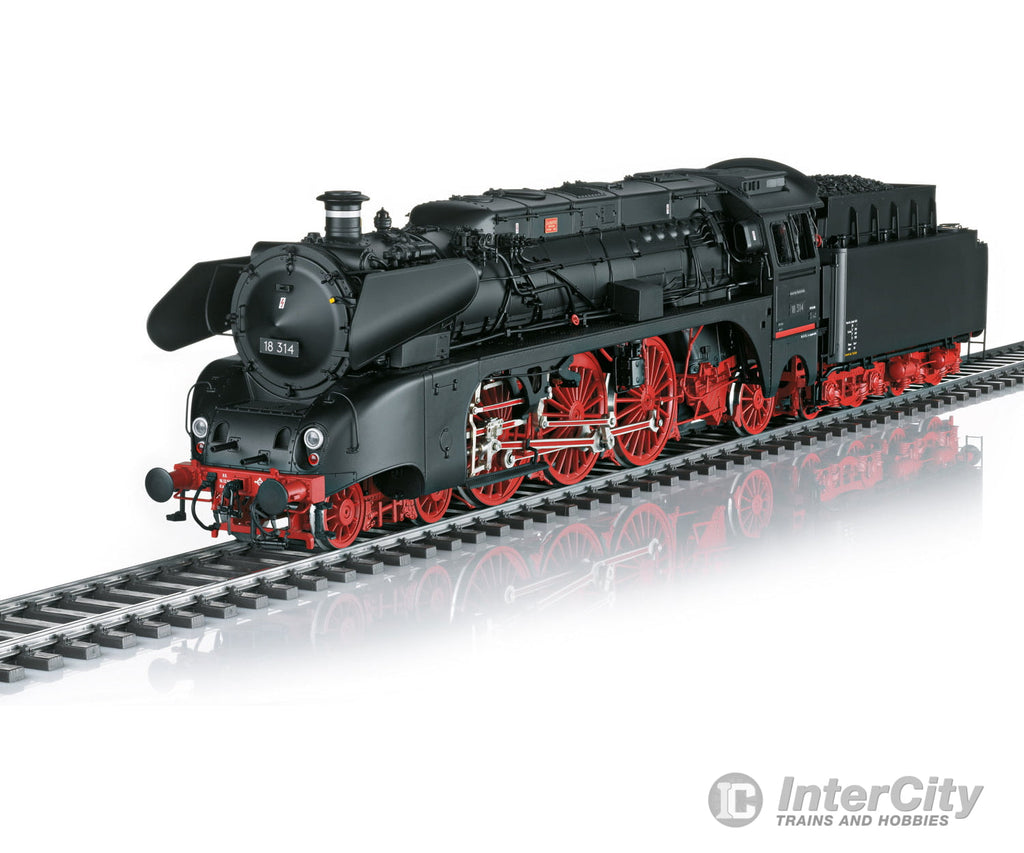

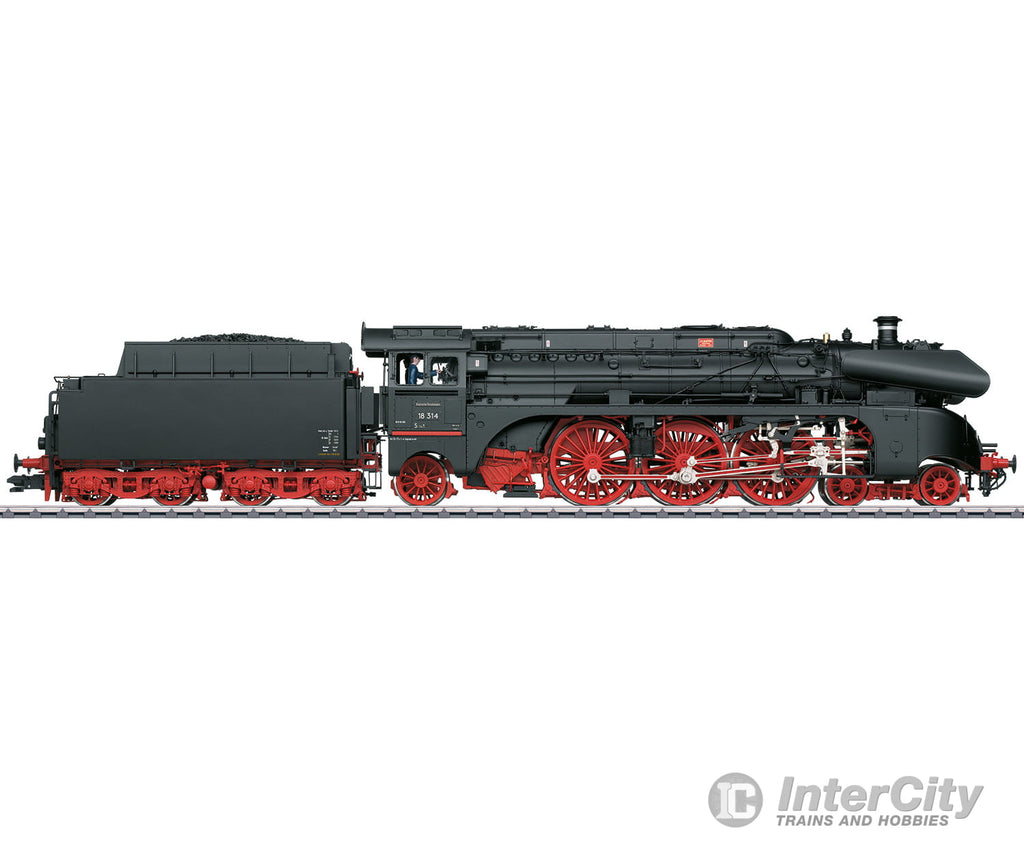

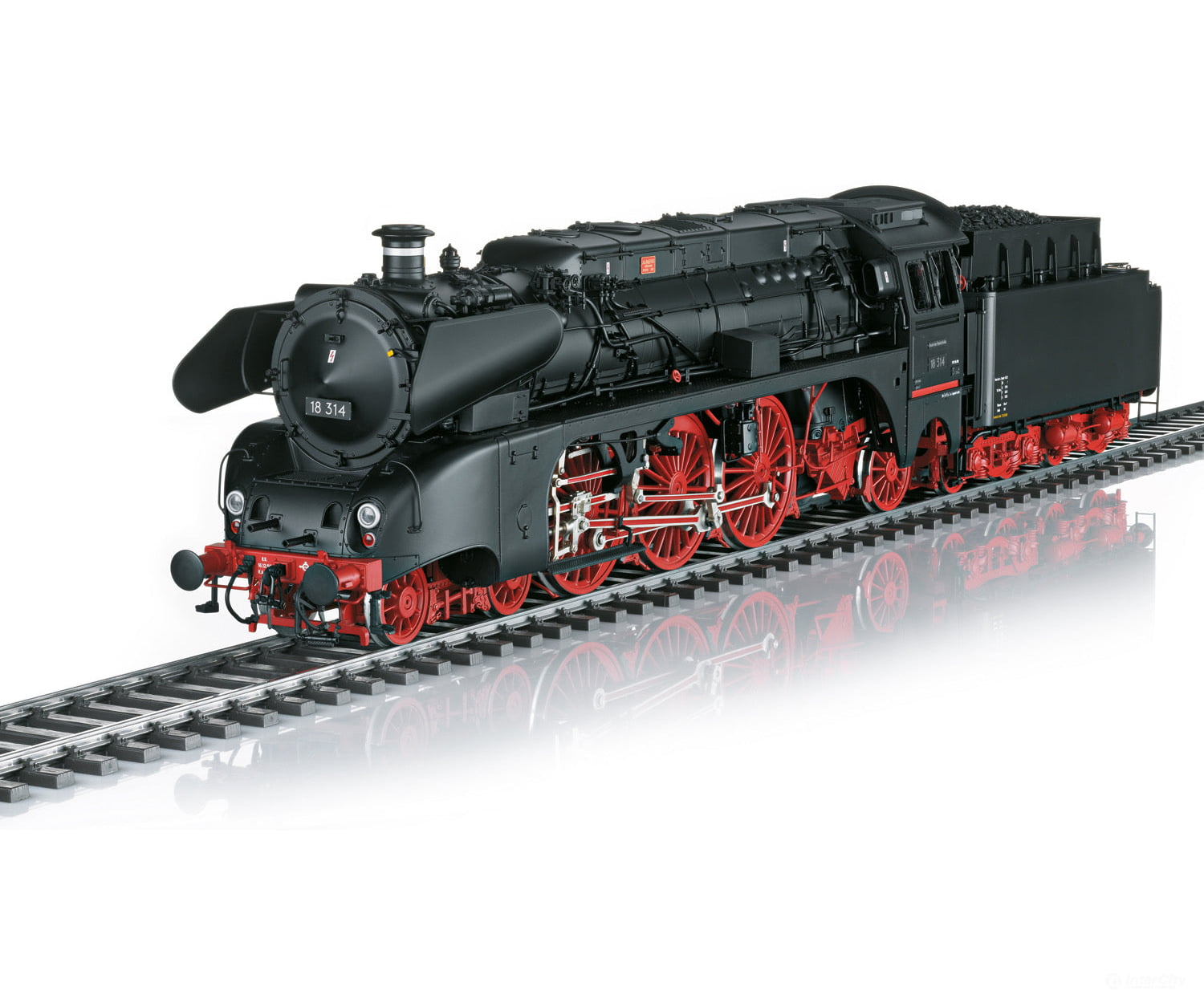

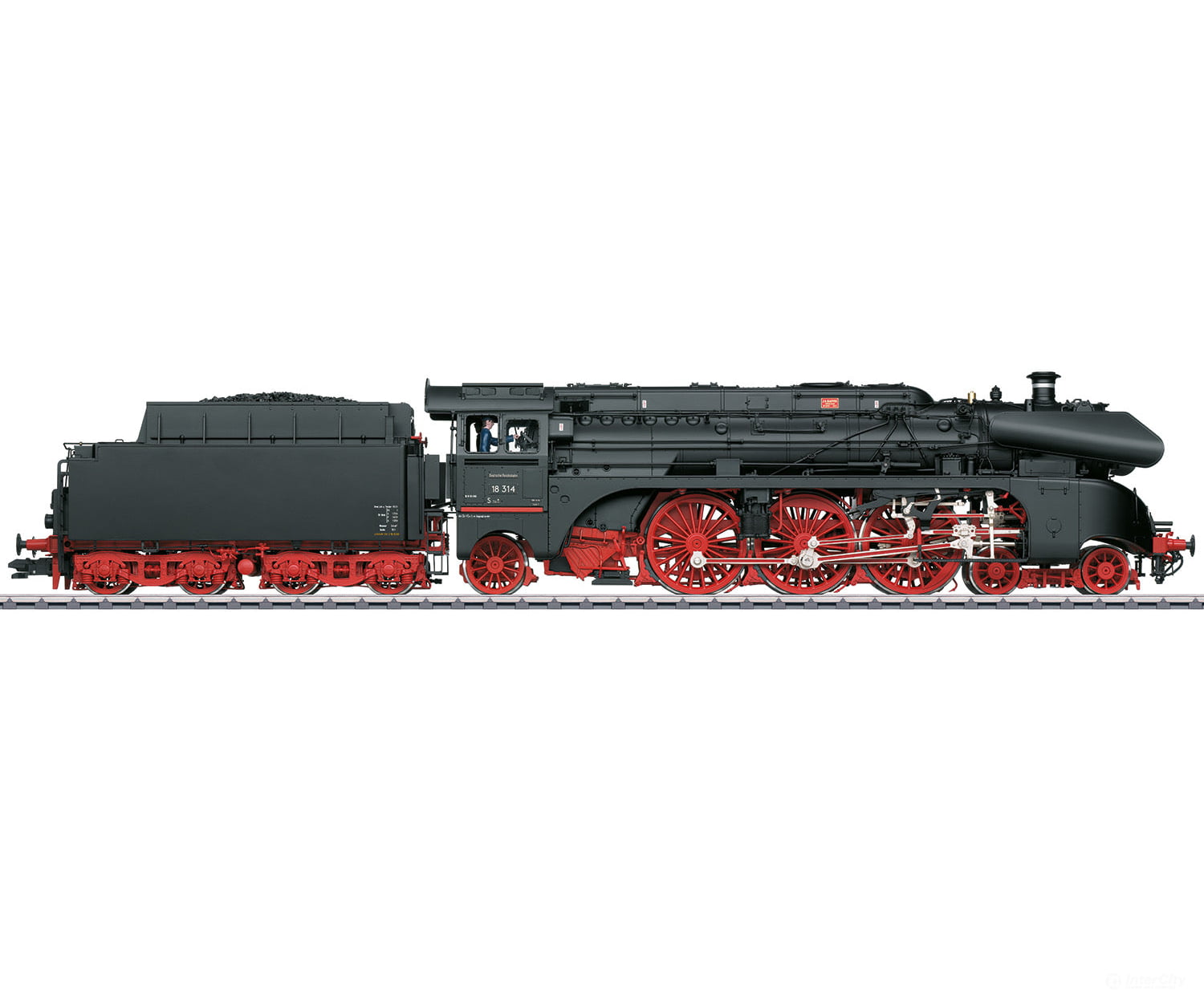

Prototype: GDR German State Railroad (DR/GDR) express steam locomotive, road number 18 314 with coal firing and a type 2´2´T24 coal tender. Rebuilt version as an experimental locomotive of the VES-M Halle (Saale) (Railroad Research and Development Locomotive Management Department). Version with a "Reko" rebuilt boiler and partial streamlining, using road number 18 314 (former Baden IVh) as a basis. Witte smoke deflectors and inductive magnet on one side included. The locomotive looks as it did around 1960.

Highlights

  • Completely new tooling.
  • Highly detailed full metal construction.
  • Frame, superstructure, boiler, etc. constructed of die-cast zinc, separately applied parts constructed of brass.
  • Decoder generation with a current buffer and up to 32 functions.
  • Smoke unit with smoke exhaust and f/r cylinder steam synchronized with the wheels and a steam whistle.
  • Special function: The locomotive engineer activates the controller (servo activated)
  • Load-controlled operating sounds synchronized with the wheels.
  • Smoke box door and dome hatches can be opened, many original details included.
  • Headlights with a light color correct for the era and warm white LEDs.
  • Red marker light that can be controlled.
  • Cab lighting.
  • mfx decoder for operation with AC power, DC power, Märklin Digital, and DCC.
  • Valve gear switchover (forward, reverse, continuous operation) in 3 steps with a servomotor.
  • Telex coupler on the rear, reproduction prototype coupler on the front (one (1) more of each included with the locomotive).

Model: The locomotive is completely new tooling constructed of metal. The frame, locomotive body with boiler, and the cab are constructed of die-cast zinc. Other separately applied parts are mostly constructed of metal (brass). This is an extensive model with many separately applied elements and a highly detailed cab. The smoke box door can be opened. The cab doors and much more can be opened. The locomotive has an mfx digital decoder with 32 functions, controlled high efficiency propulsion, and a sound generator with operating sounds synchronized with the wheels as well as extensive sound functions. It can be operated with AC power, DC power, Märklin Digital, and DCC. The locomotive has a built-in buffer capacitor. All driving axles powered. The locomotive has a built-in smoke unit with smoke exhaust and multi-step cylinder steam synchronized with the wheels and a steam whistle. The locomotive has running gear lights and triple headlights with a light color correct for the era and that change over with the direction of travel. The headlights will work in conventional operation and can be controlled digitally. Maintenance-free, warm white LEDs are used for the lighting.

The locomotive has a red marker light that can be controlled and cab lighting. Digitally controlled special function: The locomotive engineer activates the controller (movement activated with a servo as when the locomotive engineer activates the controller in real life). The locomotive comes with sprung buffers. There is a reproduction of the prototype coupler on the front and a remote-controlled Telex coupler on the rear of the tender, which can be replaced by the other type of coupler. The valve gear switchover is in 3 steps (forward, reverse, continuous operation). There is a built-in figure of a locomotive engineer and a fireman.

An accessory package with a reproduction of the prototype coupler, smoke fluid, and gloves are included with the locomotive. The locomotive is mounted on an aluminum base painted black for display purposes. Minimum radius for operation 1,020 mm / 40-3/16". Length over the buffers approximately 73.8 cm / 29". Weight approximately 9.2 kilograms / 20 pounds 4 ounces.

ControlUnit MobileStation MobileStation 2 CentralStation 1/2 CentralStation 3/2*
Mobile Station 2**
Headlight(s) * * * * *
Smoke generator * * * * *
Steam locomotive op. sounds * * * * *
Locomotive whistle * * * * *
Telex coupler on the rear * * * * *
Engineer's cab lighting * * * *
Sanding * * * *
Special Function * * * *
Direct control * * * *
Sound of squealing brakes off * * *
Switching range + switching light * * *
Light Function * * *
Light Function * * *
Injectors * * *
Water Pump * * *
Sound of coal being shoveled * * *
Marker light(s) *
Whistle for switching maneuver *
Conductor's Whistle *
Letting off Steam *
Air Pump *
Surrounding sounds *
Safety Valve *
Tipping grate *
Special sound function *
Replenishing fuel *
Replenishing water *
Replenishing sand *
Switching maneuver *
Rail Joints *
Special sound function *
Special sound function *
