Description

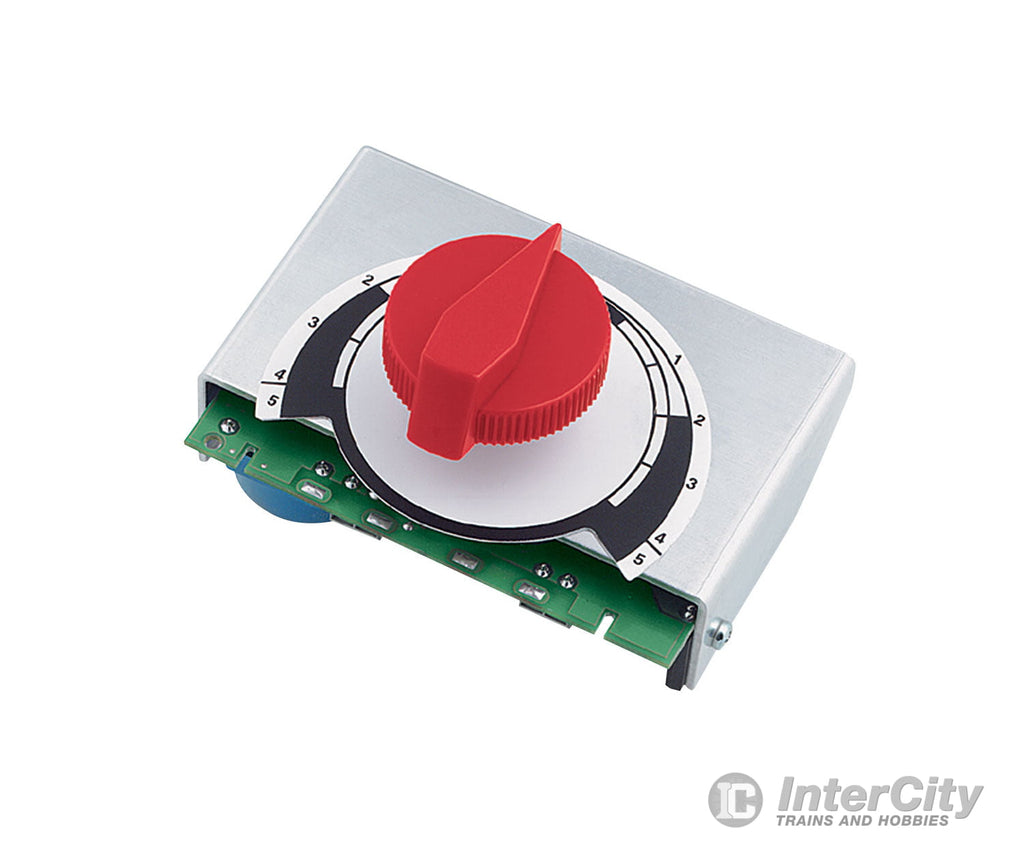

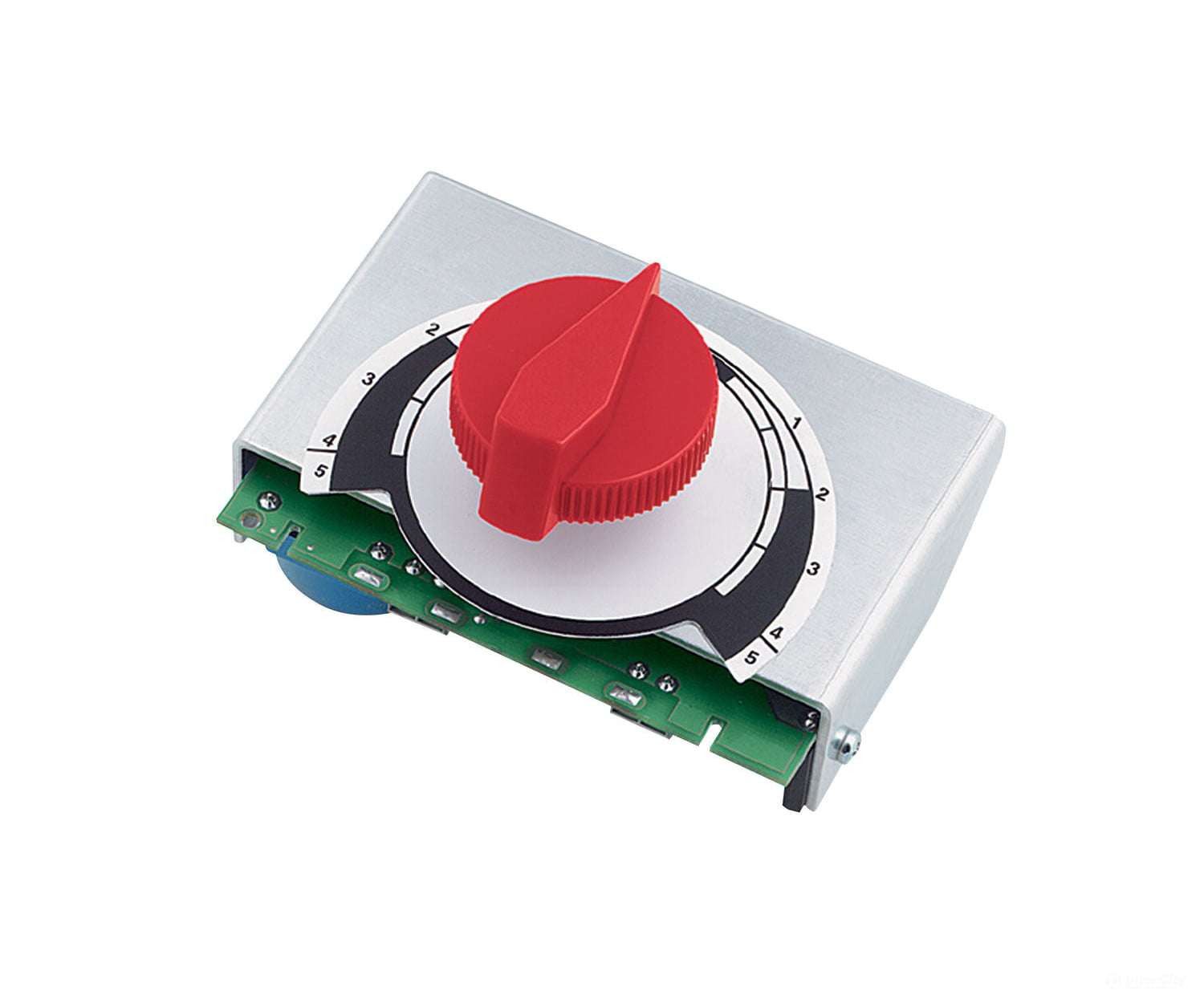

This controller is designed for special uses, such as installation in track diagram control boards. It has increased track current power while generating less heat than its predecessor. Features include: Maximum 5 amps locomotive power / Built-in rectifier, designed for use with any LGB power supply (AC or DC) / SIC (Special Integrated Circuit) technology offers a fine touch for control and a smoothed direct voltage waveform / Indoor and outdoor use / Connections for wires up to 1.5 square millimeters / approximately 15 gauge / Minimal heat generation / Short circuit protection / Output: 0-24 volts DC / Track current power: 5 amps maximum / 100 x 80 x 90 mm / 3-15/16“ x 3-1/8“ x 7/8“.
