Description

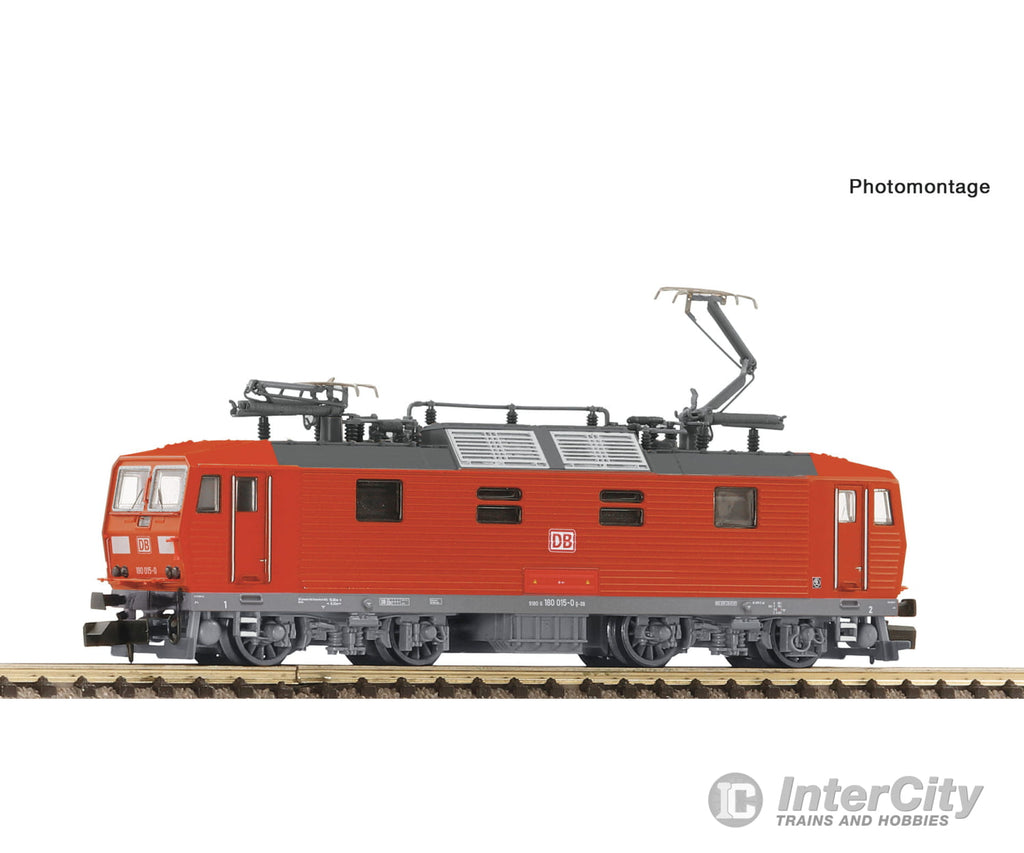

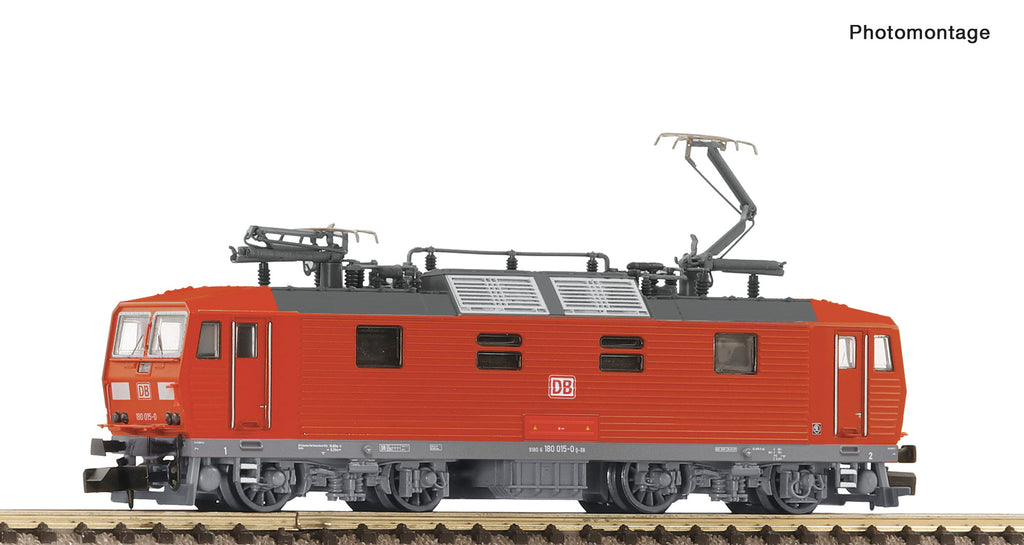

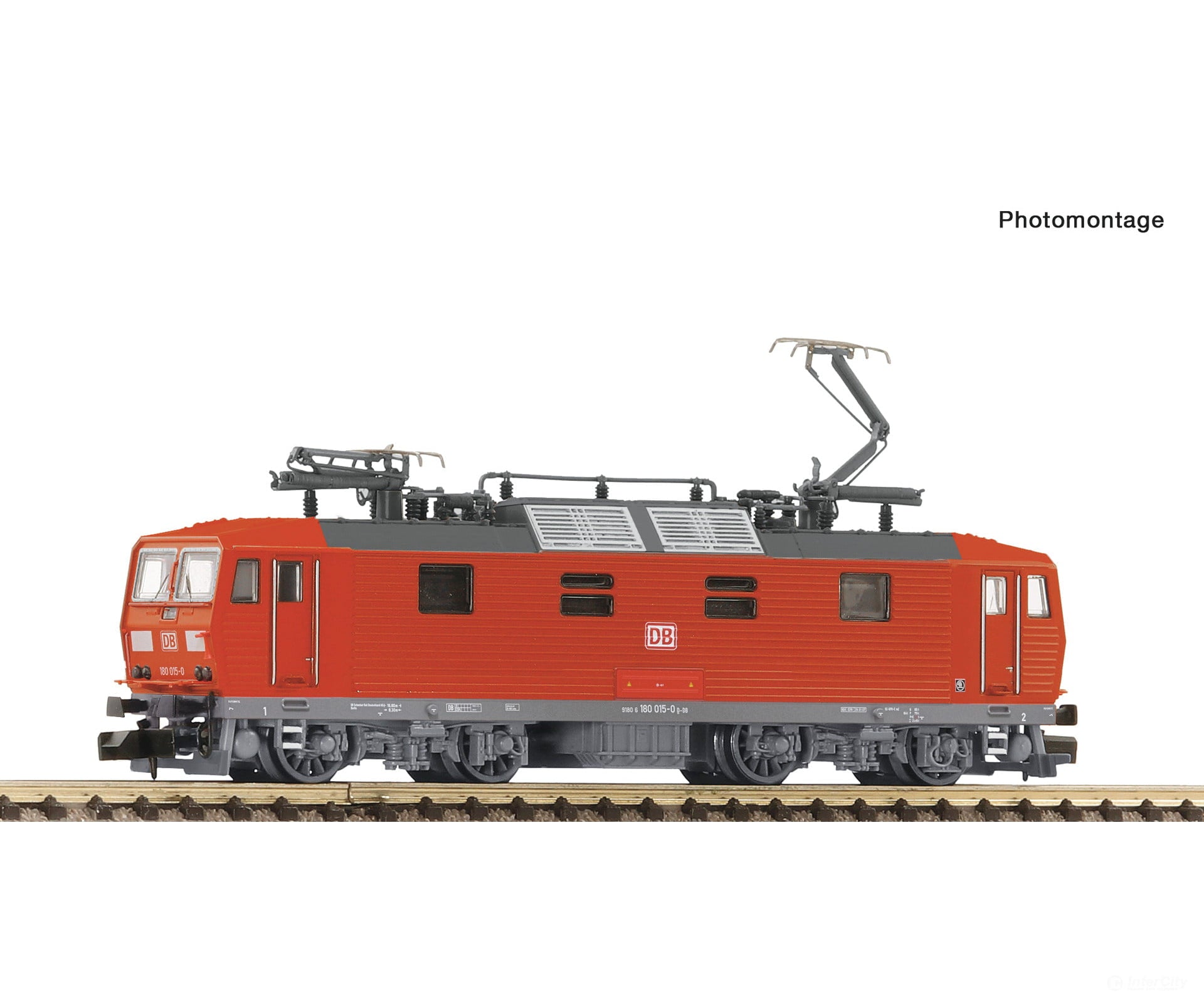

Electric locomotive 180 015 of the Deutsche Bahn.
Rich detailing on the model with many separately applied plug-in parts
Elaborate roof design
In digital operation with switchable headlight/tail light
In the 1980s, the DR purchased electric dual-mode locomotives with the objective of enhancing its ability to manage cross-border traffic operations and the steadily growing traffic volume on the lines between the GDR and Czechoslovakia. However, due to a lack of experience in dual voltage technology (GDR: AC voltage 15 kV/16⅔ Hz, ČSSR: DC voltage 3 kV) and the full capacity production at the electric locomotive manufacturer LEW in Hennigsdorf, the locomotives were built based on the ČSD series ES 499.1. The Skoda locomotive factory had no prior experience in manufacturing locomotives for the AC system 15 kV/16⅔ Hz. Consequently, the AC equipment components were sourced from the GDR. The ČSD's demand led to a double order for Skoda, resulting in 15 locomotives of Class 372 and 20 locomotives of Class 230 for the DR. At the DB AG, the locomotives, with an hourly output of 3,260 kW and a maximum speed of 120 km/h, were renamed Class 180.
- Coupling: NEM shaft 355 with close coupling mechanism
- Minimum radius: 192 mm
- Traction tyres: 2
- Number of driven axles: 4
- EAN: 9005033384791
- Scale: N
- Epoch: VI
- Railway Company: DB-AG
General data
- Motor: 5-pole motor
- Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
- LED head light: yes
- Additional light function: yes
- Sound: yes
- Control: DC Digital
- Interface: Electrical interface for traction units Next18
- Digital decoder: Next18
Electrical
- Length over buffer: 105 mm
Measurements
