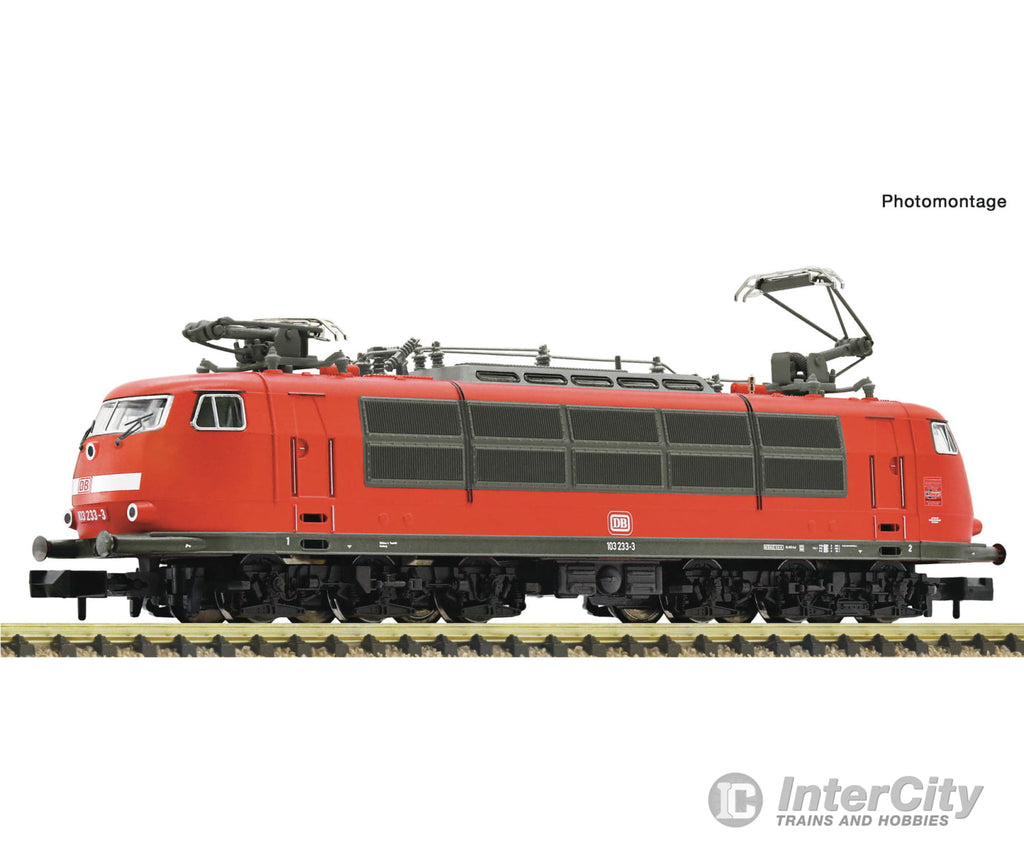

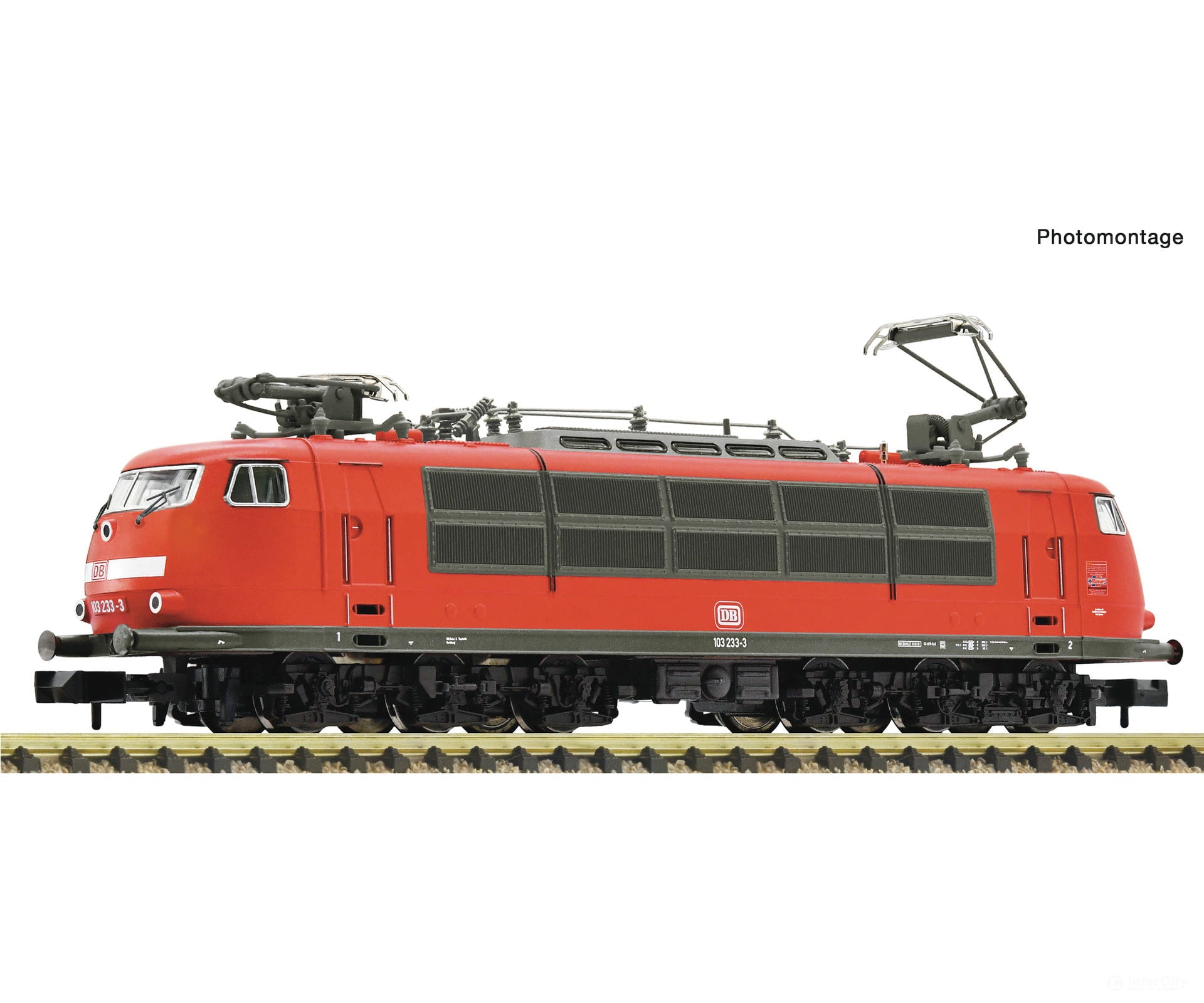

Fleischmann 7570034 N Electric locomotive 103 233-3, DB AG , DCC Digital Sound

Electric locomotive 103 233 of the Deutsche Bahn.

• Model with long driver's cab
• Special livery: Traffic red
• The headlights can be completely or partially switched off with contact plates
• Z21 driver's cab available

In the mid-1960s, the E 03 class was created. It was the most powerful DB locomotive to date and was intended to haul heavy passenger trains. Between 1970 and 1974, 145 series locomotives were put into service. The last 30 locomotives (from 103 216 on) were given an enlarged driver's cab, making them 700 mm longer.
After completing her official service period, many fans of this locomotive class suggested that a new traffic red livery with a colour-contrasting frame be designed for the locomotive. This new design is similar to the classic 103 locomotives, which feature a red/beige colour combination. The ROCO company acted as a sponsor for this livery. As a unique feature during the presentation, the locomotive received a dedication text under each right-hand side cab window.

General data

• Coupling: NEM shaft 355 with close coupling mechanism
• Minimum radius: 192 mm
• Flywheel: yes
• Traction tyres: 2
• Number of driven axles: 4
• Scale: N
• Epoch: V
• Railway Company: DB-AG

Electrical

• Motor: 3 pole motor
• Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
• LED head light: yes
• Additional light function: yes
• Sound: yes
• Interior lighting: Yes, LED, Digital switchable, Engine room lighting
• Control: DC Digital
• Interface: Electrical interface for traction units according to NEM 651 standards with plug-in fixture
• Digital decoder: NEM 651

Measurements

• Length over buffer: 126 mm
