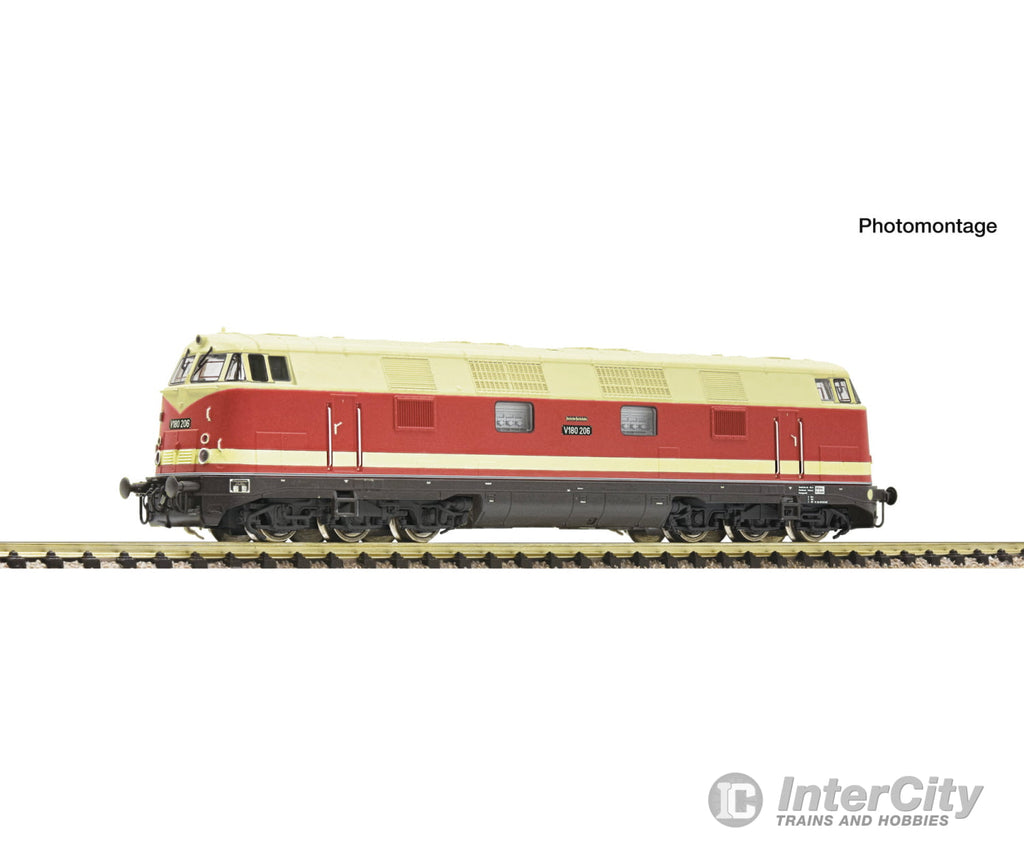

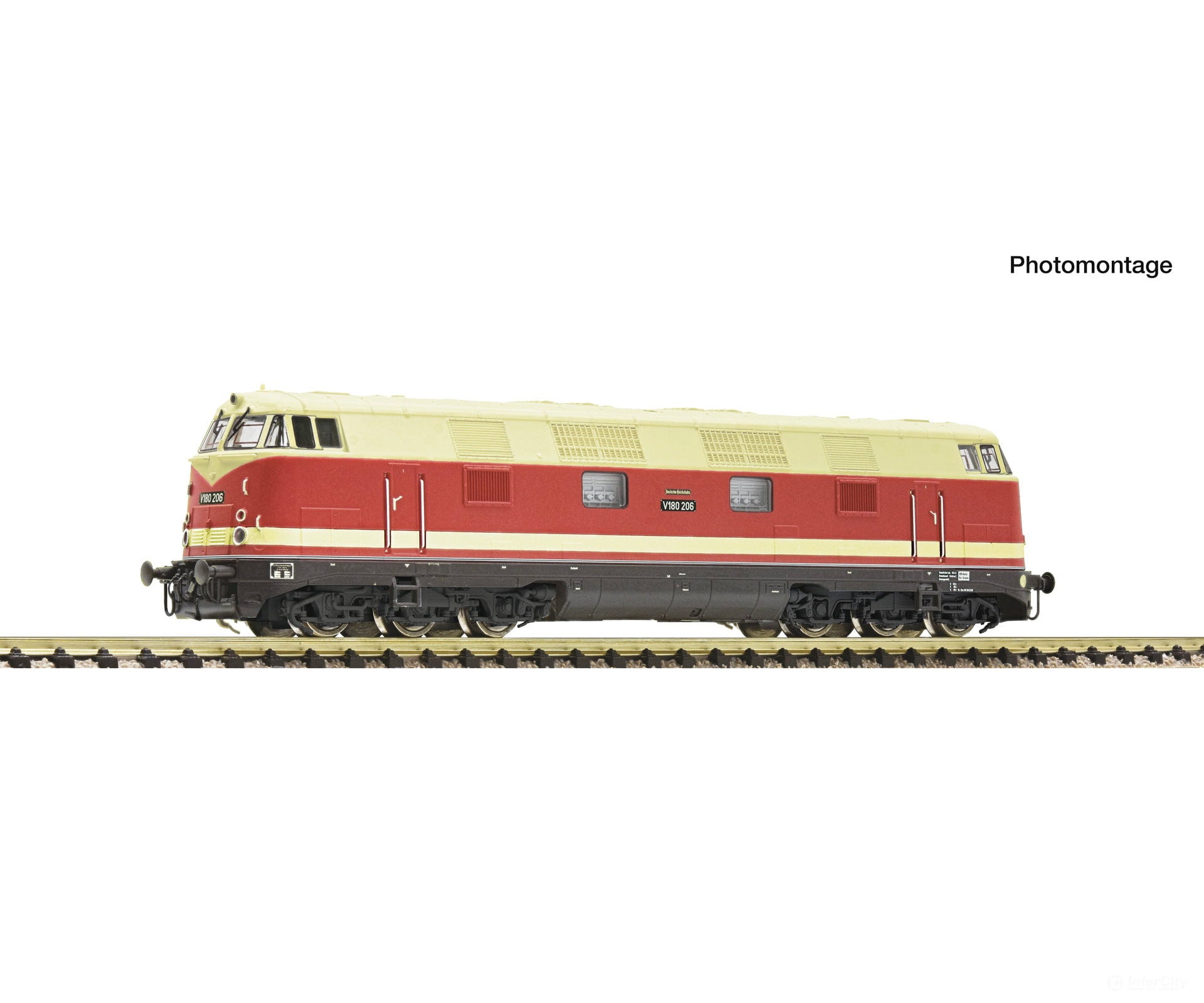

Fleischmann 7360038 N Diesel locomotive V 180 206, DR , DC Analog

Diesel locomotive V 180 206 of the railway company of the German Democratic Republic (Deutschen Reichsbahn).

• 6-axle design with single banderole
• Based at BD Berlin, Grunewald depot
• Switchable rear light with DIP switch

Class V 180 of the railway company of the German Democratic Republic was the largest diesel locomotive built in the GDR. It was initially built as a four-axle version with two 2-axle bogies, later 6-axle variants were also made. The low axle mass of 15.6 tonnes of the six-axle version is still considered an engineering masterpiece today; it means that this locomotive can also be used universally on secondary railways. It also has a licence for steep sections. The area of application that this makes possible is unique for large German diesel locomotives.

General data

• Coupling: NEM shaft 355 with close coupling mechanism
• Minimum radius: 192 mm
• Flywheel: yes
• Traction tyres: 2
• Number of driven axles: 4
• EAN: 9005033390235
• Scale: N
• Epoch: III
• Railway Company: DR

Electrical

• Head light: 3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel
• LED head light: yes
• Additional light function: yes
• Control: DC Analog
• Interface: Electrical interface for traction units Next18

Measurements

• Length over buffer: 121 mm
