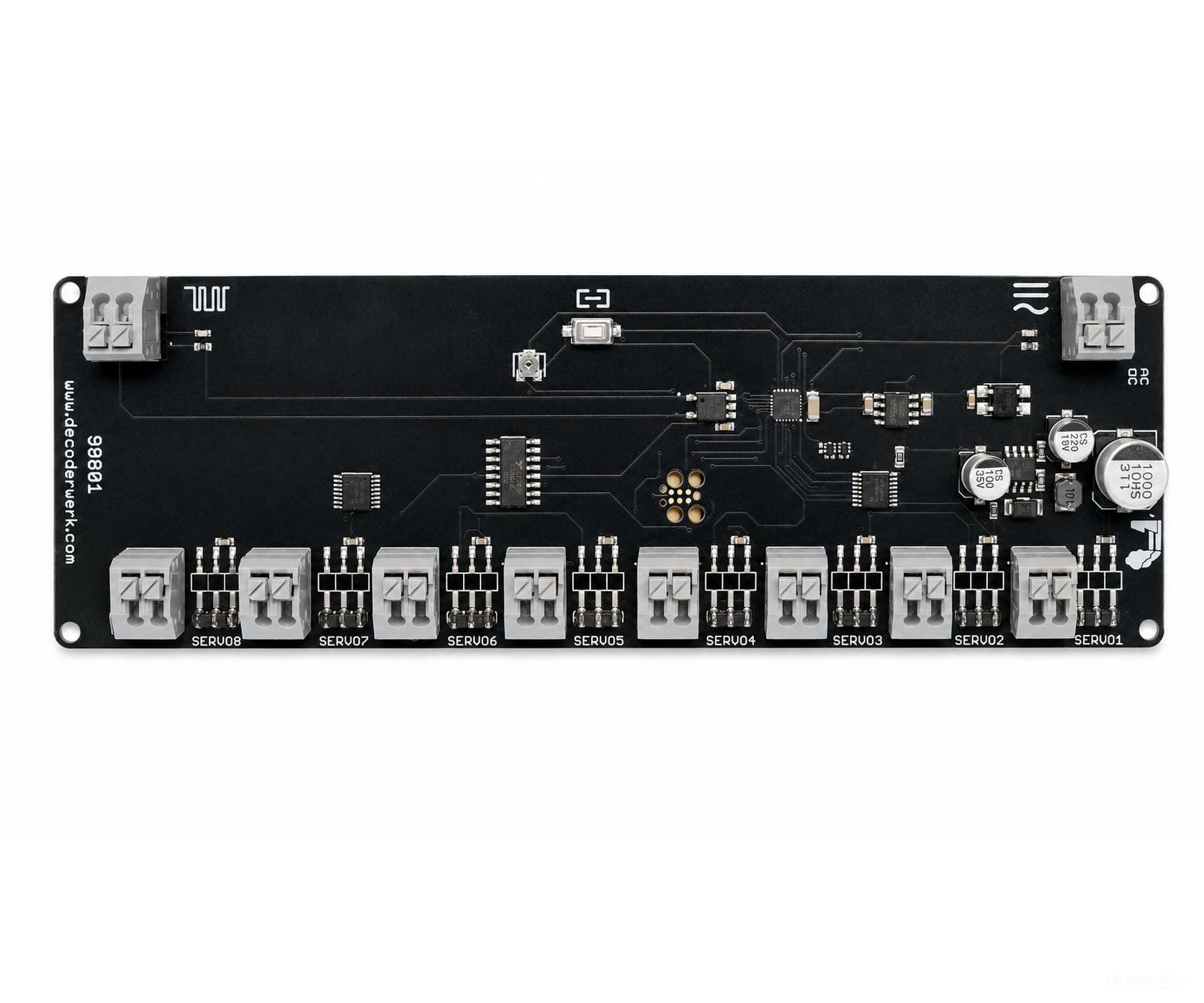

Decoderwerk 90801 8-channel servo decoder with 8 lamp outputs, rocker switch, bell, crane, 3-position, frog (DCC + Motorola)

• The decoder has 8 servo output and 8 switching output as well as RailCom.
• Motorola The operation can be done with DCC or Märklin® Motorola.
• In regular operation, 3 positions are adjustable
• Programming possible thanks to RailCom in the installed state
• 100% quality check of all decoders

• Development and production in Germany
  We only use components of well-known brand manufacturers

Compatible

• Decoder The decoder is small and ideal for controlling servo applications, it can be plugged in
• SERVO The decoder is compatible with all common analog and digital servos

Voltage

• Build up
  • 9-24V track voltage
  The decoder is supplied directly by the track voltage, as well as the servo.
• Performance
  • 9-24V DC voltage
  • 3A current
  The outputs can be loaded with 0.3A and provide 9-24V DC voltage. The servo connections provide 5V and 0.5A per output.


• Need
  • Quiet current below 10mA
  The decoder itself requires less than 10mA in the idle state. The power demand of the output depends on the connected article.
• The decoders are protected against short circuit with a self-resetting fuse.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. You only have to press a button and call up the desired addresses at your headquarters. Done.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard By default, the output takes small steps. The steps are adjustable, as are the positions
• Twisted The switch output can be inverted to the opposite switching direction
• Small steps You can adjust the switching pulse individually.
• Function The decoder can swing bells, swing functions and offers 3 positions that can be approached. The switching outputs can be dimmed and have special functions such as flashing and core polarization


Installation

• Connections The decoder has all plug and solder connections
• Mounting The decoder can be easily glued or screwed thanks to mounting holes

• Dimensions 14x30mm, 15mm high
