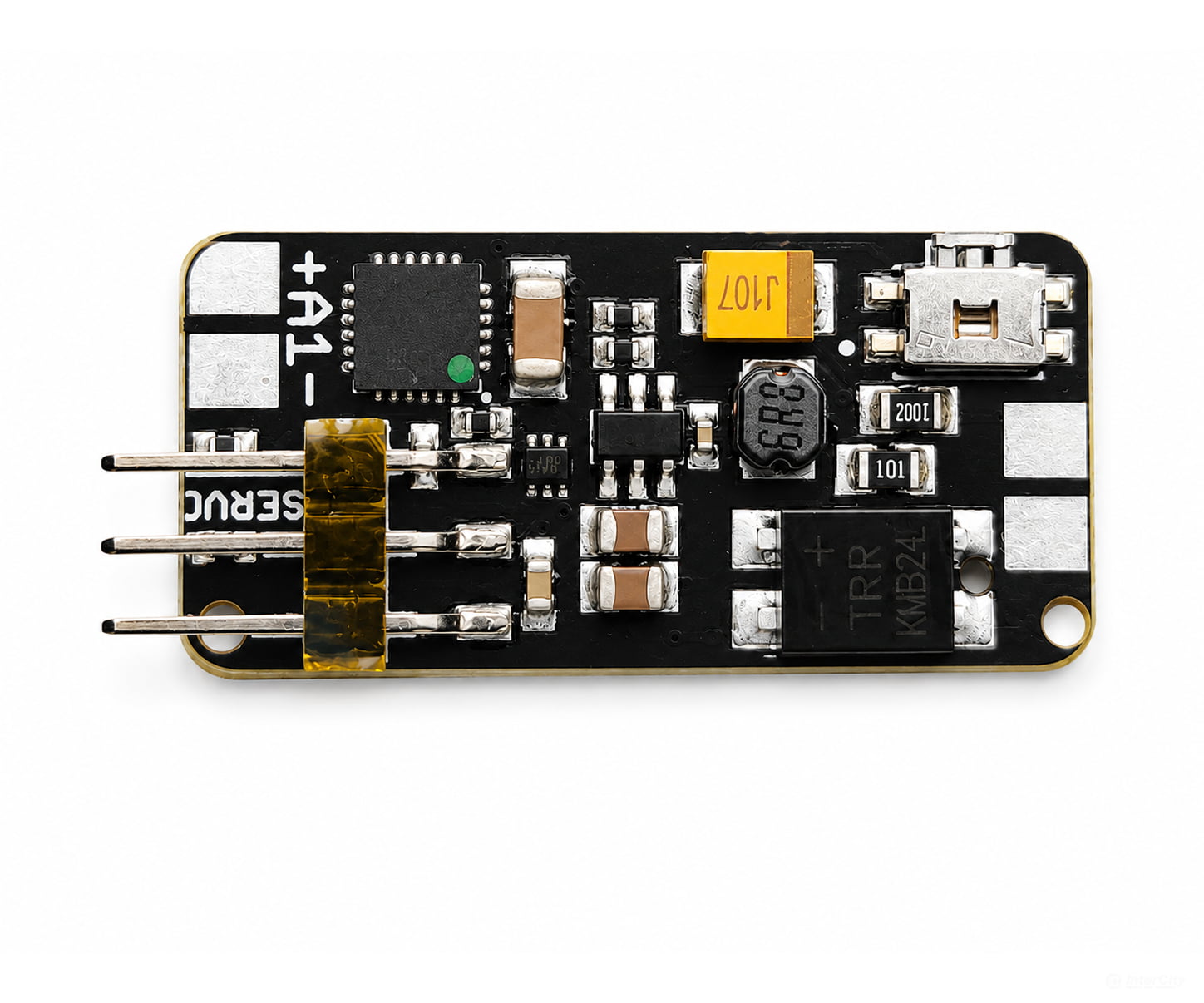

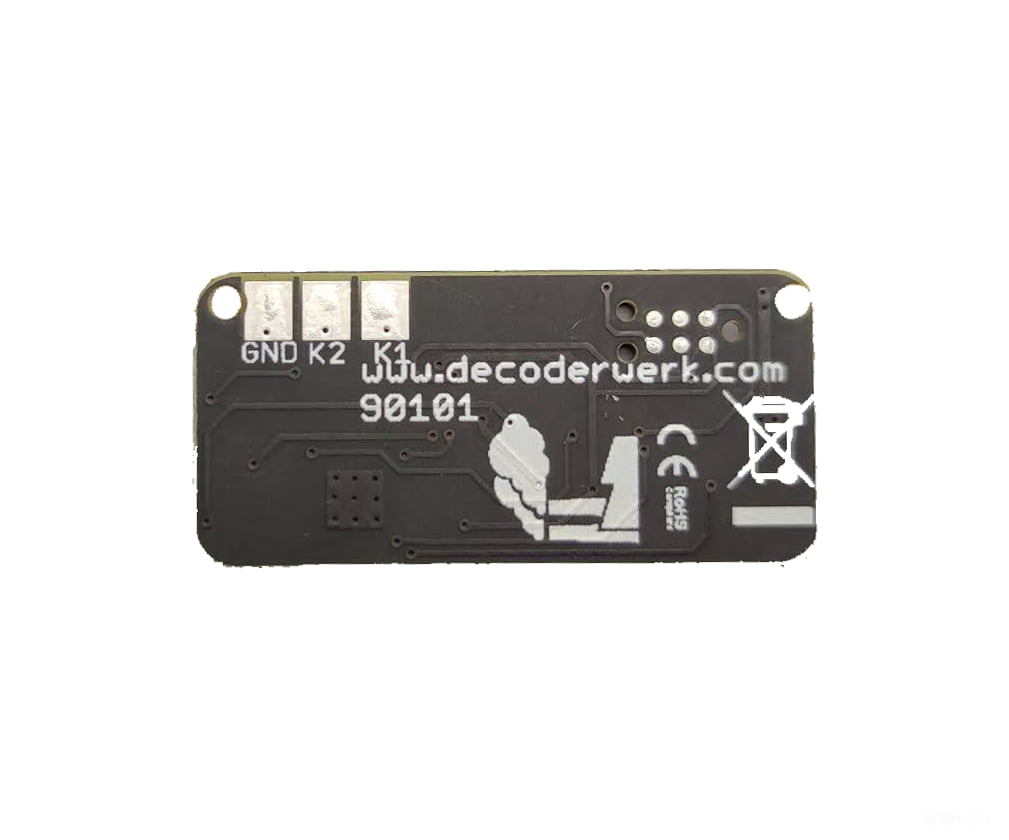

Decoderwerk 90101 1-channel servo decoder with signal lamp output, 2 contact inputs for manual control, bell function, crane function (DCC + Motorola)

• The decoder has 1 servo output and 1 switching output as well as RailCom.
• Motorola The operation can be done with DCC or Märklin® Motorola.
• In regular operation, 4 positions can be adjusted
• The decoder can be controlled by DCCext and has 256 servo positions
• Programming possible thanks to RailCom in the installed state

• 100% quality check of all decoders

• Development and production in Germany
  We only use components of well-known brand manufacturers

Compatible

• Decoder The decoder is very small and ideal for controlling servo applications, this is plug-in
• SERVO The decoder is compatible with all common analog and digital servos

Voltage

• Build up
  • 9-24V track voltage
  The decoder is supplied directly by the track voltage, as well as the servo.
• Performance
  • 9-24V DC voltage
  • 1A current
  The outputs can be loaded with 1A and provide 9-24V DC voltage.
• Need
  • Quiet current below 10mA
  The decoder itself requires less than 10mA in the idle state. The power demand of the output depends on the connected article.
• The decoders are protected against short circuit with a self-resetting fuse.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. You only have to press a button and call up the desired addresses at your headquarters. Done.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard By default, the output takes small steps. The steps are adjustable, as are the positions
• Twisted The switch output can be inverted to the opposite switching direction
• Small steps You can adjust the switching pulse individually.
• Function The decoder can swing bells, crane function (control via hand controller) and offers 3 positions which can be approached. The switching outputs can be dimmed and have special functions such as flashing and core polarization

Installation

• Connections The decoder has all plug and solder connections
• Mounting The decoder can be easily glued or screwed thanks to mounting holes

• Dimensions 14x30mm, 15mm high
