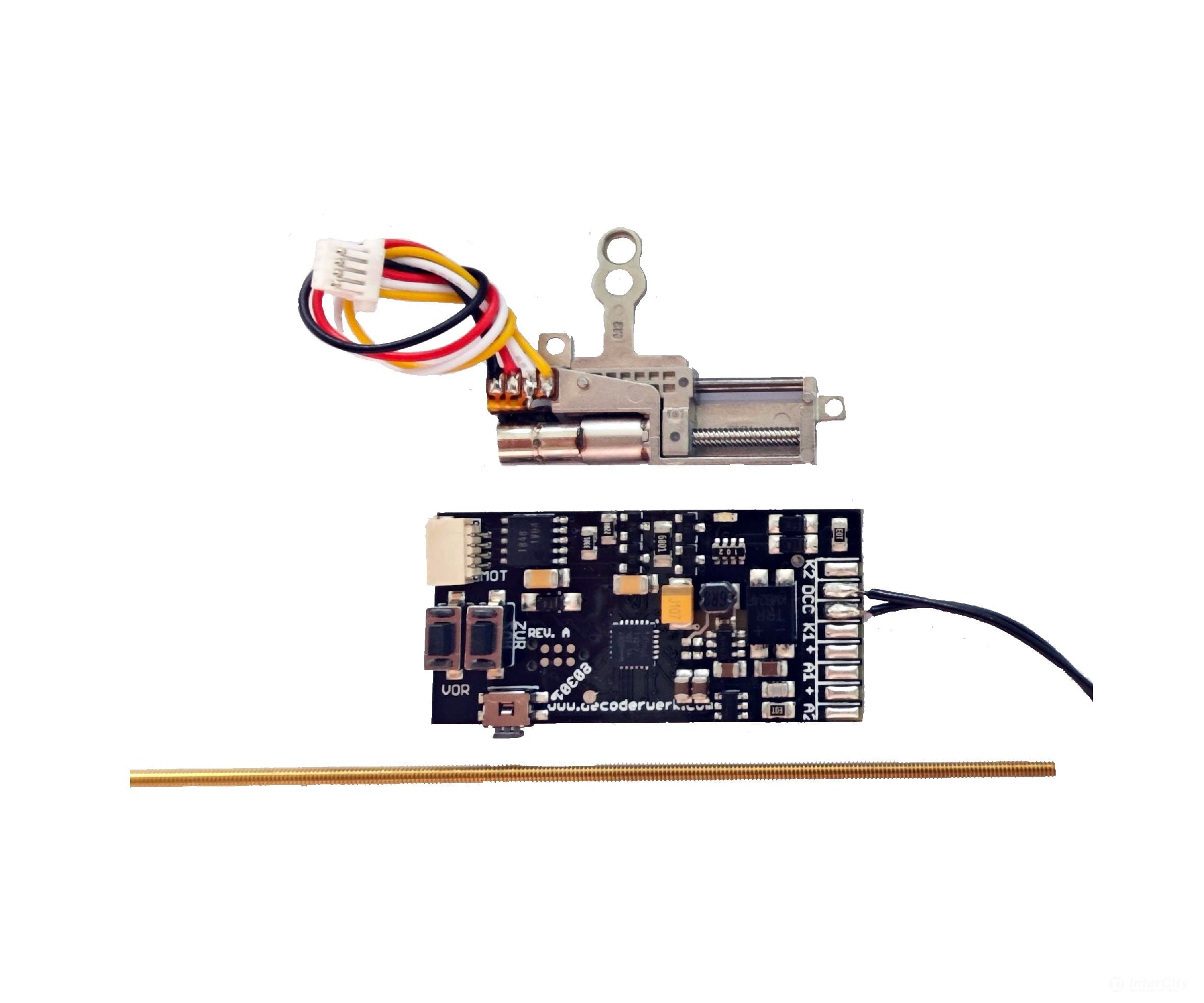

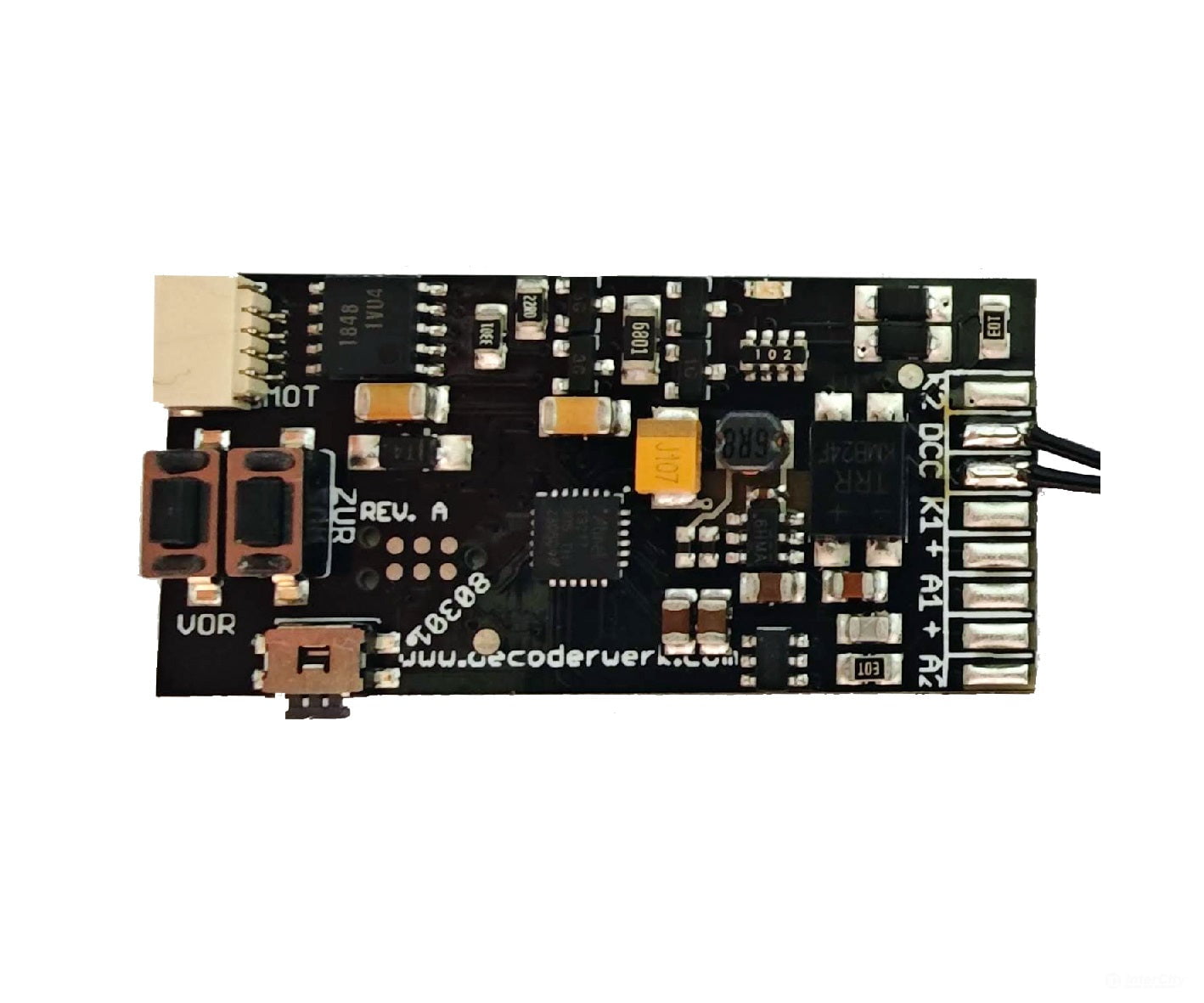

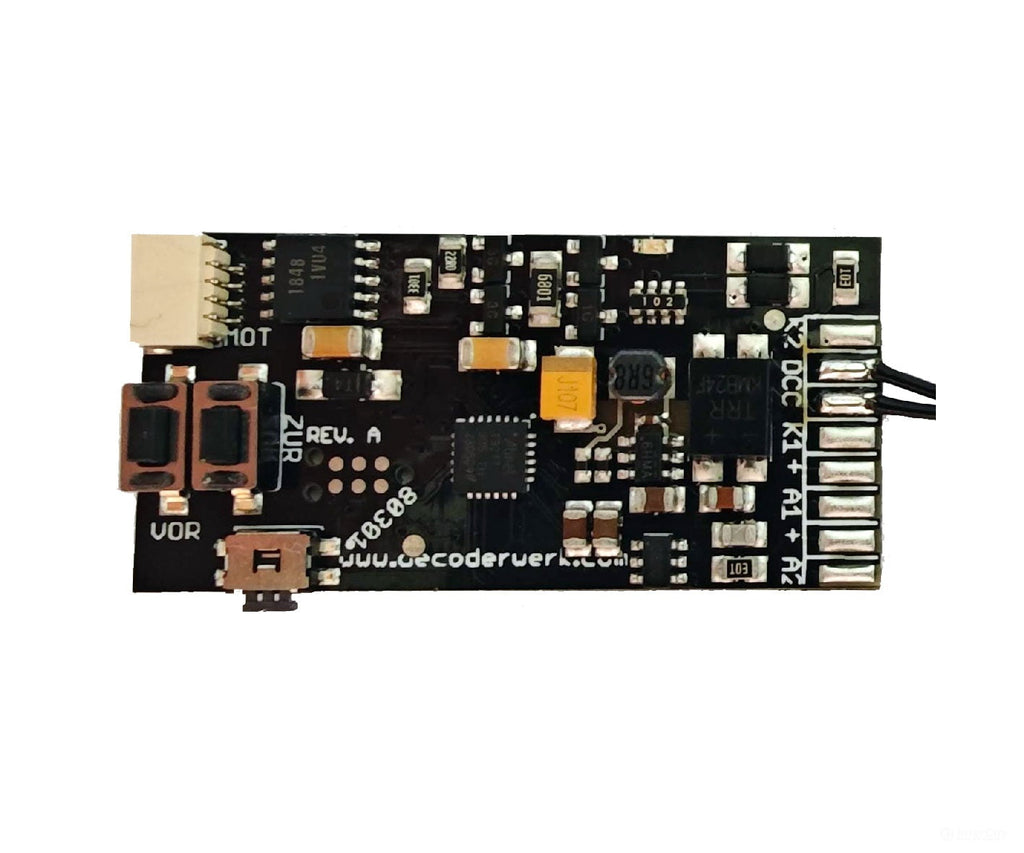

Decoderwerk 80301 Universal motorized under-floor turnout drive with decoder, RailCom (DCC + Motorola)

• The decoder has a motor output and 2 light switch outputs as well as RailCom
• The decoder has 2 contact inputs for analog switching and manual triggering
• The decoder can also be operated manually via 2 integrated buttons (e.g. analog)

• Operation can be done with DCC or Märklin® Motorola.
• Programming possible thanks to RailCom in the installed state


• The drive is slowly converging (adjustable)

• The decoder is suitable for controlling all model railway switches of all manufacturers.
• The travel path is adjustable from 0 to 11mm in 1024 steps (0.01mm per step).

• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Compatible

• Drive The drive is the ideal alternative for the electric switch drives and shifts silently, safely and slowly in accordance with the model. The speed and travel distance are easy to adjust so that the drive works universally regardless of a gauge or track system.

Voltage

• Build up
  • 9-24V track voltage
  The decoder is supplied directly by the track voltage. No separate power supply can be connected.
• Performance
  • 9-24V DC voltage
  • 0.5A current
  The light outputs can be loaded with 0.5A and deliver 9-24V DC voltage.
• Need
  • Quiet current below 10mA
  The decoder itself requires less than 10mA in the idle state. The power demand of the output depends on the connected article.
• The decoders are protected against short circuit with a self-resetting fuse.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. You only have to press a button and call up the desired addresses at your headquarters. Done.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.

• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard By default, the output makes small steps and runs the engine slowly. The time is adjustable.
• The decoder supports the control of the switch lantern and automatically restores the last circuit of the switch lantern when the decoder starts. It has 2 light outputs for this purpose.

• The switch output can be inverted. For example, opposite-roging switches with the same address can be switched.
• Small steps You can fine-tune the steps that are driven over 1024 steps (far the way to the back) and the turnaround time as well. The set travel is adjustable up to max. 11mm.

• On command You can operate the engine manually, via another decoder or even analogly through the 2 contact inputs. Also via the integrated buttons.

Installation

• Connections The decoder has all connection cables for direct installation.

• Mounting The decoder can be easily glued under the plate and does not generate any waste heat. An adhesive pad is included.

Board dimensions: 41x20mm

Motor dimensions: 35x15mm
