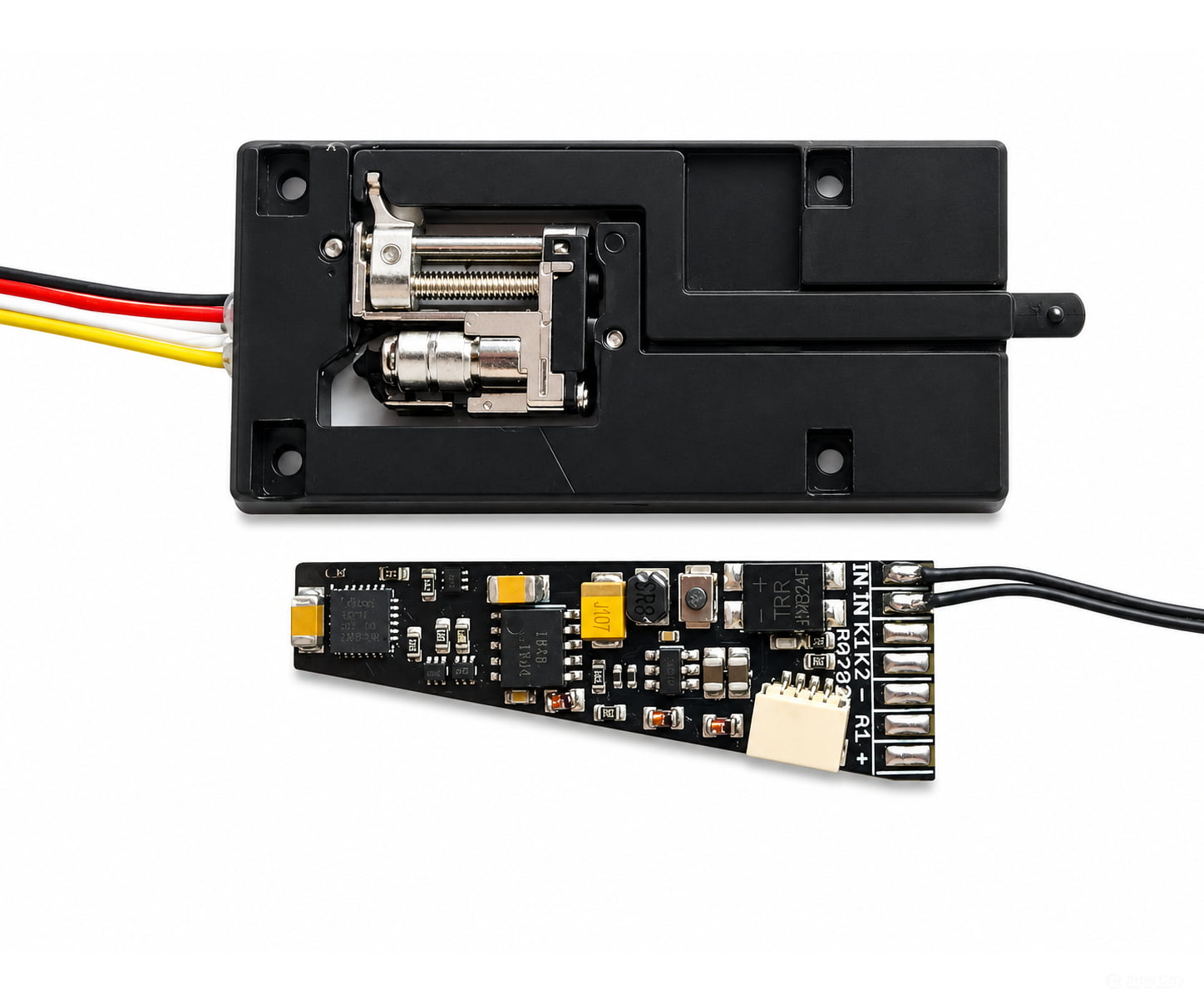

Decoderwerk 80202 Motorized digital turnout drive for Tillig TT track with roadbed, RailCom (DCC + Motorola)

• The decoder has a motor output and a light switch output as well as RailCom
• The decoder has 2 contact inputs for analog switching and manual triggering
• Operation can be done with DCC or Märklin® Motorola.
• Programming possible thanks to RailCom in the installed state

• The drive is slowly converging (adjustable)

• The decoder is suitable for controlling Tillig TT bedding track switches and the optional switch lantern.
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Compatible

• Drive The drive is the ideal alternative for the electric switch drives 83960 and 08331 and shifts silently, safely and slowly in accordance with the model.


• Tillig Bedtingsrail The decoder can be inserted and connected directly into all switches and intersection switches.


Voltage

• Build up
  • 9-24V track voltage
  The decoder is supplied directly by the track voltage. No separate power supply can be connected.
• Performance
  • 9-24V DC voltage
  • 0.2A current
  The light output can be loaded with 0.5A and provide 9-24V DC voltage.
• Need
  • Quiet current below 10mA
  The decoder itself requires less than 10mA in the idle state. The power demand of the output depends on the connected article.
• The decoders are protected against short circuit with a self-resetting fuse.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. You only have to press a button and call up the desired addresses at your headquarters. Done.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard By default, the output makes small steps and runs the engine slowly. The time is adjustable.
• The decoder supports the control of the switch lantern and automatically restores the last circuit of the switch lantern when the decoder starts.
• The switch output can be inverted. For example, opposite-roging switches with the same address can be switched.
• Small steps You can fine-tune the steps that are driven over 4096 steps (all the way to the back) and the running time as well.
• On command You can operate the engine manually, via another decoder or even analogly through the 2 contact inputs.

Installation

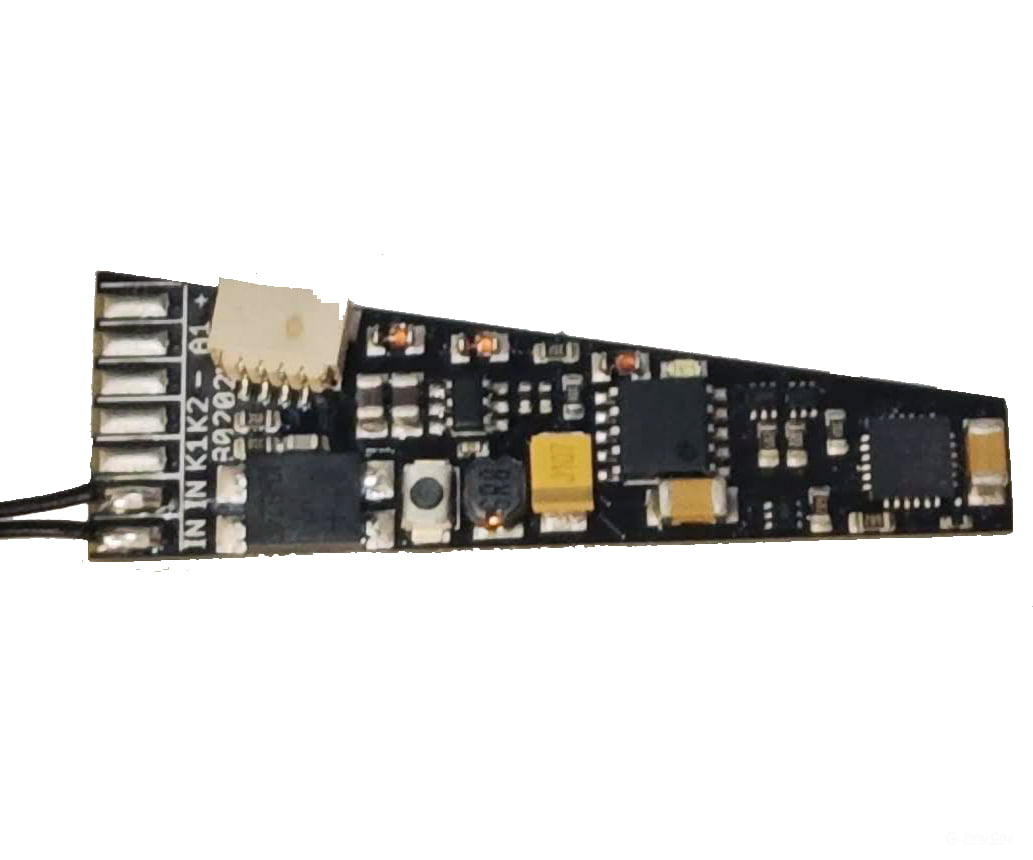

• Connections The decoder has all connection cables for direct installation in a TT bed switch.

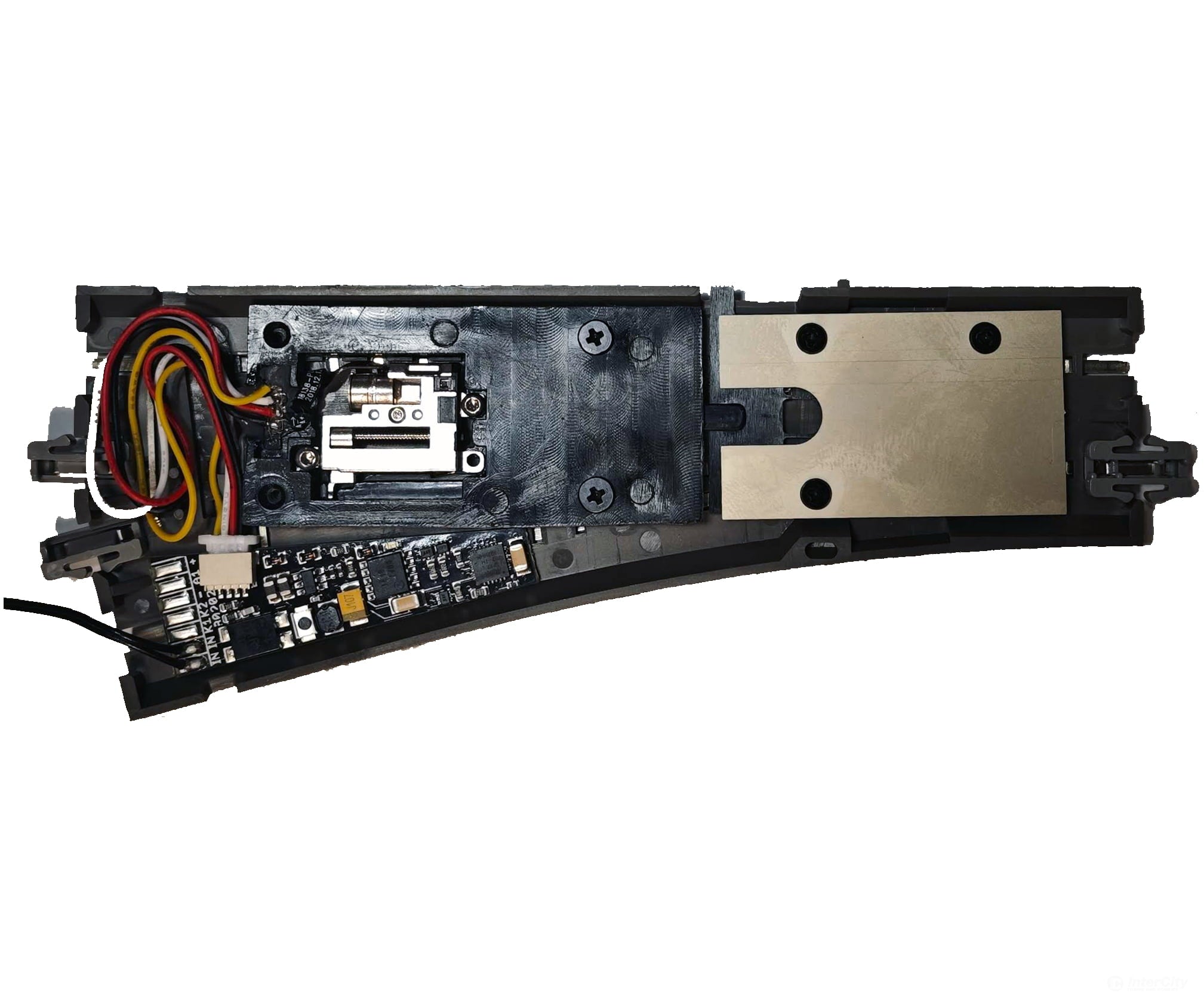

• Mounting The decoder can be easily attached to the inner bed of a Tillig bed switch. Screws are included. The decoder must be glued to the side of the motor unit.
