Decoderwerk 80201 Motorized digital turnout drive for Märklin/Trix C-Track, RailCom (DCC + Motorola)

• Heatless new generation with RailCom
• The decoder has a motor output and a light switch output.
• The decoder has 2 contact inputs for analog switching and manual triggering
• Operation can be done with DCC or Märklin® Motorola.
• Programming possible thanks to RailCom in the installed state


• The drive is slowly converging (adjustable)

• The decoder is suitable for controlling Märklin® or Trix® C-way switches and the optional switch lantern.
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Compatible

• Drive The drive is the ideal alternative for the electric switch drives 74490, 74491 and 74492 and shifts silently, safely and slowly in accordance with the model.


• Märklin C-Gleis The decoder can be inserted and connected directly into the following switches. In the case of slim and DKW switches, plastic gars in the switches must be removed.
  • Switch left 24611
  • Switch right 24612
  • Slim switch left 24711
  • Slim switch right 24712
  • Bow switch left 24771
  • Bow switch right 24772
  • Bow switch left 24671
  • Right turn-a-right 24672
  • Double crossover switch 24624

• Trix C-Train The decoder can be inserted into the following switches and connected. The required connection cable is included. In the case of slim and DKW switches, plastic gars in the switches must be removed.
  • Switch left 62611
  • Switch right 62612
  • Slim switch left 62711
  • Slim switch right 62712
  • Bow switch left 62671
  • Archer right 62672
  • Slim bow switch left 62771
  • Slim bow switch right 62772
  • Double crossover switch 62624

Voltage

• Build up
  • 9-24V track voltage
  The decoder is supplied directly by the track voltage. No separate power supply can be connected.
• Performance
  • 9-24V DC voltage
  • 0.2A current
  The light output can be loaded with 0.5A and provide 9-24V DC voltage.
• Need
  • Quiet current below 10mA
  The decoder itself requires less than 10mA in the idle state. The power demand of the output depends on the connected article.
• The decoders are protected against short circuit with a self-resetting fuse.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. You only have to press a button and call up the desired addresses at your headquarters. Done.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard By default, the output makes small steps and runs the engine slowly. The time is adjustable.
• The decoder supports the control of the switch lantern and automatically restores the last circuit of the switch lantern when the decoder starts.
• The switch output can be inverted. For example, opposite-roging switches with the same address can be switched.
• Small steps You can fine-tune the steps that are driven over 4096 steps (all the way to the back) and the running time as well.
• On command You can operate the engine manually, via another decoder or even analogly through the 2 contact inputs.

Installation

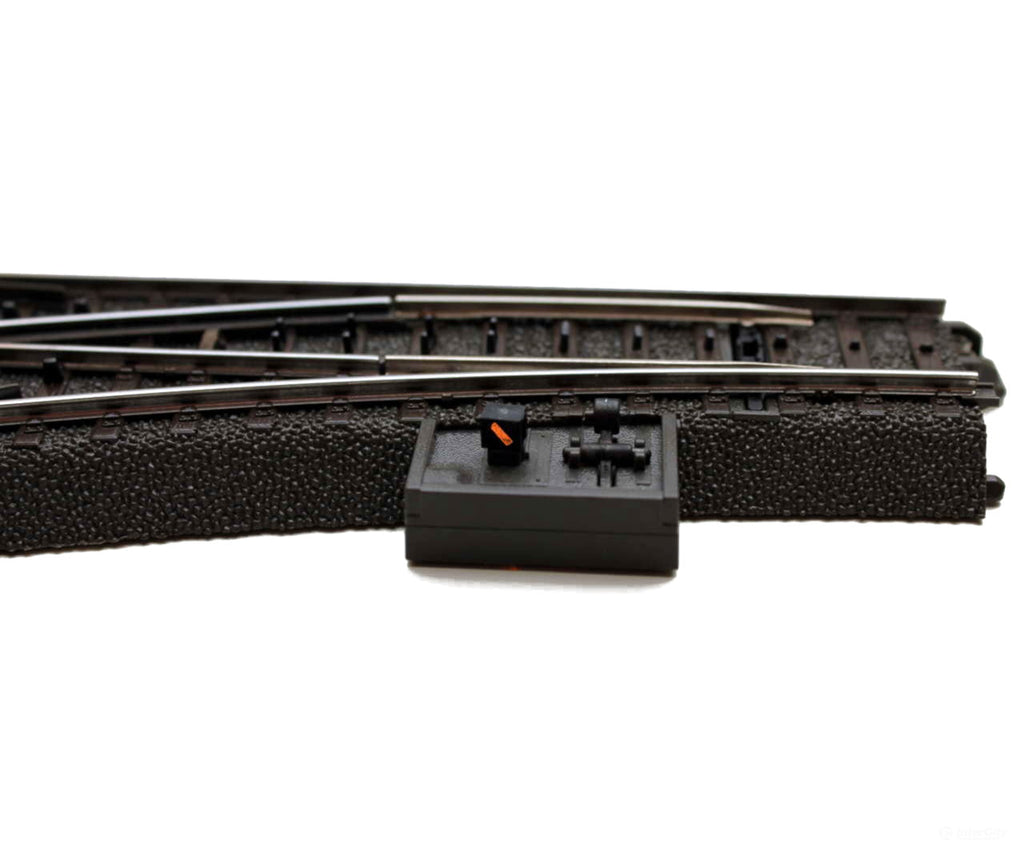

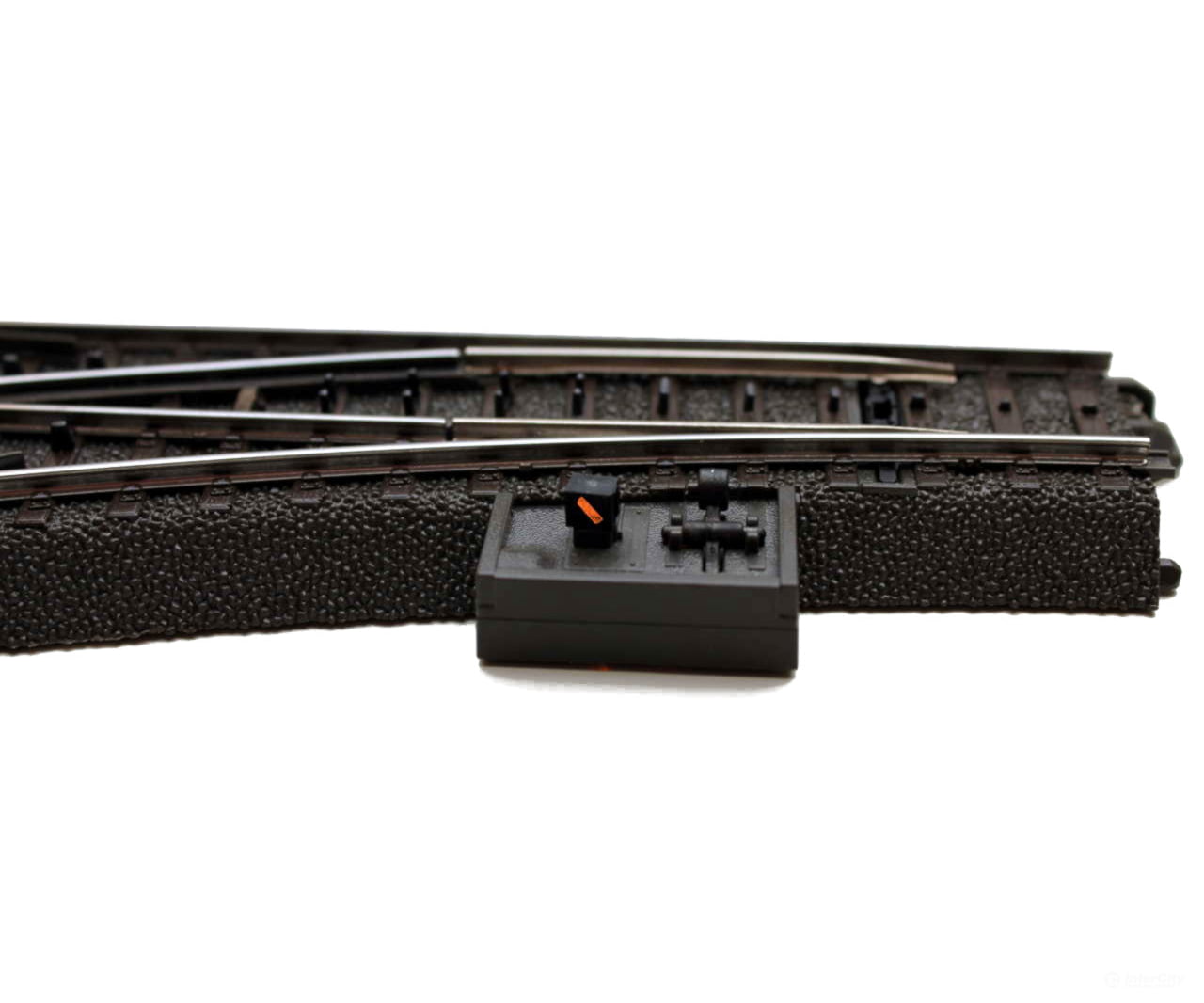

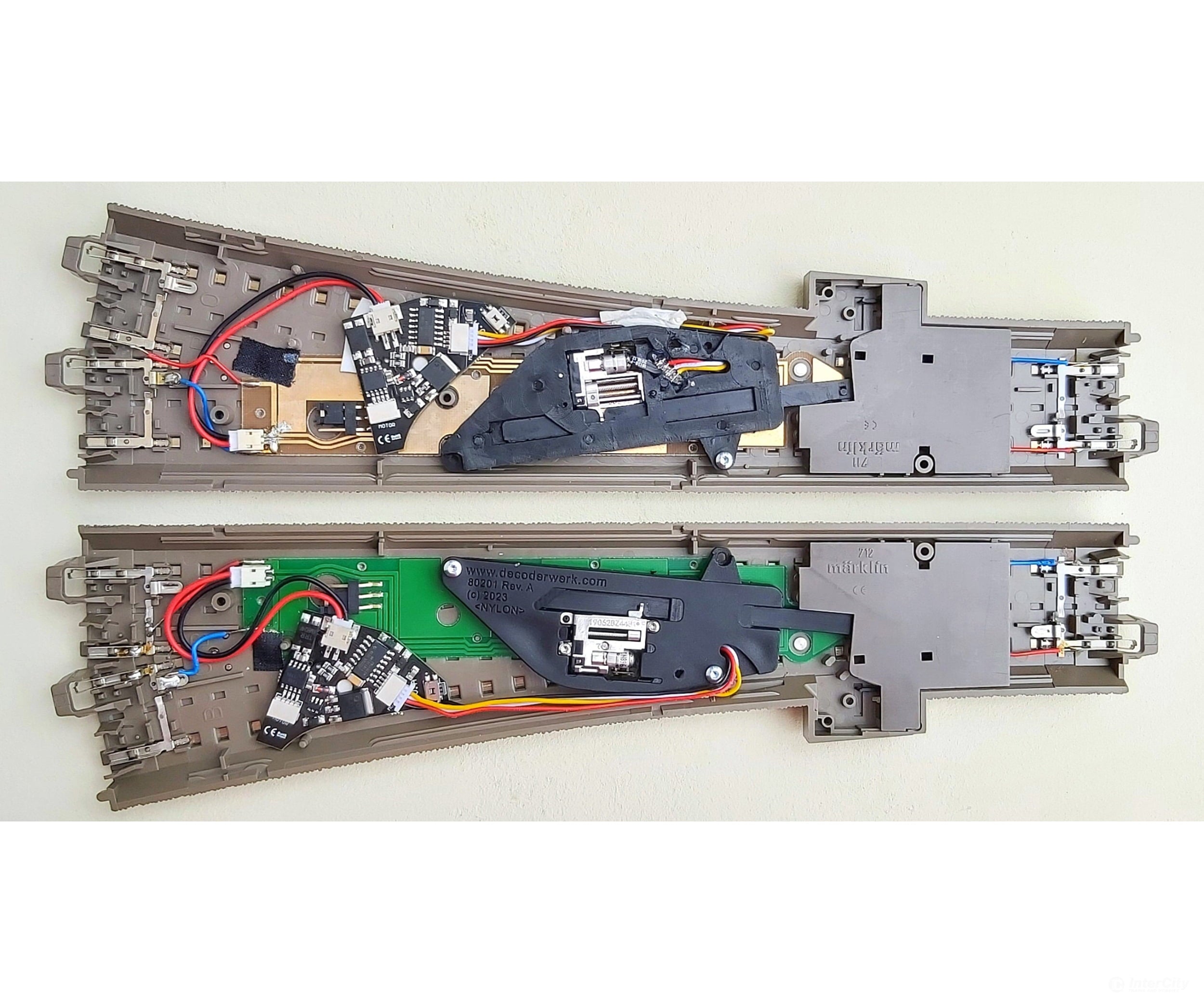

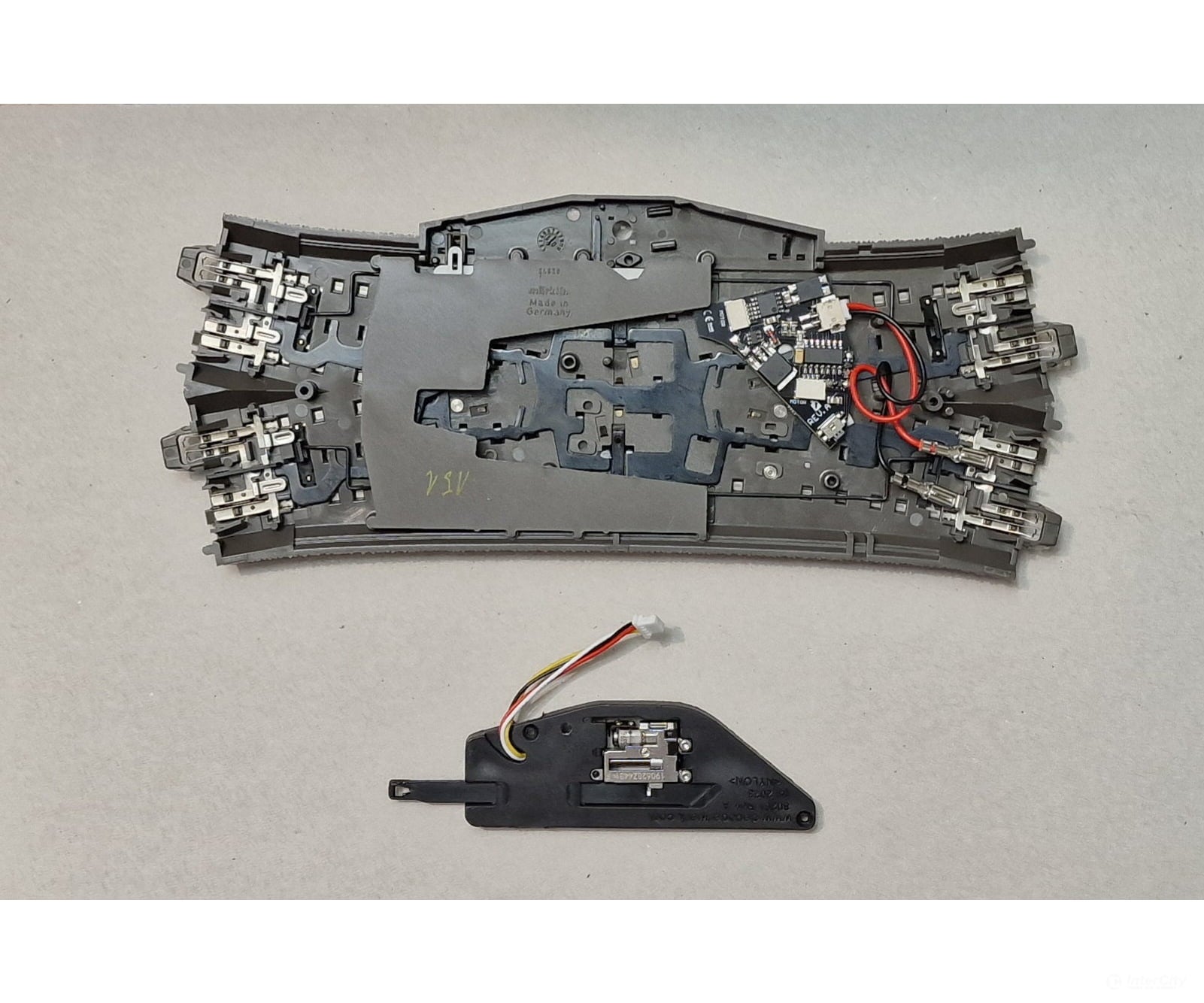

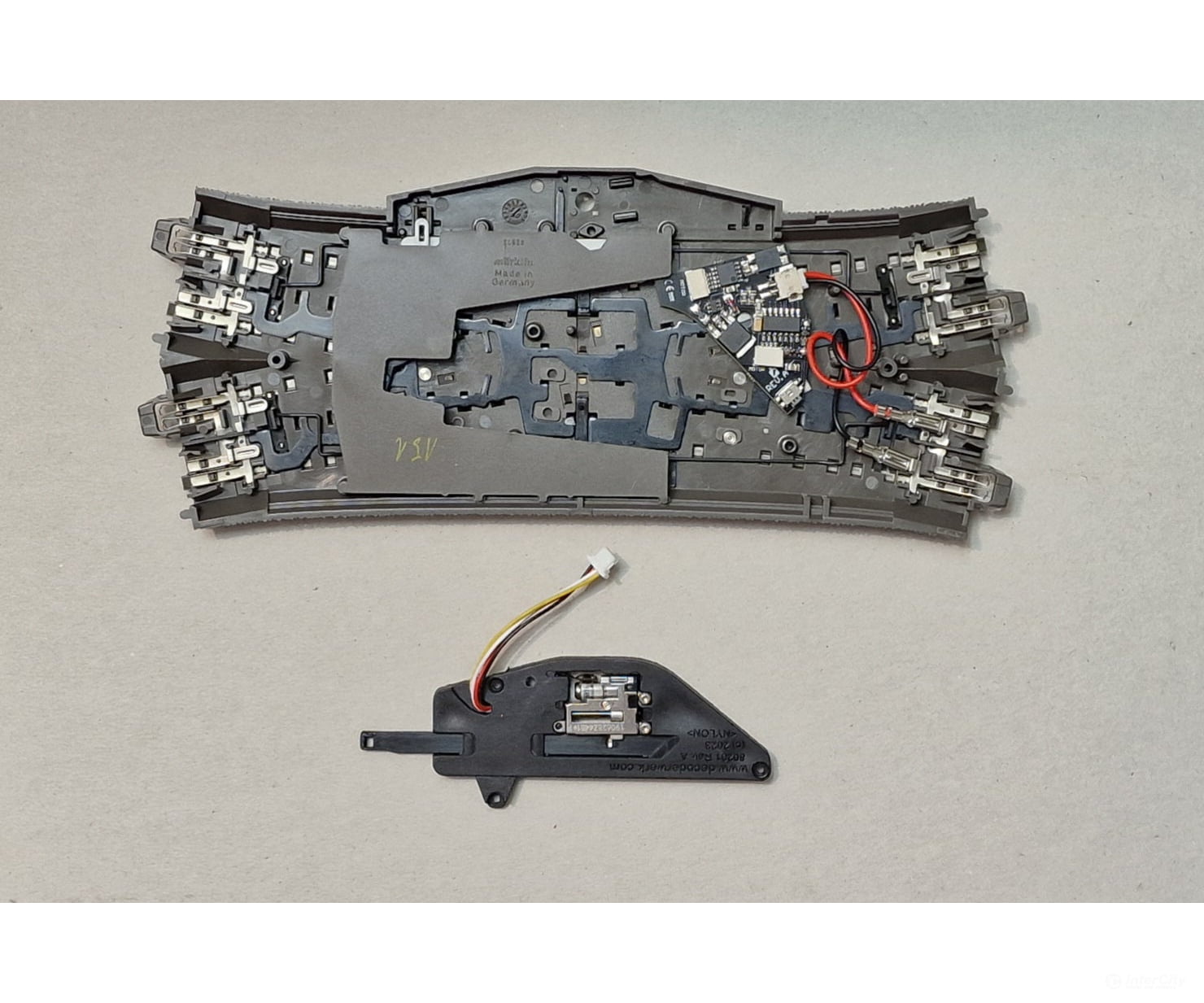

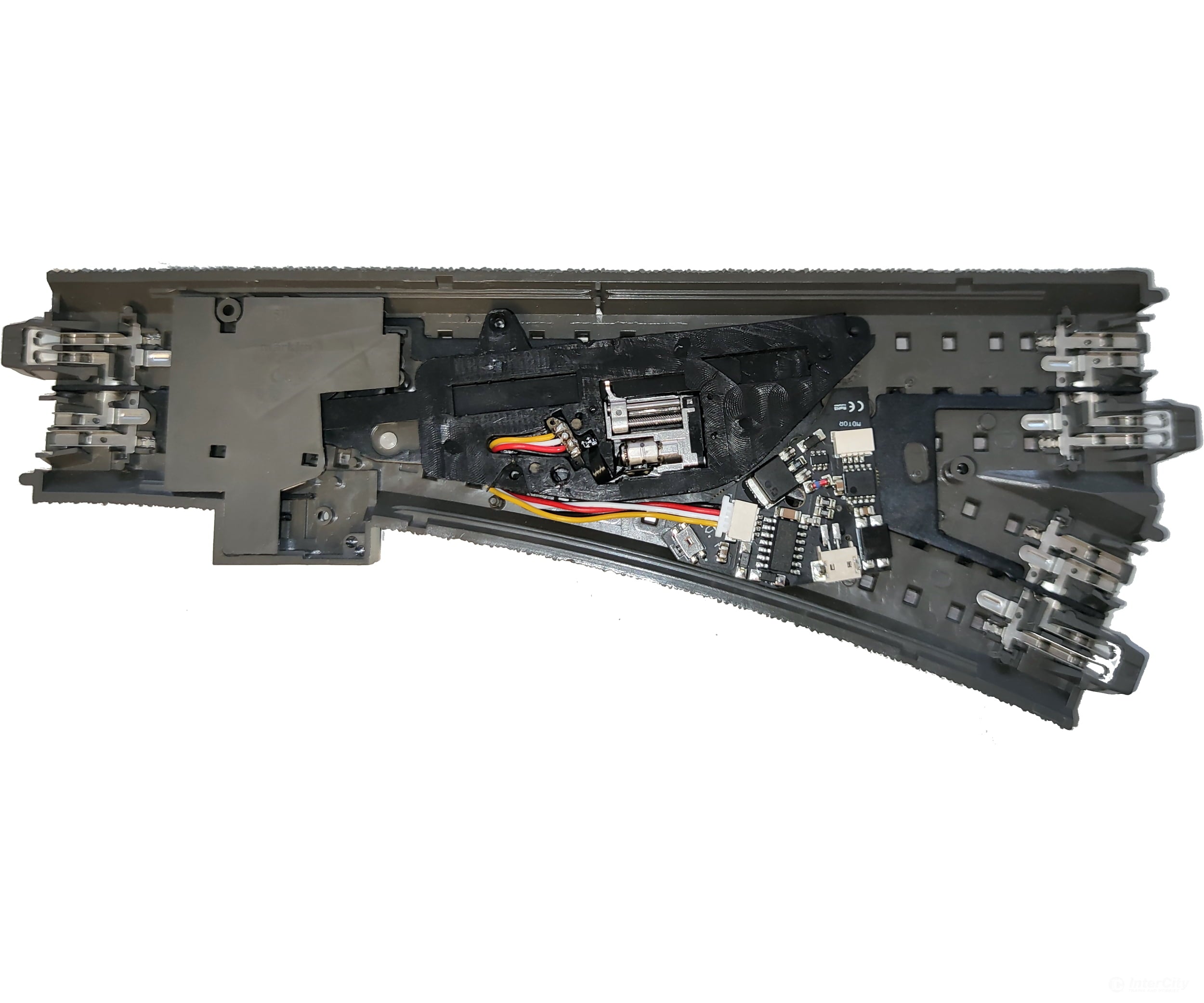

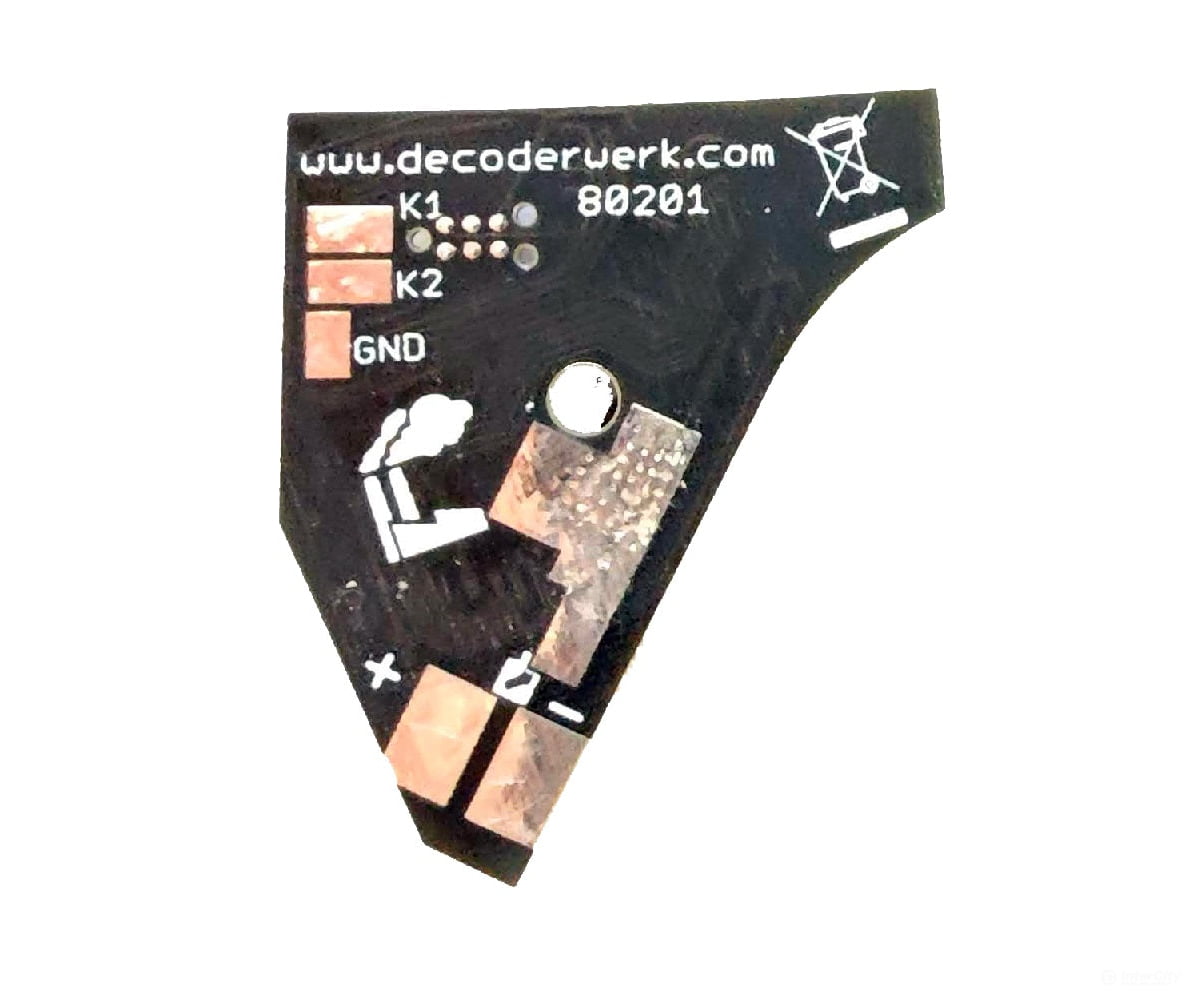

• Connections The decoder has all connection cables for direct installation in a Märklin C-way sever.
  A suitable connection cable is included for the connection of Trix switches.

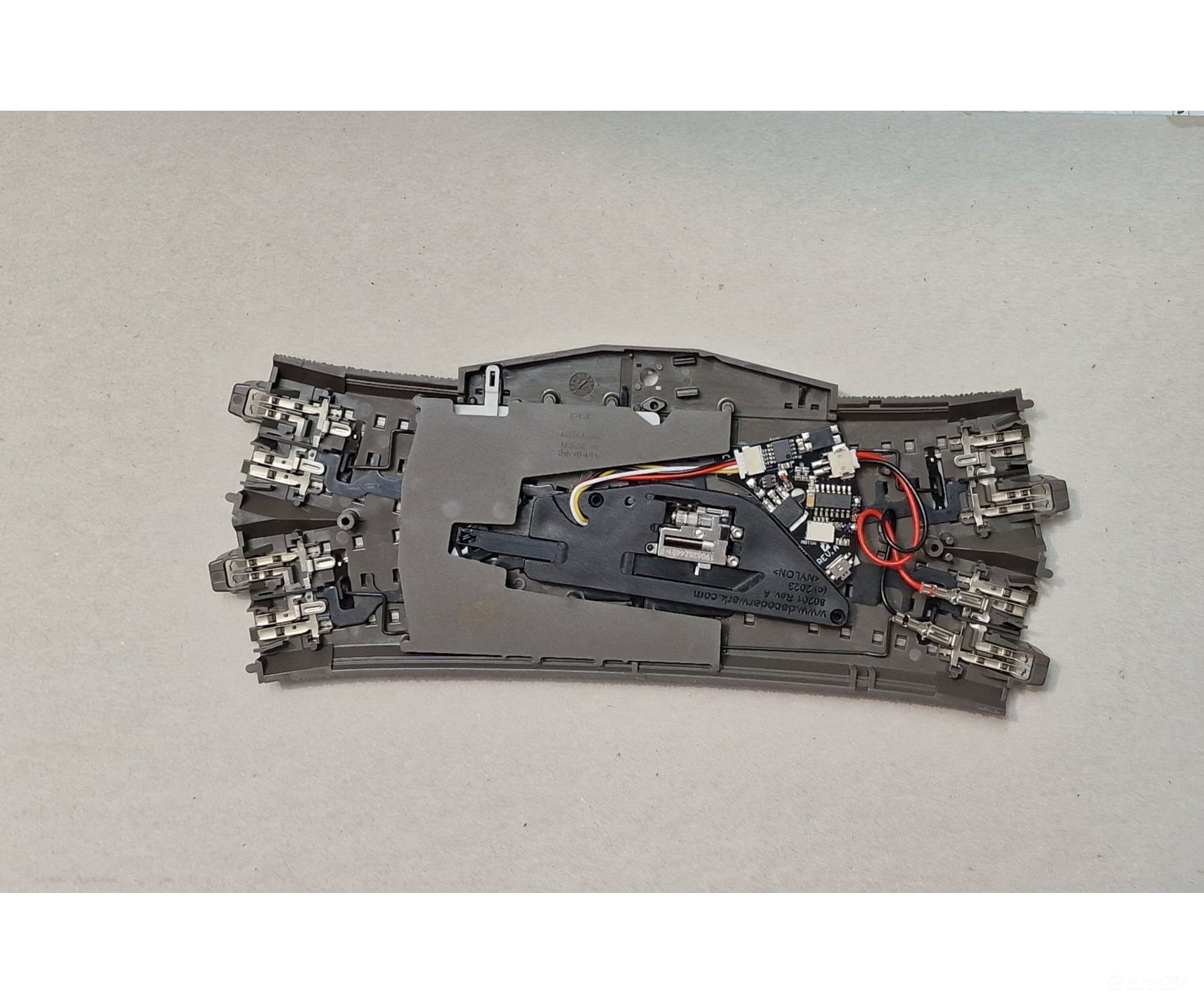

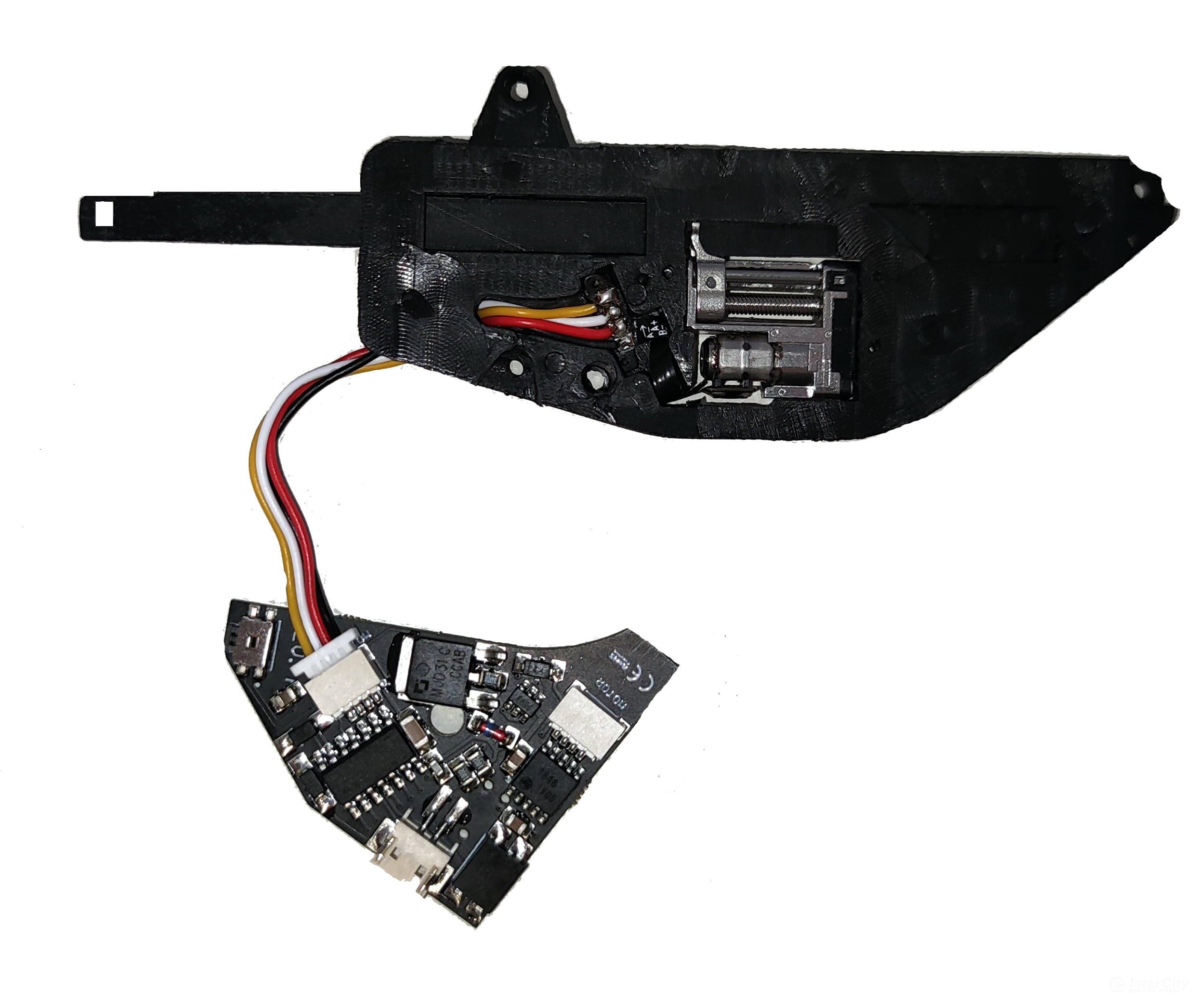

• Mounting The decoder can be easily attached to the inner bed of a C-way sader from Märklin or Trix. Screws are included. The decoder must be glued behind the motor unit.

RailCom is a registered trademark of Lenz Elektronik GmbH
