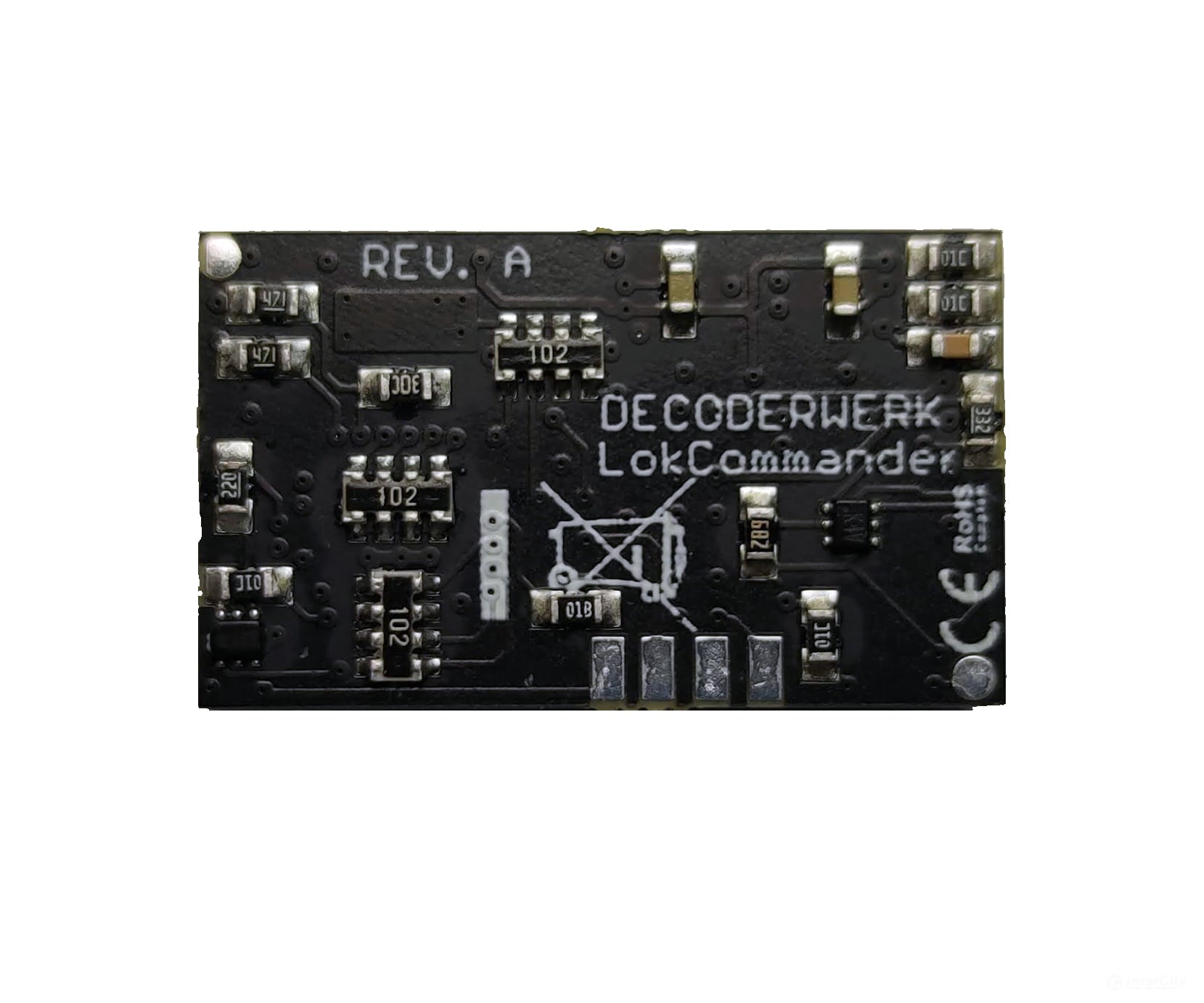

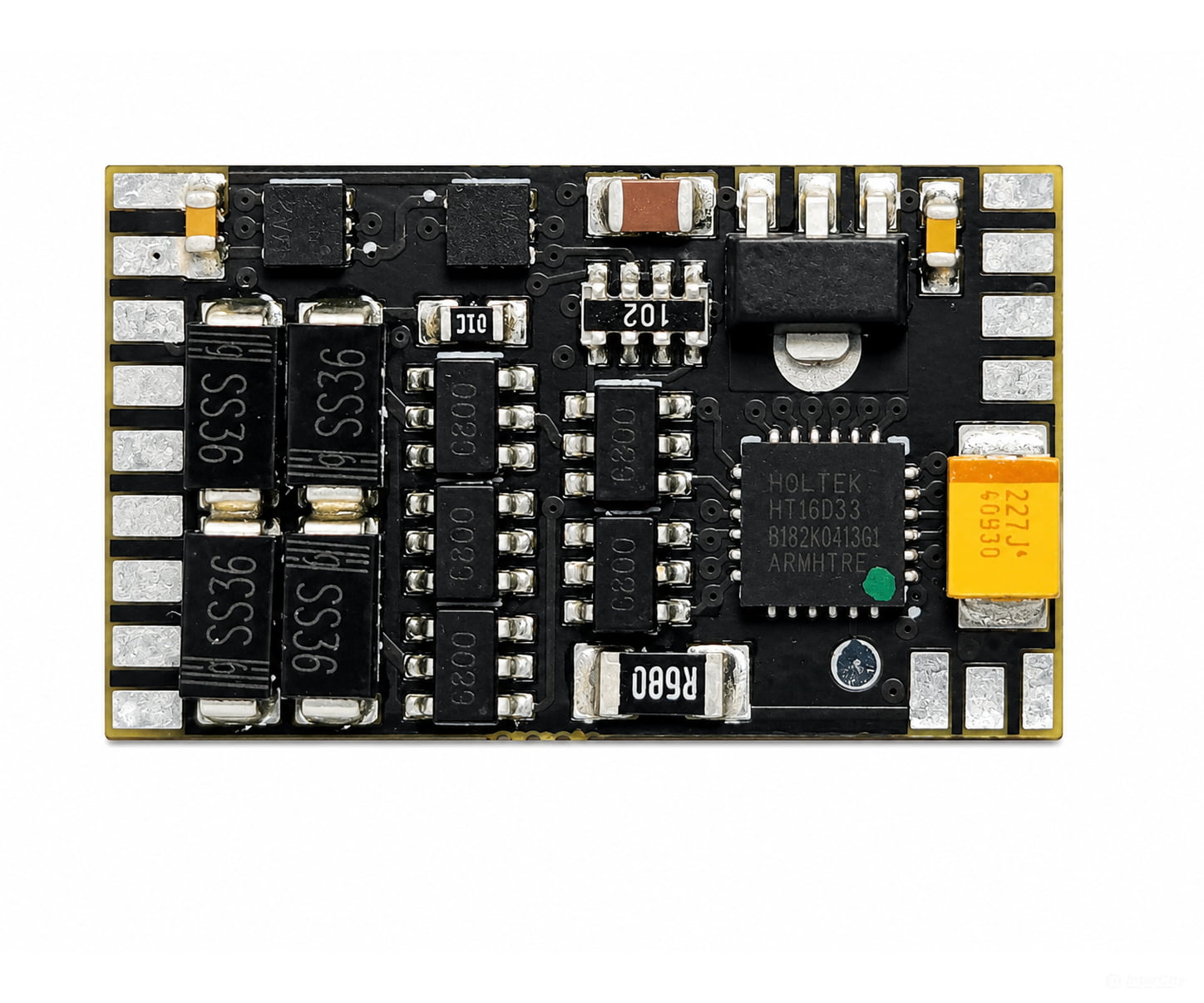

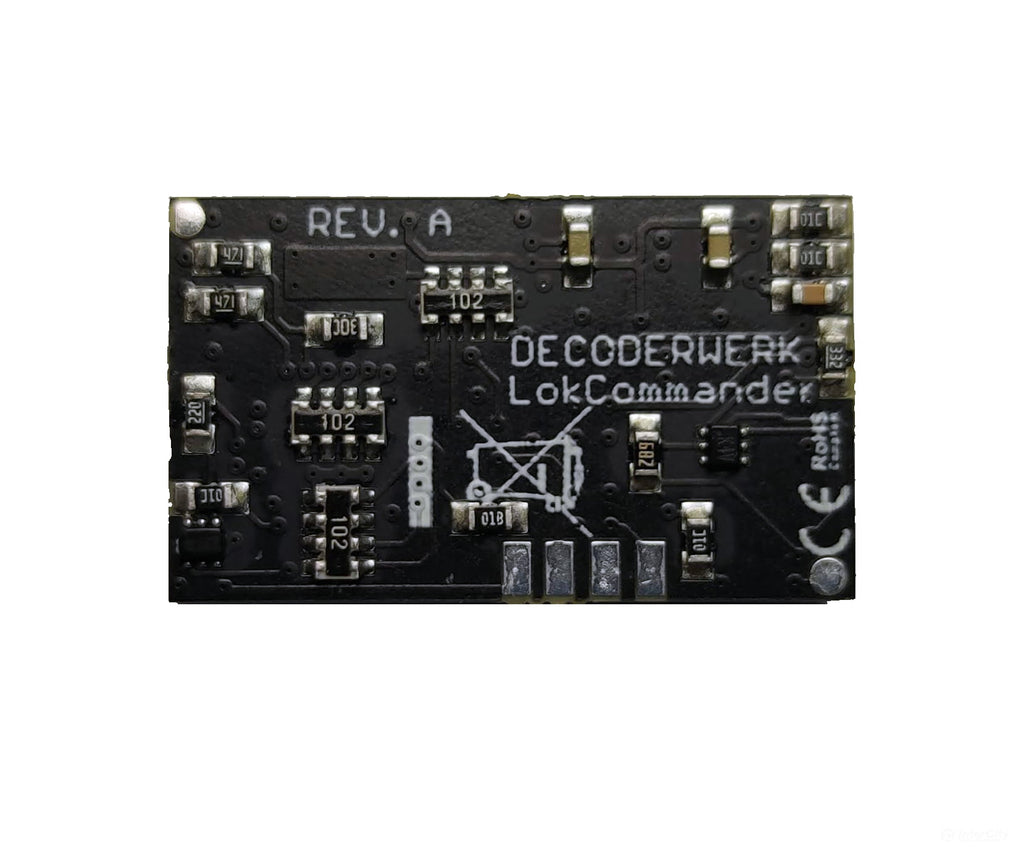

Decoderwerk 70901 Motor decoder 2A with 8 outputs, SUSI, load control, and numerous effects; solder pad interface, H0 (DCC + Motorola)

Description

• The decoder has a total of 8 output + motor output for which more than 20 effects (neon, time functions, on + dim and much more) can be set independently per output.
• The decoder fits perfectly in all H0 locomotives. In addition, the decoder has built-in functions for high beam, shunting light as well as shunting gear and pendulum function
• The decoder has a buffer circuit and SUSI connection for sound modules
• The decoder has an adjustable load control which is already optimized for H0 locomotives
• The decoder has 1.5A (2A tip) motor stage
• The decoder has RailCom* and Break-On-DC
• Operation can be done with DCC and Motorola.
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers
• Ideal for gauge H0

Voltage

• BUILD UP
  • 7-24V TRACK VOLTAGE
  The decoder is supplied directly by the track voltage. No separate power supply can be connected.
• PERFORMANCE
  • 1.5A (2A tip) on the motor
  • 0.5A per function output - All outputs max 1A

  • 3A Total load capacity
• NEED
  • QUIET CURRENT BELOW 20MA
  The decoder requires below 20mA in idle mode if no outputs are switched on

TO COUPLE

• ARTIFICIAL INTELLIGENCE, at least a little. The decoder has an automatically adaptive load control which adapts dynamically to the driving behavior. Nevertheless, this can also be configured as desired.
• Individual The decoder can be assigned an individual address. The address is freely selectable.
• REMOTE CONTROL The decoder can be configured directly at its place of use from a DCC control unit by means of programming-on-main. All CV's can be updated.
• INSPECTION The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode when a motor is connected.

CONFIGURATION

• By default, the output is set to continuous operation without function
• You can dim each output individually or assign it to an effect of your choice.
• You also have over 20 special effects such as time functions available, including flashing and mono-flop functions

INSTALLATION

• CONNECTIONS High quality solder connections for all outputs
• DIMENSIONS 14x24mm, 4mm high

*RailCom is a registered trademark of Lenz Elektronik GmbH in Giessen.

Decoderwerk user guides for most products (with english text) can be found here
