Decoderwerk 70102 microSUSI sound module, 16-bit, 640-second memory, sync input, 2W output power, IS6 compatible (microSUSI)

Note:

You can simply leave your desired sound as a comment in the order. We have over 600 original sounds of all possible vehicles including special vehicles. Alternatively, it is possible to play the modules yourself with our 00303 or to create your own sounds.

Our locomotive decoders have the Stecer for this sound module.

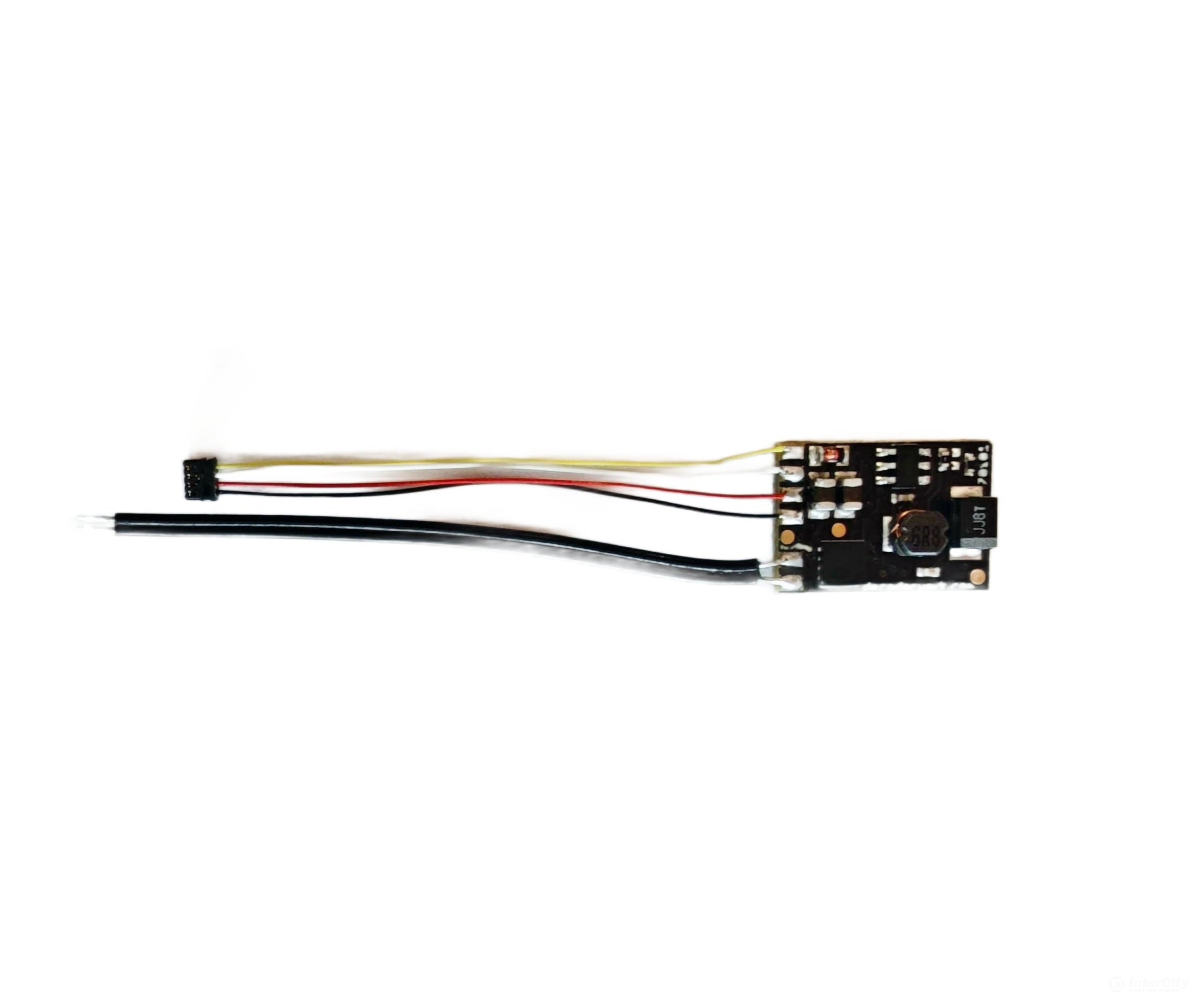

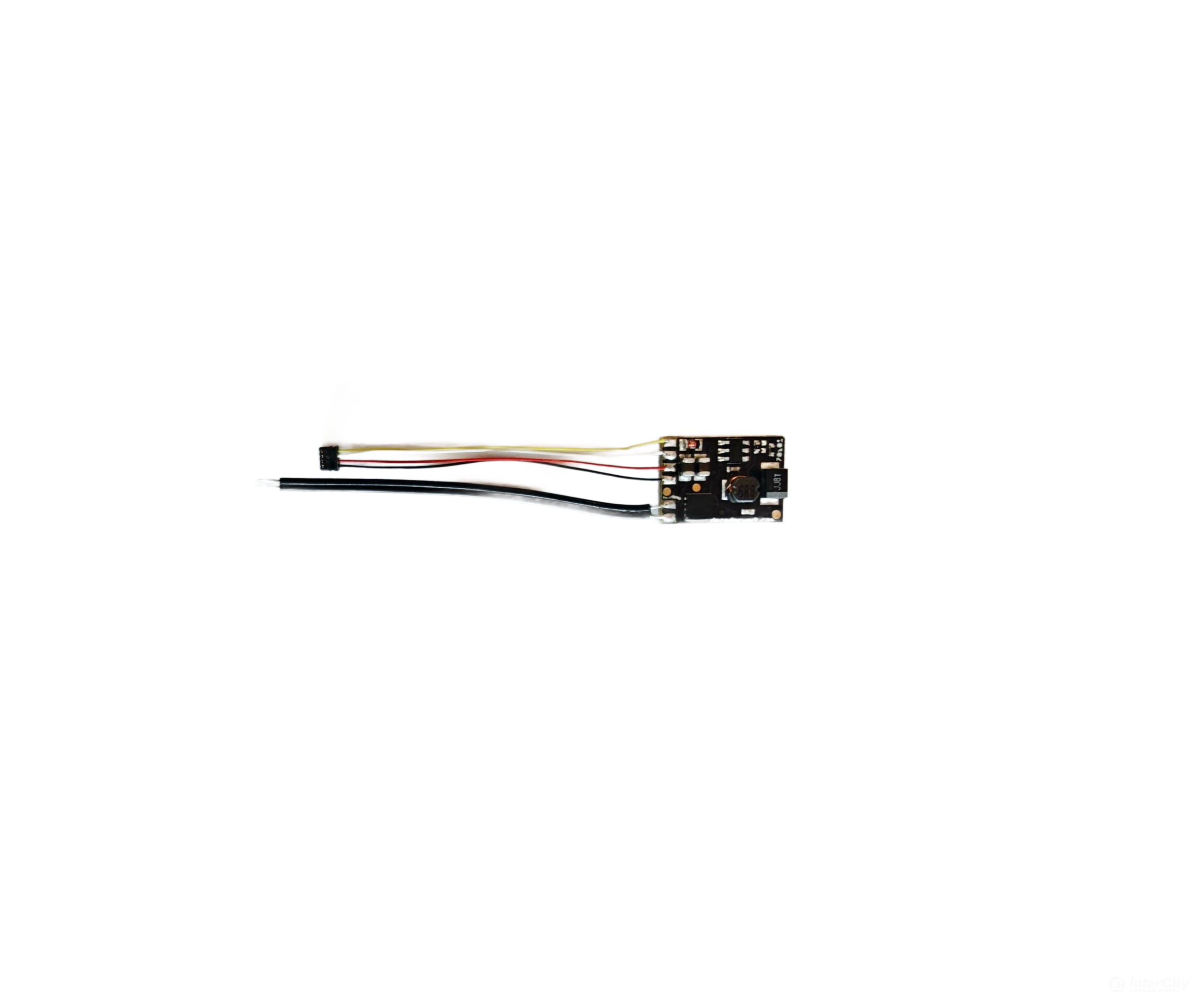

70102 Sound module for MICRO SUSI connection. With 2W Class-D audio amplifier. A SUSI cable with plug and a 2-pin strand for connection to speakers is already pre-assembled.

Our new DS6 Sounds in 16 bit audio quality with 640 sec. Depending on the vehicle type, up to 40 additional noises have up to 40 additional noises which can be retrieved individually! With our programmer you have access to the complete sound library as well as div. other setting options!

You can also create your own sounds using our software package "Become a sound engineer" as well as customized existing ones.

Characteristics:

• 16-bit sound clips (DS6) with up to 30 additional sounds

• all previous 8-bit sound clips can continue to be used

• 8-bit sound clips (DSD, DS3, DS4) are played in better quality

• all sounds can be played free of charge

• up to 640 seconds of sound memory

• 5 channels can be played simultaneously

• Driving noise can be switched in the timbre

• switchable braking: locomotive or train

• Idle and load noise can also be switched by function

• Function mapping up to F68

• Connection for 4 to 16 Ohm speakers (on our speakers)

• Output power 2 W at 8 ohms and 4 W at 4 ohms

INSTALLATION

• CONNECTIONS Wired connections with SUSI plug (15cm long) and speaker cable (5cm long)
• DIMENSIONS 10x15mm, 4mm high
