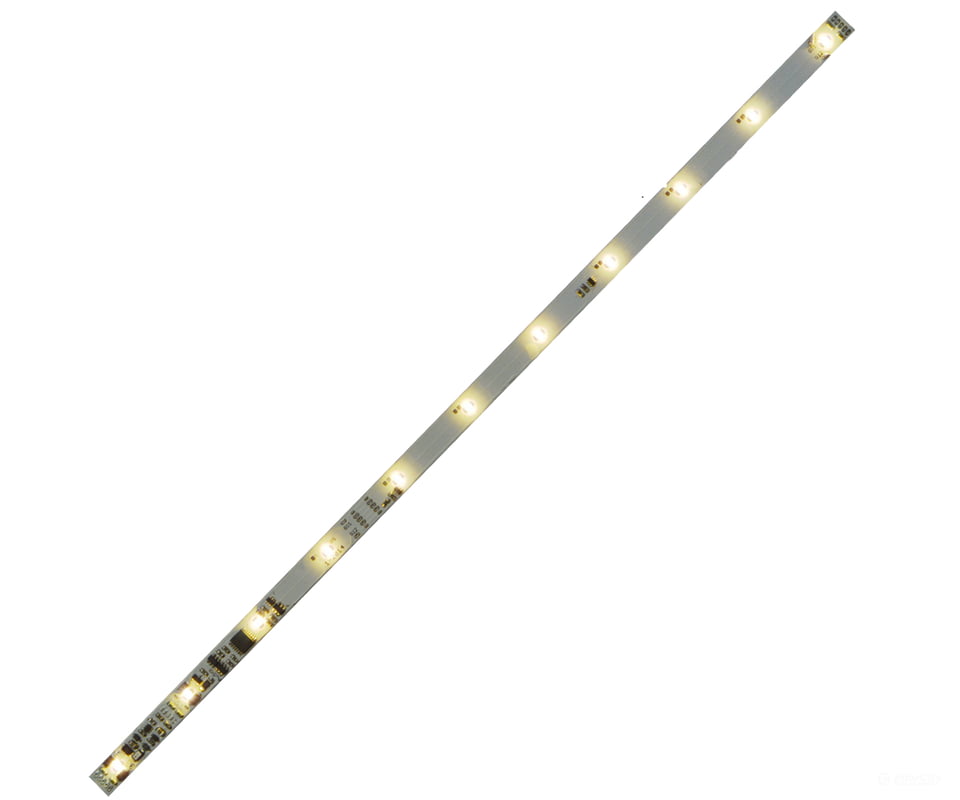

Decoderwerk 60201 Digital lighting strip with warm-white light, separate function output, and various lighting effects (H0/TT/N/Z) (DCC)

• The light bar has 1 extra output and 20 effects per output and for the LEDs

• Operation can be done with DCC.
• The light bar is suitable for lighting cars and buildings
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Voltage

• Build up
  • 5-24V track voltage
  The decoder is supplied directly by the track voltage. No separate power supply can be connected.
• Performance
  • 9-24V DC voltage
  • 30mA electricity
  The output can be loaded with 30mA and provides 5V DC voltage.
• Need
  • Quiet current below 5mA
  The decoder itself requires under 5mA in the idle mode. The power demand of the output depends on the connected article.
• The decoders are protected against short circuit with a self-resetting fuse.

Coupling

• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.

• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard By default, the light is switched on as well as the function output
• Scope The light strip can be used with div. Light effects such as NEON or fade are equipped by CV programming
• It will be light but not too fast.... You can adjust the dimming time individually. Dimming times of 10 to 2550 milliseconds are possible. And that in small steps of 10 milliseconds.
• Hectic train service? The outputs and the light can also be switched without dimming time.
• Long breath An optional buffer storage can be connected
• Dynamics It can be switched both by switch address stationary and by function key and locomotive address

Installation

• Connections The light strip has solder pads for connecting cables
• Attachment The light strip can be easily glued

We recommend our Goldcap Art. No. Z011 as a long-term buffer
