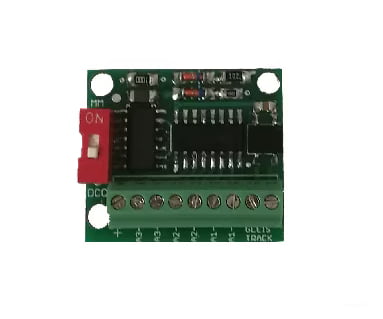

Decoderwerk 50601 6-channel light signal decoder with 300 signal aspects for RhB, HV, HL, KS, and many more (DCC + Motorola)

• The decoder has 6 outputs.
• Operation can be done with DCC or Märklin® Motorola.
• The decoder is suitable for switching Viessmann signals and all signals with common anode.
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Compatible

• The decoder is compatible with all signals which have a common anode (+ pole). Make sure that a suitable resistance of the LEDs is integrated.

Voltage

• Build up
  • 9-24V track voltage
  The decoder is supplied directly by the track voltage. No separate power supply can be connected.
• Performance
  • 9-24V DC voltage
  • 500mA current
  The output can be loaded with 500mA and delivers 9-24V DC voltage.
• Need
  • Quiet current below 10mA
  The decoder itself requires less than 10mA in the idle state. The power demand of the output depends on the connected article.
• The decoders are protected against short circuit with a self-resetting fuse.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. All you have to do is press a switch and call up the desired address at your headquarters. Done.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard By default, the signals are turned on and off with a dimming time of 500ms.
• Long-term memory The decoder remembers every command and automatically restores the last signal image when starting.
• Extensive Standard 3 signals are controlled per decoder. Over 300 signal images are integrated so that the right image is available for each signal and can be activated via CV. Then 1 decoder per signal applies
• It will be light but not too fast.... You can adjust the dimming time individually. Dimming times of 10 to 2550 milliseconds are possible. And that in small steps of 10 milliseconds. The exemplary pause between the signal images is also observed.
• Hectic train service? The signals can also be switched without dimming time.

Installation

• Connections The decoder has all connection cables for direct installation in a Märklin C-track.
• Mounting The decoder can be easily attached to the inner bed of C-tracks from Märklin or Trix.
