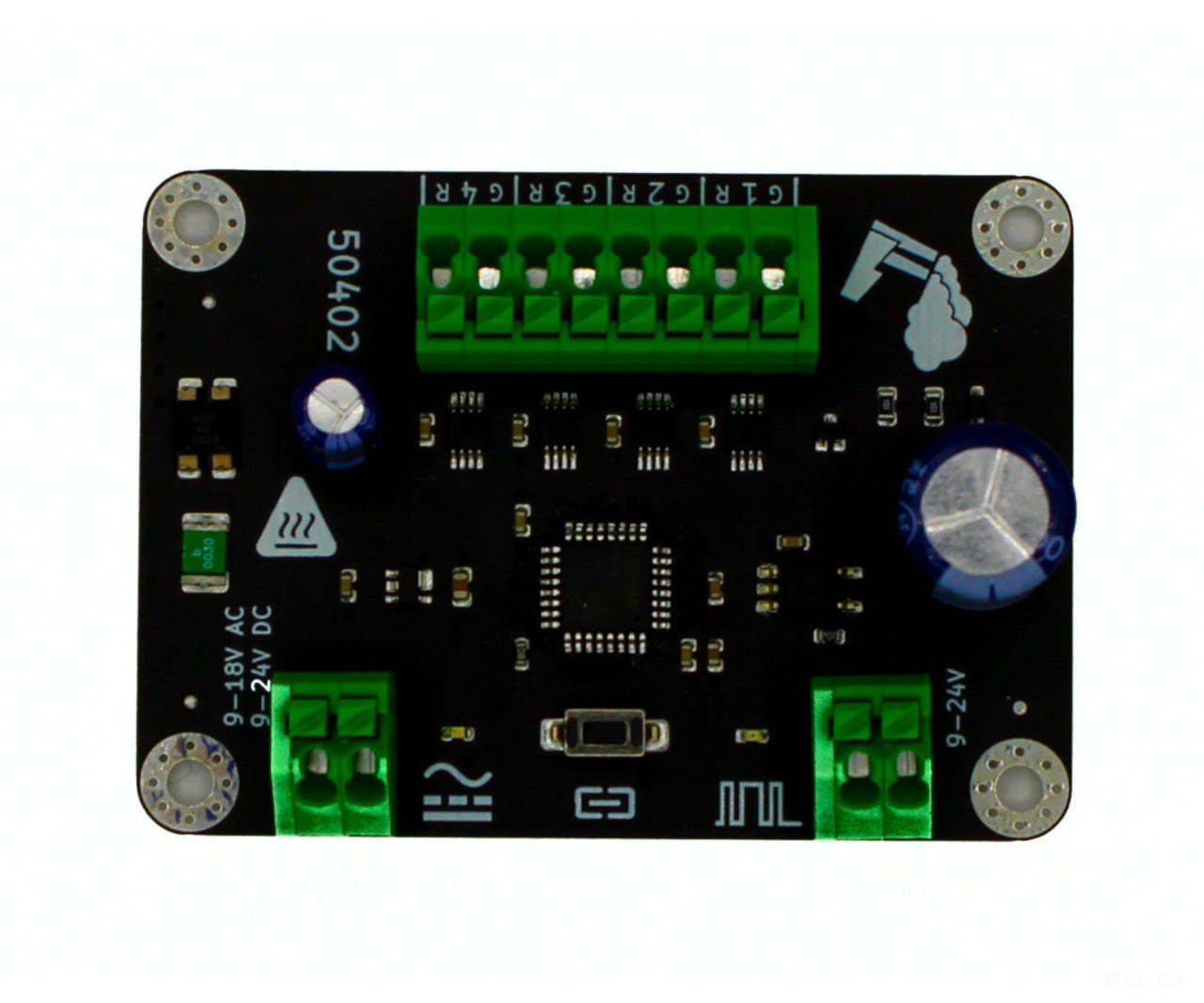

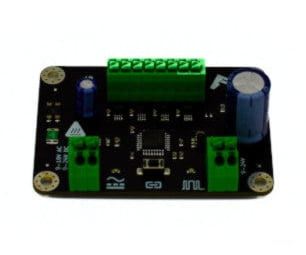

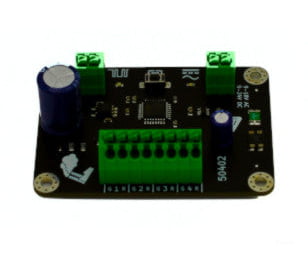

Decoderwerk 50402 4-channel signal decoder for Märklin Startup signals with cross-fading effects (DCC + Motorola)

Description

• The decoder has 4 outputs.
• Operation can be done with DCC or Märklin® Motorola.
• The decoder is suitable for switching Märklin® startup signals.
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Compatible

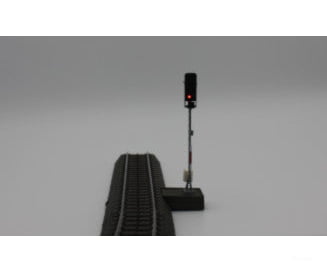

• Signals The decoder can be connected to the following signals.
  • Märklin Start-up Light-Pain Lock Signal 74371
  • Märklin Start-up Light Warning 74380
  • Märklin Start-up Light Block Signal 74391
• Märklin C-track The decoder can be inserted into the following tracks and connected.
  • Straight track 24172
  • Straight track 24188
  • Straight track 24229
  • Straight track 24236
  • Straight track 24360
  • Curved track 24912
  • Curved track 24230
  • Curved track 24330
  • Curved track 24430
  • Curved track 24530
• Trix C-track The decoder can be inserted and connected to the following tracks.
  • Straight track 62172
  • Straight track 62188
  • Straight track 62229
  • Straight track 62236

Voltage

• Build up
  • 9-24V track voltage
  Cost-effective plug-ing power supplies can be used. The decoder can also be supplied directly by the track voltage.
• Performance
  • 9-24V DC voltage
  • 100mA electricity
  Each output can be loaded with 100mA and delivers 9-24V DC voltage.
• Need
  • Quiet current below 5mA
  The decoder itself requires under 5mA in the idle mode. The power demand of the output depends on the connected article.
• The decoders are protected against short circuit with a self-resetting fuse.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. You just have to press a button and call up the desired address at your headquarters. Done.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard By default, the signals are turned on and off with a dimming time of 500ms.
• Long-term memory The decoder remembers every command and automatically restores the last signal image when starting.
• It will be light but not too fast.... You can adjust the dimming time individually. Dimming times of 10 to 2550 milliseconds are possible. And that in small steps of 10 milliseconds. The exemplary pause between the signal images is also observed.
• Hectic train service? The signals can also be switched without dimming time.

Installation

• • Connections Phoenix Contact brand terminals for cables up to 1mm2.
  • Turntable The control signal DCC or Märklin Motorola is connected via optocouplers and thus completely galvanically separated.
  • Dimensions 70x50mm, 25mm high
  • Fastening 4 mounting holes of size M3. The inner diameter is 3.5mm.

Decoderwerk user guides for most products (with english text) can be found here
