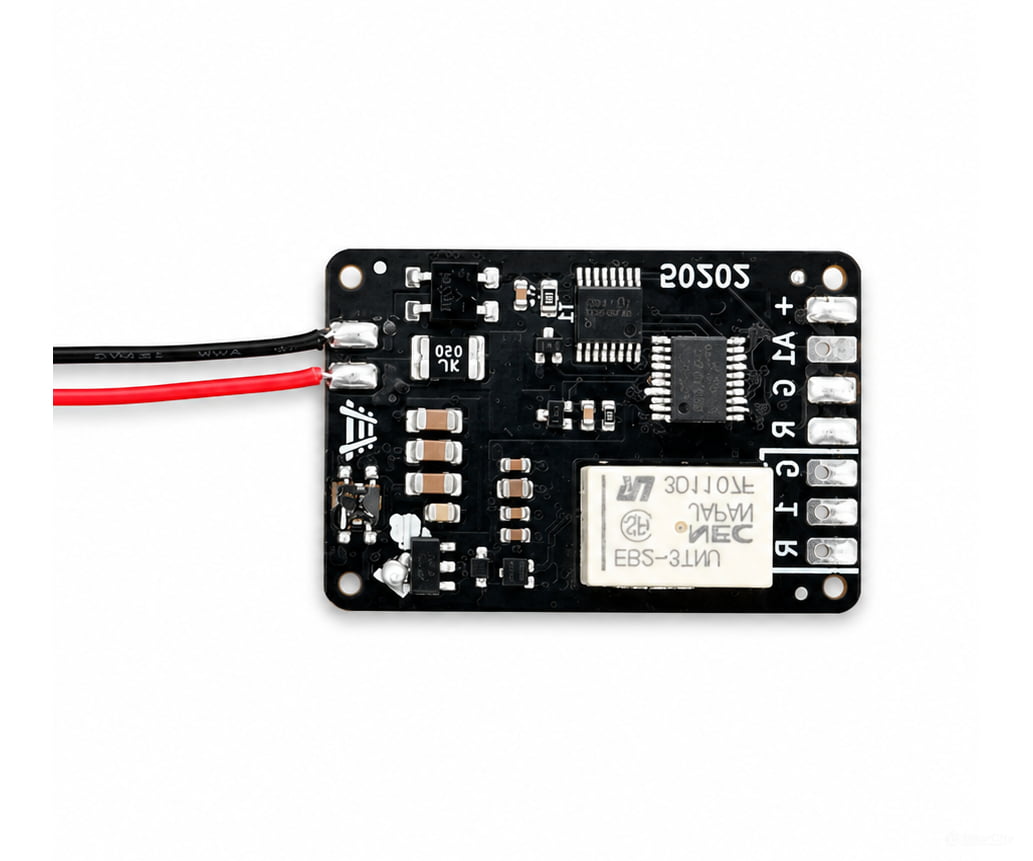

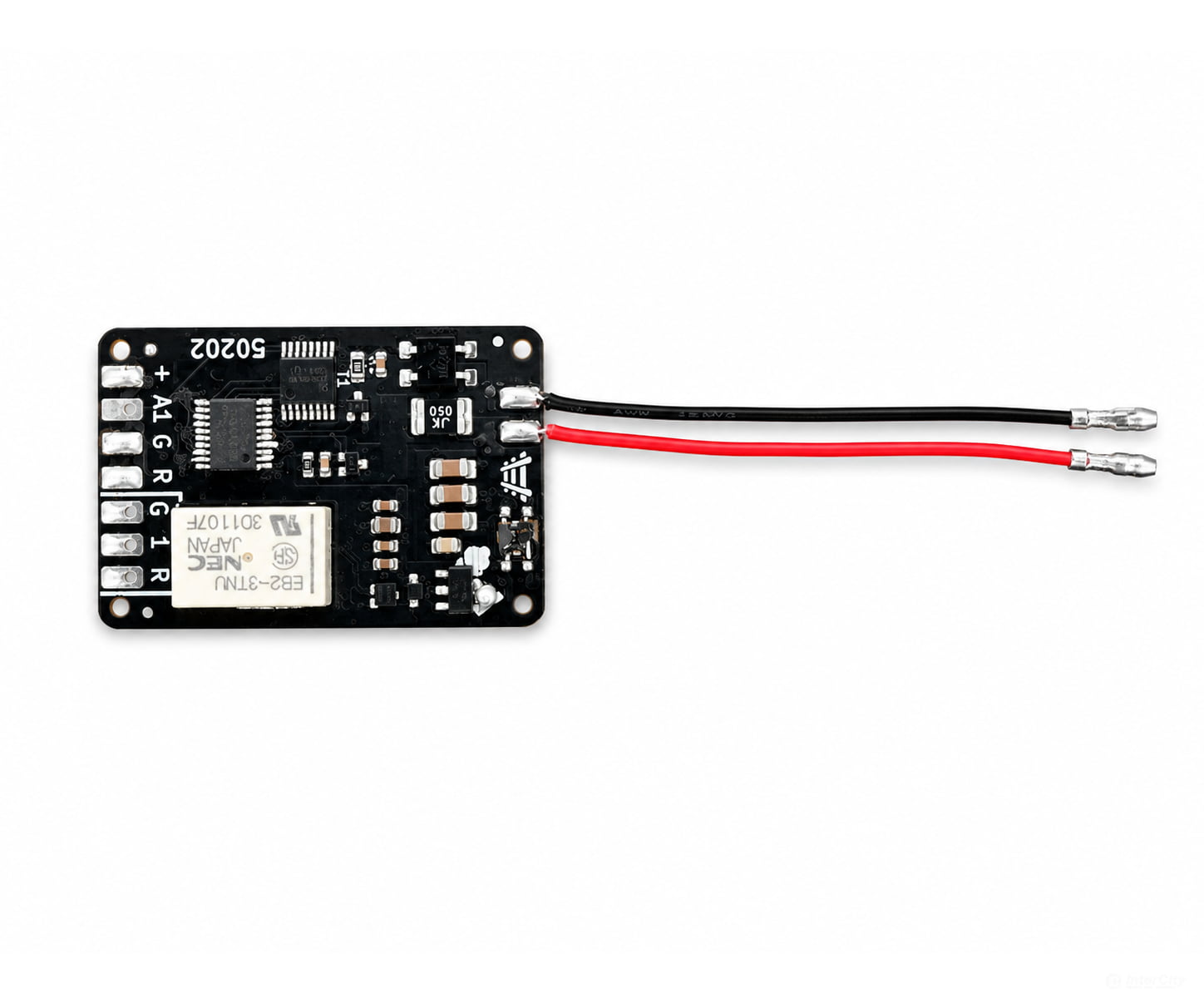

Decoderwerk 50202 C-Track signal decoder for semaphore signals, with bistable relay for train control (DCC + Motorola)

• The decoder has 3 outputs.
• The operation can be done with DCC or Märklin Motorola.
• The decoder is suitable for switching track sections and Märklin startup signals.
• Conventional signals with common anode or cathode can also be connected (block signal)

• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Compatible

• Signals The decoder can control all wing signals with normal coil drive and also has the possibility of a braking distance
• Märklin® C-Pleis The decoder can be inserted and connected directly into the following switches.
  • Switch left 24611
  • Switch right 24612
  • Slim switch left 24711
  • Slim switch right 24712
  • Bow switch left 24771
  • Bow switch right 24772
  • Bow switch left 24671
  • Right turn-a-right 24672
  • Double crossover switch 24624
• Trix C-Train The decoder can be inserted into the following switches and connected. The required connection cable is included.
  • Switch left 62611
  • Switch right 62612
  • Slim switch left 62711
  • Slim switch right 62712
  • Bow switch left 62671
  • Archer right 62672
  • Slim bow switch left 62771
  • Slim bow switch right 62772
  • Double crossover switch 62624
•


Voltage

• Build up
  • 9-24V track voltage
  The decoder is supplied directly by the track voltage. No separate power supply can be connected.
• Performance
  • 9-24V DC voltage
  • 1A current
  The outputs can be loaded with 1A and provide 9-24V DC voltage.
• Relays
  • 9-24V DC voltage
  • 9-18V AC voltage
  • 2A current
  The output can be loaded with 2A and switches 9-24V DC voltage or 9-18V AC voltage.
• Need
  • Quiet current below 5mA
  The decoder itself requires under 5mA in the idle mode. The relay is bistable and requires no current to maintain the position.
• The decoders are protected against short circuit with a self-resetting fuse.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. You just have to press a button and call up the desired address at your headquarters. Done.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard By default, the output makes small steps with a switching pulse of 400ms.
• The decoder supports the control of the switch lantern and automatically restores the last circuit of the switch lantern when the decoder starts.
• The switch output can be inverted. For example, opposite-roging switches with the same address can be switched.
• Small steps You can adjust the switching pulse individually. Switching pulses from 10 ms to 2,550 ms are possible. And that in small steps of 10ms.

Installation

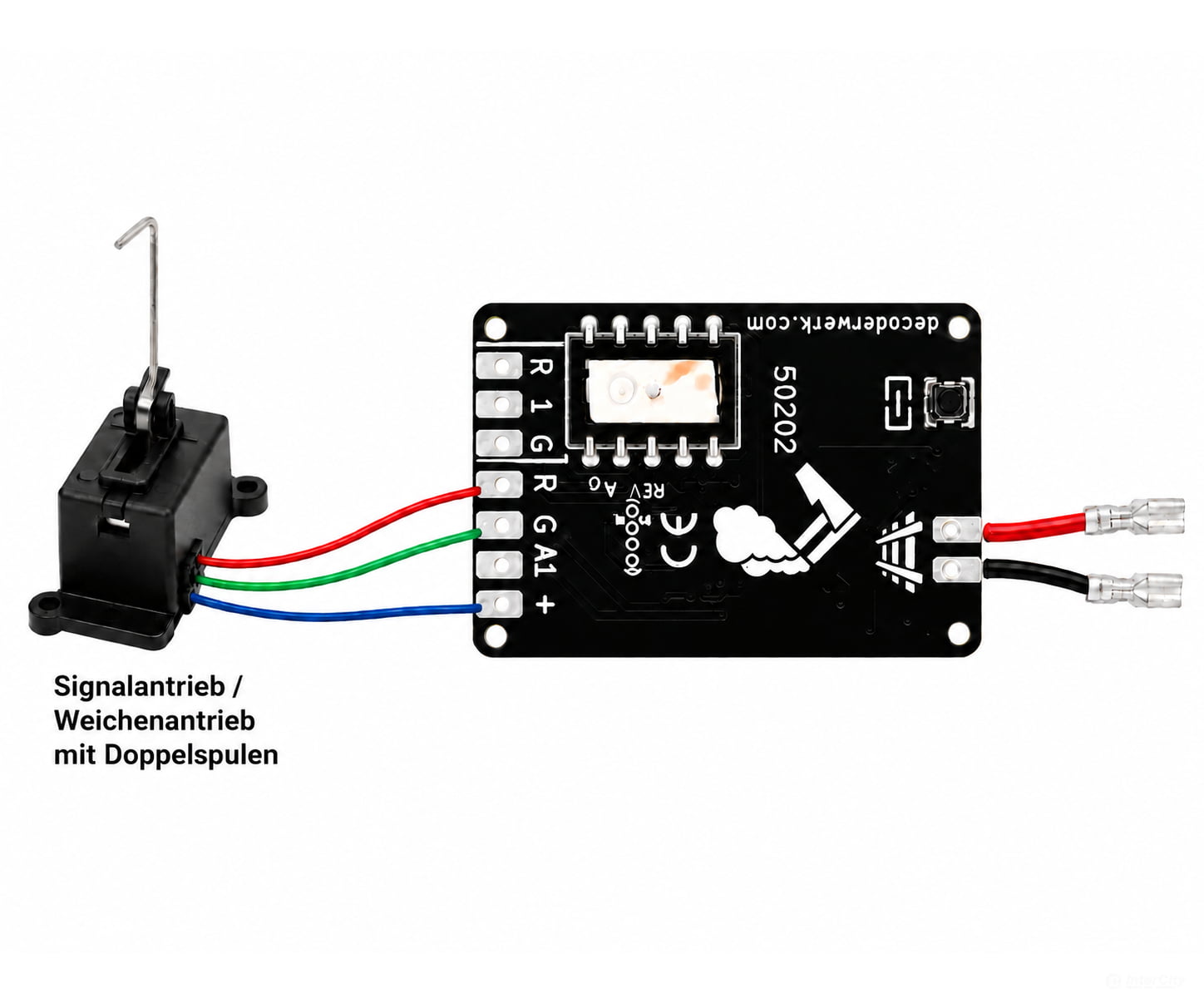

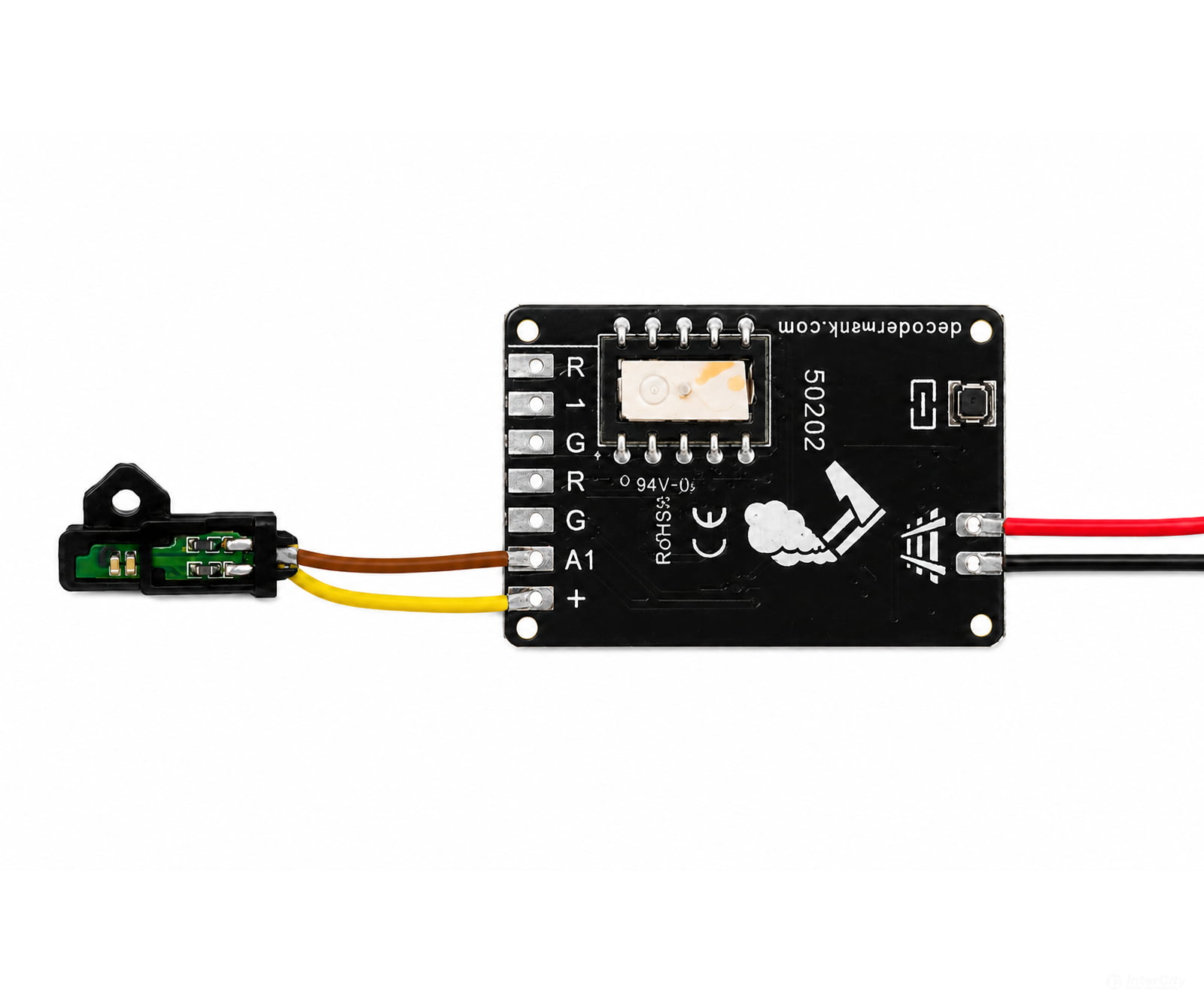

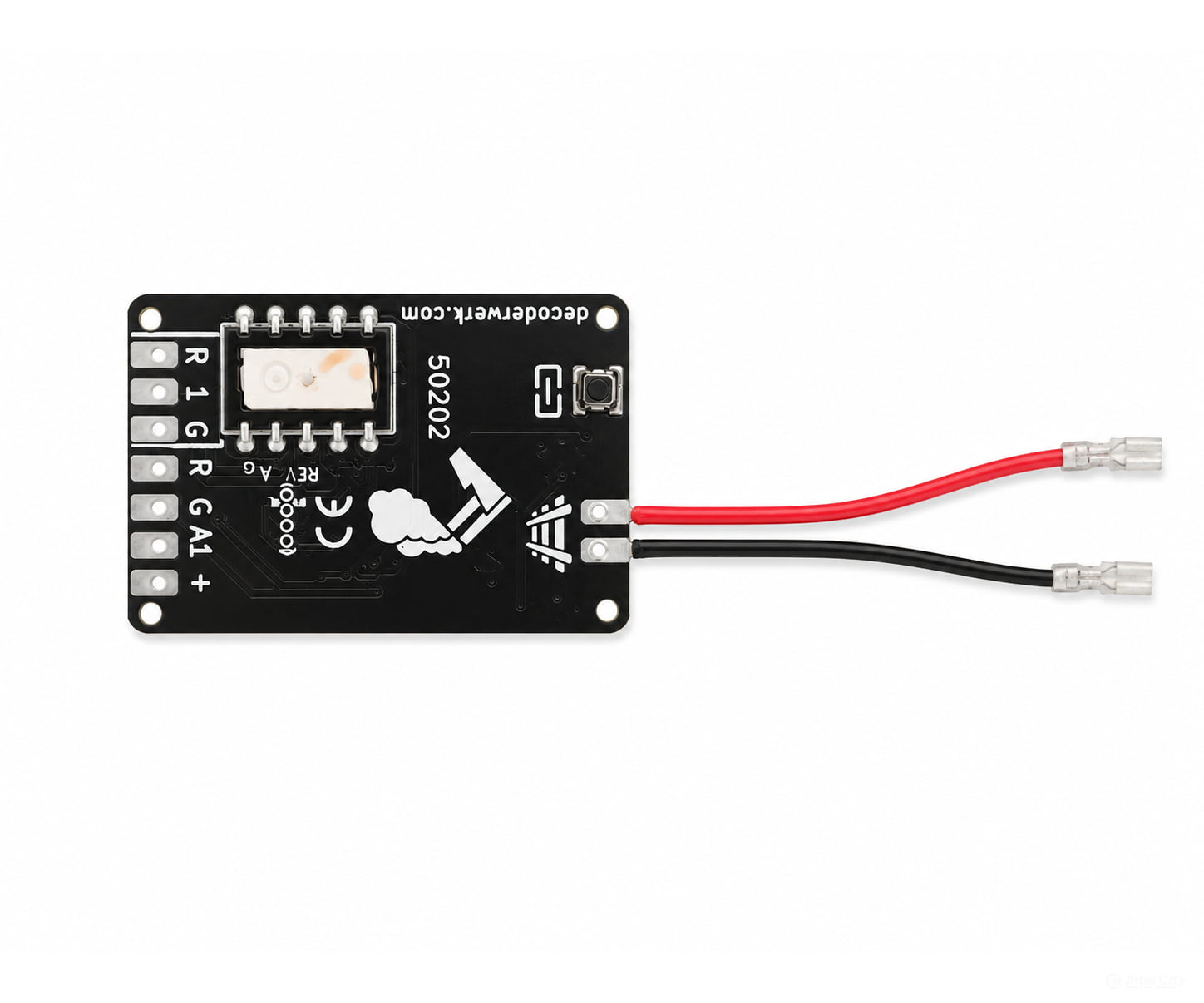

• Connections The decoder has all connection cables for direct installation in a Märklin C-track.
• Mounting The decoder can be easily attached to the inner bed of C-tracks from Märklin or Trix.
