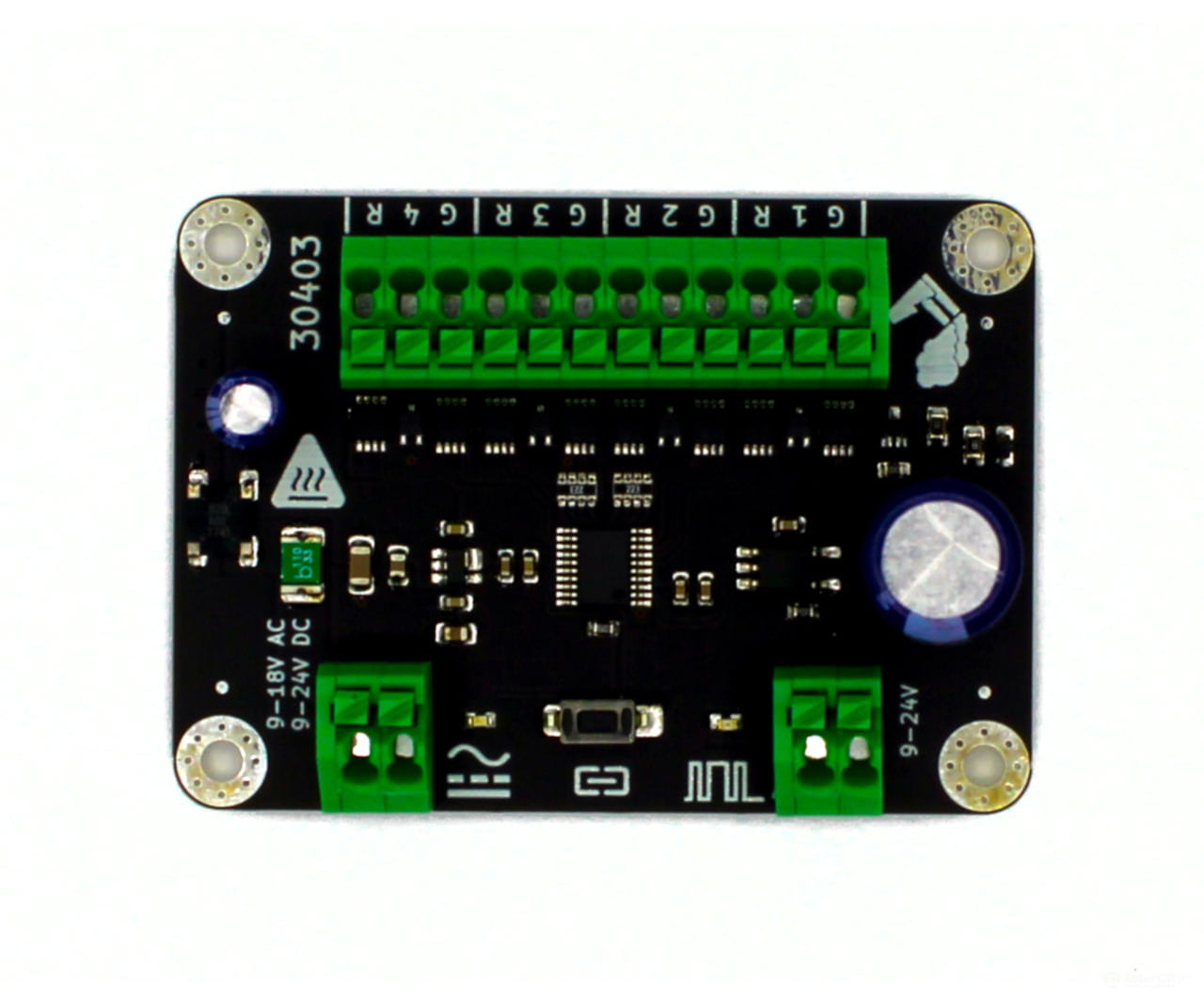

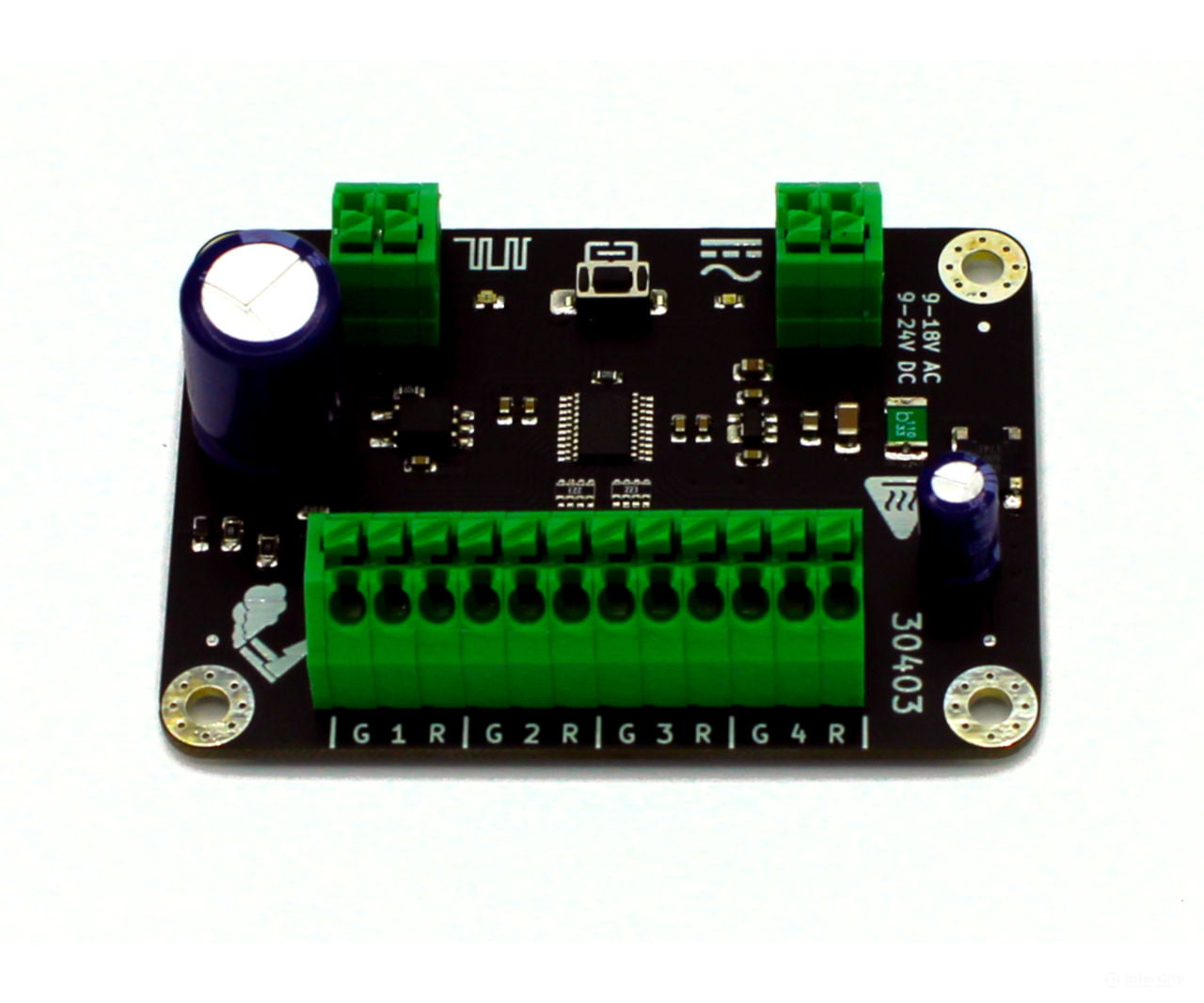

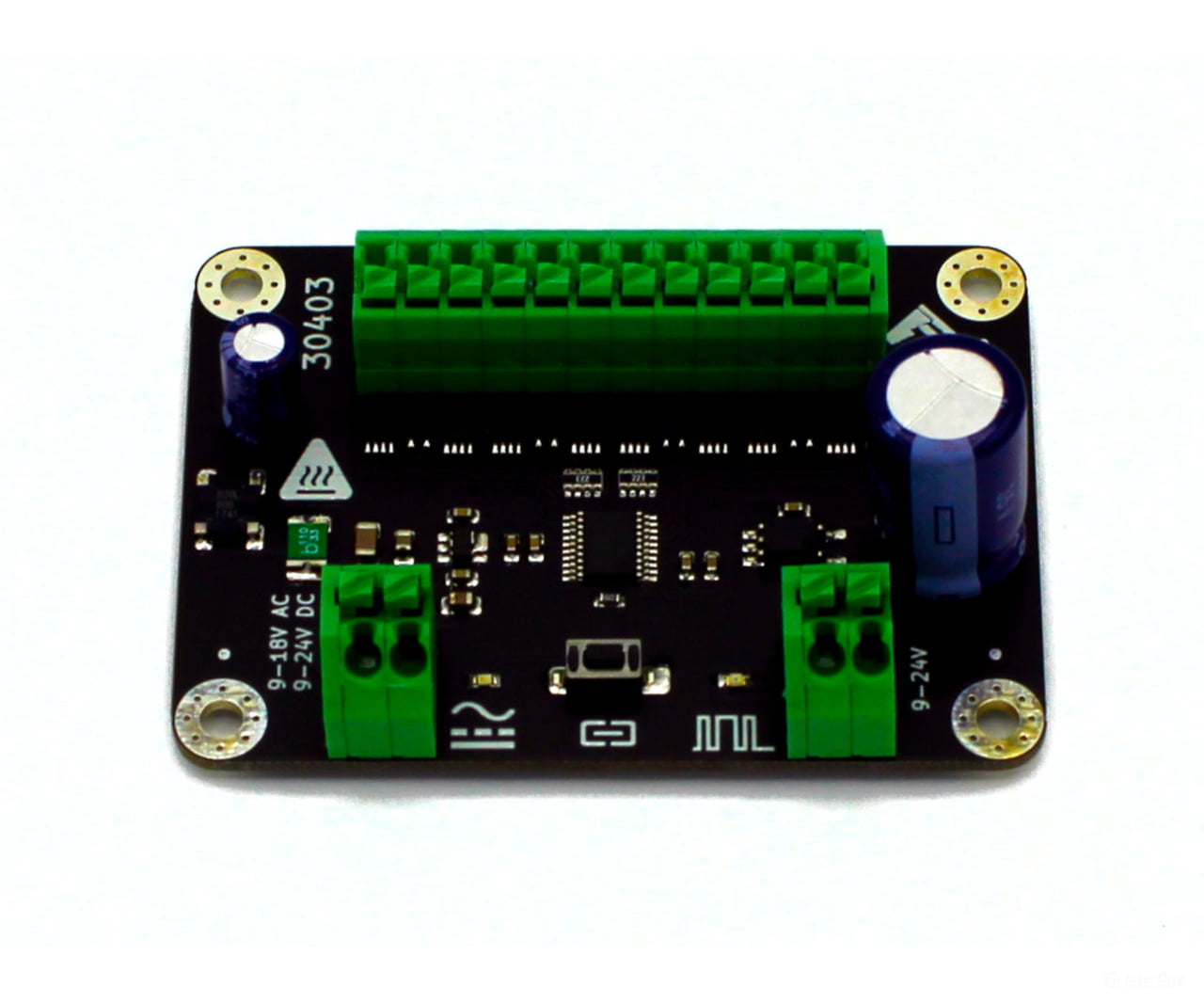

Decoderwerk 30403 4-channel decoder for controlling 4 solenoid-operated turnouts (DCC + Motorola)

• The decoder has 4 outputs.
• Motorola The operation can be done with DCC or Märklin® Motorola.
• The decoder is suitable for switches with double spool drives or decoupling tracks.
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Voltage

• Build up
  • 9-24V DC voltage
  • 9-18V AC voltage
  • 9-24V track voltage
  Cost-effective plug-ing power supplies can be used. The decoder can also be supplied directly by the track voltage.
• Performance
  • 9-24V DC voltage
  • maximum 2A per output
  Each output can be individually charged with 2A and provides 9-24V DC voltage. The decoder can be loaded with a maximum of 2A in total.
• Need
  • Quiet current below 10mA
  The decoder itself requires less than 10mA in the idle state. The power requirement of the outputs depends on the connected article. We recommend a power supply with 2A.
• The decoders are protected against short circuit with a self-resetting fuse.
• Long conclusion The decoders have a charging control, so that the control panel does not mistakenly diagnose a short circuit when starting.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. You only have to press a button and call up the desired addresses at your headquarters. Done.
• Individual Each exit can be assigned an individual address. The addresses are freely selectable.
• Social An address can be assigned several times. When the address is called, all outputs associated with this address are switched.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard By default, each output generates a switching pulse of 400 ms.
• Small steps You can adjust the switching pulse individually. Switching pulses from 10 ms to 2,550 ms are possible. And that in small steps of 10ms.
• Individual The switching times can be configured individually for each output.
• If the switching time is increased, the output remains activated as long as the button on the control panel is pressed. Thus, for example, decoupling tracks can be precisely controlled.
• For Always Any output can be configured as continuous operation. The selected output is switched until it is deactivated by selecting it.

Installation

• Connections Phoenix Contact brand terminals for cables up to 1mm2.
• Turntable The control signal DCC or Märklin Motorola is connected via optocouplers and thus completely galvanically separated.
• Dimensions 70x50mm, 25mm high
• Fastening 4 mounting holes of size M3. The inner diameter is 3.5mm.
