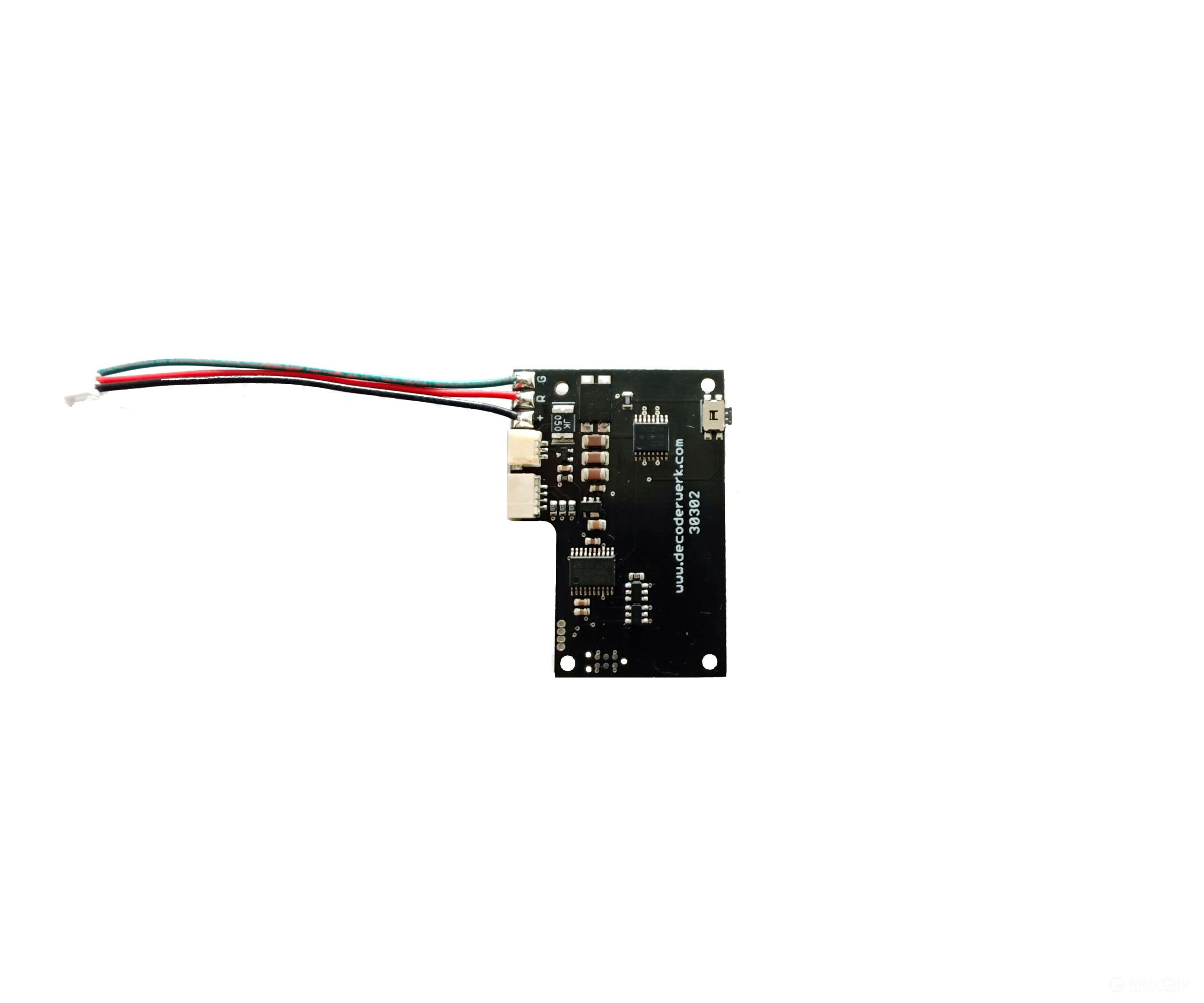

Decoderwerk 30302 C-Track turnout decoder for the slim double-slip switch (12.1°) with lantern output (DCC + Motorola)

• The decoder has 3 outputs.
• Operation can be done with DCC or Märklin® Motorola.
• The decoder is suitable for controlling Märklin®/TRIX® C-Pail slim double crossover switches and the optional switch lanterns.
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Compatible

• Decoder The decoder is the ideal alternative for the built-in digital decoders 74467.
• The decoder can be connected directly to the electric switch drives 74490, 74491 and 74492.
• Märklin C-Gleis The decoder can be inserted and connected directly into the slim double crossover switch 24720.
• TRIX C-Gleis The decoder can be inserted and connected directly into the slim double crossover 62720.


Voltage

• Build up
  • 9-24V track voltage
  The decoder is supplied directly by the track voltage. A separate power supply can be connected if required.
• Performance
  • 9-24V DC voltage
  • 1A current
  The outputs can be loaded with 1A and provide 9-24V DC voltage.
• Need
  • Quiet current below 5mA
  The decoder itself requires under 5mA in the idle mode. The power demand of the output depends on the connected article.
• The decoders are protected against short circuit with a self-resetting fuse.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. You only have to press a button and call up the desired addresses at your headquarters. Done.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard By default, the output makes small steps with a switching pulse of 400ms.
• The decoder supports the control of the switch lantern and automatically restores the last circuit of the switch lanterns when the decoder starts.
• Small steps You can adjust the switching pulse individually. Switching pulses from 10 ms to 2,550 ms are possible. And that in small steps of 10ms.
• Logical For centrals that do not have their own switching symbol for the three-way switch, such as the Märklin Mobile Station, the switching logic automatically generates the necessary switching commands.

Installation

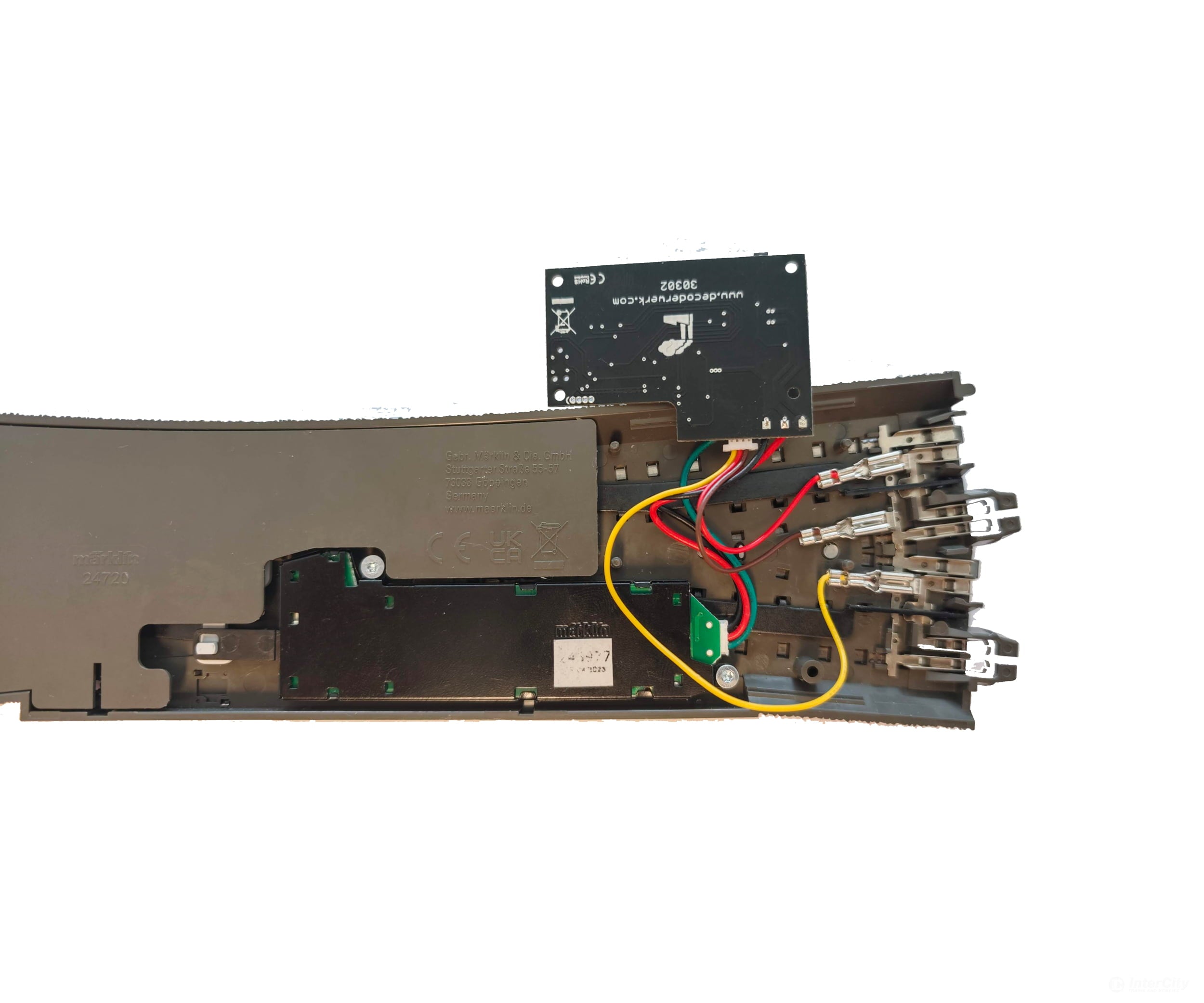

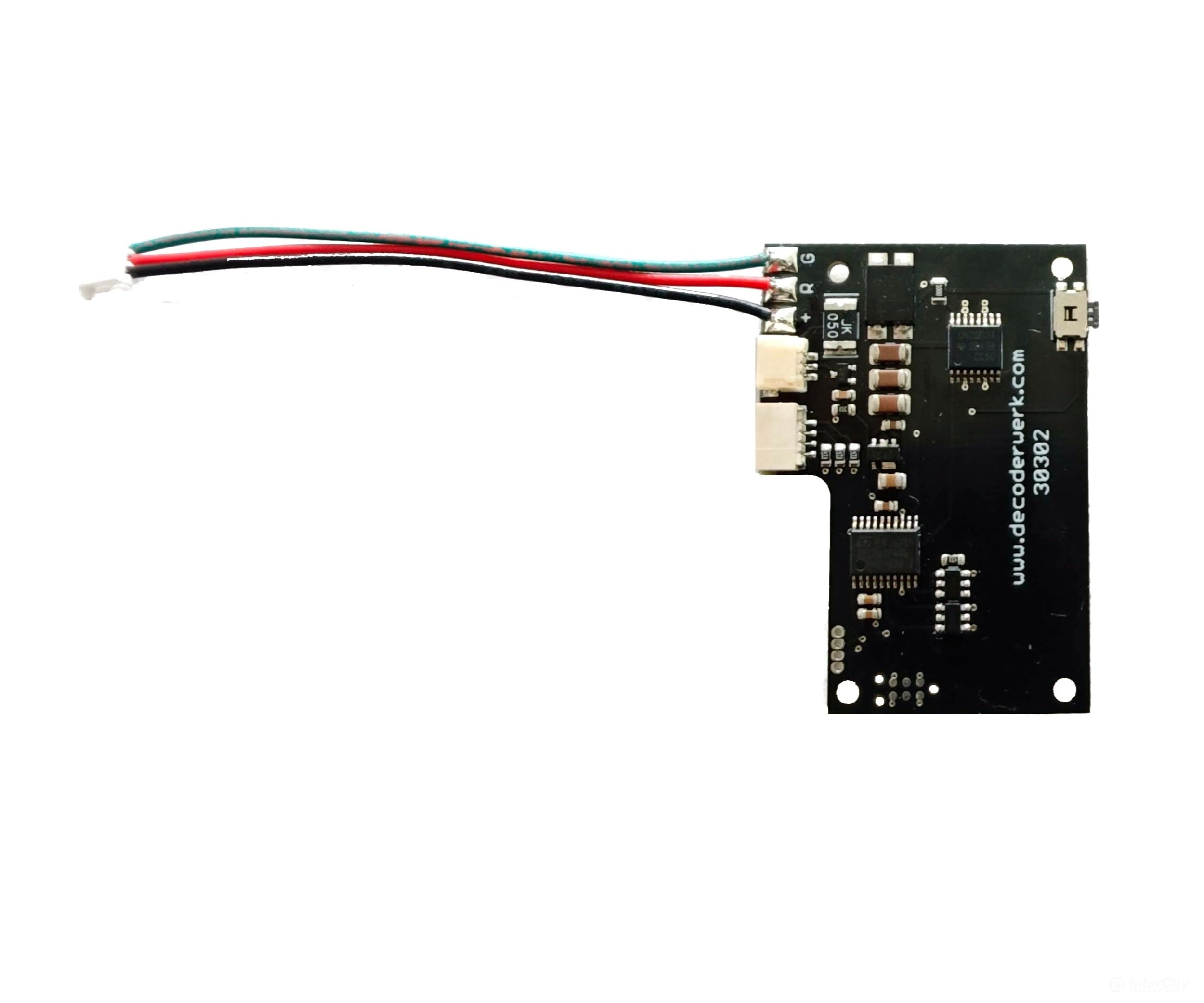

• Connections The decoder has all connection cables for direct installation in a Märklin C-way three-way switch.

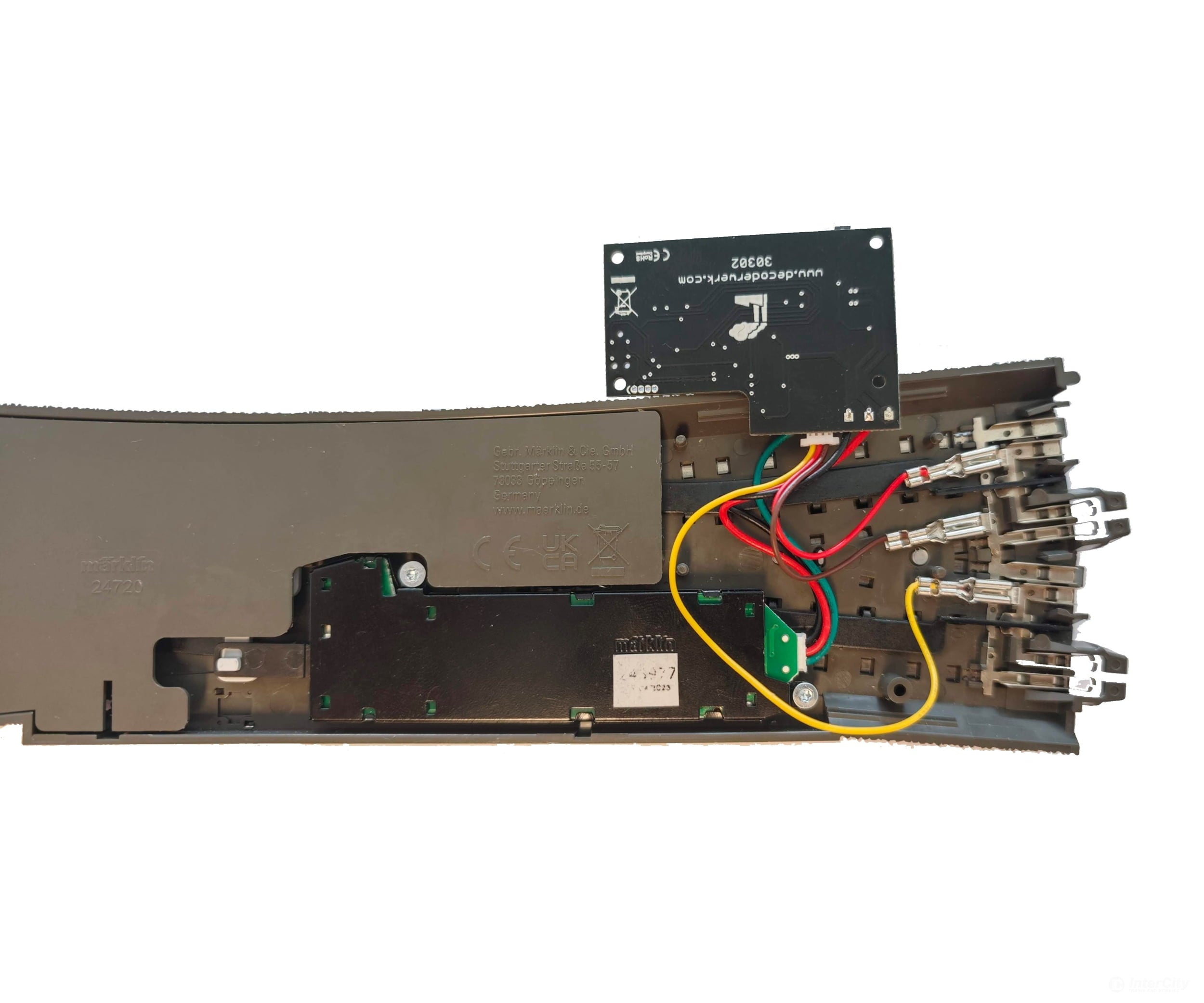

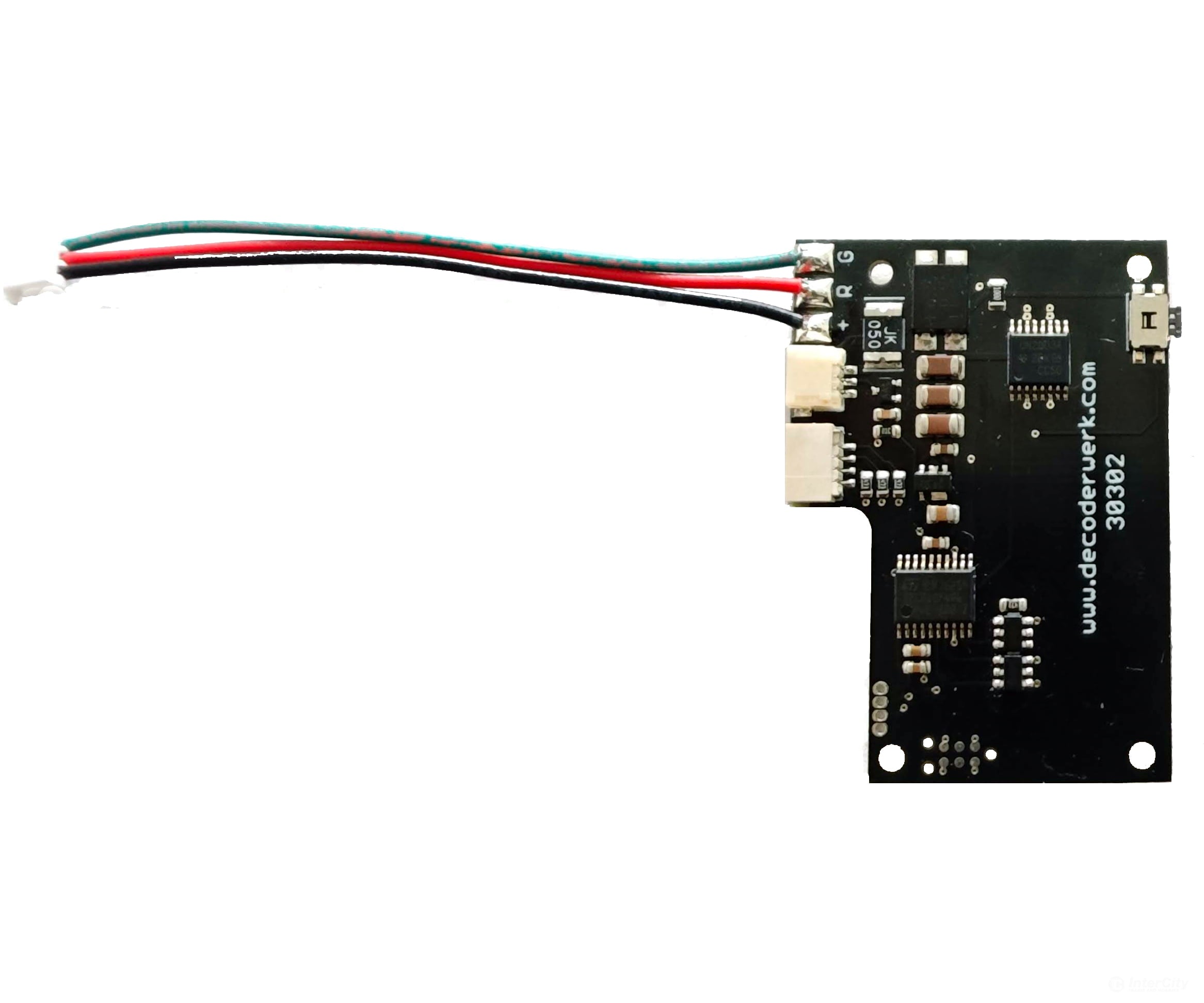

• Attachment The decoder can be easily attached to the inner bed of a C-track three-way switch from Märklin or TRIX.
