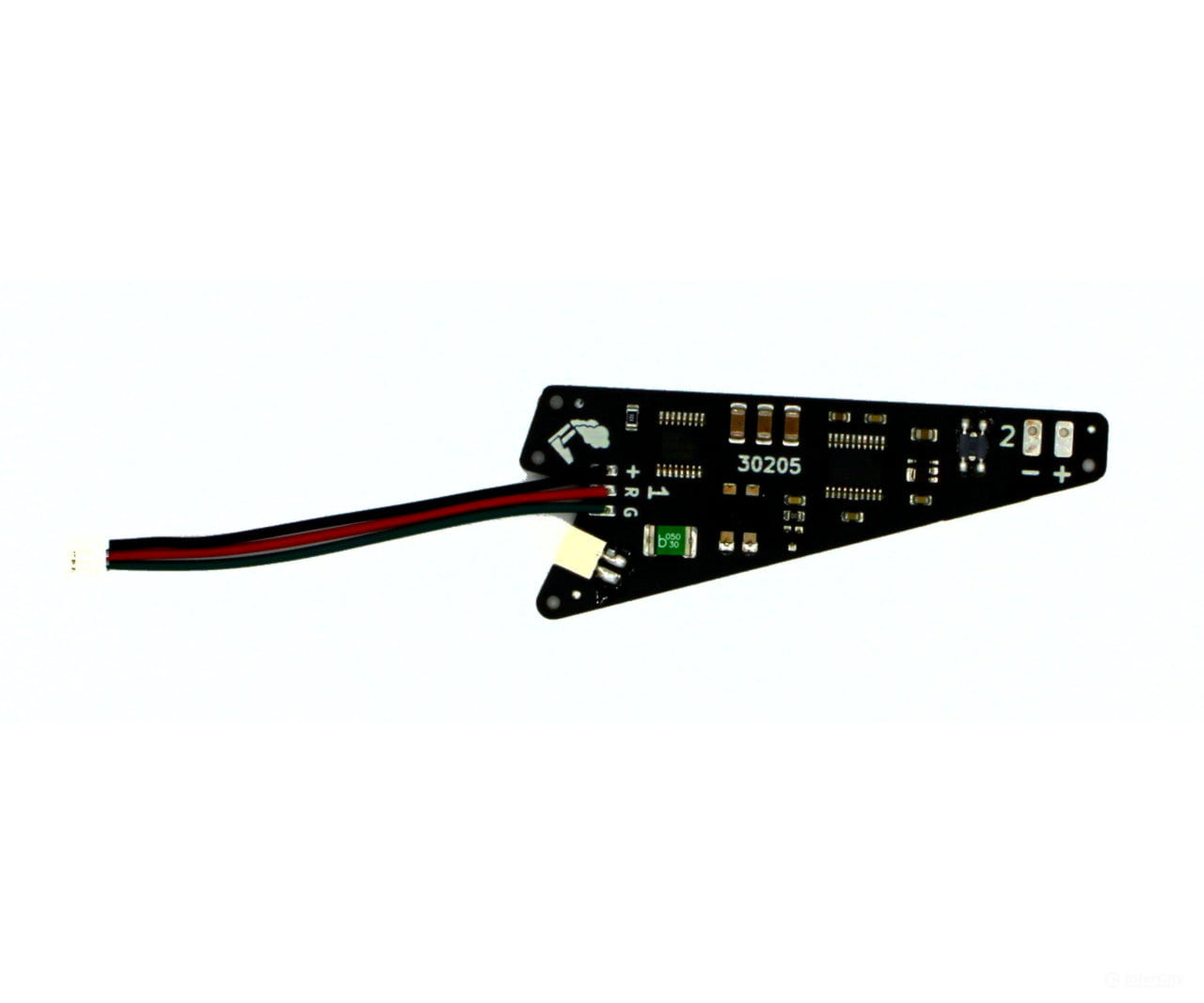

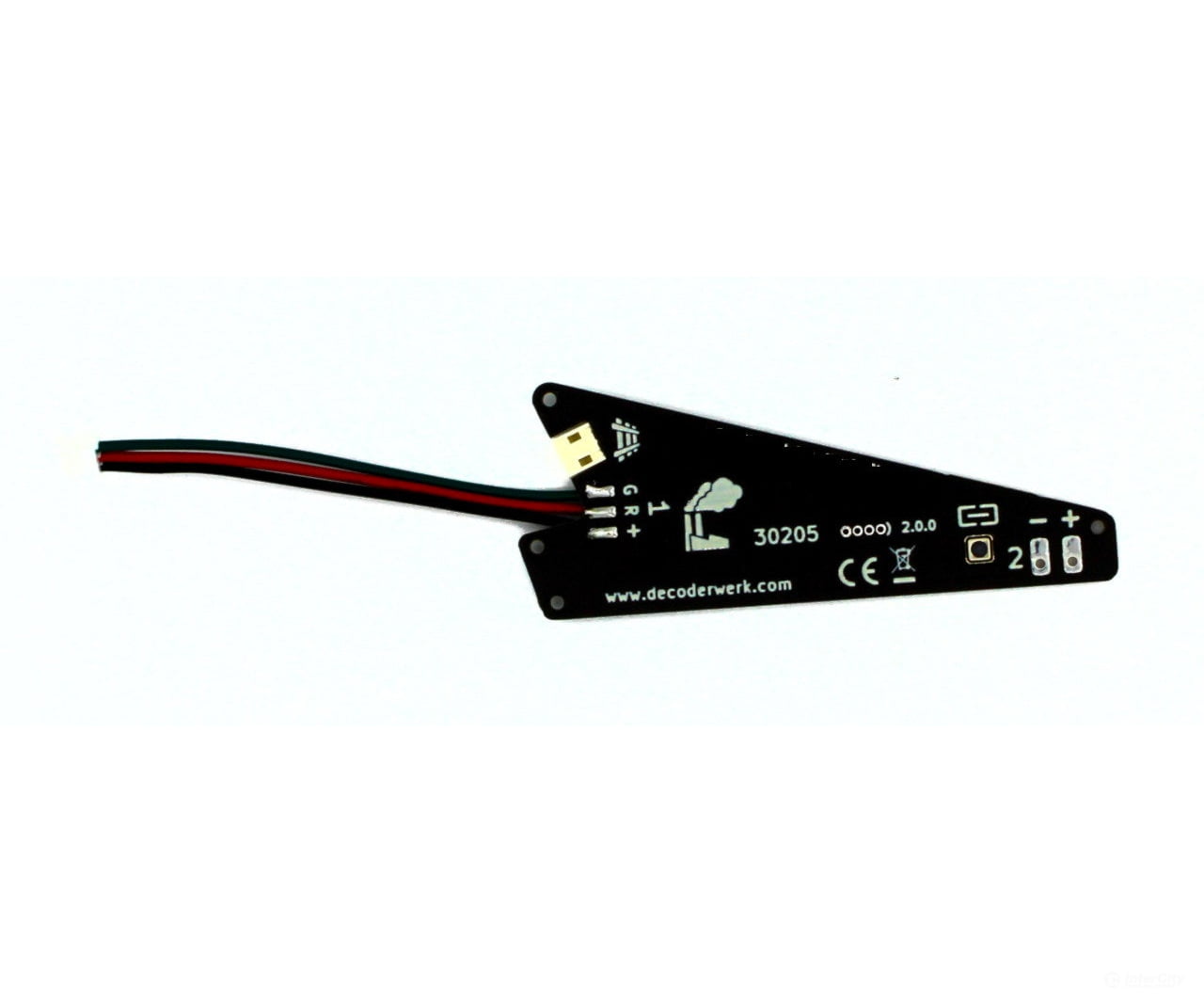

Decoderwerk 30205 C-Track turnout decoder for installation in Trix and Märklin C-Track, with lantern output (DCC + Motorola)

• The decoder has 2 outputs.
• Operation can be done with DCC or Märklin® Motorola.

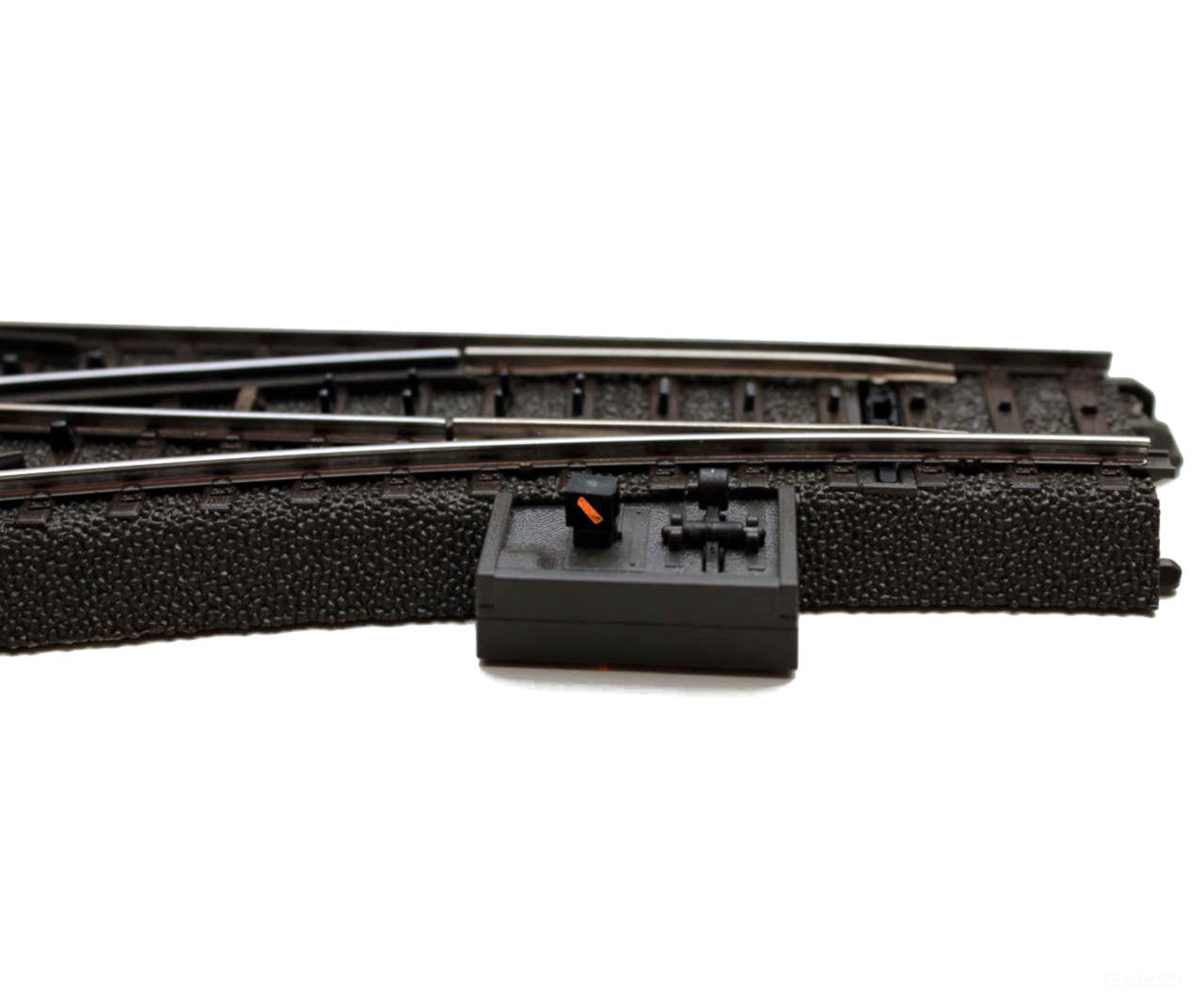

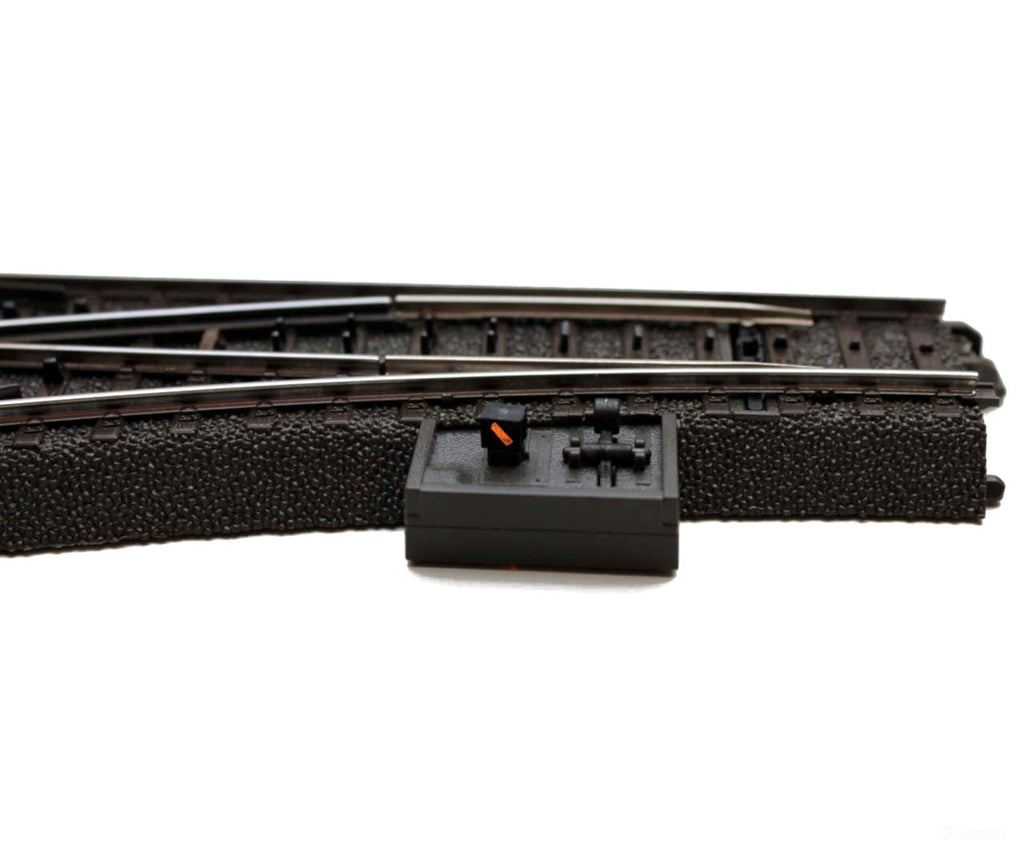

• The decoder is suitable for controlling Märklin® or Trix® C-way switches and the optional switch lantern.
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Compatible

• Decoder The decoder is the ideal alternative for the built-in digital decoders 74460, 74461 and 74462.
• The decoder can be connected directly to the electric switch drives 74490, 74491 and 74492.
• Märklin® C-Pleis The decoder can be inserted and connected directly into the following switches.
  • Switch left 24611
  • Switch right 24612
  • Slim switch left 24711
  • Slim switch right 24712
  • Bow switch left 24771
  • Bow switch right 24772
  • Bow switch left 24671
  • Right turn-a-right 24672
  • Double crossover switch 24624
• Trix C-Train The decoder can be inserted into the following switches and connected. The required connection cable is included.
  • Switch left 62611
  • Switch right 62612
  • Slim switch left 62711
  • Slim switch right 62712
  • Bow switch left 62671
  • Archer right 62672
  • Slim bow switch left 62771
  • Slim bow switch right 62772
  • Double crossover switch 62624

Voltage

• Build up
  • 9-24V track voltage
  The decoder is supplied directly by the track voltage. No separate power supply can be connected.
• Performance
  • 9-24V DC voltage
  • 1A current
  The outputs can be loaded with 1A and provide 9-24V DC voltage.
• Need
  • Quiet current below 5mA
  The decoder itself requires under 5mA in the idle mode. The power demand of the output depends on the connected article.
• The decoders are protected against short circuit with a self-resetting fuse.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. You only have to press a button and call up the desired addresses at your headquarters. Done.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard By default, the output makes small steps with a switching pulse of 400ms.
• The decoder supports the control of the switch lantern and automatically restores the last circuit of the switch lantern when the decoder starts.
• The switch output can be inverted. For example, opposite-roging switches with the same address can be switched.
• Small steps You can adjust the switching pulse individually. Switching pulses from 10 ms to 2,550 ms are possible. And that in small steps of 10ms.

Installation

• Connections The decoder has all connection cables for direct installation in a Märklin C-way sever.
  A suitable connection cable is included for the connection of Trix switches.

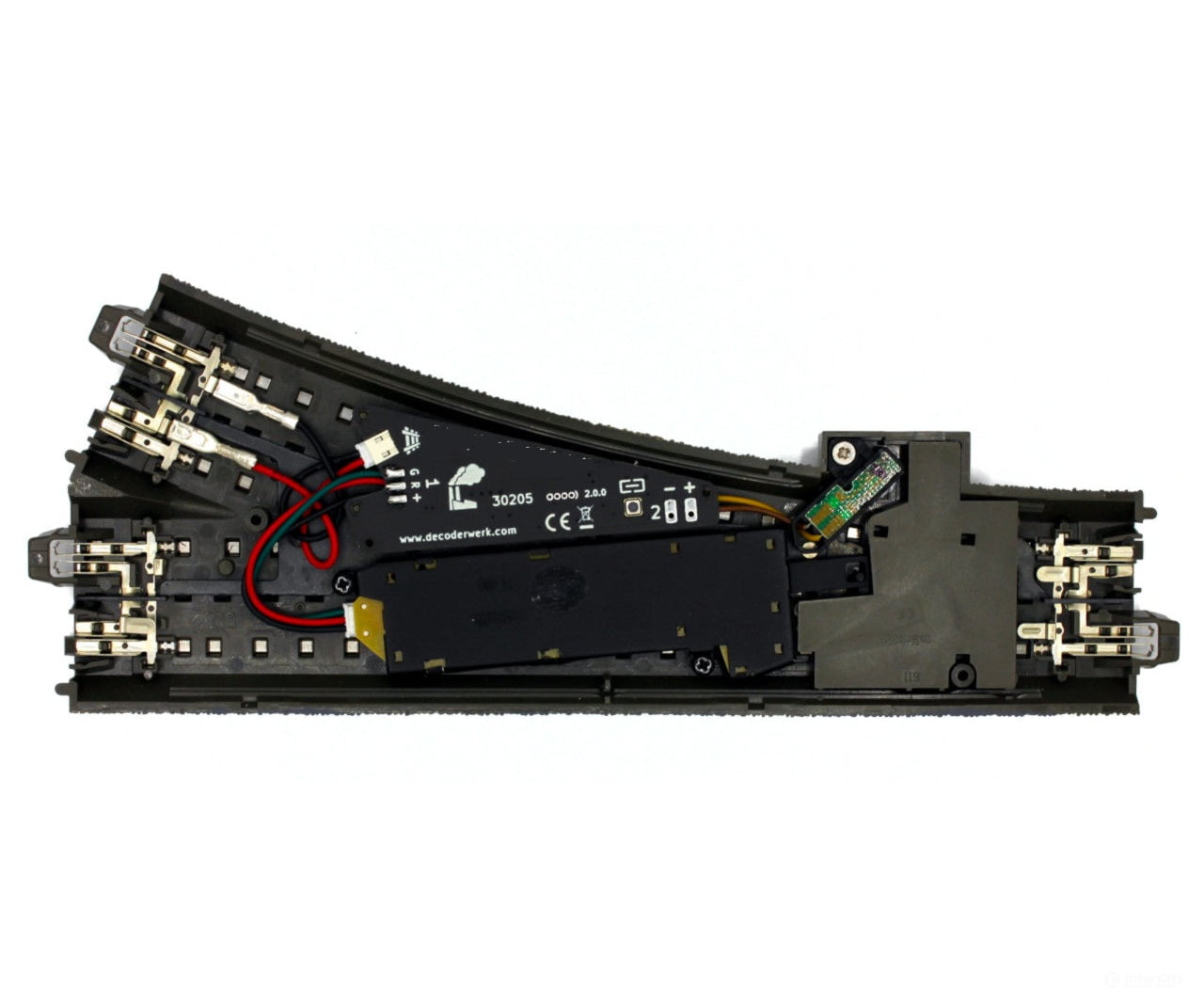

• Mounting The decoder can be easily attached to the inner bed of a C-way sader from Märklin or Trix.
