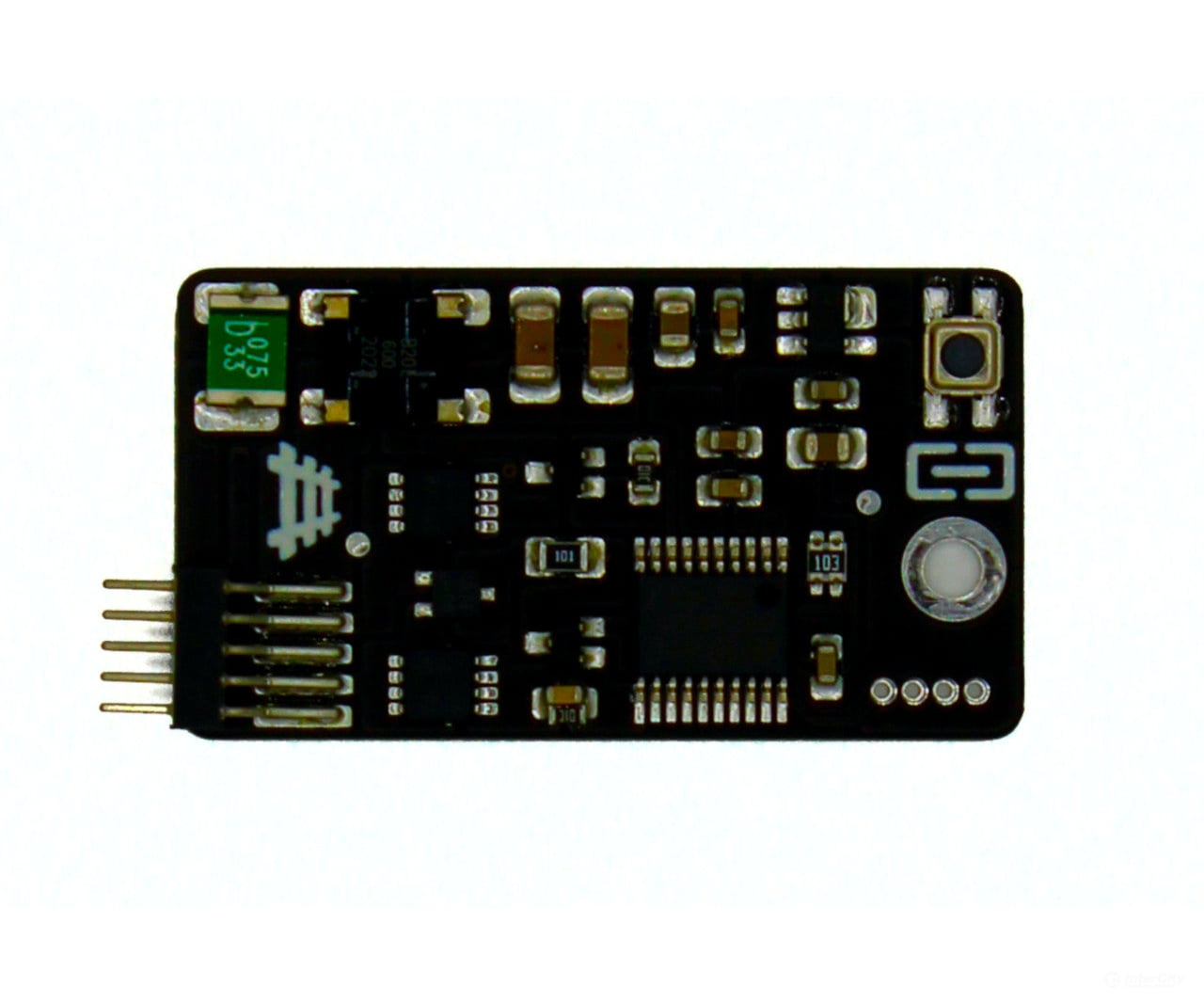

Decoderwerk 30104 Turnout decoder for Roco geoLine drives (DCC + Motorola)

• The decoder has 1 output.
• Motorola The operation can be done with DCC or Märklin® Motorola.
• The decoder is suitable for controlling Roco geoLine® switches.
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Compatible

• Decoder The decoder is the ideal alternative for the built-in digital decoder 61196.
• Drives The decoder can be connected directly to the electric switch drive 61195.
• Roco geoLine® switches The decoder can be inserted and connected directly into the following switches.
  • Switch left 61140
  • Switch right 61141
  • Bow switch left 61154
  • Right turner 61155
  • Three-way switch 61160
  • Double crossover switch 61164

Voltage

• Build up
  • 9-24V track voltage
  The decoder is supplied directly by the track voltage.
• Performance
  • 9-24V DC voltage
  • 2A current
  The outputs can be loaded with 2A and provide 9-24V DC voltage.
• Need
  • Quiet current below 5mA
  The decoder itself requires under 5mA in the idle mode. The power demand of the output depends on the connected article.
• The decoders are protected against short circuit with a self-resetting fuse.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. You only have to press a button and call up the desired addresses at your headquarters. Done.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard By default, the output makes small steps with a switching pulse of 400ms.
• The switch output can be inverted. For example, opposite-roging switches with the same address can be switched.
• Small steps You can adjust the switching pulse individually. Switching pulses from 10 ms to 2,550 ms are possible. And that in small steps of 10ms.

Installation

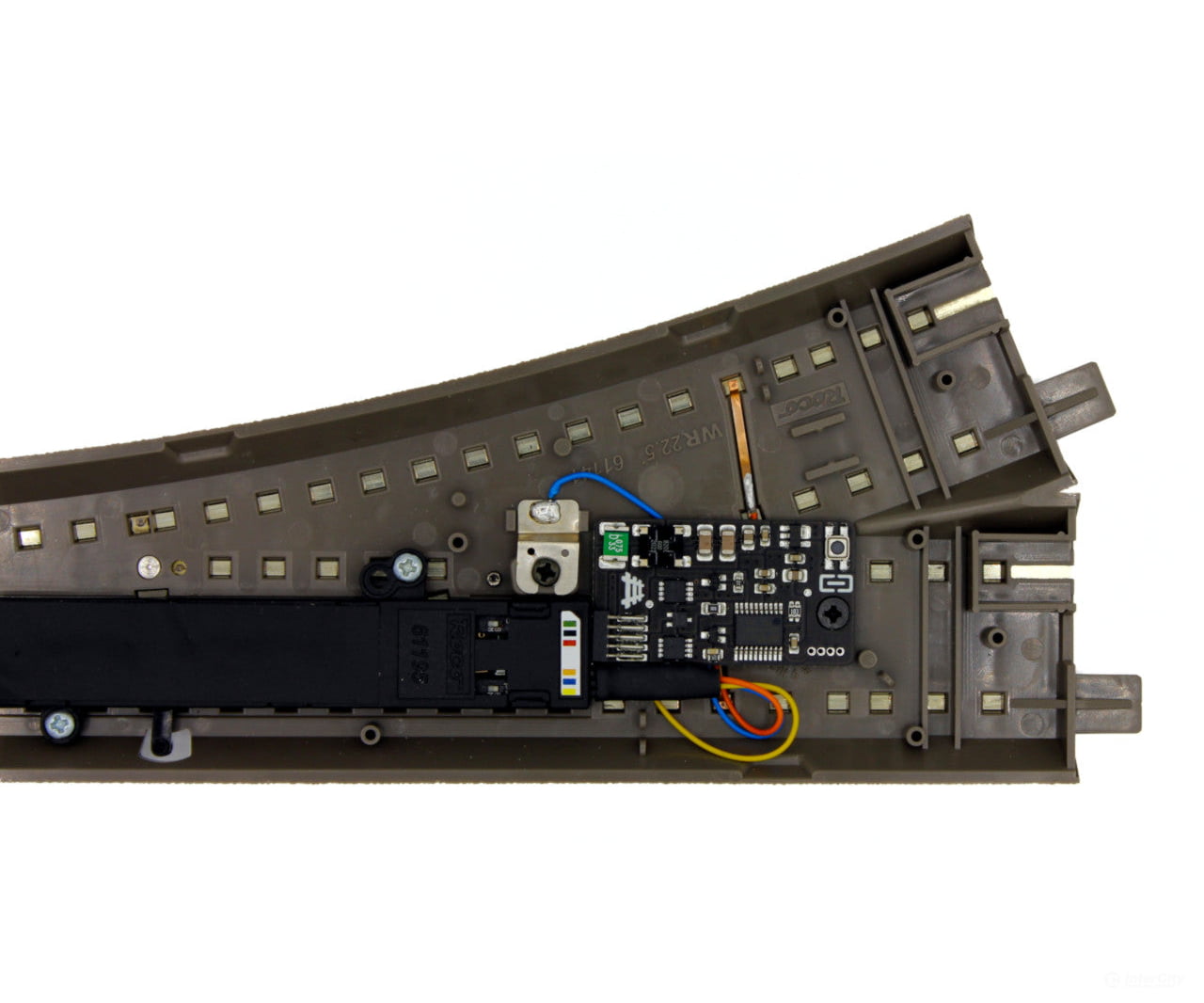

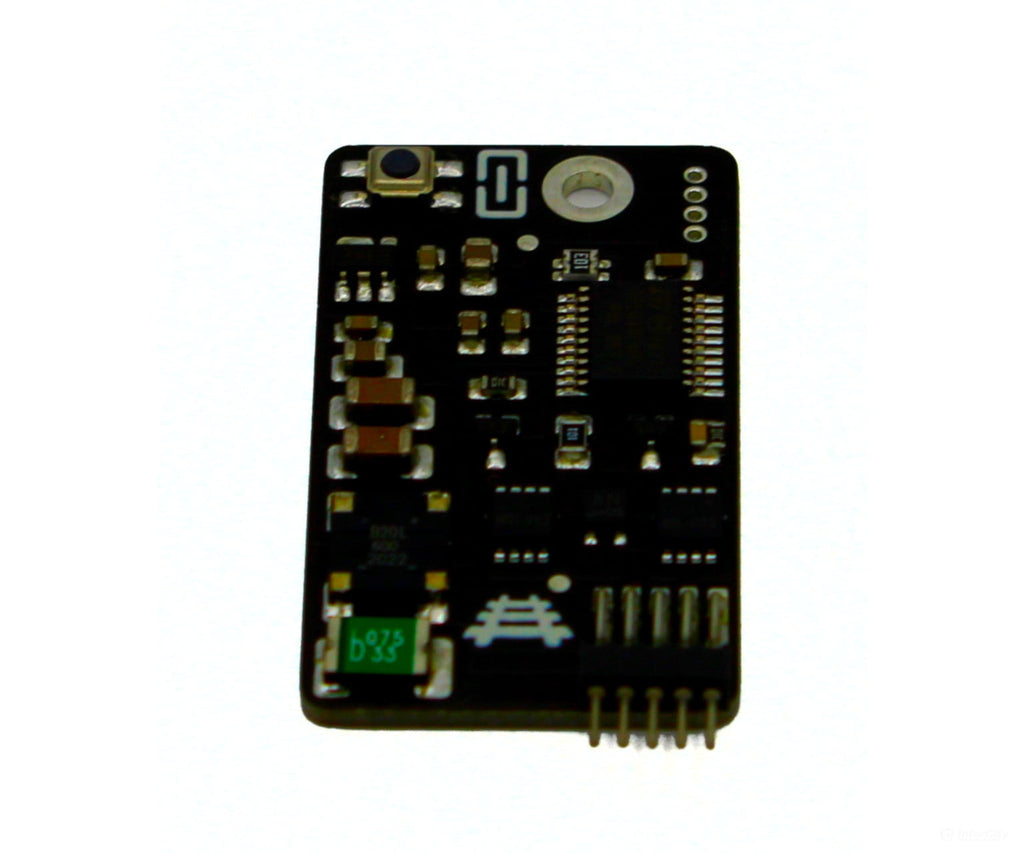

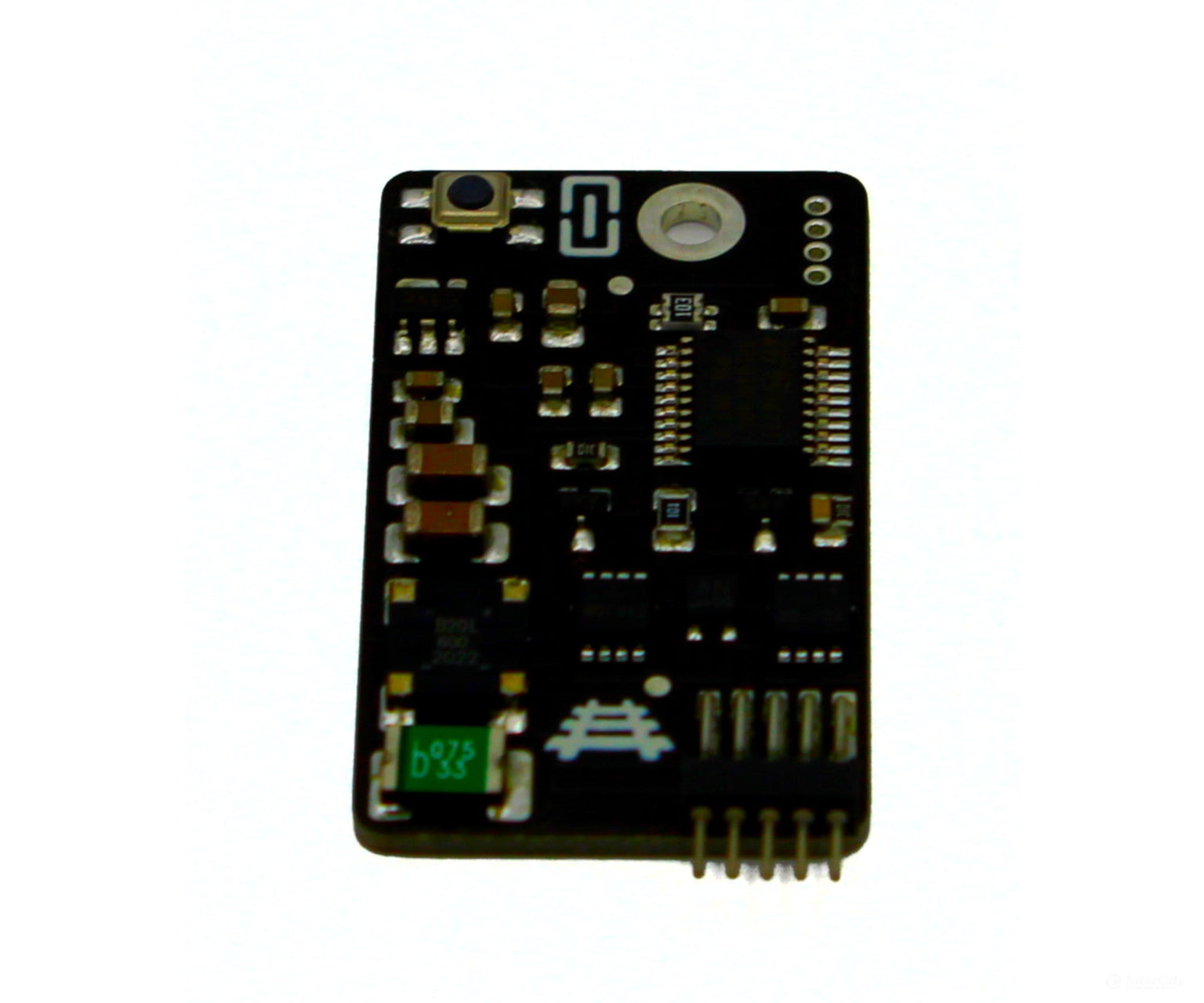

• Connections The decoder has all connections for direct installation in a Roco geoLine sever.
• Mounting The decoder can be easily attached to the inner bed of a Roco geoLine switch.
