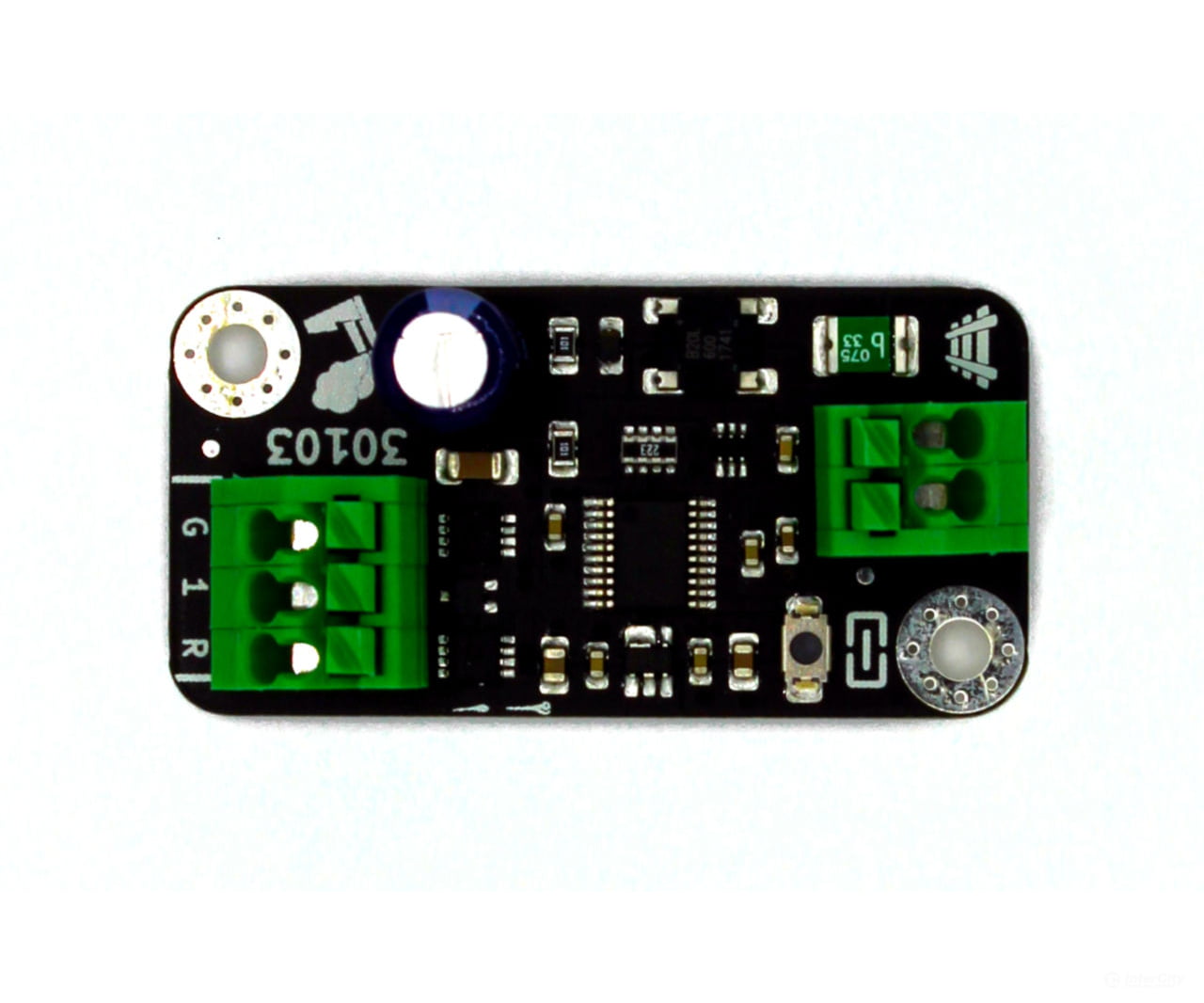

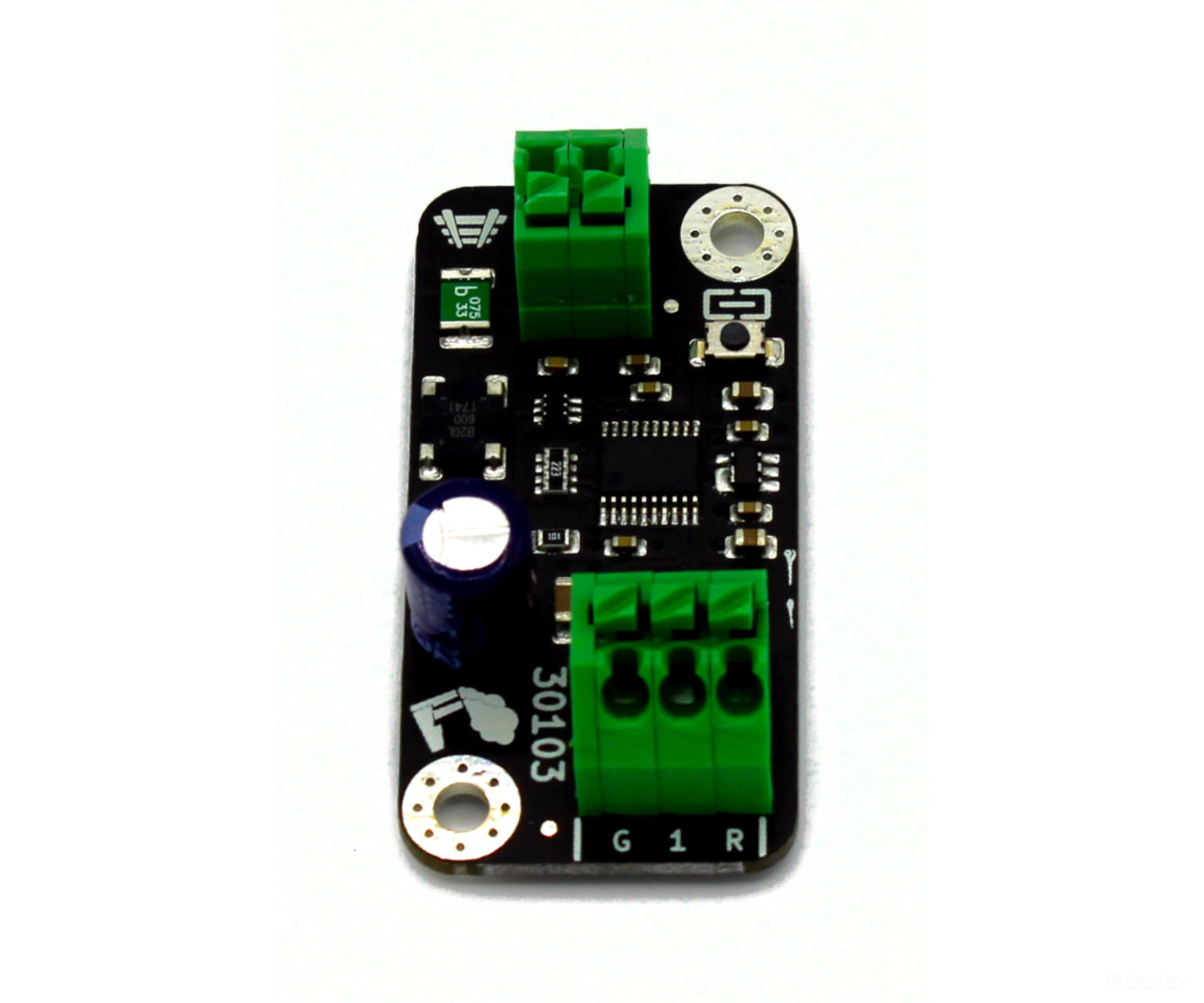

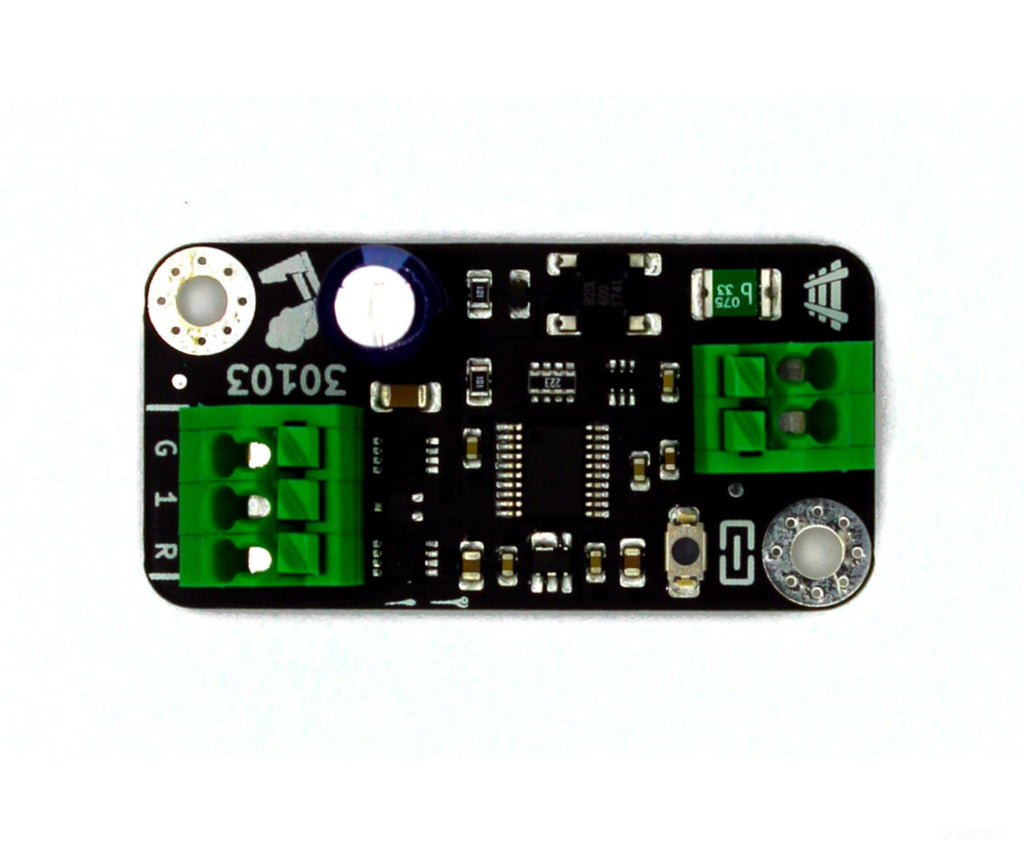

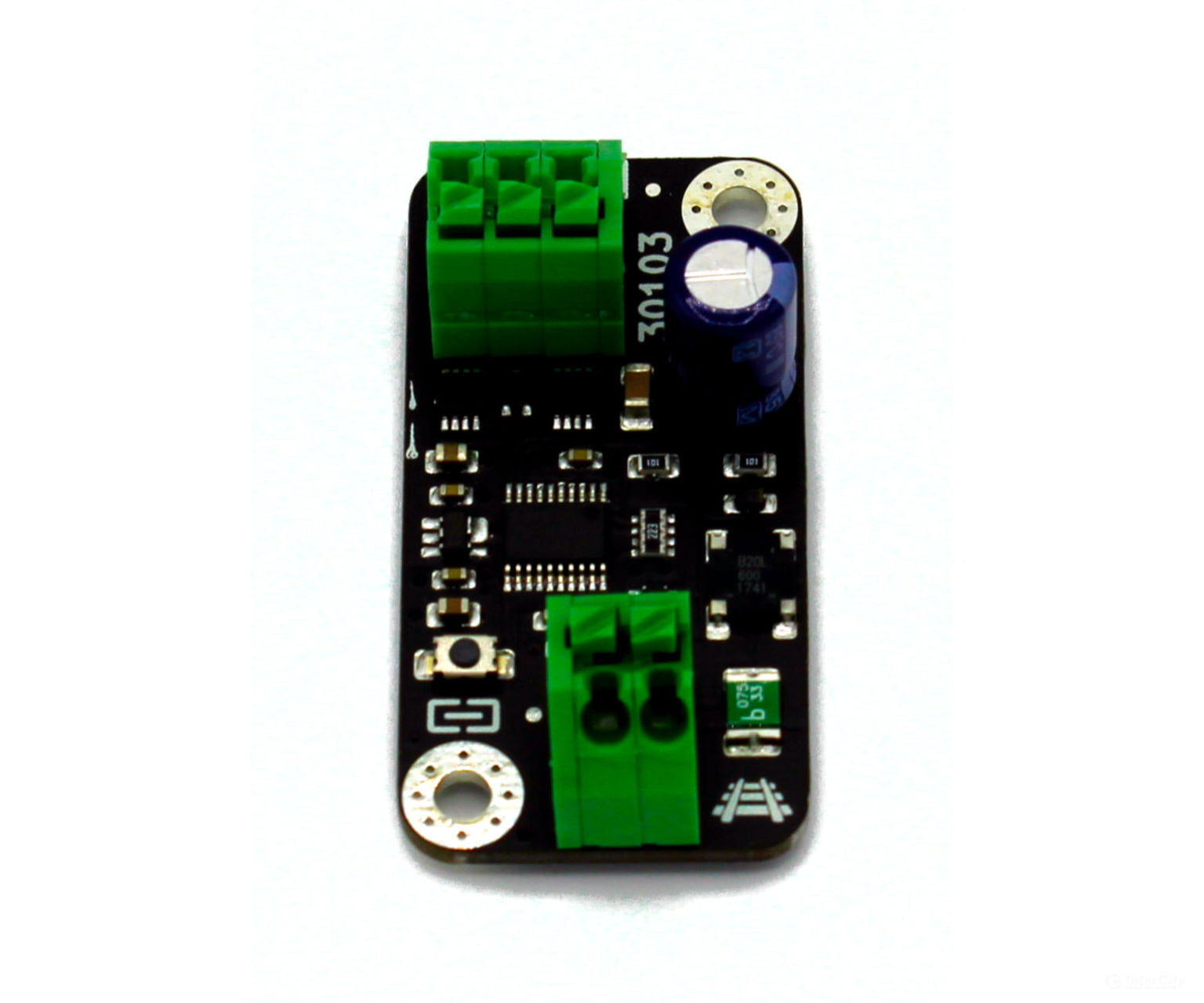

Decoderwerk 30103 1-channel turnout decoder suitable for all solenoid-operated drives (DCC + Motorola)

• The decoder has 1 output.
• DCC & Märklin Motorola Operation can be done with DCC or Märklin® Motorola.
• The decoder is suitable for single-set switches with double spool drive or two decoupling tracks.
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Voltage

• Build up
  • 9-24V track voltage
  The decoder is supplied directly by the track voltage. No separate power supply can be connected.
• Performance
  • 9-24V DC voltage
  • 2A current
  The output can be loaded with 2A and delivers 9-24V DC voltage.
• Need
  • Quiet current below 5mA
  The decoder itself requires under 5mA in the idle mode. The power demand of the output depends on the connected article.
• The decoders are protected against short circuit with a self-resetting fuse.
• Long conclusion The decoders have a charging control, so that the control panel does not mistakenly diagnose a short circuit when starting.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. You just have to press a button and call up the desired address at your headquarters. Done.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard By default, each output generates a switching pulse of 400 ms.
• Small steps You can adjust the switching pulse individually. Switching pulses from 10 ms to 2,550 ms are possible. And that in small steps of 10ms.
• If the switching time is increased, the output remains activated as long as the button on the control panel is pressed. Thus, for example, decoupling tracks can be precisely controlled.
• Forever The output can be configured as continuous operation. The output is switched until it is deactivated by selecting.

Installation

• Connections Phoenix Contact brand terminals for cables up to 1mm2.
• Dimensions 25x50mm, 20mm high
• Fastening 2 mounting holes of size M3. The inner diameter is 3.5mm.
