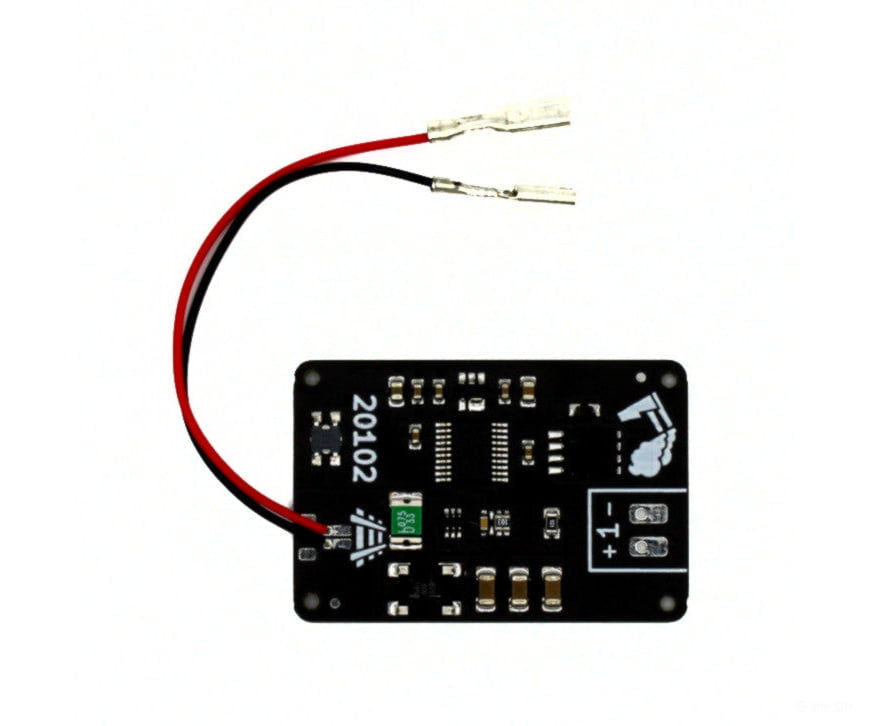

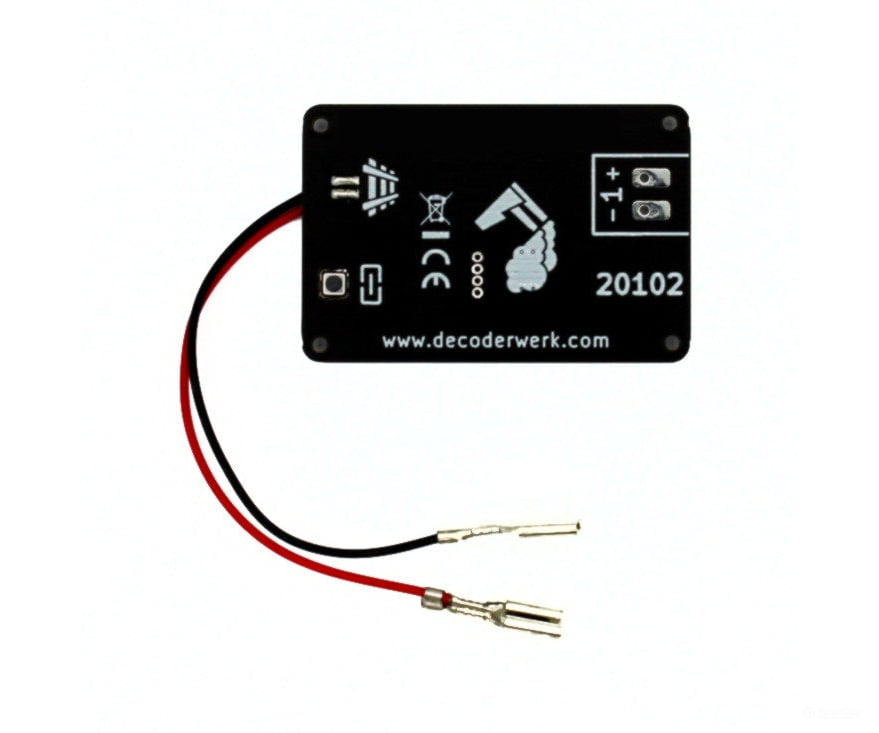

Decoderwerk 20102 C-Track switching decoder for Märklin and Trix C-Track uncoupling tracks (DCC + Motorola)

• The decoder has 1 output.
• Operation can be done with DCC or Märklin® Motorola.
• The decoder is suitable for switching Märklin® and Trix® C-track decoupling tracks.
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Compatible

• The decoder can be connected to the following decoupling tracks, among others.
  • Märklin decoupling track 24997
  • Märklin decoupling track straight 2297
  • Märklin Start up - Decoupling track 20997
  • Trix decoupling track 62997
• Märklin C-track The decoder can be inserted into the following tracks and connected.
  • Straight track 24172
  • Straight track 24188
  • Straight track 24229
  • Straight track 24236
  • Straight track 24360
  • Curved track 24912
  • Curved track 24230
  • Curved track 24330
  • Curved track 24430
  • Curved track 24530
• Trix C-track The decoder can be inserted and connected to the following tracks.
  • Straight track 62172
  • Straight track 62188
  • Straight track 62229
  • Straight track 62236

Voltage

• Build up
  • 9-24V track voltage
  The decoder is supplied directly by the track voltage. No separate power supply can be connected.
• Performance
  • 9-24V DC voltage
  • 2A current
  The output can be loaded with 2A and delivers 9-24V DC voltage.
• Need
  • Quiet current below 5mA
  The decoder itself requires under 5mA in the idle mode. The power demand of the output depends on the connected article.
• The decoders are protected against short circuit with a self-resetting fuse.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. You only have to press a button and call up the desired addresses at your headquarters. Done.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard Upon delivery, the switching time is set to 1 second. The decoupling track remains activated as long as the button on the control unit is operated.
• Small steps You can adjust the switching pulse individually. Switching pulses of 1 to 255 seconds are possible. And that in small steps of 1 second.
• Forever The output can be configured as continuous operation. The output is switched until it is deactivated by selecting.
• Memory The decoder optionally restores the last circuit of the output at startup.

Installation

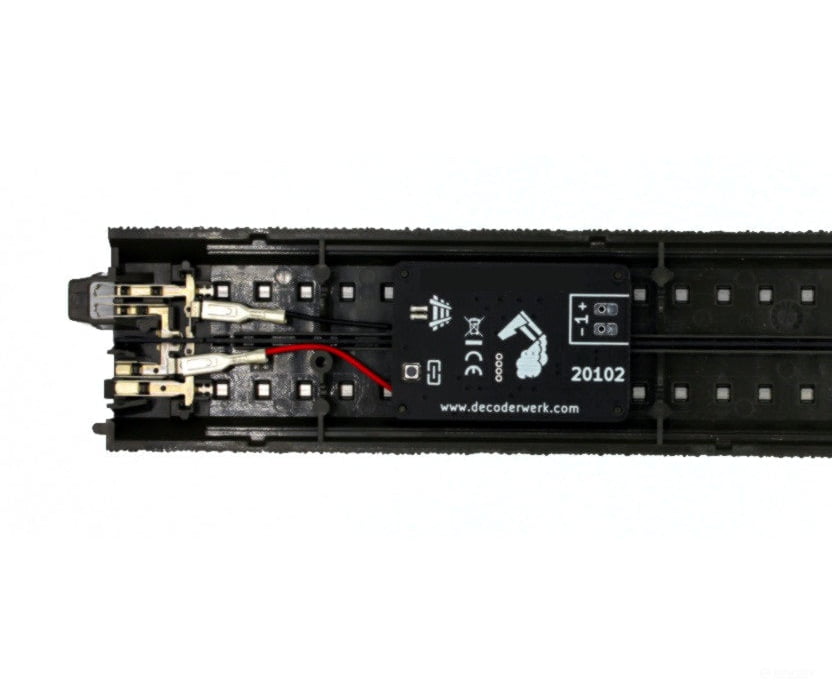

• Connections The decoder has all connection cables for direct installation in a Märklin C-track.
• Mounting The decoder can be easily attached to the inner bed of C-tracks from Märklin or Trix.
