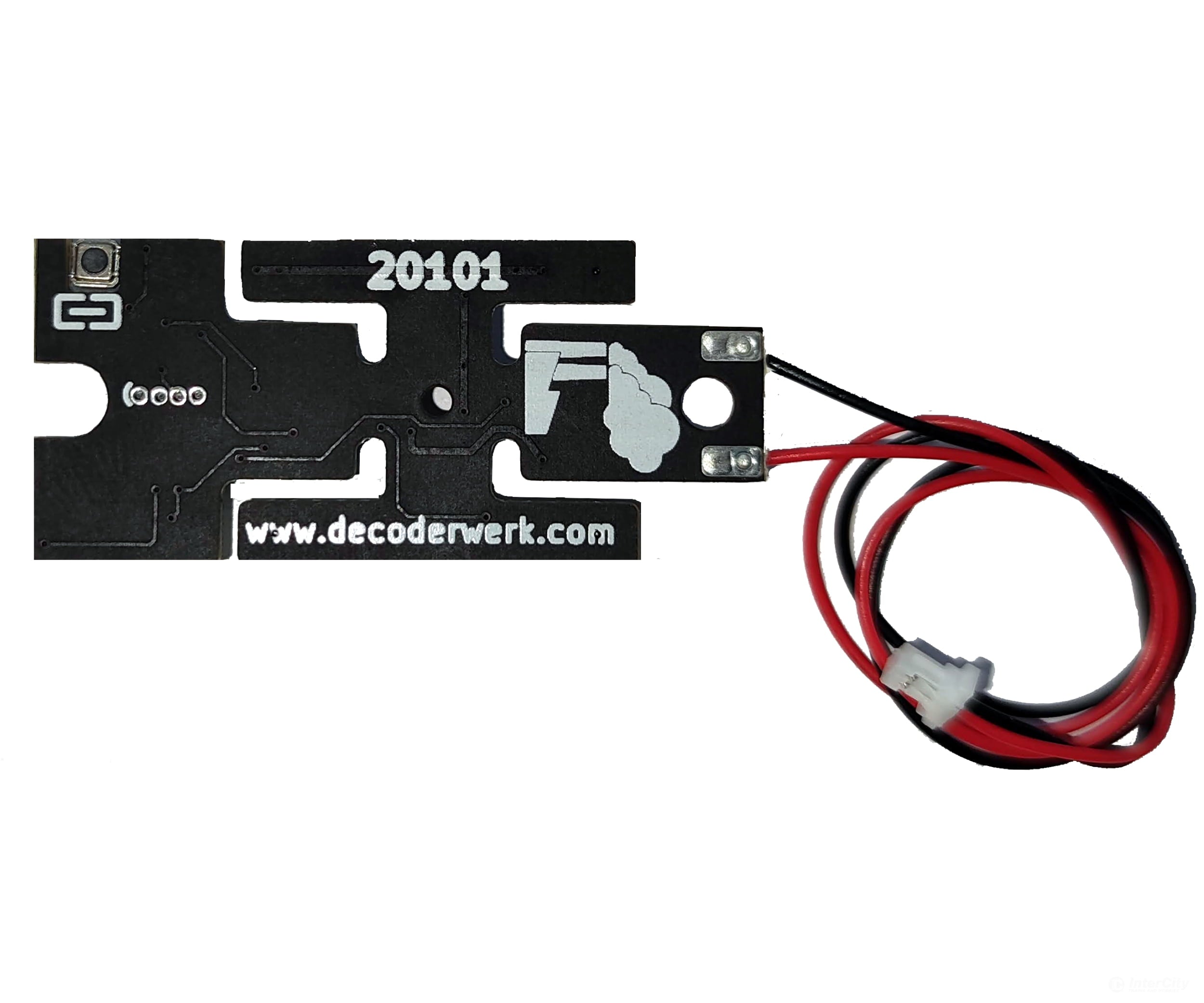

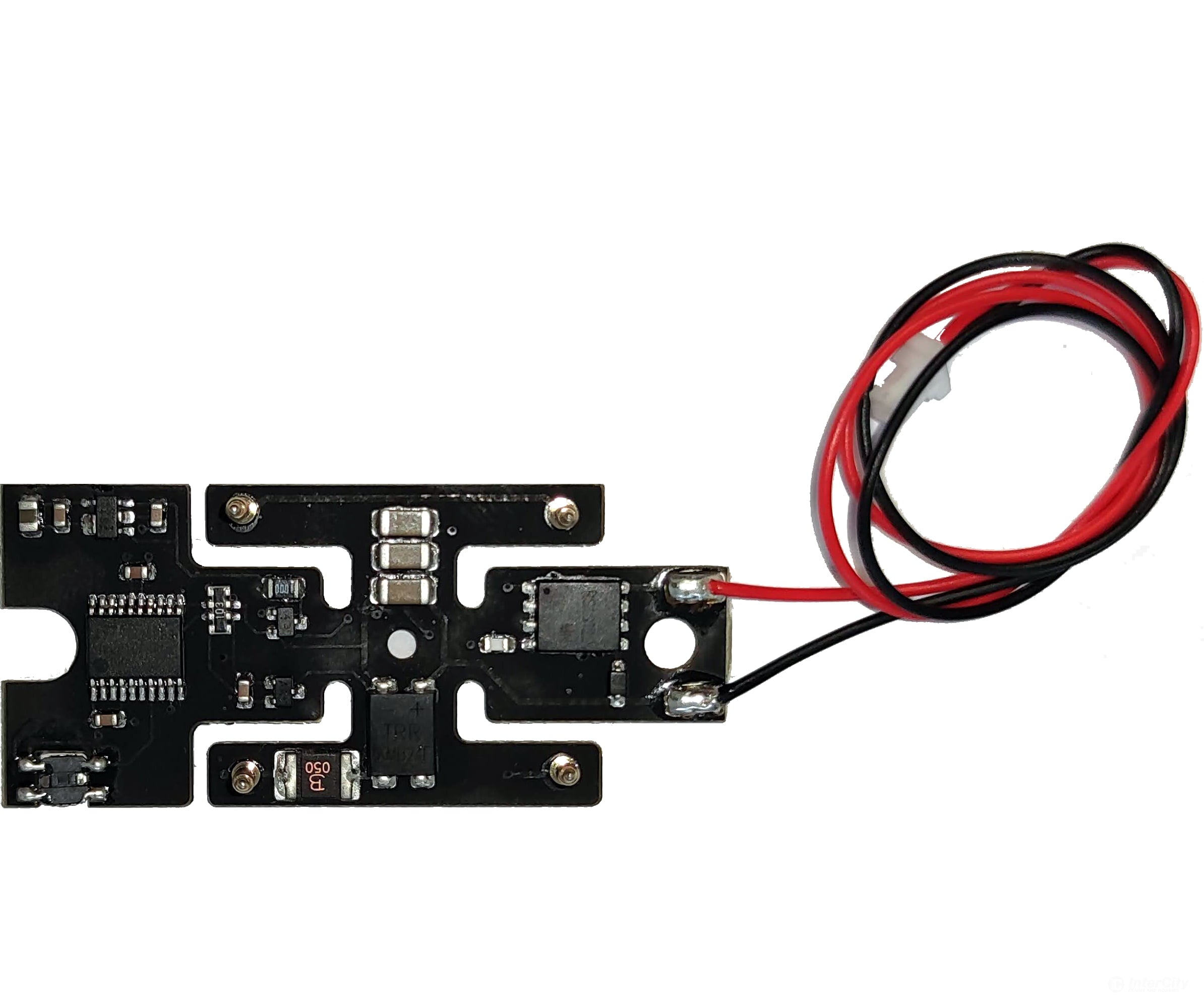

Decoderwerk 20101 Switching decoder for Roco geoLine uncoupling track (DCC + Motorola)

• The decoder has 1 output.
• Operation can be done with DCC or Märklin® Motorola.
• The decoder is suitable for switching Roco geoLine® decoupling tracks.
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Compatible

• Decoder The decoder is the ideal alternative for the built-in digital decoder 61197.
• Drives The decoder can be connected directly to the electric decoupling track 61118.

Voltage

• Build up
  • 9-24V track voltage
  The decoder is supplied directly by the track voltage. No separate power supply can be connected.
• Performance
  • 9-24V DC voltage
  • 2A current
  The output can be loaded with 2A and delivers 9-24V DC voltage.
• Need
  • Quiet current below 5mA
  The decoder itself requires under 5mA in the idle mode. The power demand of the output depends on the connected article.
• The decoders are protected against short circuit with a self-resetting fuse.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. You only have to press a button and call up the desired addresses at your headquarters. Done.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard Upon delivery, the switching time is set to 1 second. The decoupling track remains activated as long as the button on the control unit is operated.
• Small steps You can adjust the switching pulse individually. Switching pulses of 1 to 255 seconds are possible. And that in small steps of 1 second.
• Forever The output can be configured as continuous operation. The output is switched until it is deactivated by selecting.
• Memory The decoder optionally restores the last circuit of the output at startup.

Installation

• Connections The decoder has all connection cables for direct installation in Roco geoLine decoupling tracks.

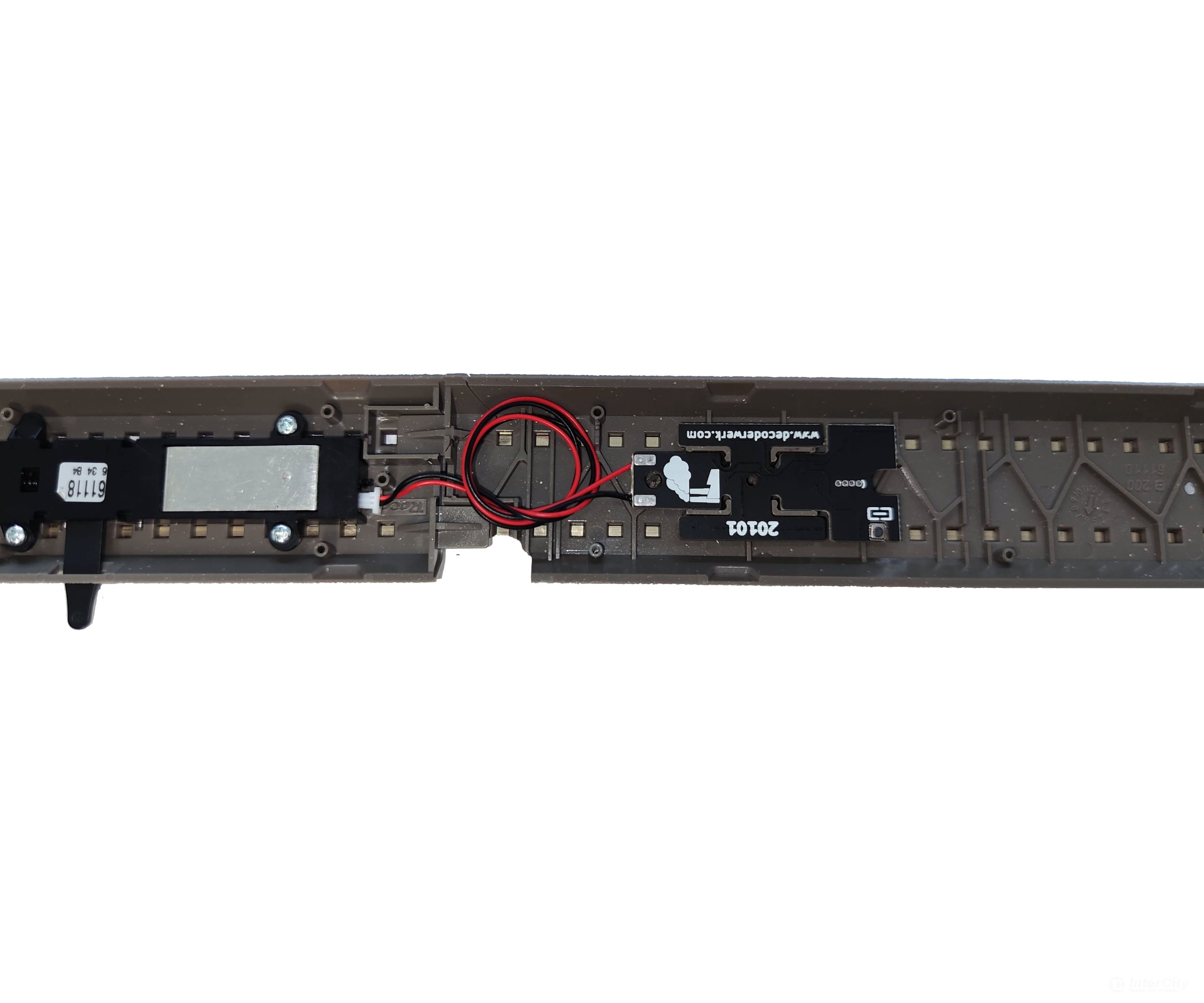

• Mounting The decoder can be easily attached to the inner bed of a Roco geoLine track.

geoLine is a registered trademark of Modelleisenbahn GmbH
