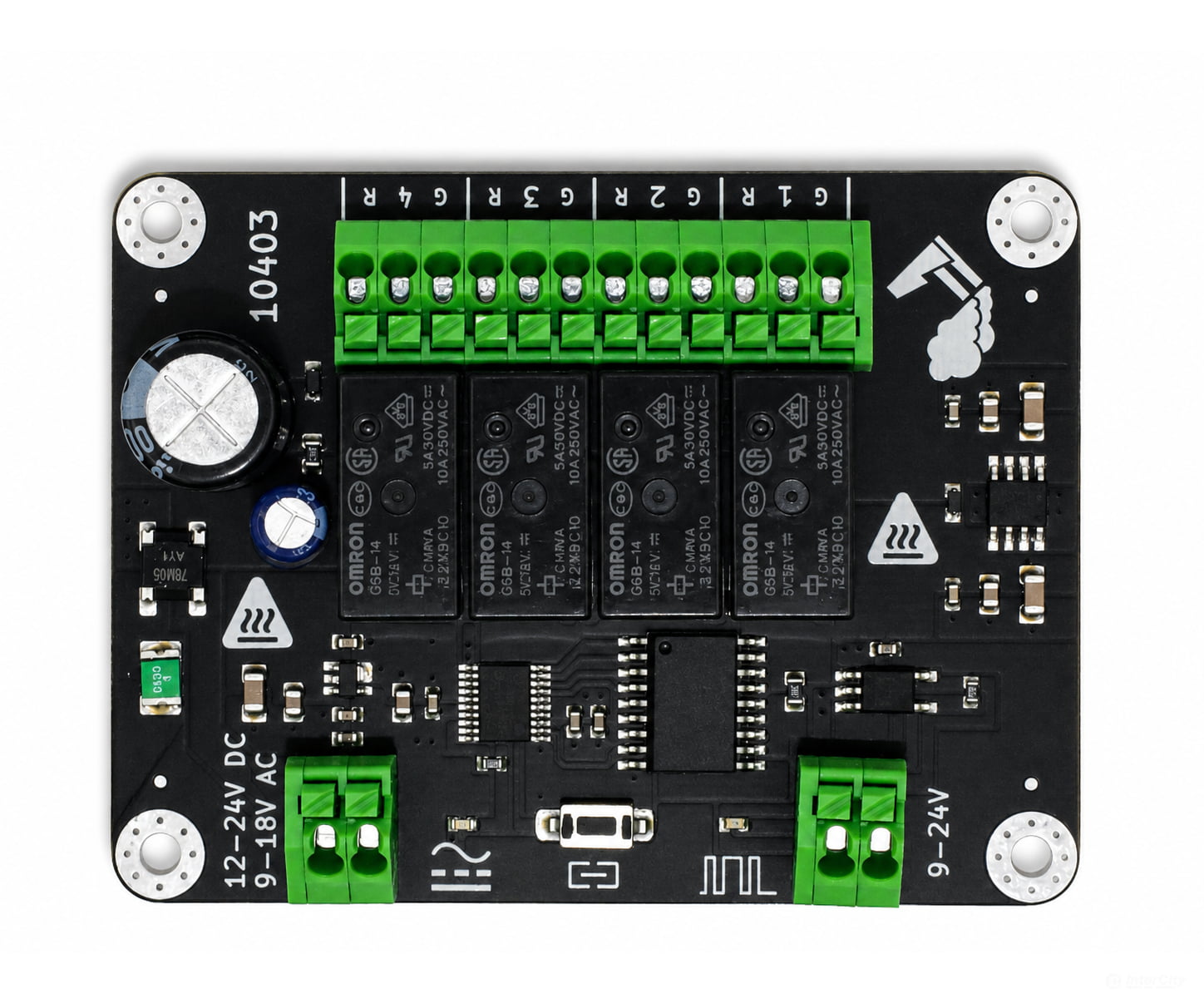

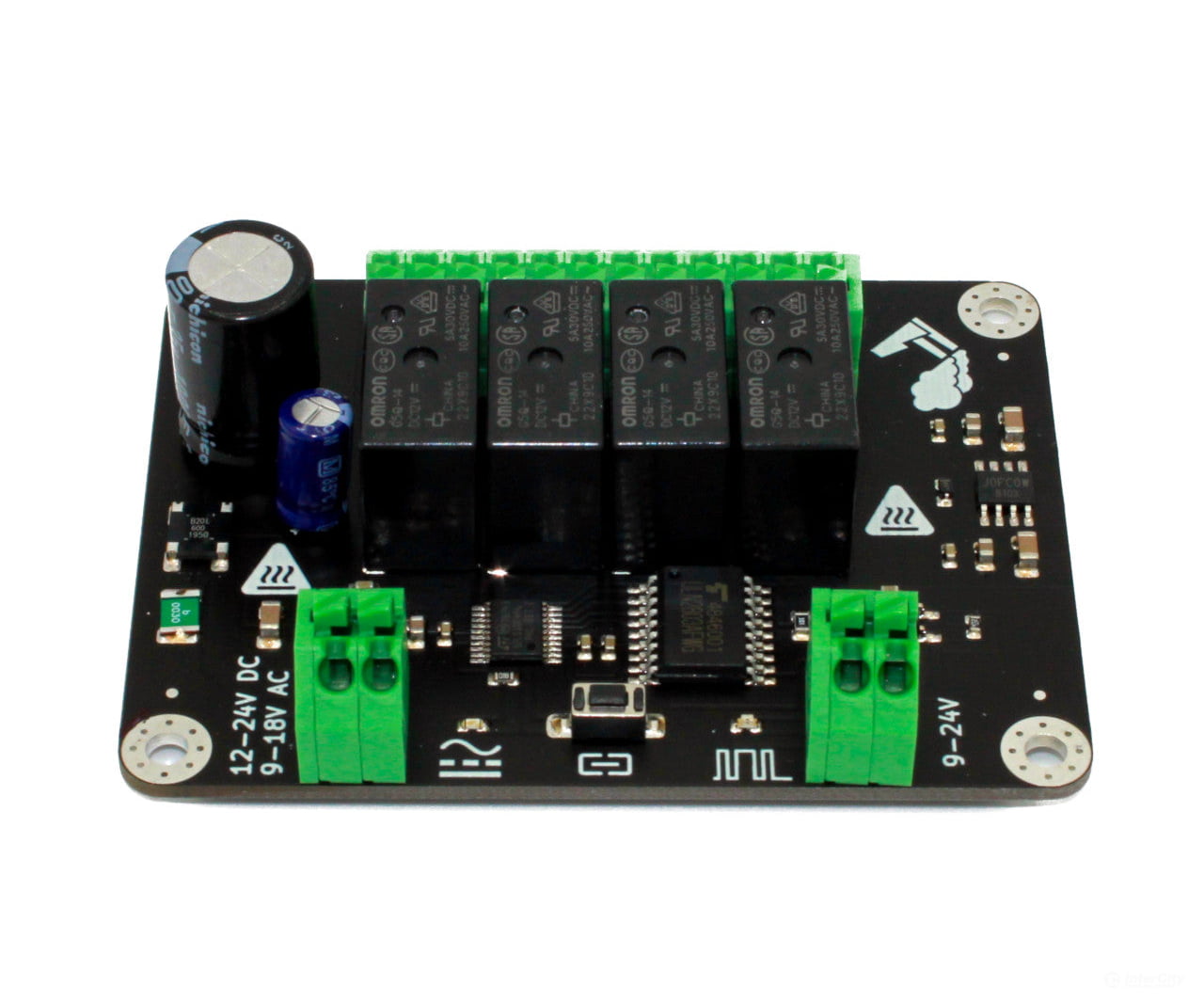

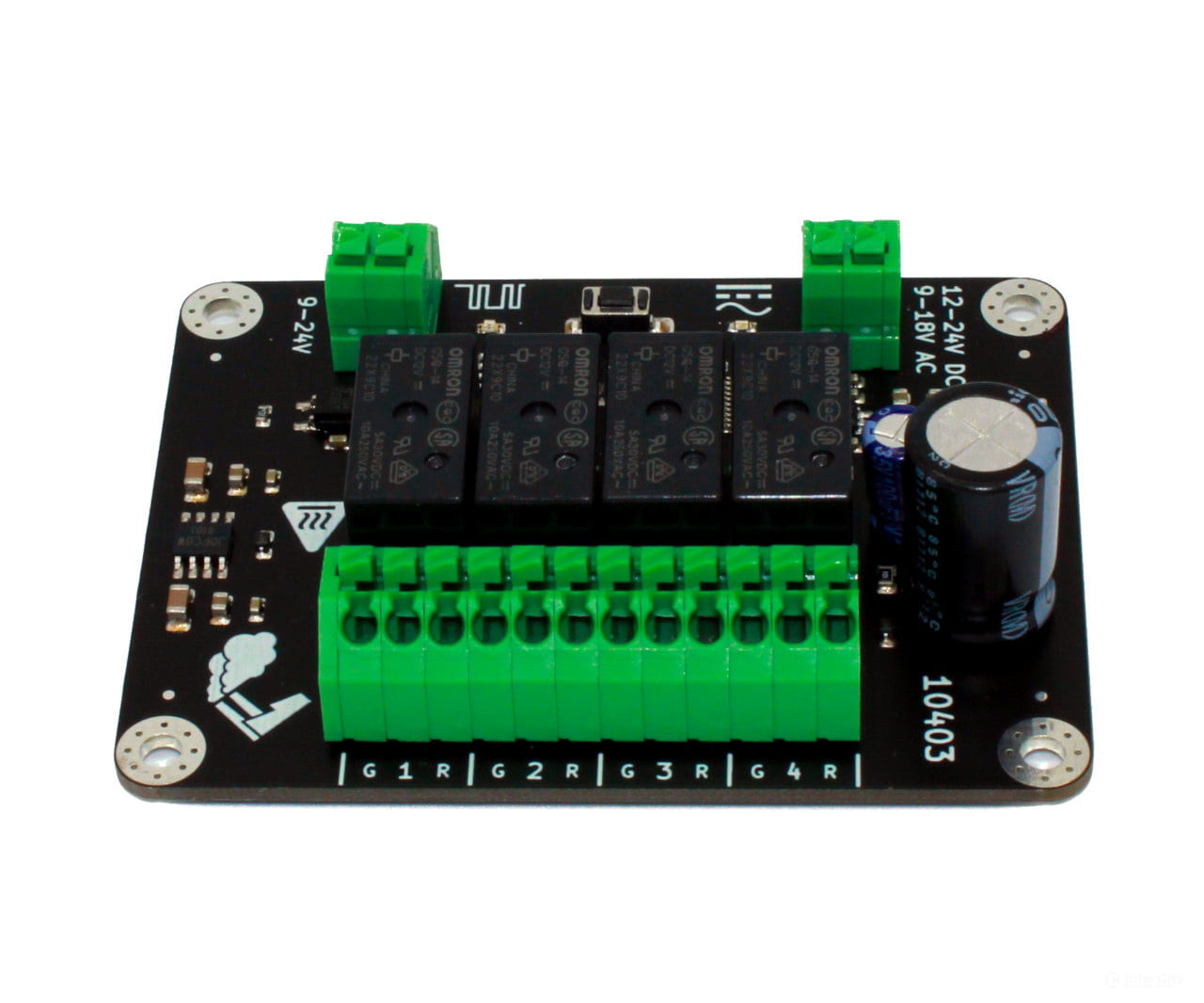

Decoderwerk 10403 4-channel relay decoder for switching various loads using 4 changeover relays (DCC + Motorola)

• The decoder has 4 outputs that work as a changer.
• Through the use of relays, potential-free circuits are possible, the consumer is completely separated from the decoder.
• Operation can be done with DCC or Märklin® Motorola.
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Voltage

• Build up
  • 12-24V DC voltage
  • 9-18V AC voltage
  • 12-24V track voltage
  Cost-effective plug-ing power supplies can be used. The decoder can also be supplied directly by the track voltage.
• Performance
  • 30V DC voltage
  • 30V AC voltage
  • 3A per relay
  Each relay can be loaded with 3A and is suitable for up to 30V DC or AC voltage.
• Need
  • Quiet current below 10mA
  The decoder itself requires less than 10mA in the idle state. When all relays are switched, the current requirement is about 80mA. We recommend a power supply with at least 100mA.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. You only have to press a button and call up the desired addresses at your headquarters. Done.
• Individual Each exit can be assigned an individual address. The addresses are freely selectable.
• Social An address can be assigned several times. When the address is called, all outputs associated with this address are switched.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be written via direct mode.

Configuration

• For Always Any output can be configured as continuous operation. The selected relay is switched until it is deactivated by selecting it.
• Memory The decoder automatically restores the last circuit of the relay at startup.
• Small steps You can adjust the switching time individually. Switching times from 1 second to 255 seconds are possible. And that in small steps of a second.
• Individual The switching times can be configured individually for each output.

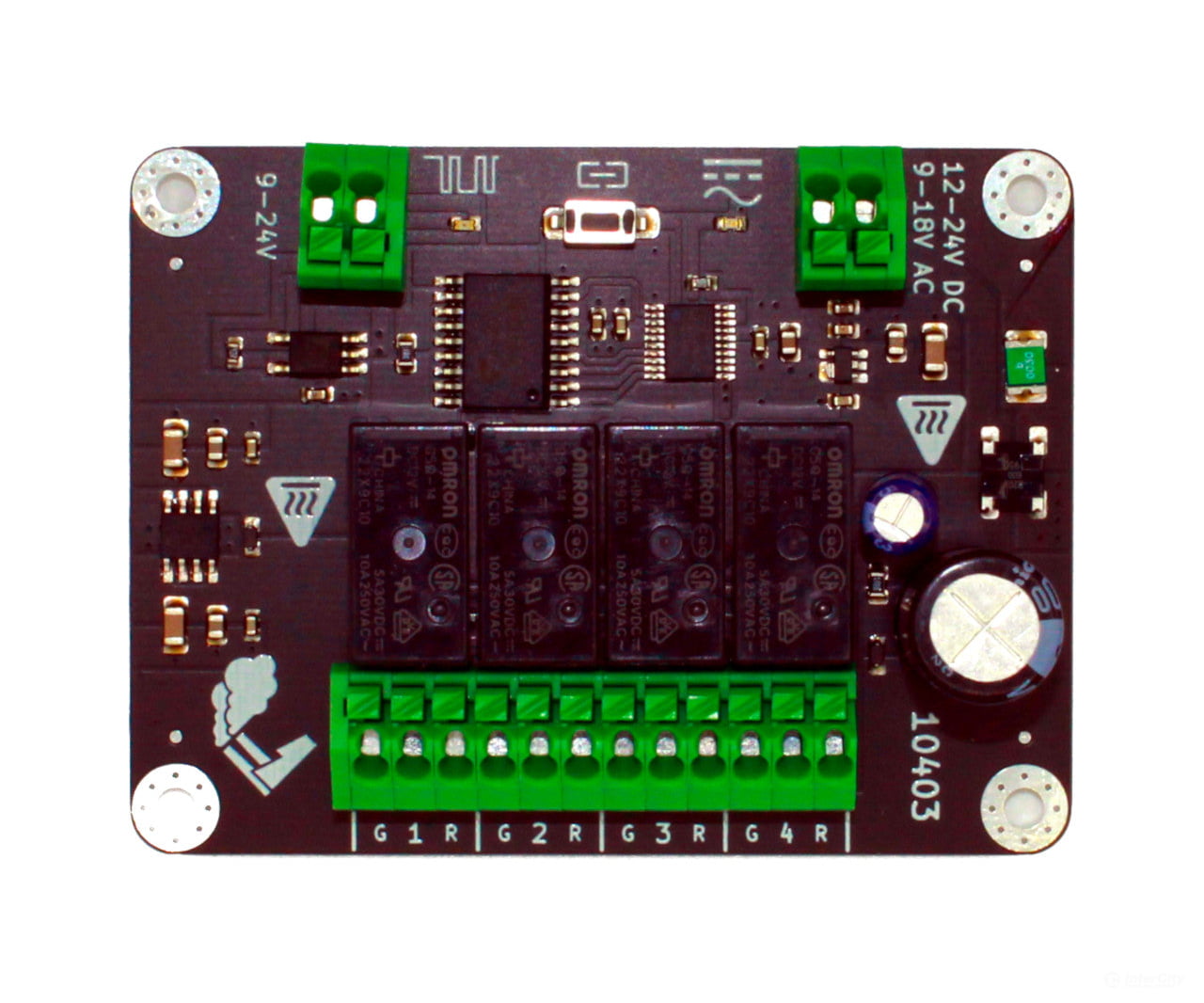

Installation

• Connections Phoenix Contact brand terminals for cables up to 1mm2.
• Turntable The control signal DCC or Märklin Motorola is connected via optocouplers and thus completely galvanically separated.
• Dimensions 90x70mm, 25mm high
• Fastening 4 mounting holes of size M3. The inner diameter is 3.5mm.
