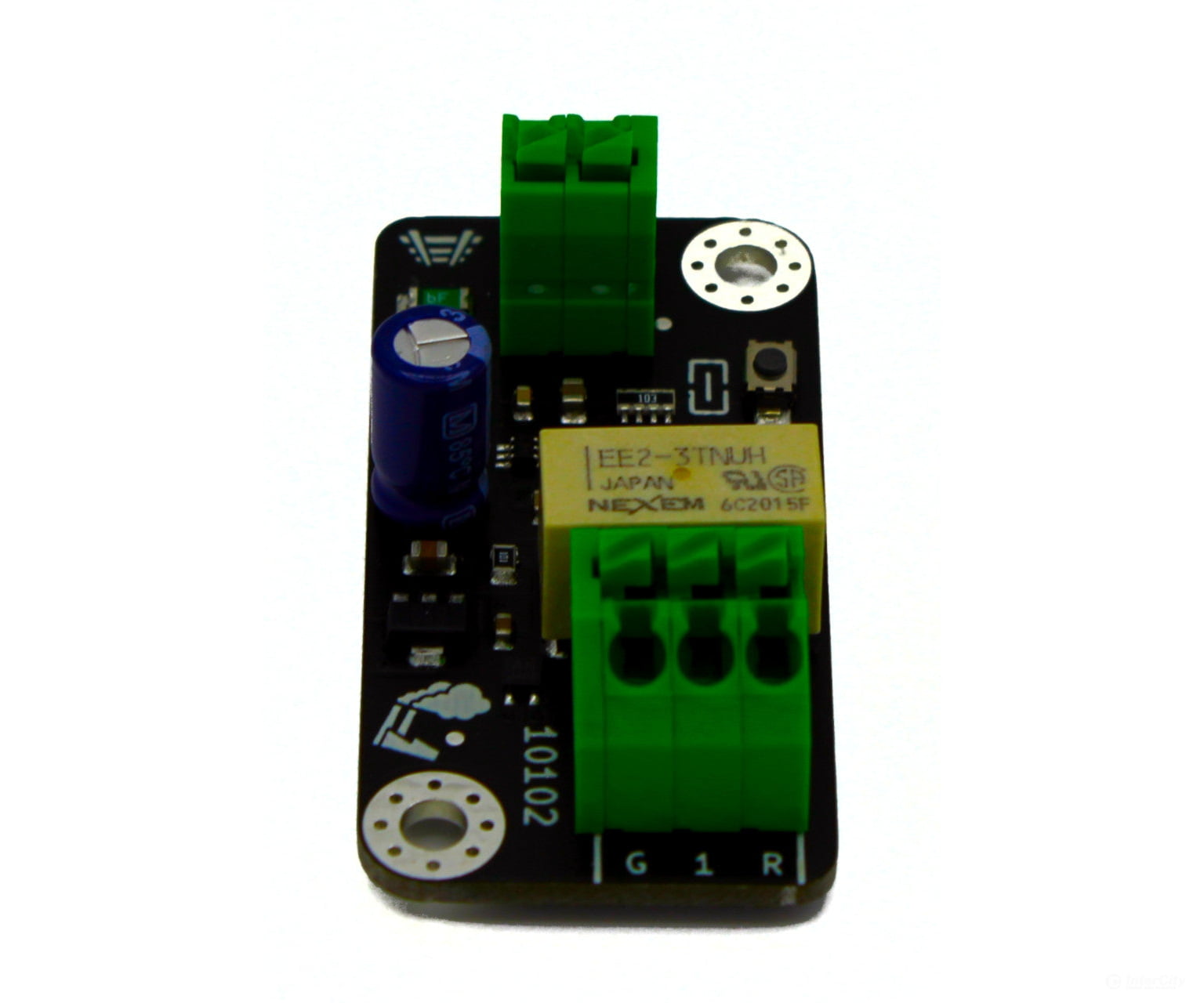

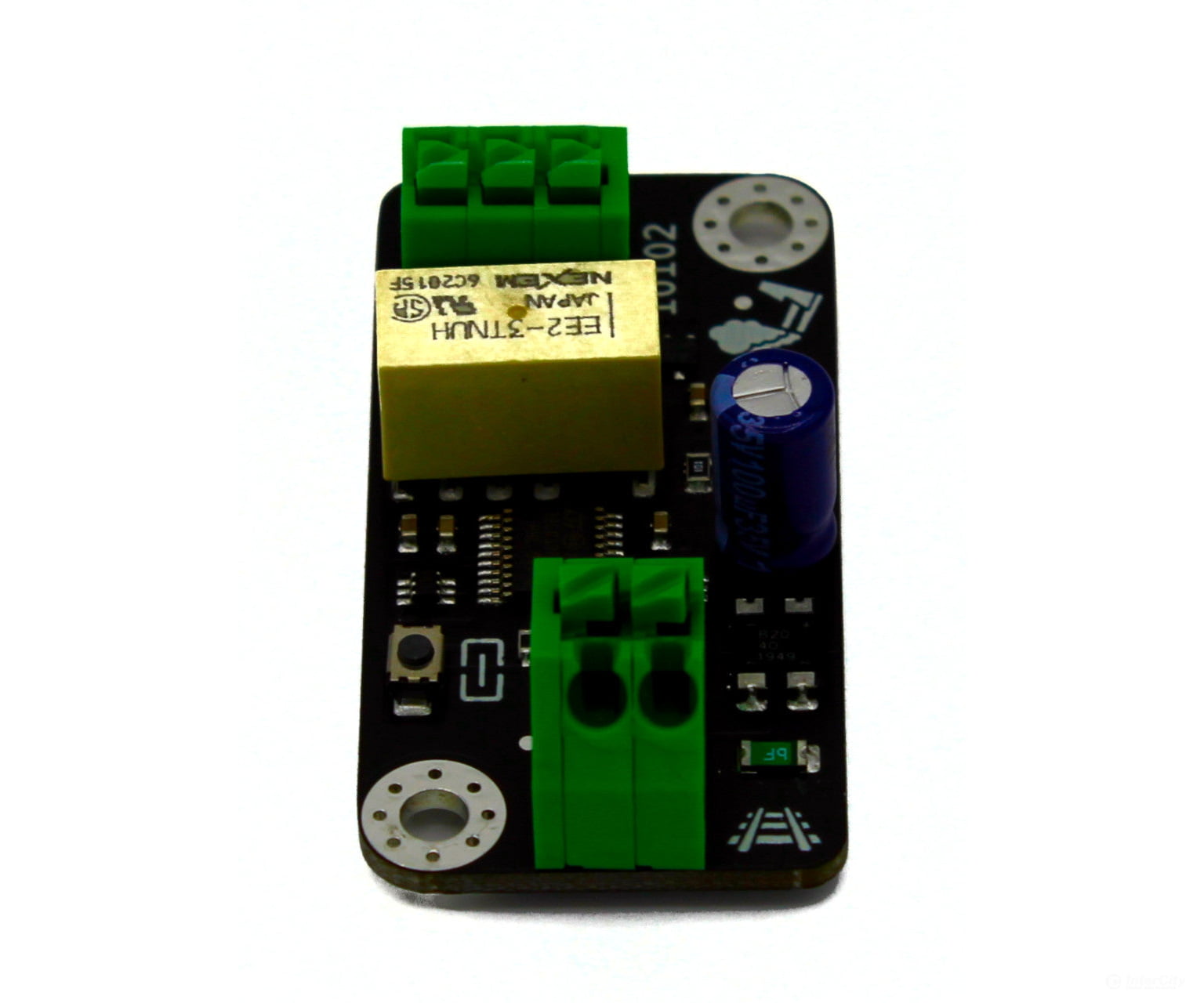

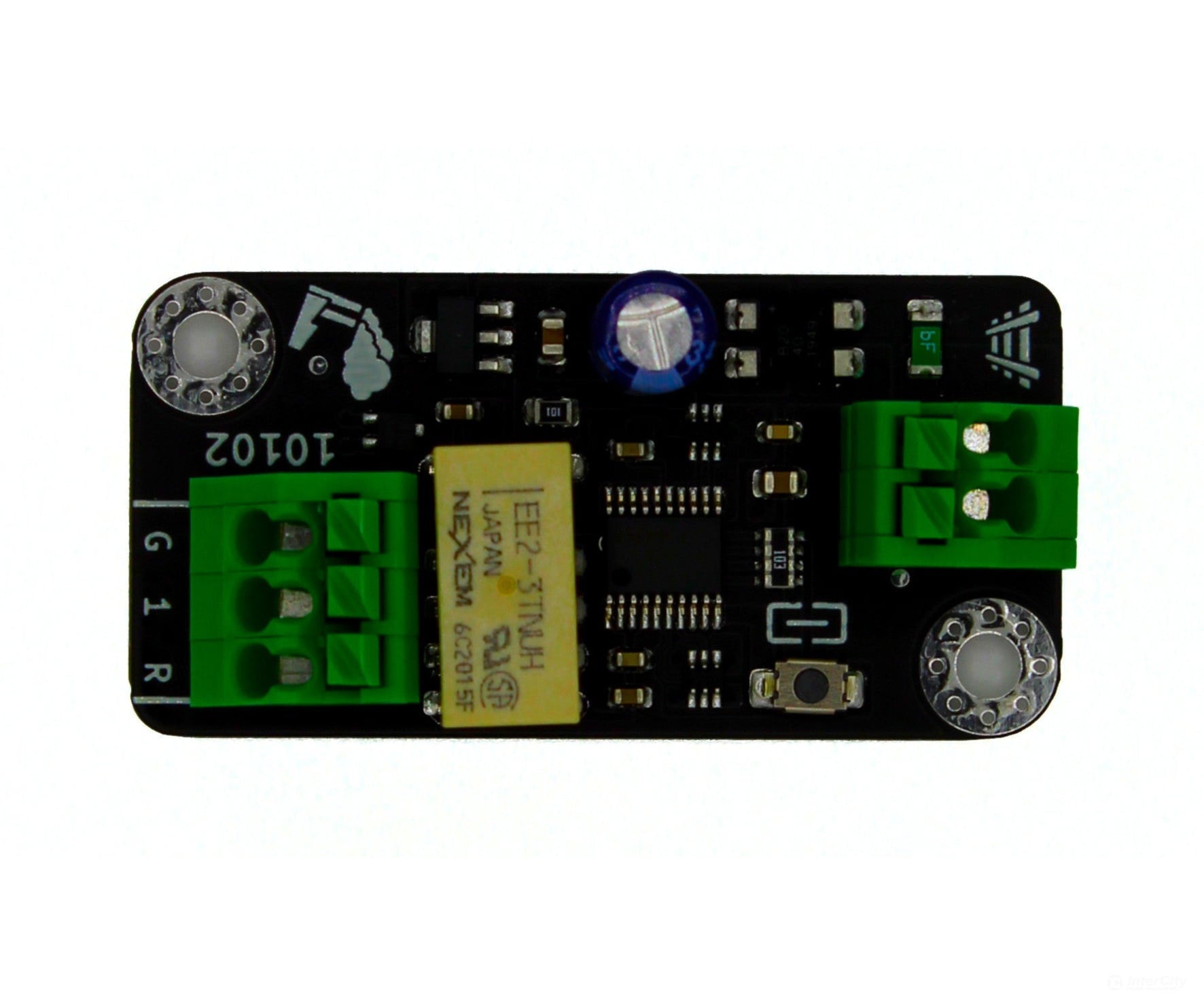

Decoderwerk 10102 1-channel relay decoder with bistable relay for switching various loads (DCC + Motorola)

• The decoder has 1 output that works as a changer.
• Through the use of relays, potential-free circuits are possible, the consumer is completely separated from the decoder.
• Operation can be done with DCC or Märklin® Motorola.
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Voltage

• BUILD UP
  • 9-24V TRACK VOLTAGE
  The decoder is supplied directly by the track voltage. No separate power supply can be connected.
• PERFORMANCE
  • 30V DC VOLTAGE
  • 30V AC VOLTAGE
  • 2A ELECTRICITY
  The relay can be loaded with 2A and is suitable for up to 30V DC or AC voltage.
• NEED
  • QUIET CURRENT BELOW 5MA
  The decoder requires below 5mA in the idle state. The relay is bistable and requires no current to maintain the position.

TO COUPLE

• ARTIFICIAL INTELLIGENCE, at least a little. The decoder has an automatic learning mode for addressing. You just have to press a button and call up the desired address at your headquarters. Done.
• Individual The decoder can be assigned an individual address. The address is freely selectable.
• REMOTE CONTROL The decoder can be configured directly at its place of use from a DCC control unit by means of programming-on-main. All CV's can be updated.
• INSPECTION The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

CONFIGURATION

• By default, the output is set to continuous operation.
• The relay is bistable and automatically retains the last selected position.
• You can adjust the switching time individually. Switching times from 1 second to 255 seconds are possible. And that in small steps of a second.
• The output can be configured as continuous operation. The relay is switched until it is deactivated by selection.

INSTALLATION

• CONNECTIONS Branded terminals from Phoenix Contact for cables up to 1mm2.
• DIMENSIONS 25x50mm, 20mm high
• ATTACHMENT 2 mounting holes of size M3. The inner diameter is 3.5mm.
