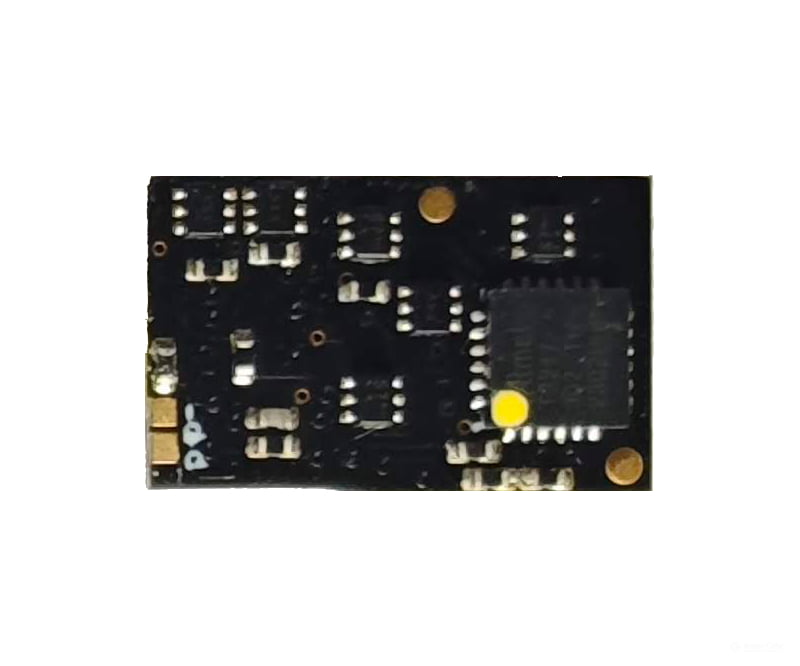

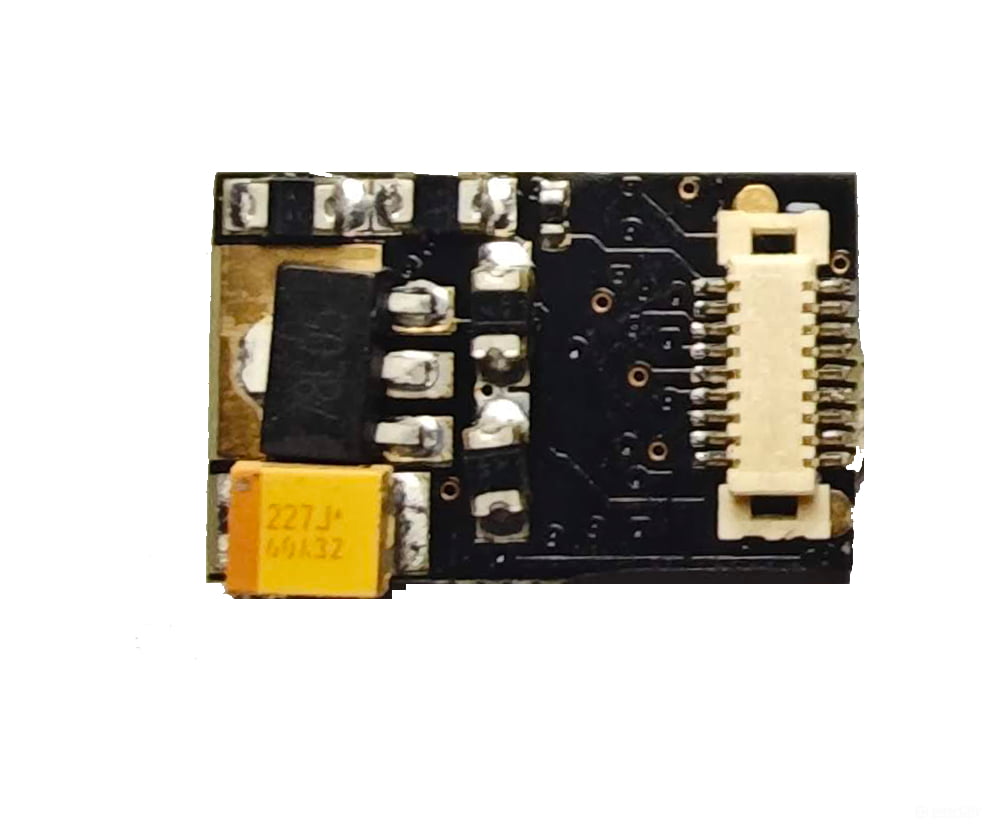

Decoderwerk 100905 Function decoder with 9 outputs, directional lighting, SUSI and various effects, NEXT18 interface, N/TT (DCC + Motorola)

Description

• Super small decoder has a total of 8 output lengths, which are reinforced and can be independently set for each output more than 20 effects (neon, time functions, up + dim and much more) as well as dimming.
• The decoder has no motor stage
• A2 has no function (permanent function)
• The decoder fits perfectly in all H0 cars. In addition, the decoder has built-in functions for high beam, shunting light

• The decoder has a buffer circuit and SUSI connection for sound modules
• The decoder has 1.5A (2A tip) load capacity

• The decoder has RailCom* and Break-On-DC
• Operation can be done with DCC and Motorola.
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers
• A5/A6 is standard SUSI - switchable to 2 logic level outputs
• Ideal for gauge N,TT

Voltage

• BUILD UP
  • 7-24V TRACK VOLTAGE
  The decoder is supplied directly by the track voltage. No separate power supply can be connected.
• PERFORMANCE

  • 0.5A per function output - All outputs max 2A

  • 2A Total load capacity
• NEED
  • QUIET CURRENT BELOW 20MA
  The decoder requires below 20mA in idle mode if no outputs are switched on

TO COUPLE

• Individual The decoder can be assigned an individual address. The address is freely selectable.
• REMOTE CONTROL The decoder can be configured directly at its place of use from a DCC control unit by means of programming-on-main. All CV's can be updated.
• INSPECTION The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode when a motor is connected.

CONFIGURATION

• By default, the output is set to continuous operation without function
• You can dim each output individually or assign it to an effect of your choice.
• It is also possible to activate conditions per output in addition to effects (e.g. only when driving, only when stationary)

• You also have over 20 special effects such as time functions available, including flashing and mono-flop functions

INSTALLATION

• CONNECTIONS High quality solder connections for all outputs
• DIMENSIONS 15x9mm, 3mm high

*RailCom is a registered trademark of Lenz Elektronik GmbH in Giessen.

Decoderwerk user guides for most products (with english text) can be found here
