Description

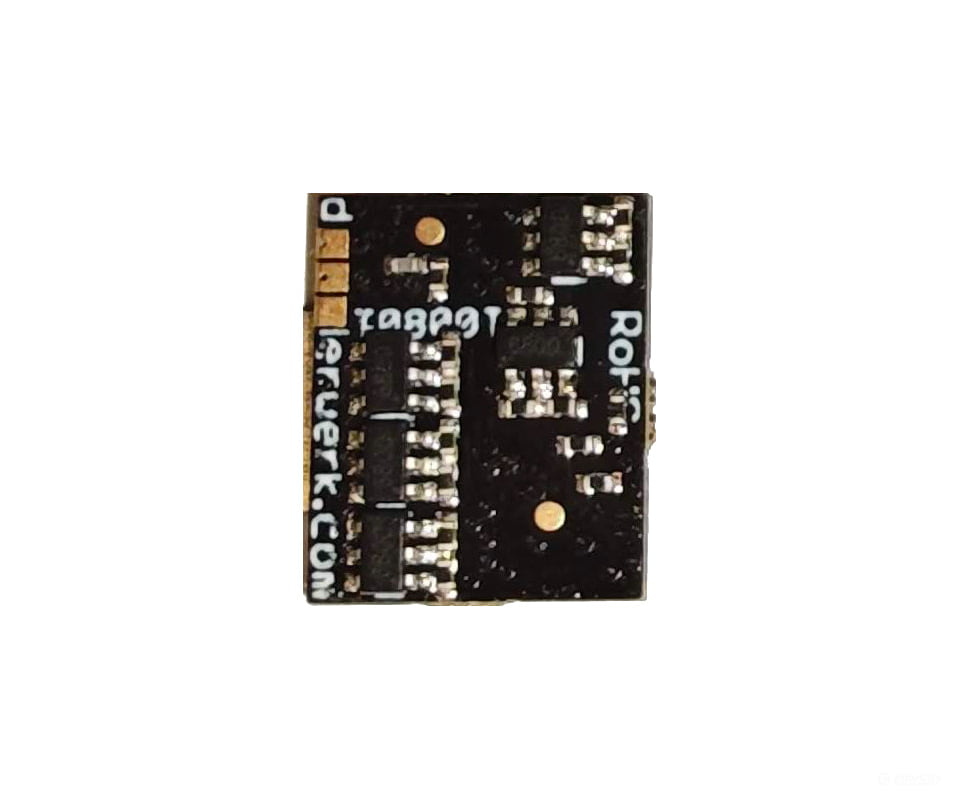

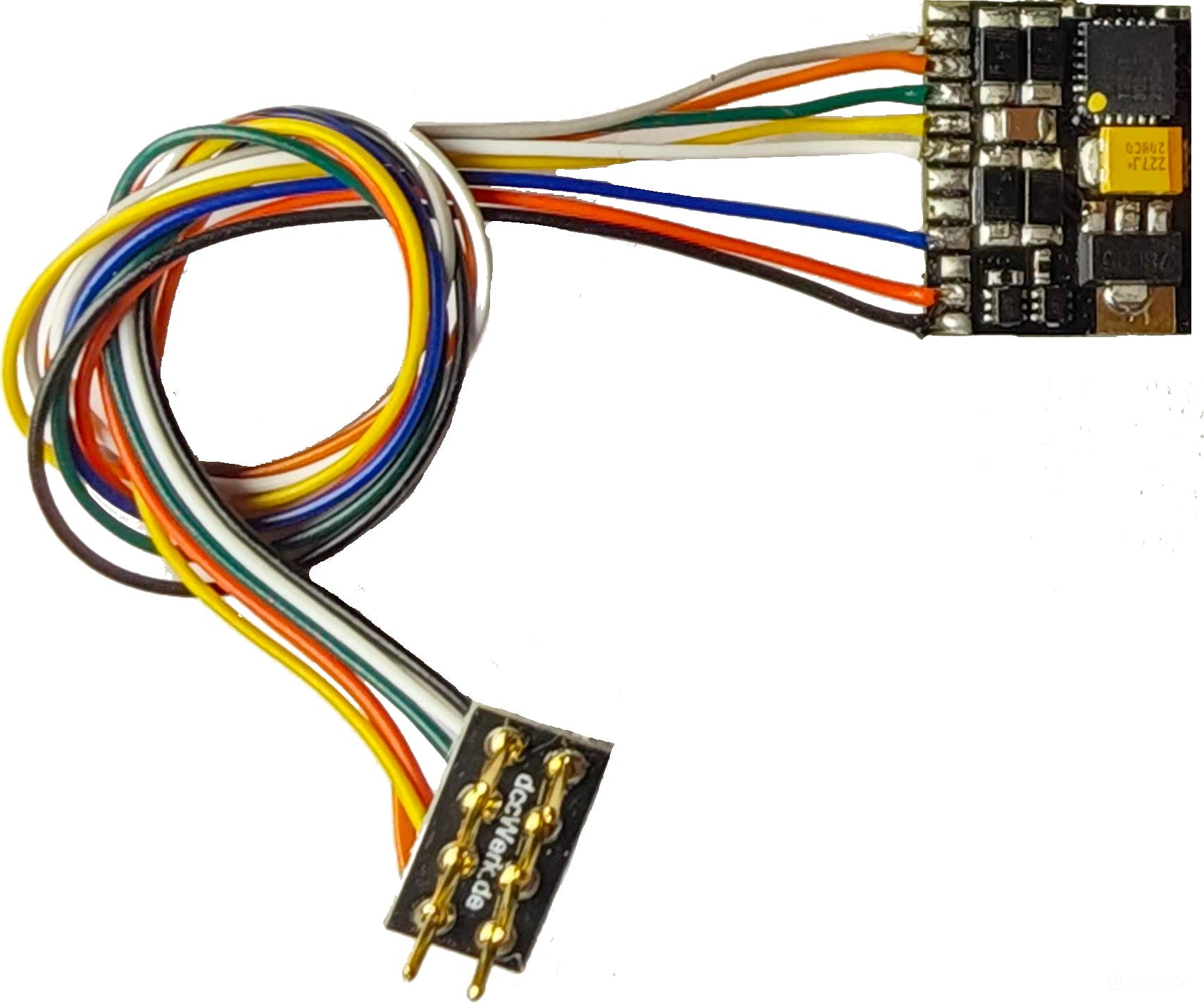

- Super small decoder has a total of 9 output lengths, which are reinforced and can be set independently of more than 20 effects (neon, time functions, on + dim and much more) and dimming per output.
- The decoder has no motor stage
- The decoder fits perfectly in all H0/TT cars. In addition, the decoder has built-in functions for high beam, shunting light
- The decoder has a buffer circuit and SUSI connection for sound modules
- The decoder has 1.5A (2A tip) load capacity
- The decoder has RailCom* and Break-On-DC
- Operation can be done with DCC and Motorola.
- 100% quality check of all decoders
Development and production in Germany
We only use components of well-known brand manufacturers - Ideal for track H0/TT
Voltage
-
BUILD UP
- 7-24V TRACK VOLTAGE
-
PERFORMANCE
-
0.5A per function output - All outputs max 2A
- 2A Total load capacity
-
0.5A per function output - All outputs max 2A
-
NEED
- QUIET CURRENT BELOW 20MA
TO COUPLE
- Individual The decoder can be assigned an individual address. The address is freely selectable.
- REMOTE CONTROL The decoder can be configured directly at its place of use from a DCC control unit by means of programming-on-main. All CV's can be updated.
- INSPECTION The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode when a motor is connected.
CONFIGURATION
- By default, the output is set to continuous operation without function
- You can dim each output individually or assign it to an effect of your choice.
- It is also possible to activate conditions per output in addition to effects (e.g. only when driving, only when stationary)
- You also have over 20 special effects such as time functions available, including flashing and mono-flop functions
INSTALLATION
- CONNECTIONS High quality solder connections for all outputs
- DIMENSIONS 15x12mm, 4mm high
*RailCom is a registered trademark of Lenz Elektronik GmbH in Giessen.
Decoderwerk user guides for most products (with english text) can be found here
