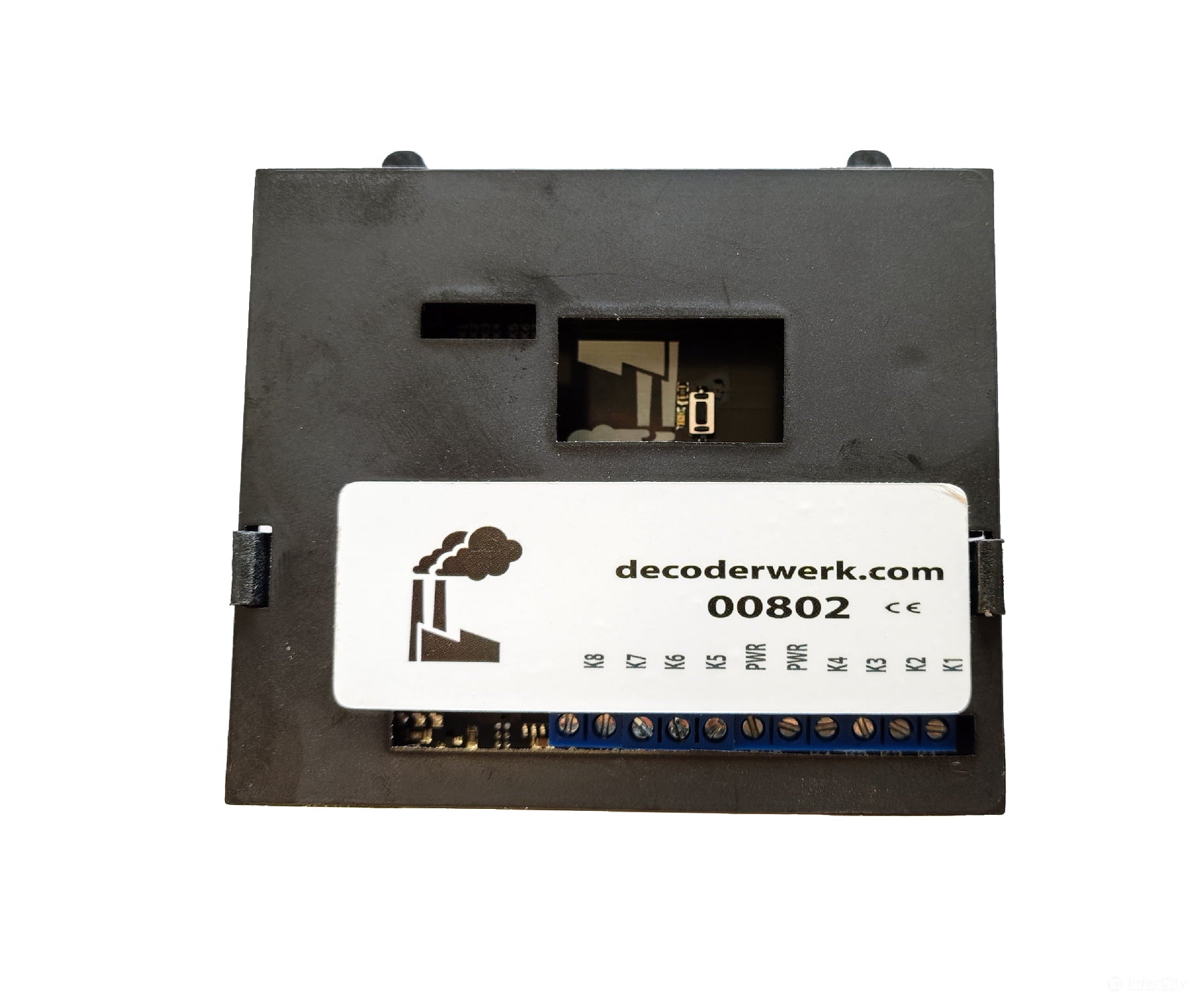

Decoderwerk 00802 8-channel occupancy detector (2-rail & 3-rail), 3A per channel (RS/LocoNet/S88) (LocoNet + S88 + RS-BUS)

• The feedback module has 8 notification inputs with integrated document identification.
• The operation can be done with DCC or Märklin Motorola.
• The operation works for 2 and 3 conductor systems
• Feedback can be done via S88, LocoNet and RS-Bus
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Compatible

• To all centrals which support RS-Bus, LocoNet or S88 as feedback bus.

Voltage

• Build up
  • 9-24V track voltage
  The supply must always be via the track
• Performance
  • 9-24V DC voltage
  • 20mA current
  Each signal output can be loaded with 3A
• Need
  • Quiet current below 20mA
  The decoder itself requires under 20mA in the sleep state. The power demand of the output depends on the connected article.
• The decoders are protected against short circuit with a self-resetting fuse.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic learning mode for addressing. You just have to press a button and call up the desired address at your headquarters. Done.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Installation

• • Connections brand clamps up to 1mm2.
  • Turntable The control signal DCC or Märklin Motorola is connected via optocouplers and thus completely galvanically separated. All signal outputs are also connected via optocouplers so that all bus systems to the control control unit are completely galvanically separated
  • Dimensions 95x80mm, 40mm high

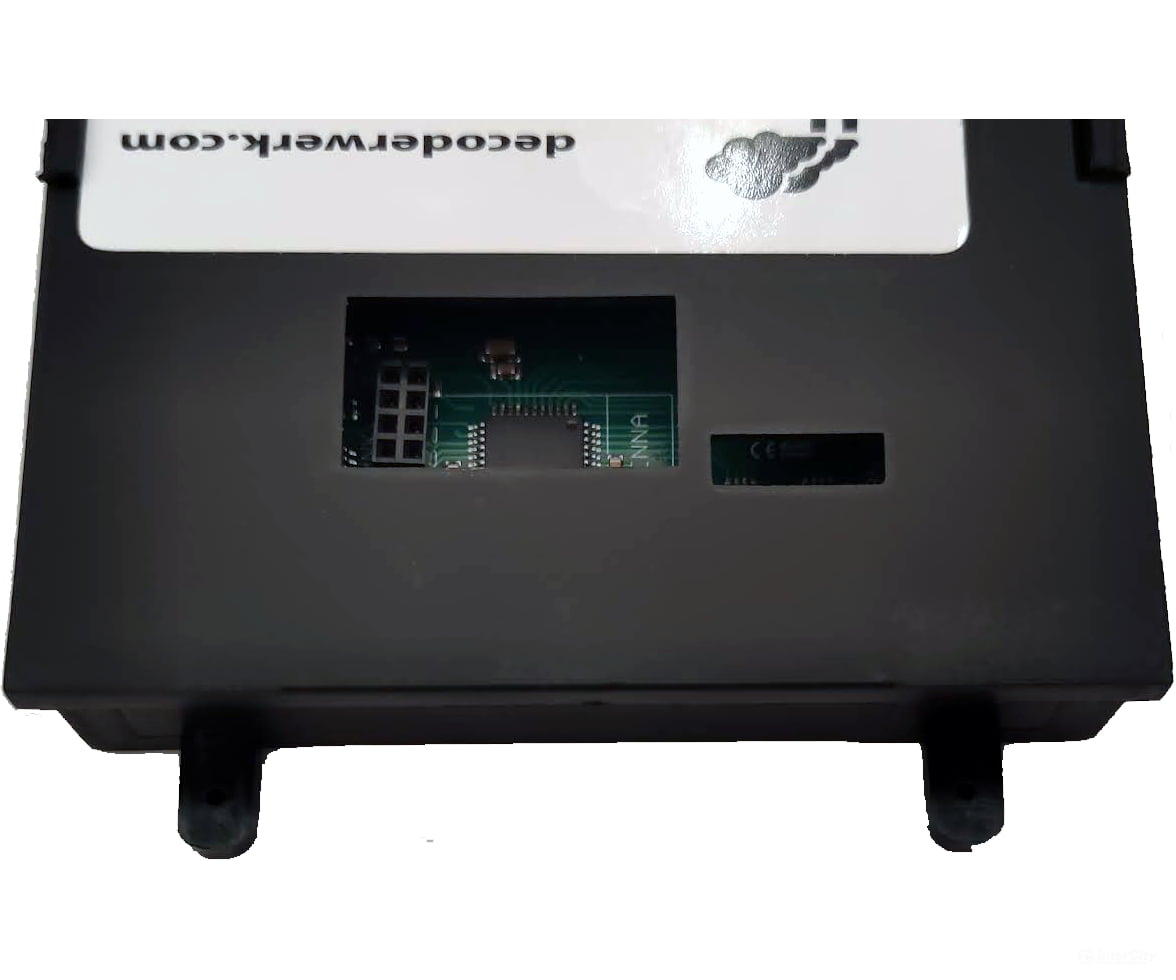

  • Fastening 2 mounting holes of size M4. In the stable housing
