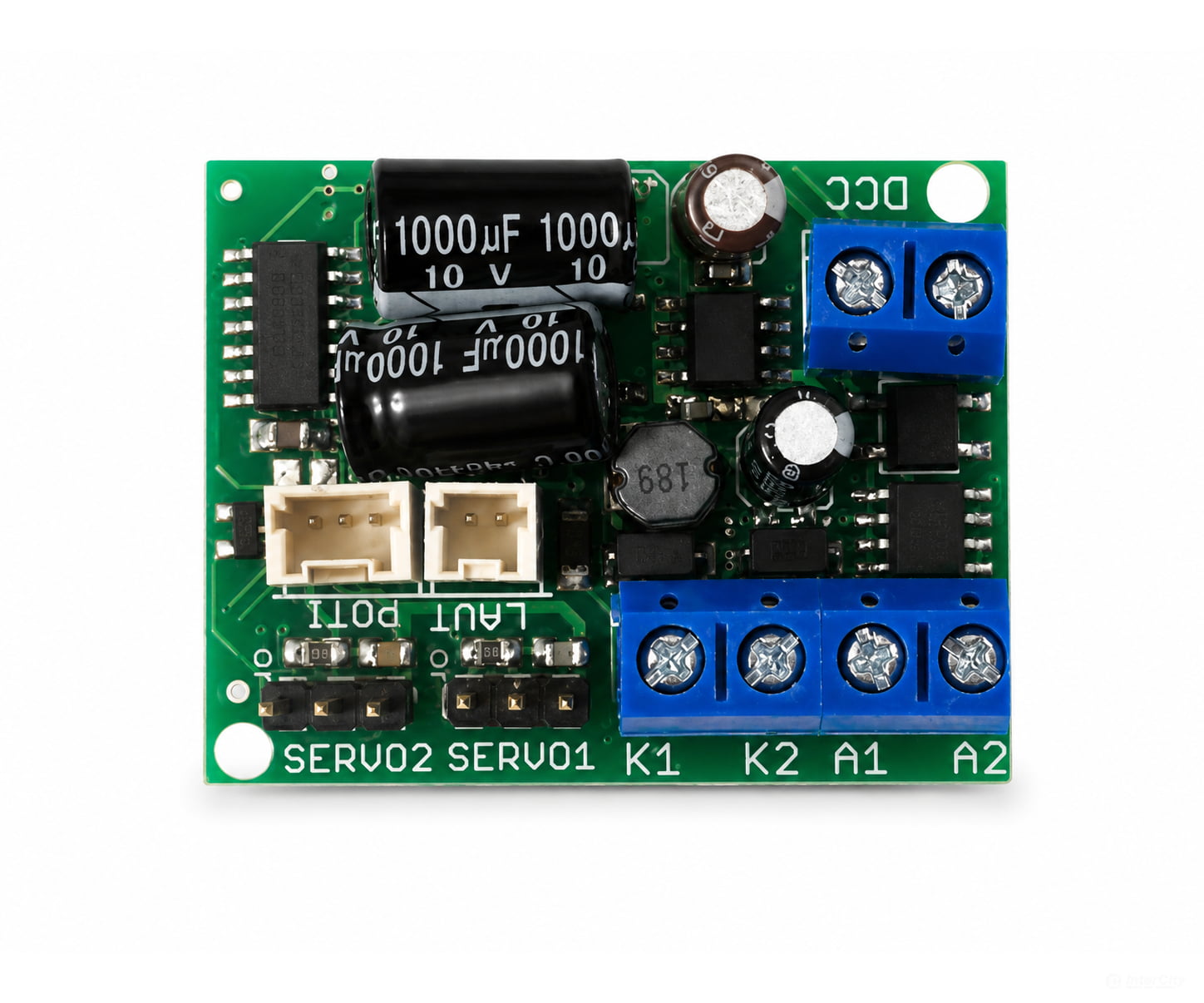

Decoderwerk 00501 Level crossing controller with sound and servo support (DCC)

• The decoder has 2 servo, 2 light outputs, 1 sound output and 2 contact inputs.
• The power supply of the consumers is provided by the power source connected to the decoder.
• Operation can be done with DCC or via contacts
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Voltage

• Build up
  • 9-24V DC voltage
  • 9-18V AC voltage
  • 9-24V track voltage
  The decoder is supplied directly by the track voltage. No separate power supply can be connected.
• Performance
  • 9-24V DC voltage
  • 0.1A per output
  Each output can be loaded with 0.1A and delivers 9-24V DC voltage. The decoder can be loaded with a maximum of 1A in total.
• Need
  • Quiet current below 10mA
  The decoder itself requires less than 10mA in the idle state. The power requirement of the outputs depends on the connected article. We recommend a power supply with 1A.
• The decoders are protected against short circuit with a self-resetting fuse.
• Long conclusion The decoders have a charging control, so that the control panel does not mistakenly diagnose a short circuit when starting.

Coupling

• Individual Each exit can be assigned an individual address. The addresses are freely selectable.
• Social An address can be assigned several times. When the address is called, all outputs associated with this address are switched.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Memory The decoder automatically restores the last circuit when starting.
• At each of the 6 outputs, div. Effects and processes up to running lights can be adjusted and thus atmospherically illuminated systems, train stations or fairgrounds
• For Always Each output is configured as continuous operation. The selected output is switched until it is deactivated by selecting it.
• Small steps You can adjust the switching time individually. Switching pulses of 1 to 255 seconds are possible. And that in small steps of 1 second.

Installation

• Connections Phoenix Contact brand terminals for cables up to 1mm2.
• The control signal DCC is connected via optocouplers and thus completely galvanically separated.
• Dimensions 32x42mm, 15mm high
• Fastening 2 mounting holes of size M4. The inner diameter is 4.5mm.

We recommend our sound box speaker Art. No. Z001 and, if desired, our potentiometer Z004. As servo we have in the program our servo Art. No. Z005
