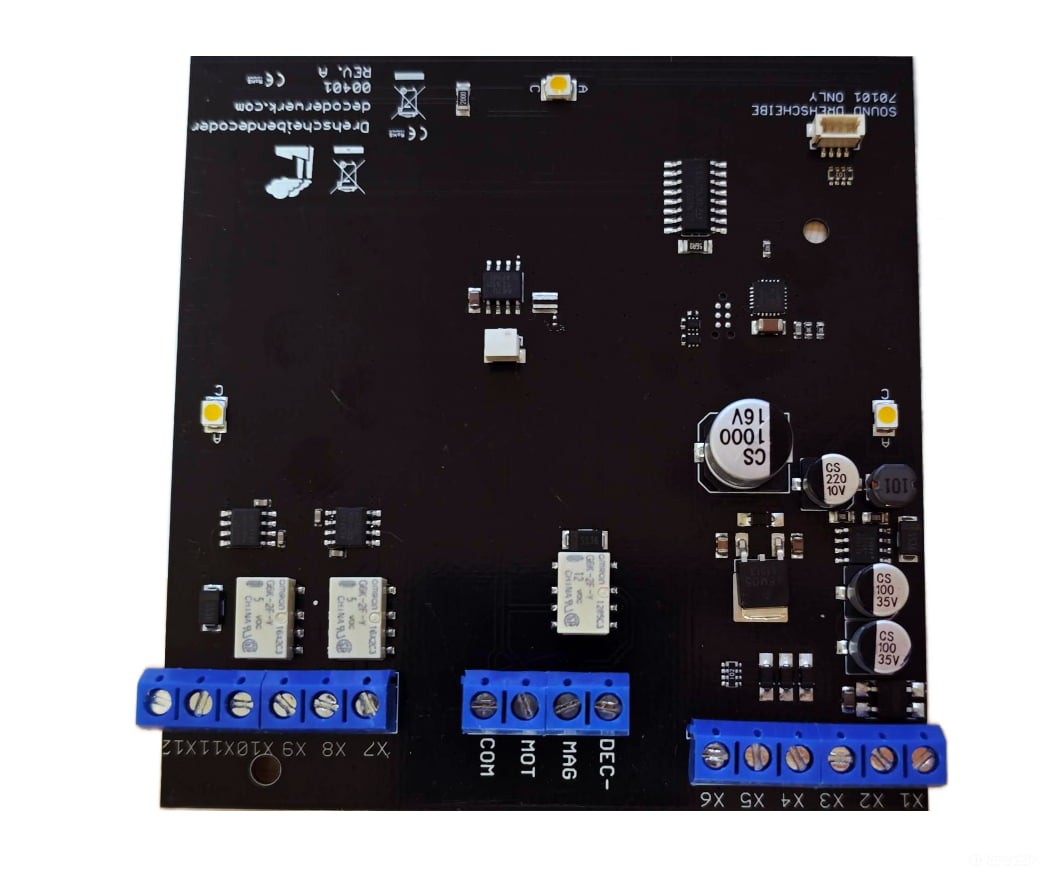

Decoderwerk 00401 Turntable decoder for 2-rail and 3-rail systems, with frog polarity relay; universal individual track outlet addressing (DCC + Motorola)

• The decoder has
• 1 motor output
• 1 magnetic output
• 2 switching outputs for light
• 1 SUSI connection
• 3 contacts
• RailCom capable
• DCCext capable
• T-loop module for 2 conductors
• LEDs for lighting
• Occupant notification unit for the turntable
• Accelerate/brake ramp function
• The power supply of the consumers is provided by the power source connected to the decoder.
• The operation can be done with DCC or Märklin Motorola as well as analog via contacts
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

• Compatibility The decoder can be inserted and connected directly with the following turntables.


• POLA G turntable
• Märklin metal turntable (all types)
• Märklin turntable (all types)
• Fleischmann turntable (all types)
• Roco turntable (all types)
• All other turntables with DC motor and 3 connection lines (magnet/motor)
• All other turntables with DC motor and switching contact per output
• Self-maded turntables with switching contact per output

Voltage

• Build up
  • 9-24V DC voltage
  • 9-18V AC voltage
  • 9-24V track voltage
  The decoder is supplied directly by the track voltage. No separate power supply can be connected.
• Performance
  • 9-24V DC voltage
  • 0.1A per output
  • 2A engine output
  Each output can be loaded with 0.1A and delivers 9-24V DC voltage. The decoder can be loaded with a maximum of 3A in total.
• Need
  • Quiet current below 10mA
  The decoder itself requires less than 10mA in the idle state. The power requirement of the outputs depends on the connected article. We recommend a power supply with 1A.
• The decoders are protected against short circuit with a self-resetting fuse.
• Long conclusion The decoders have a charging control, so that the control panel does not mistakenly diagnose a short circuit when starting.

Coupling

• Individual Each exit can be assigned an individual address. The addresses are freely selectable.
• Social An address can be assigned several times. When the address is called, all outputs associated with this address are switched.
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated.
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Memory The decoder automatically restores the last circuit at startup and saves its position
• Scope Each track exit can be assigned its own address for direct control. In addition, addresses for 180° and step-by-step control are available
• For Always Each output is configured as continuous operation. The selected output is switched until it is deactivated by selecting it.
• Small steps You can adjust the switching time individually. Switching pulses of 1 to 255 seconds are possible in small steps

Installation

• Connections Phoenix Contact brand terminals for cables up to 1mm2.
• The control signal DCC is connected via optocouplers and thus completely galvanically separated.
• Dimensions 100x97mm, 25mm high
• Fastening 2 mounting holes of size M3. The inner diameter is 3.5mm.

We recommend our sound module 70101 with matching turntable sound!
