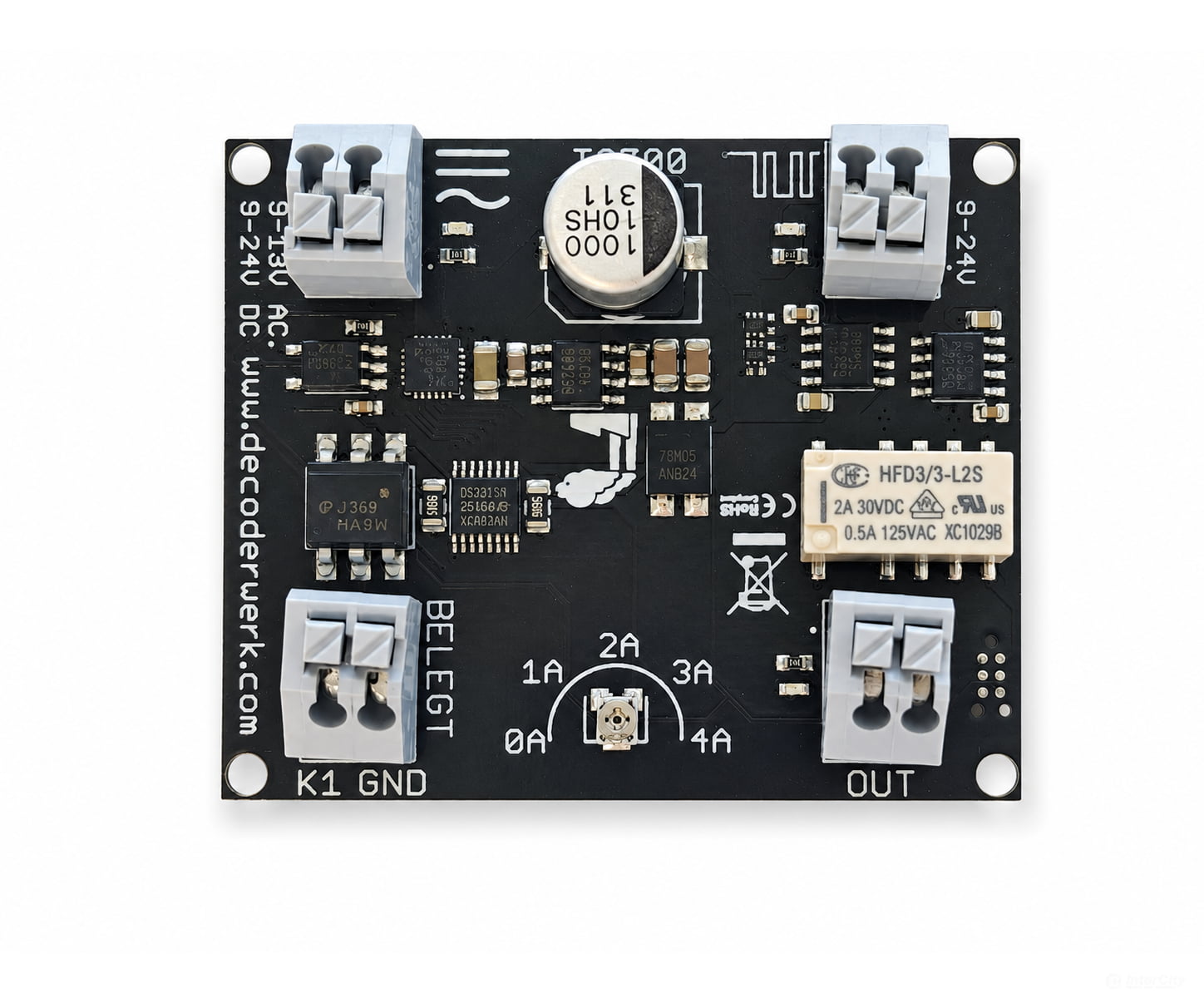

Decoderwerk 00201 5A reversing loop module (analog & digital), protocol-independent, with occupancy detection and RailCom (DCC + Motorola + Analog)

• The module has 2 outputs.
• The module works completely short-circuit-free without sensor tracks
• The module has a current monitoring of the return loop and thus an occupied report output
• The operation can be done with DCC or Märklin® Motorola as well as analog (DC and AC)
• The module is suitable for turning loops, track triangles and turntables
• 100% quality check of all decoders
  Development and production in Germany
  We only use components of well-known brand manufacturers

Compatible

• Track triangles of all gauges
• Sloops of all gauges
• Turntables of all gauges

Voltage

• Build up
  • 9-24V track voltage
  The decoder is supplied directly by the track voltage. A separate power supply can also be connected (mandatory for analog)
• Performance
  • 9-24V DC voltage
  • 5A current
• Need
  • Quiet current below 10mA
  The decoder itself requires less than 10mA in the idle state. The power demand of the output depends on the connected article.
• The decoders are protected against short circuit with a self-resetting fuse.

Coupling

• Artificial intelligence, at least a little. The decoder has an automatic high-performance current measuring device with which it is possible to work without short-circuits without the need for sensor tracks through complex analysis of the current values
• Remote control The decoder can be configured directly at its place of use from a DCC control panel by means of programming-on-main. All CV's can be updated. Thanks to RailCom, a readout is also possible. The relay switching direction is also transmitted
• Inspection The decoder can be configured on a DCC programming track. All CV's can be read and written via direct mode.

Configuration

• Standard The current detection limit is set via the integrated potentiometer.
• Information The module has a finely adjustable occupancy output
• Twisted The polarity of the track exit as well as the track input (signal input) does not matter
• Small steps All values and limits can be finely adjusted

Installation

• Connections The module has separate power supply, signal input as well as occupied detection output for regular feedback modules from ground principle (e.g. our 00801)
• Mounting The module has 4 screw holes M3 for easy mounting on the substrate.
