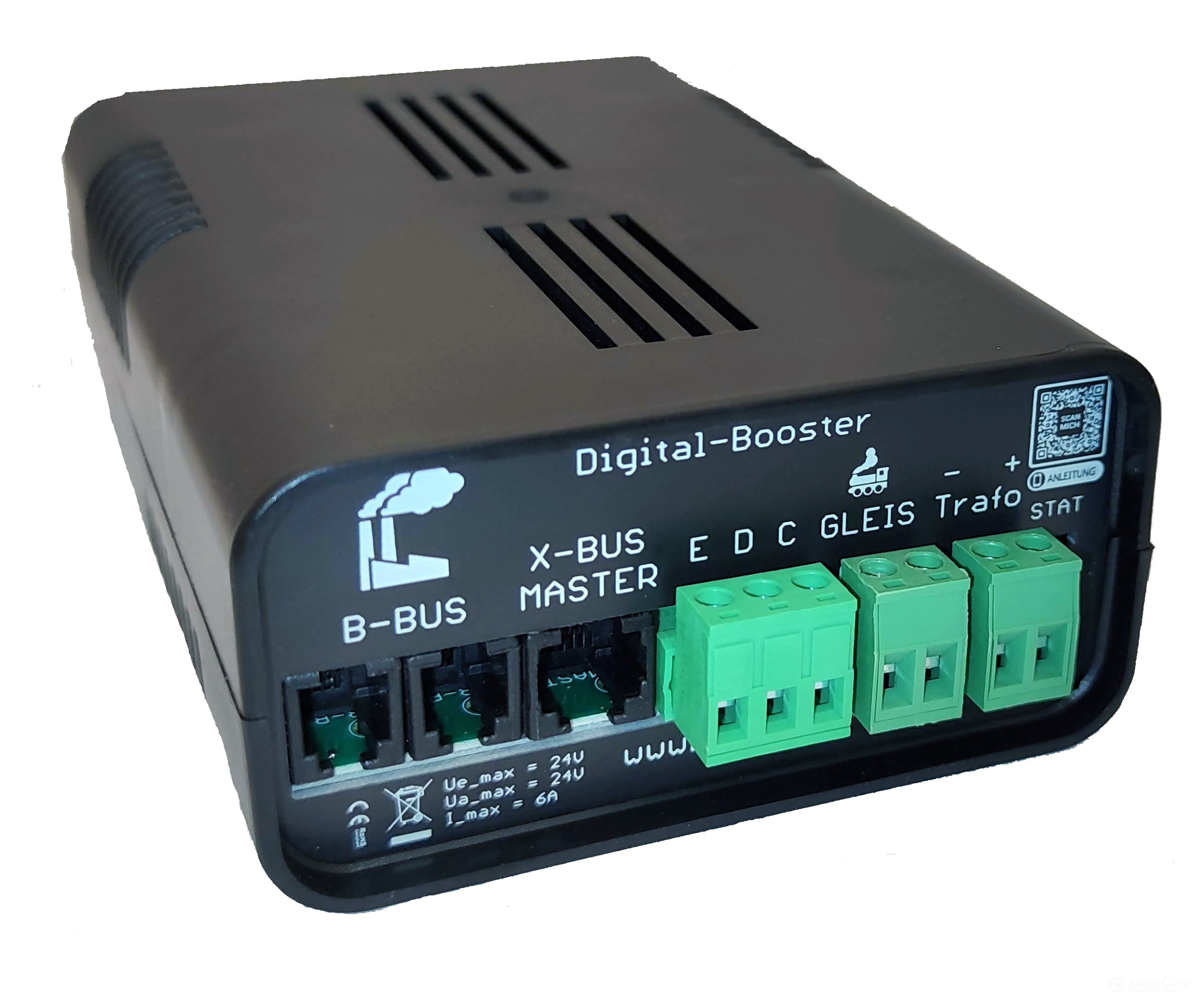

Decoderwerk 00101 5A booster with adjustable short-circuit cutoff time and current limit (DCC + Motorola)

The digital booster is a very powerful and flexible booster for all digital protocols. The booster can be supplied with signals from the control panel via B-Bus, XpressNet and CDE. It is even possible to record signals directly from the central panel's track via C&D. With a Z21 multiMAUS, the booster can also work as a central unit. Of course, it can be set that the booster automatically switches on again after an adjustable time in the event of a short circuit.

Connection to other centrals:

B-BUS: z21, and much more

XpressNet: Piko Central, Z21 multiMAUS

CDE: Everyone else. ECoS or Central-Station is to proceed as follows

C = Data
D = Mass
E = ShDCC

Functions at a glance:

- 6A peak current!
- 5A continuous current!
- 12 - 24 V DC power supply
- temperature controlled fan
- adjustable current limit (1A - 5A) in 0.1A steps
- adjustable short-circuit time
- adjustable automatic re-switching in case of short circuit
- adjustable switching time
- Overload protection
- Feedback on short circuit, stop, overcurrent and errors
- RailCom capable (without feedback)
- DCC, mfx, Motorola Compatible

- Settings of the CVs only possible via DCC
- 95 x 135 x 45mm
