Description

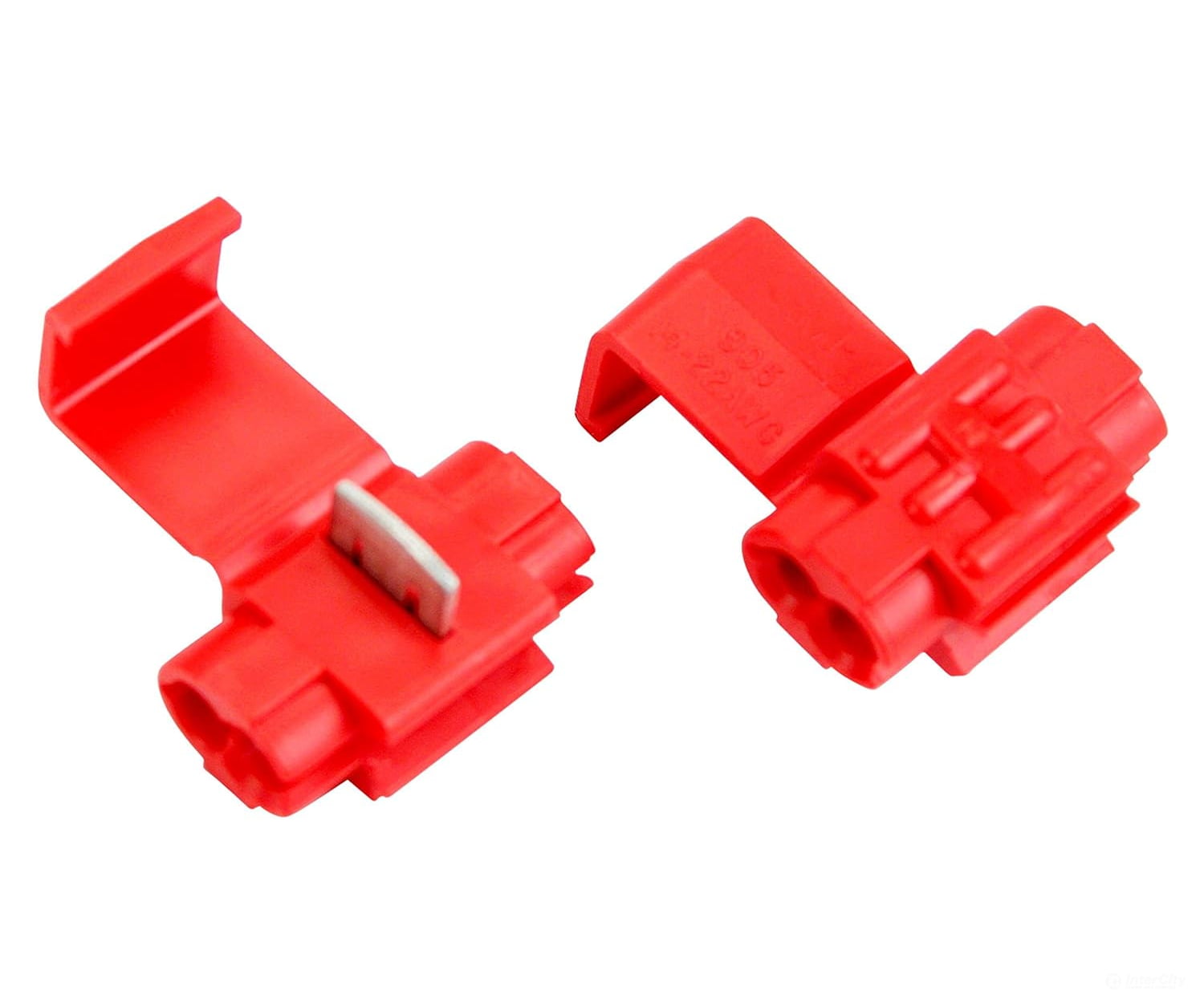

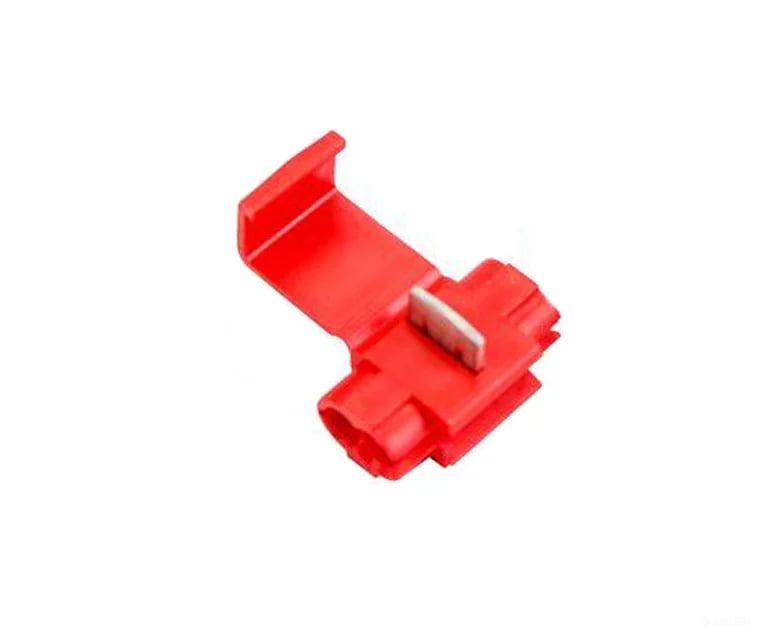

Genuine 3M Scotchlok 905 Self Stripping Tap Connectors also known as Suitcase Connectors.
These unique connectors allow you to tap track feeders into a bus line without the need to splice or strip the bus line wire. The red 905 connectors are suitable for 14 to 22 AWG wiring. Great for all model railroading wiring where you need to tap into a wire. Suitable for stranded and solid wire.

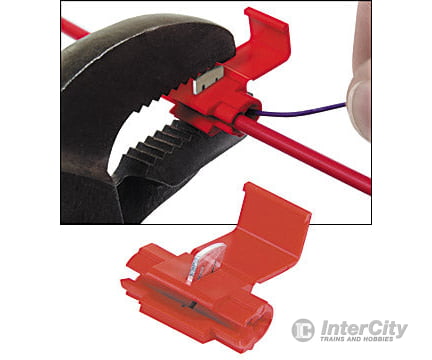

While no special tool is needed for hobby use, a set of pliers with parallel closing jaws (long needle nose can work) is recommended to ensure the splice plate is pressed in evenly.
There are many cheap counterfeits of these products that do not work well. The connectors we sell are genuine 3M Scotchlok products.
From 3M:
3M™ Scotchlok™ Electrical Insulation Displacement Connectors electrically connect a tap wire end through a run wire to insulates the connection. These connectors make inline, pigtail and tap splices on 14 gauge solid or stranded wires with no wire stripping. They have a maximum insulation O.D. diameter of 0.145 inches (3.68 millimetre) and an operating temperature of 194 degrees Fahrenheit (90 degrees Celsius). The suggested application tool for this connector is the 3M™ Scotchlok™ Crimping Tool, E-9BM.
The connector insulation is manufactured from polypropylene and is rated for 32V applications. It withstands temperatures of 194 degrees F (90 degrees C). RoHS 2011/65/EU Compliant.
