Description

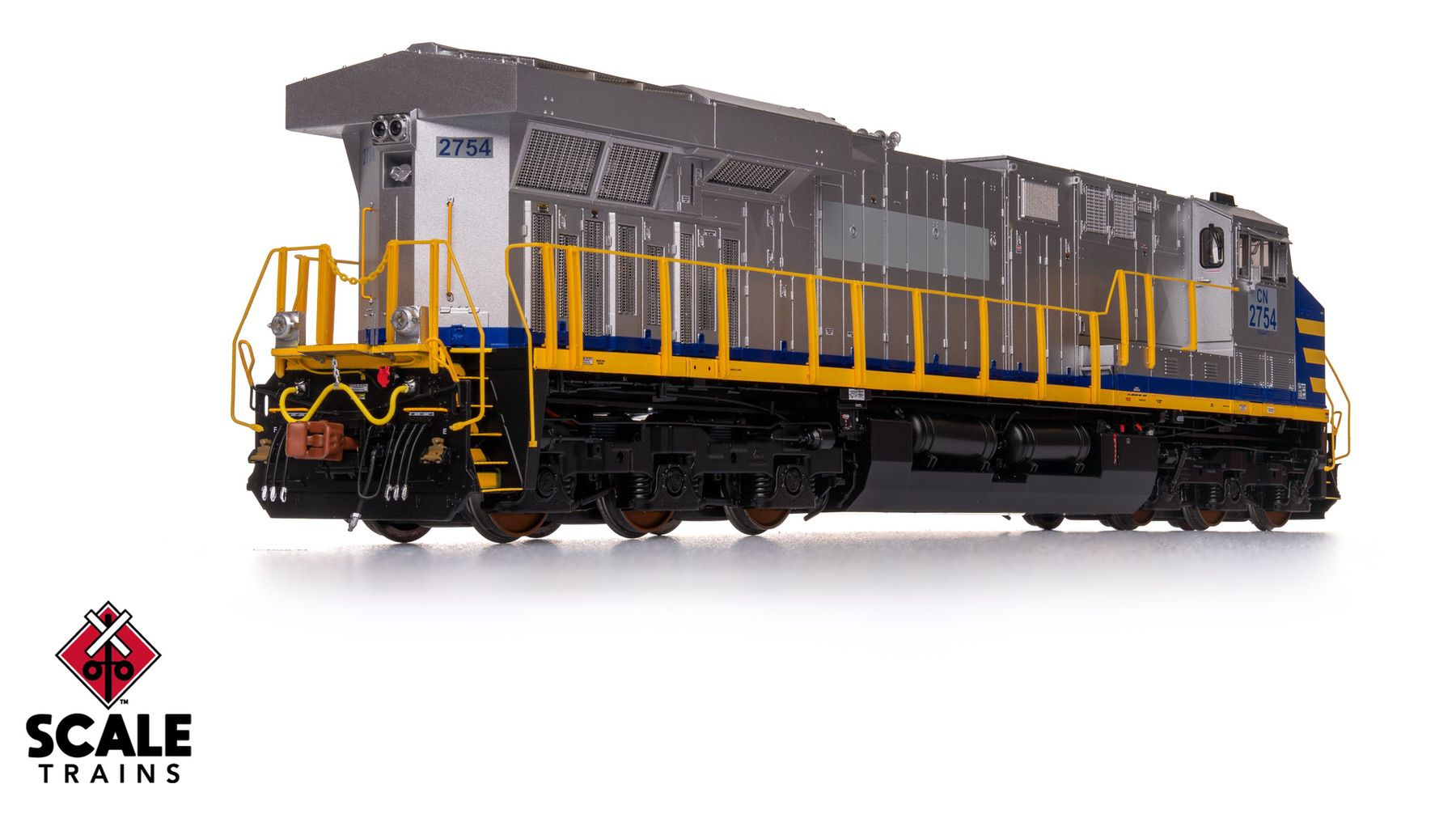

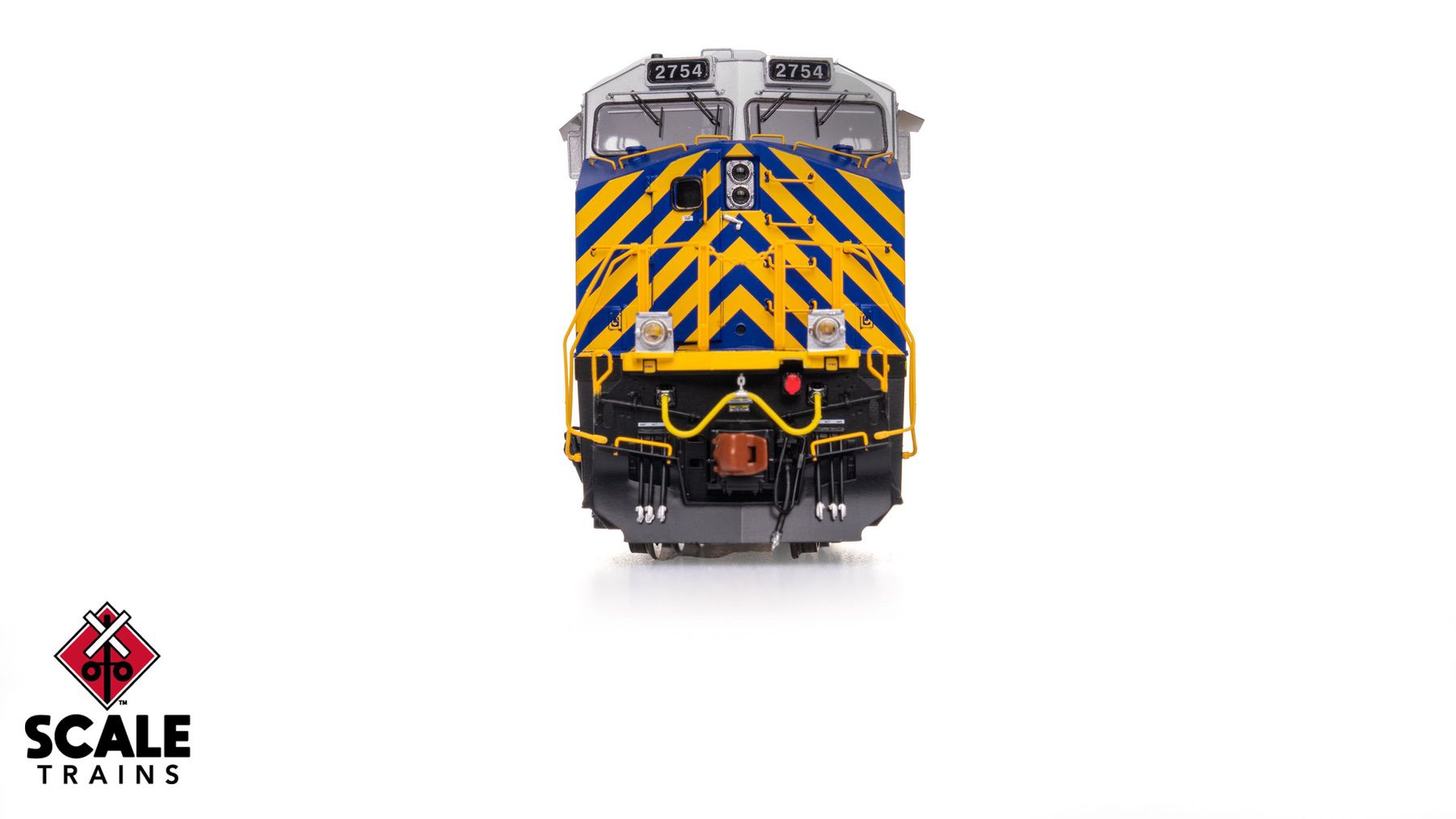

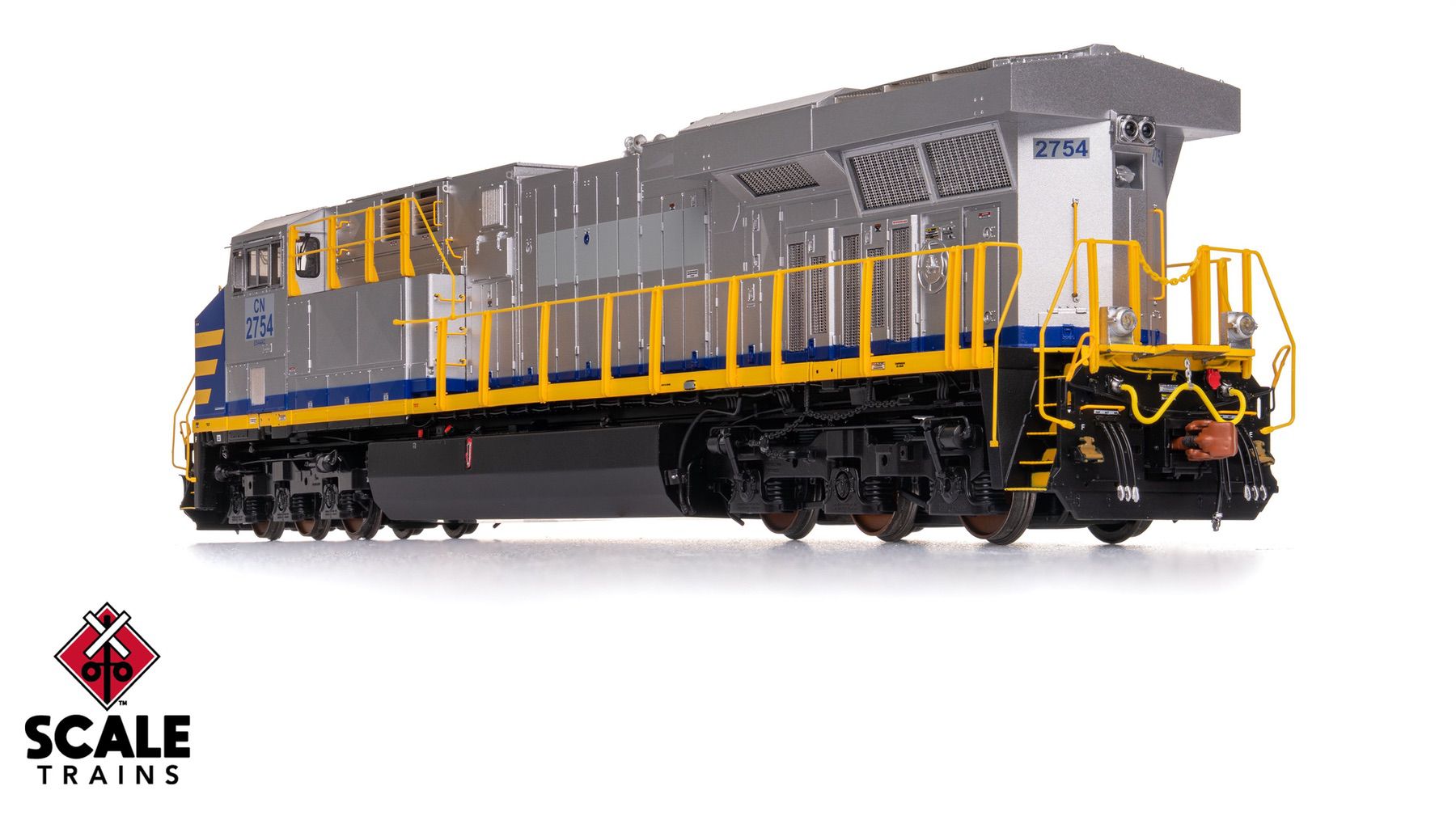

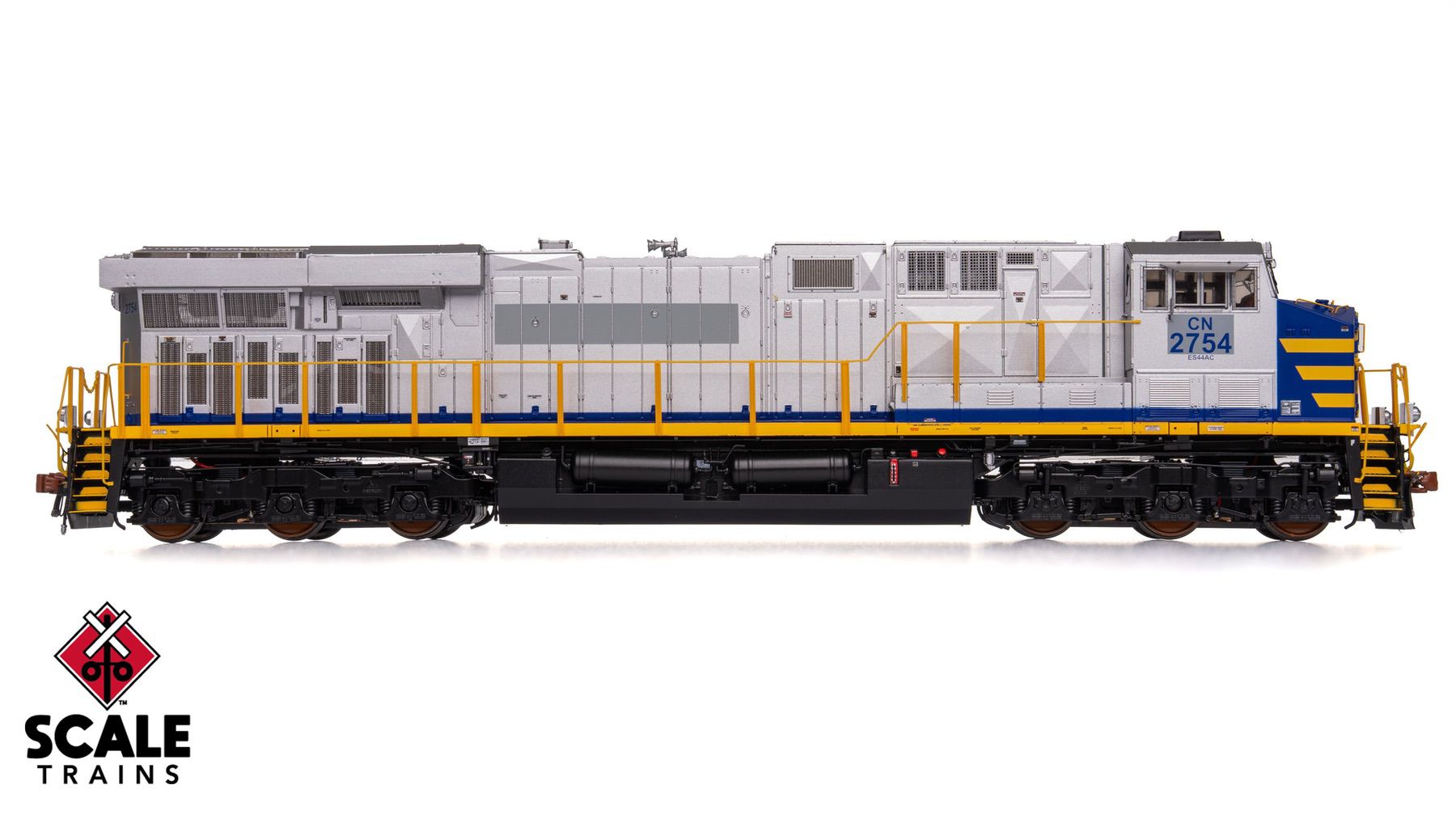

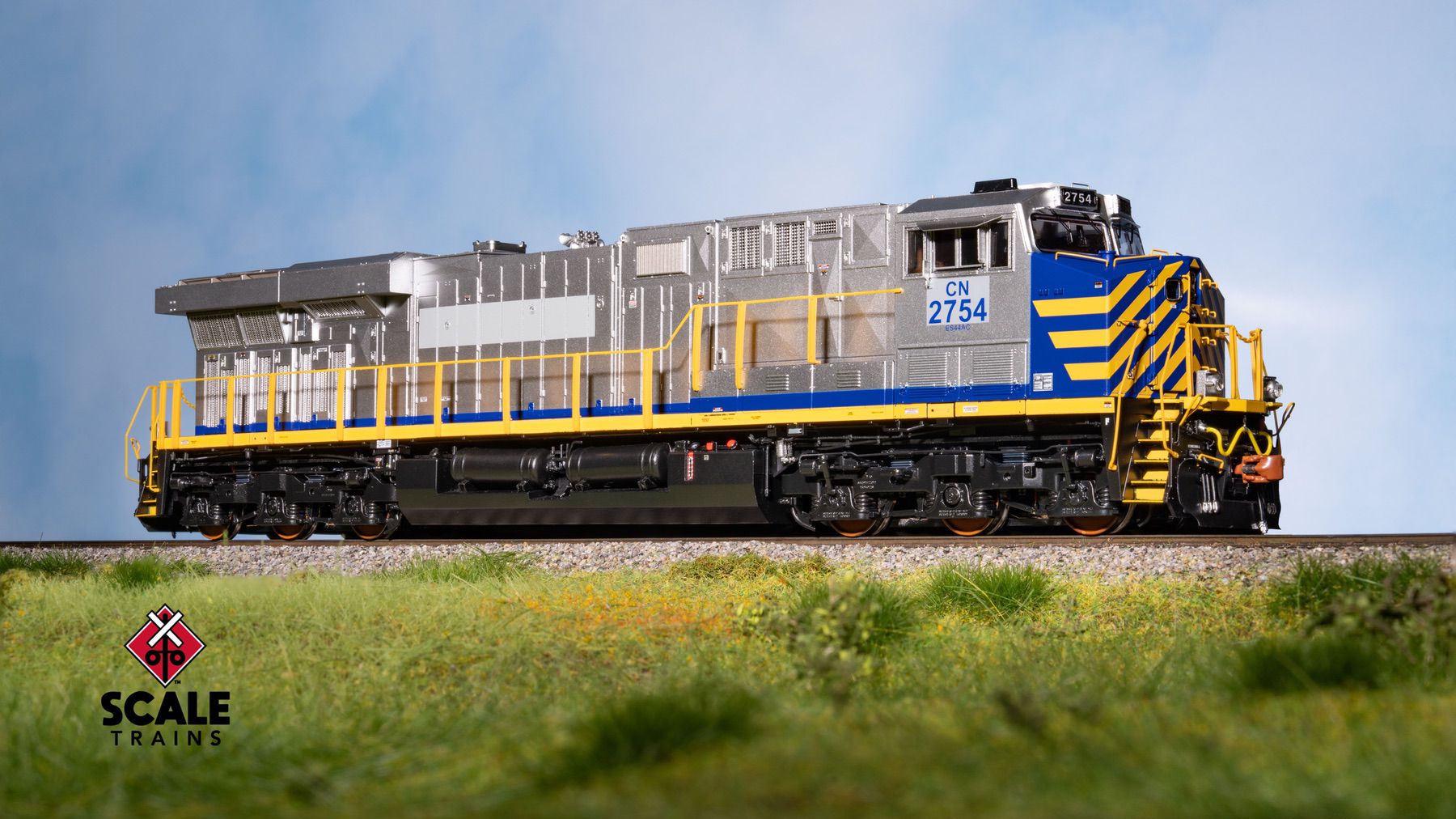

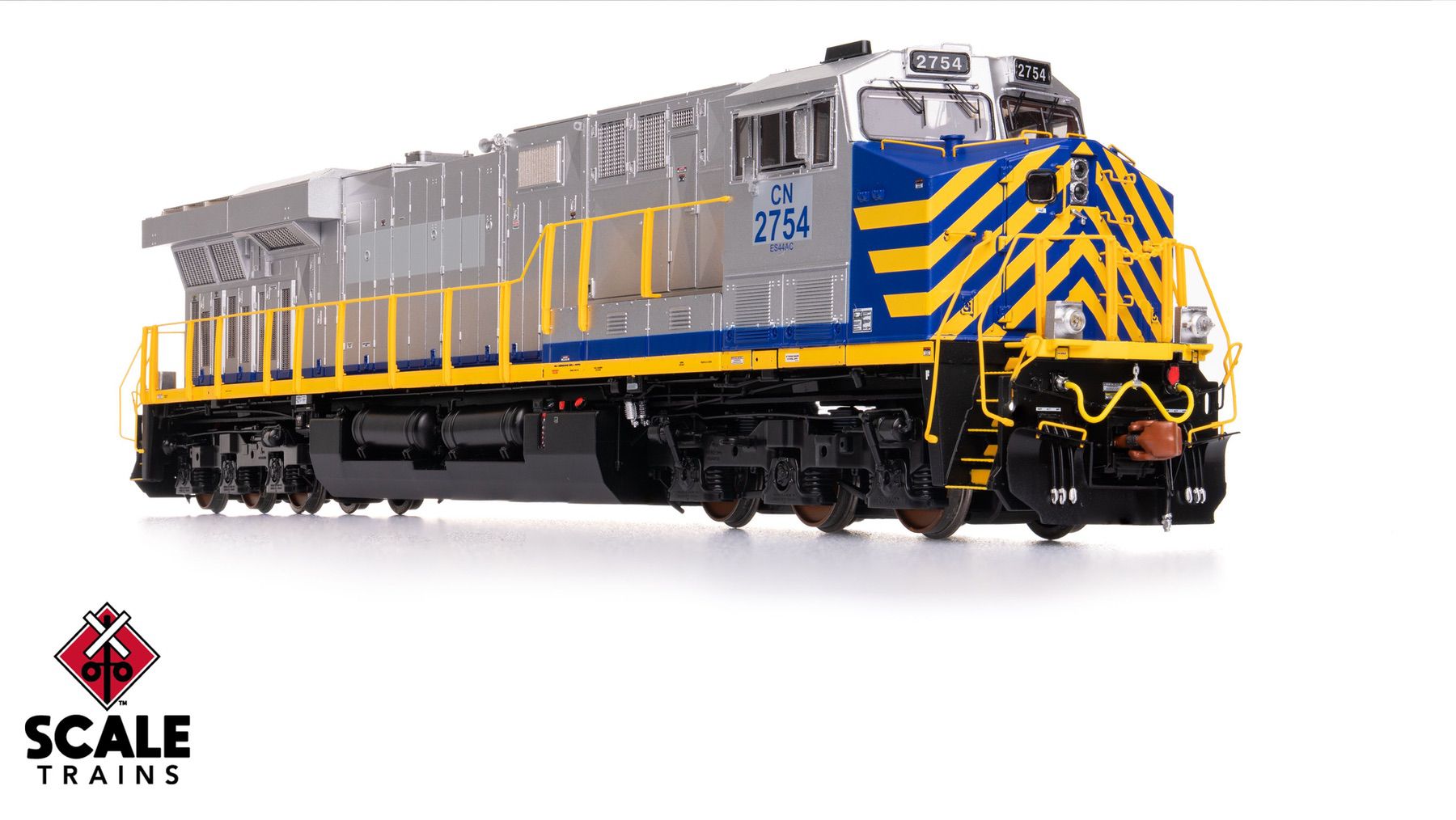

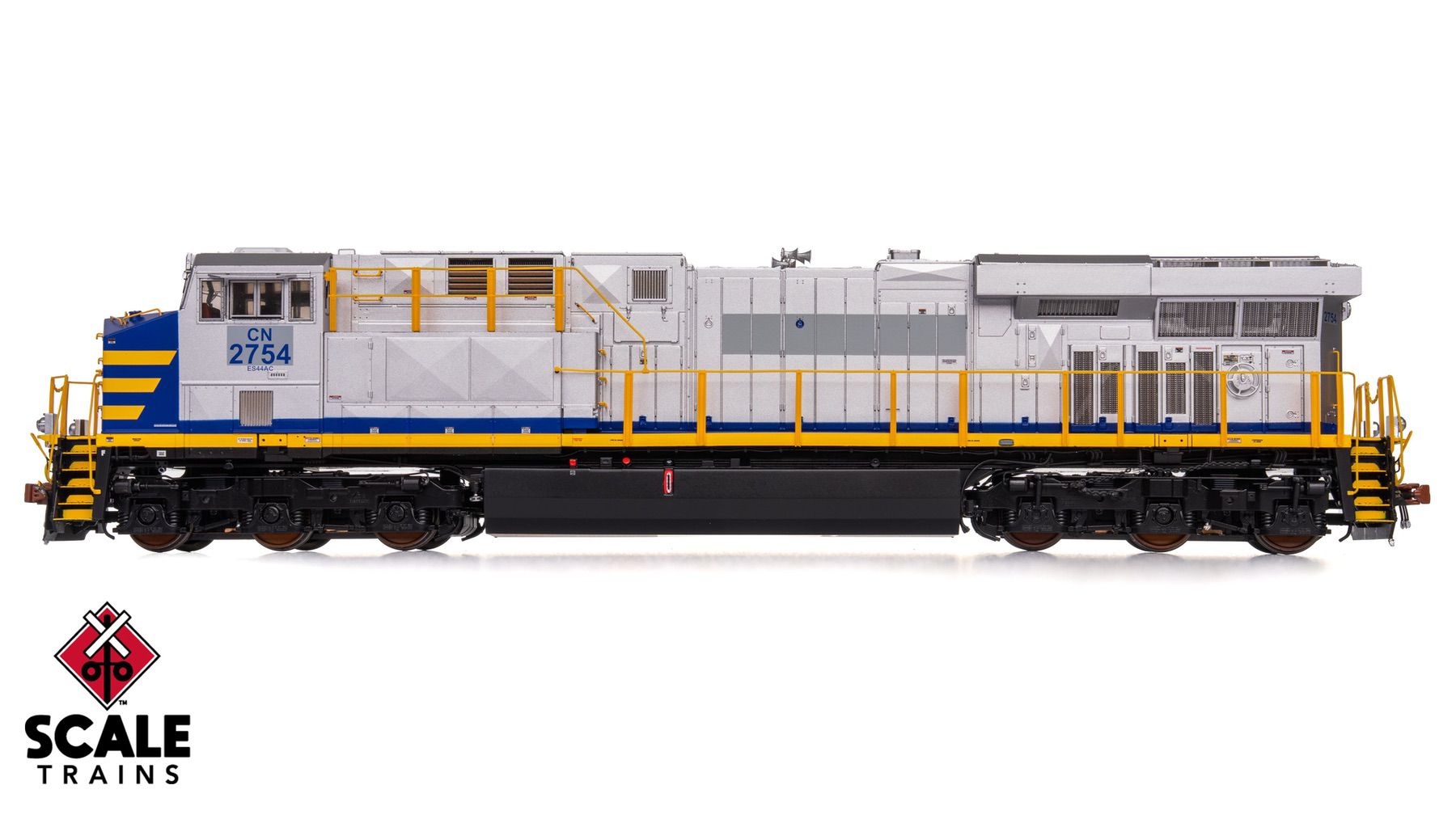

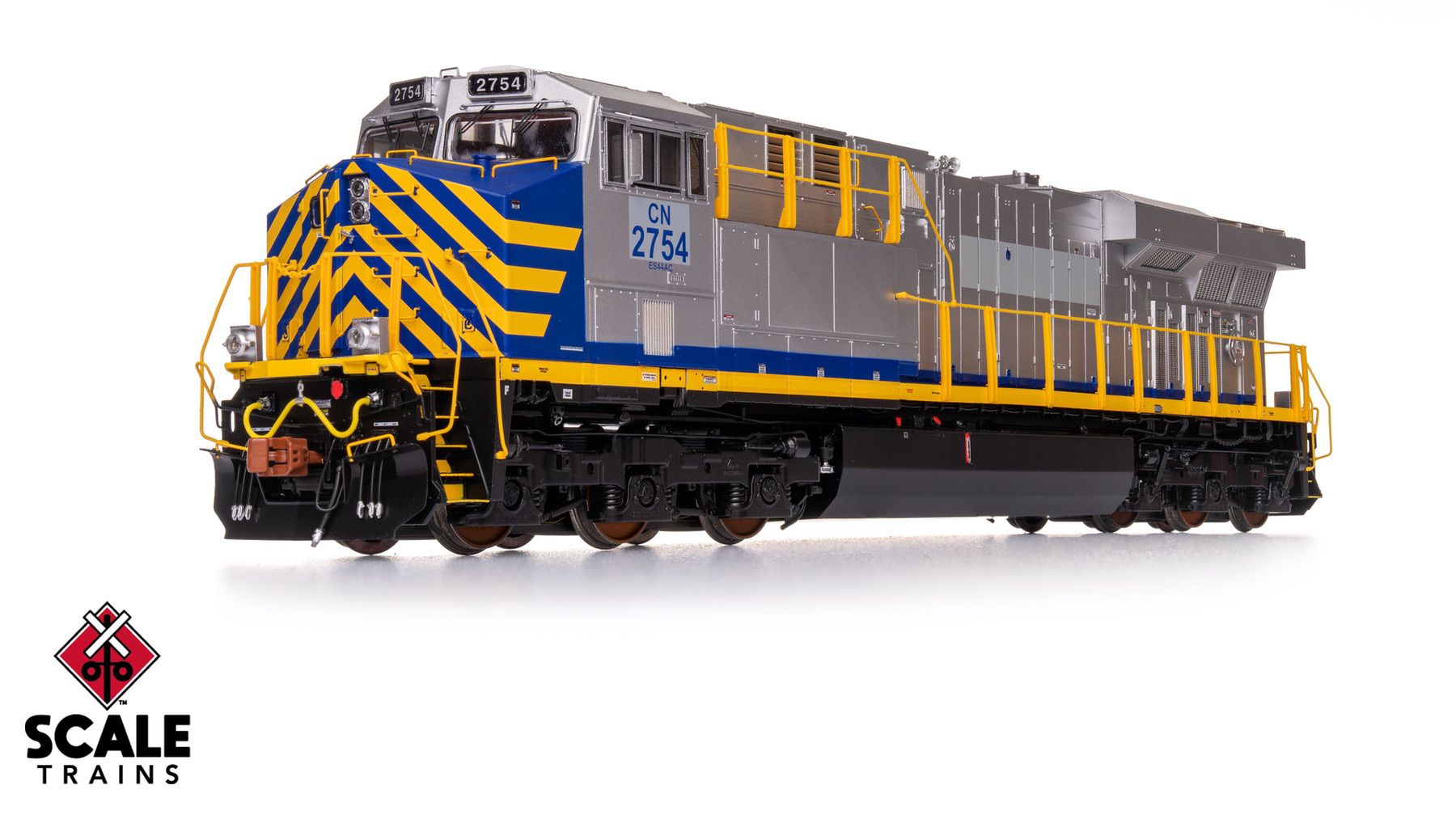

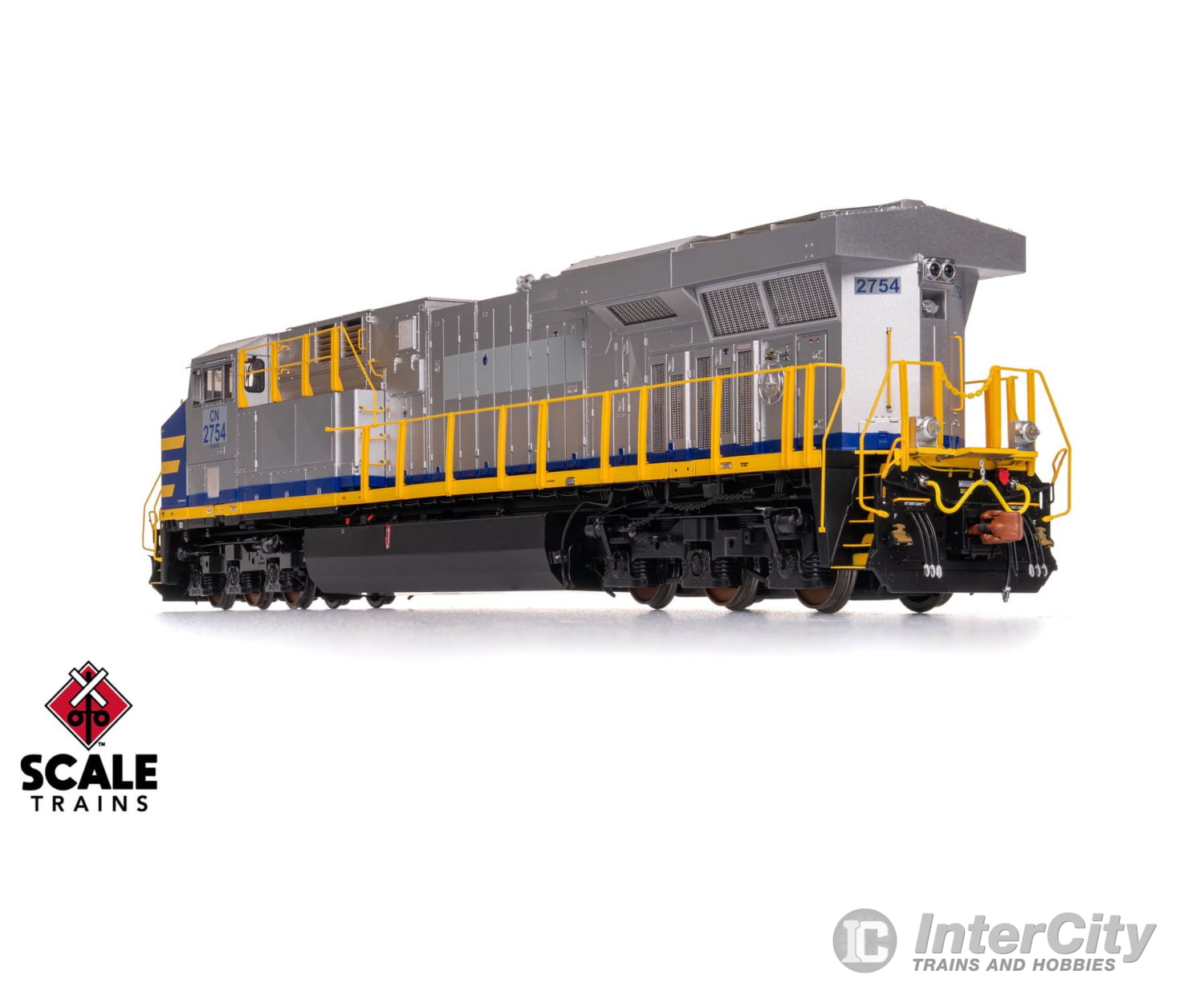

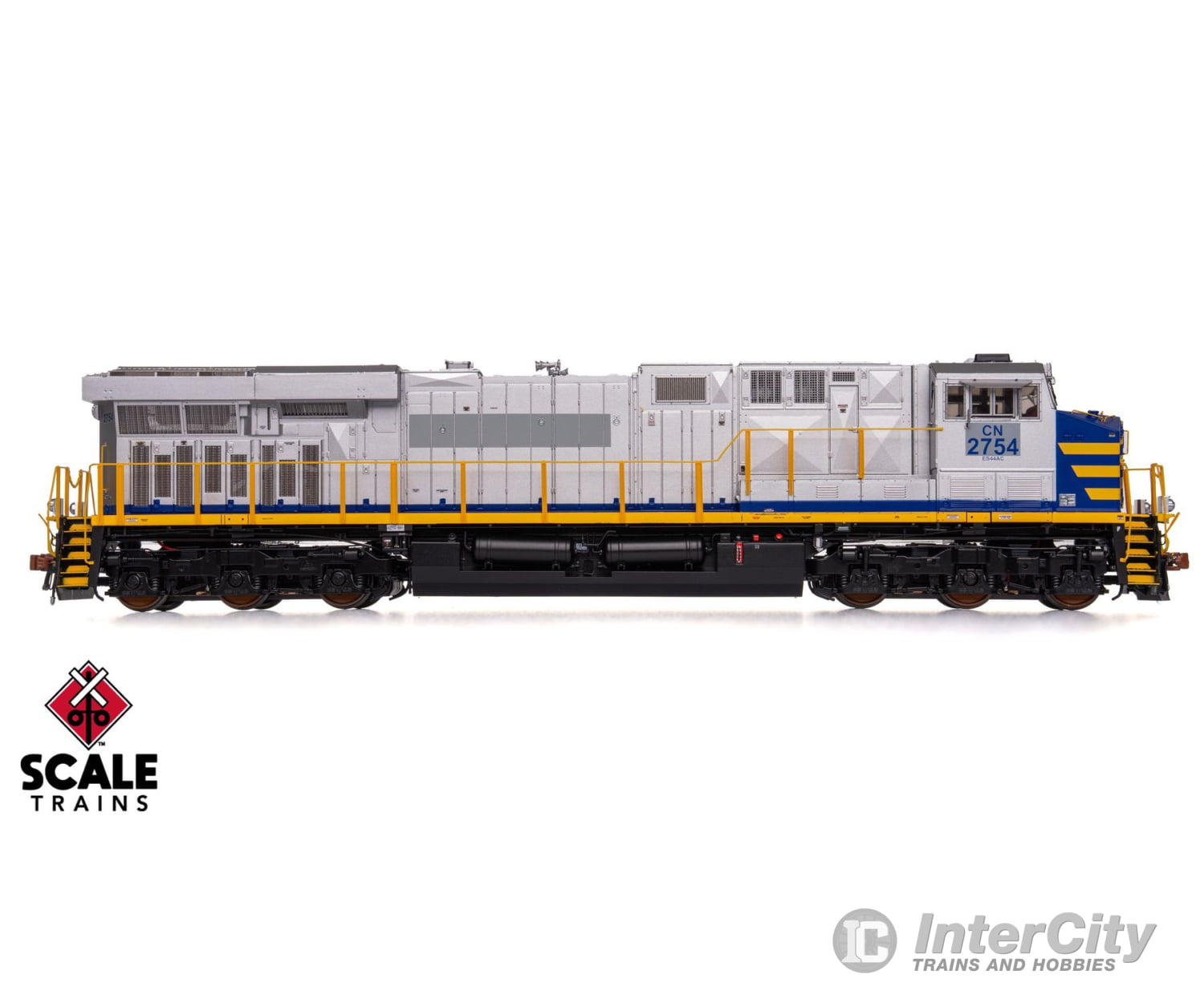

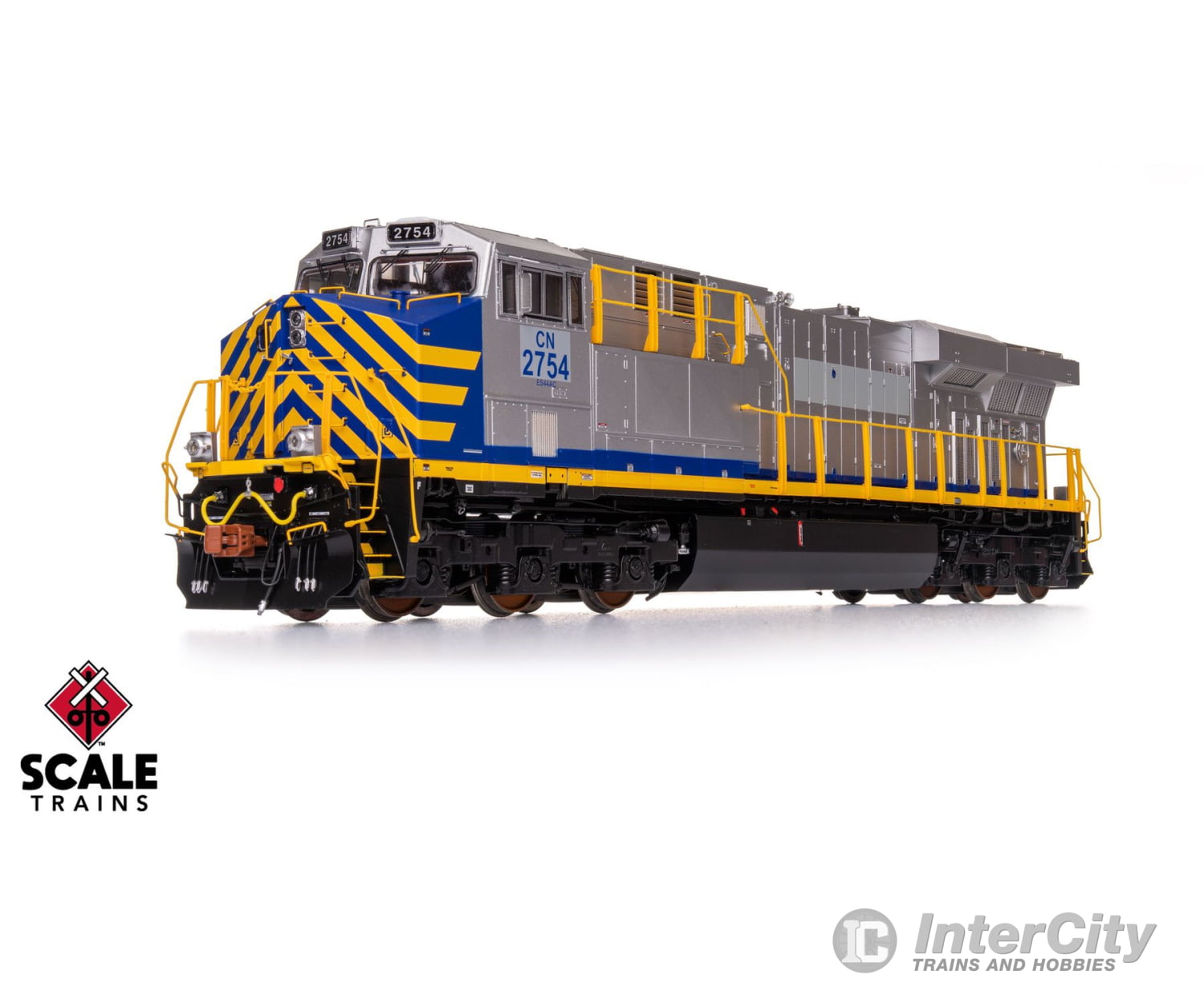

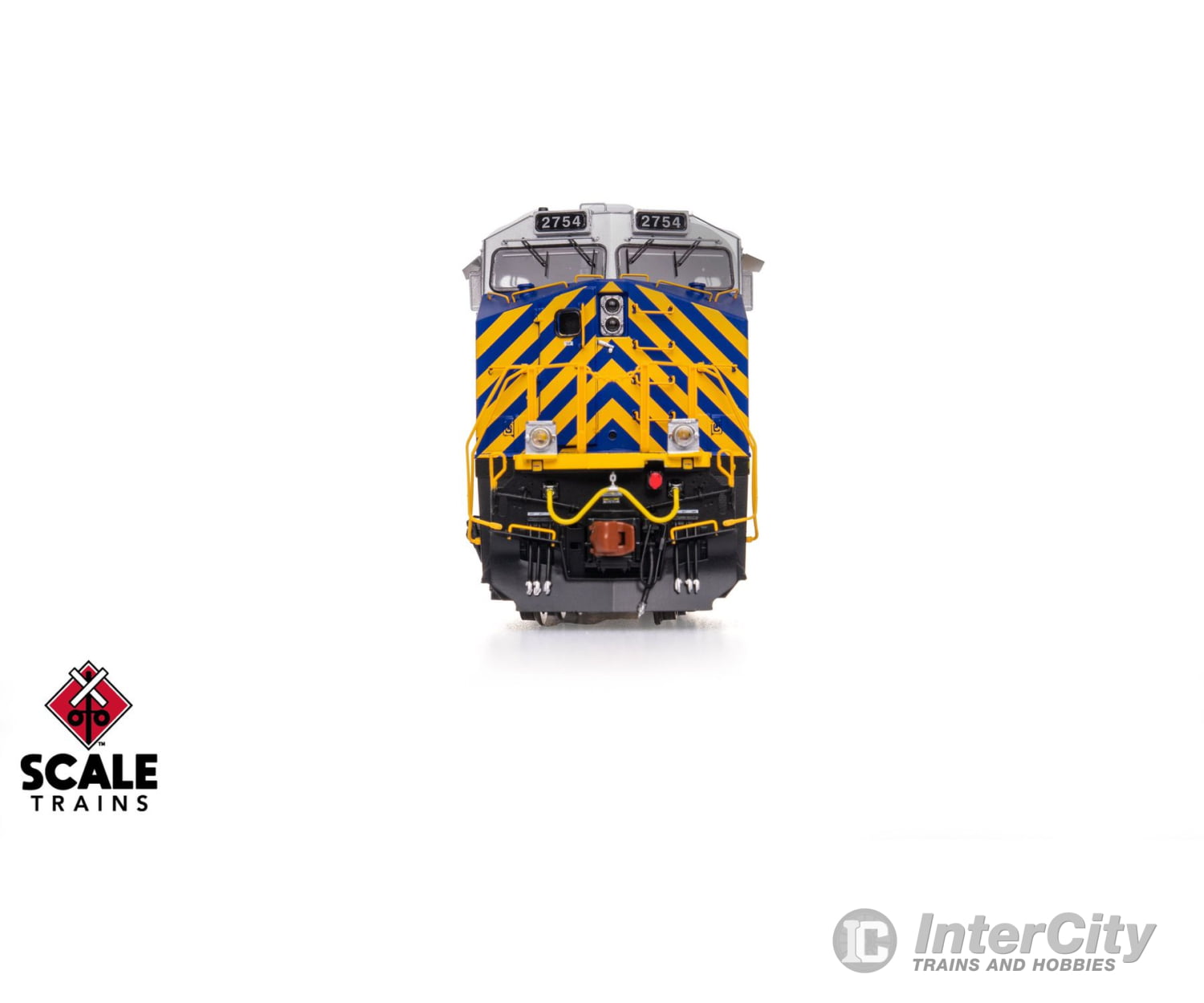

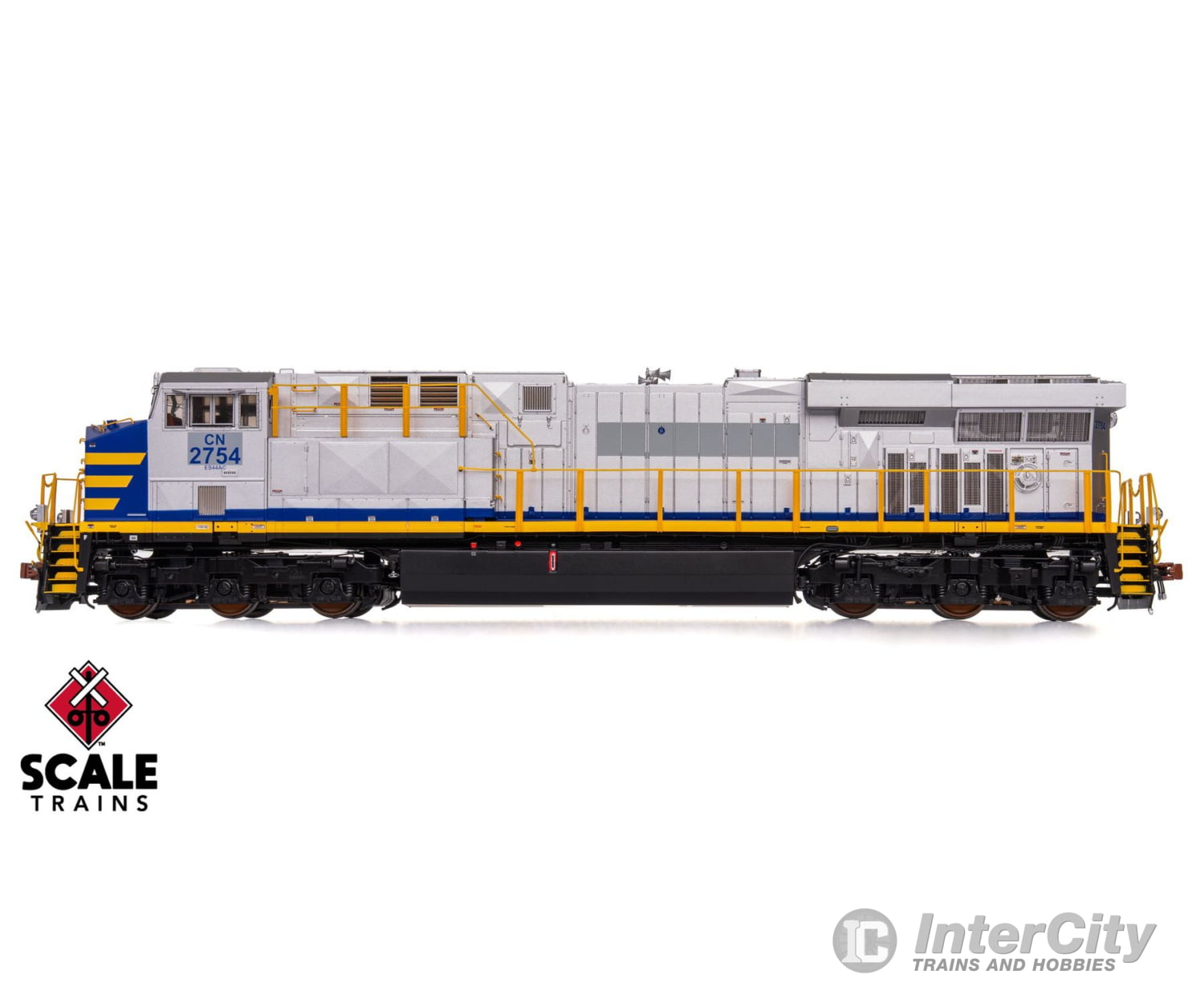

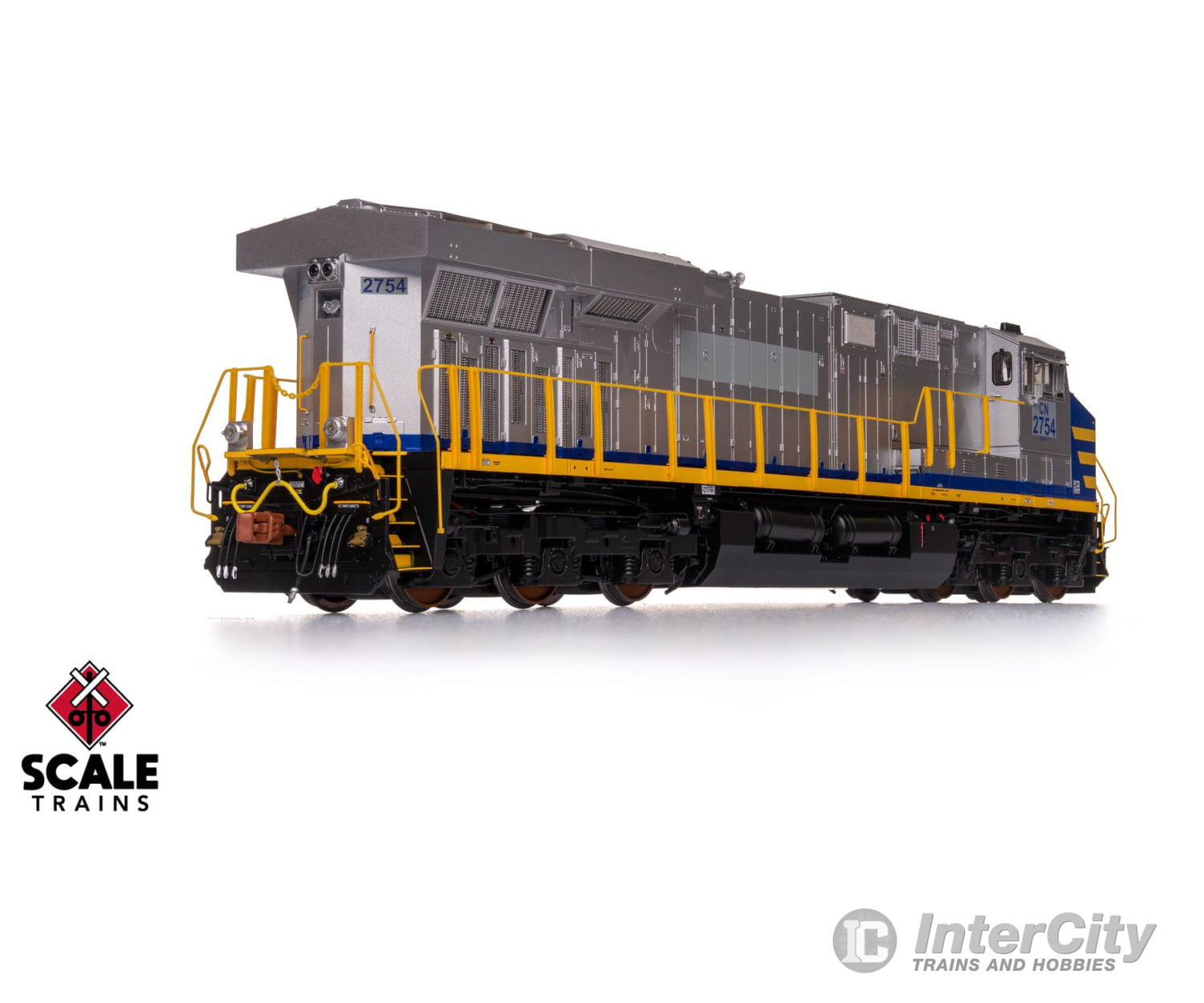

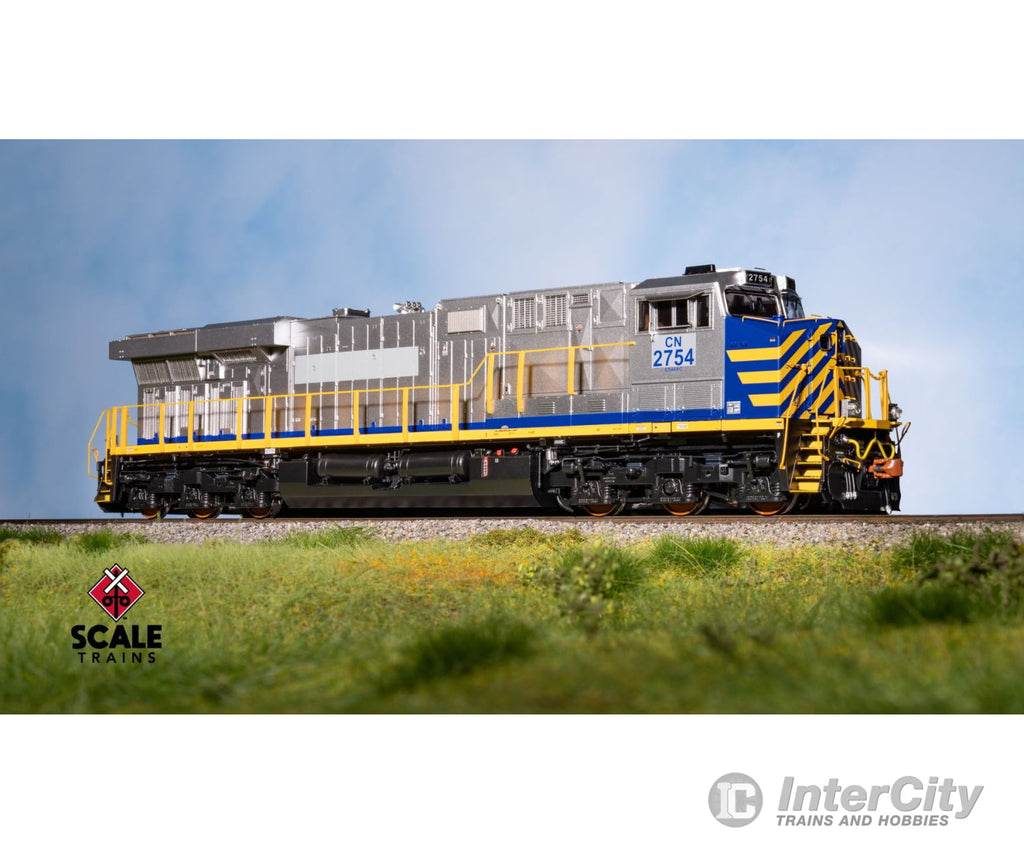

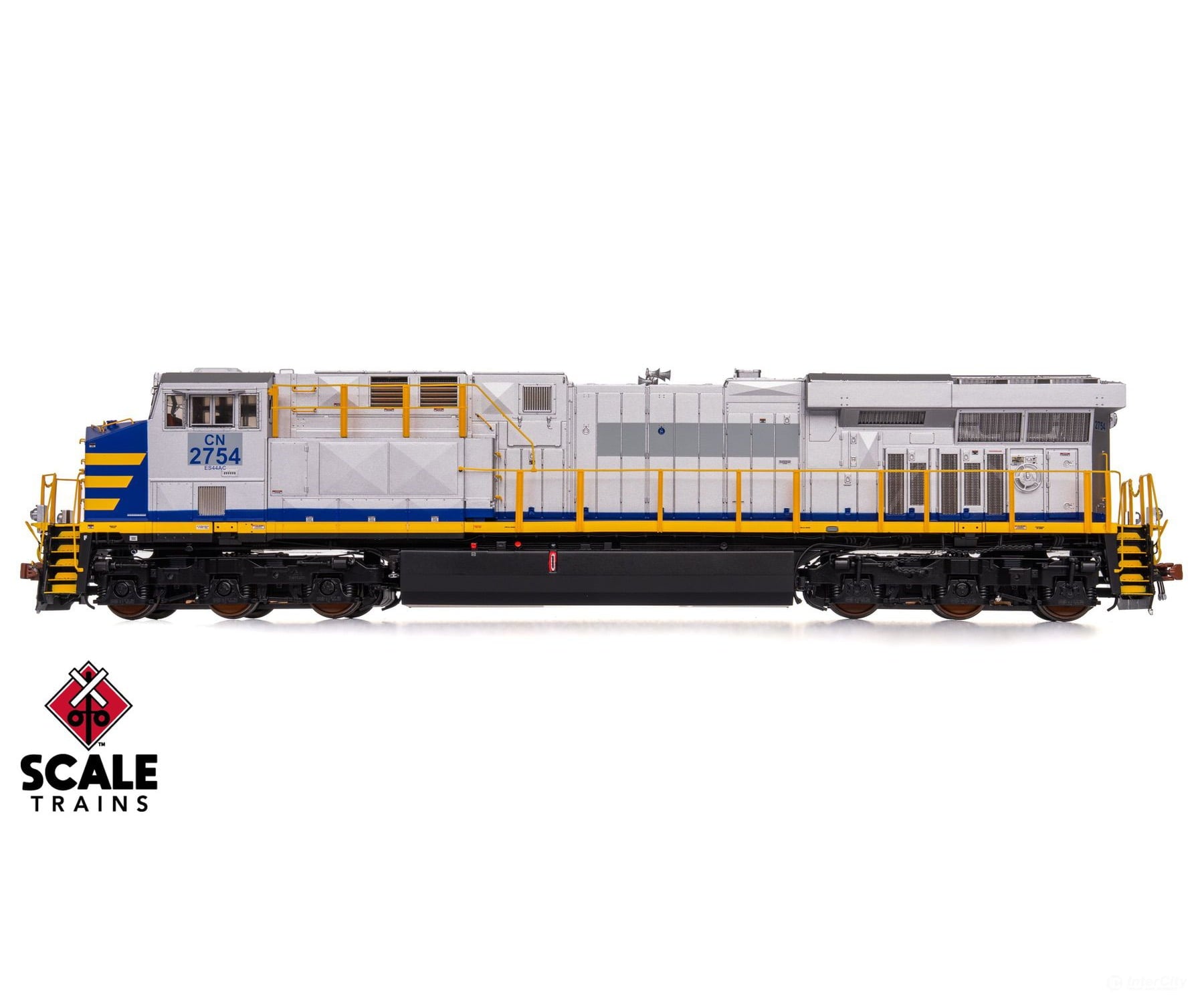

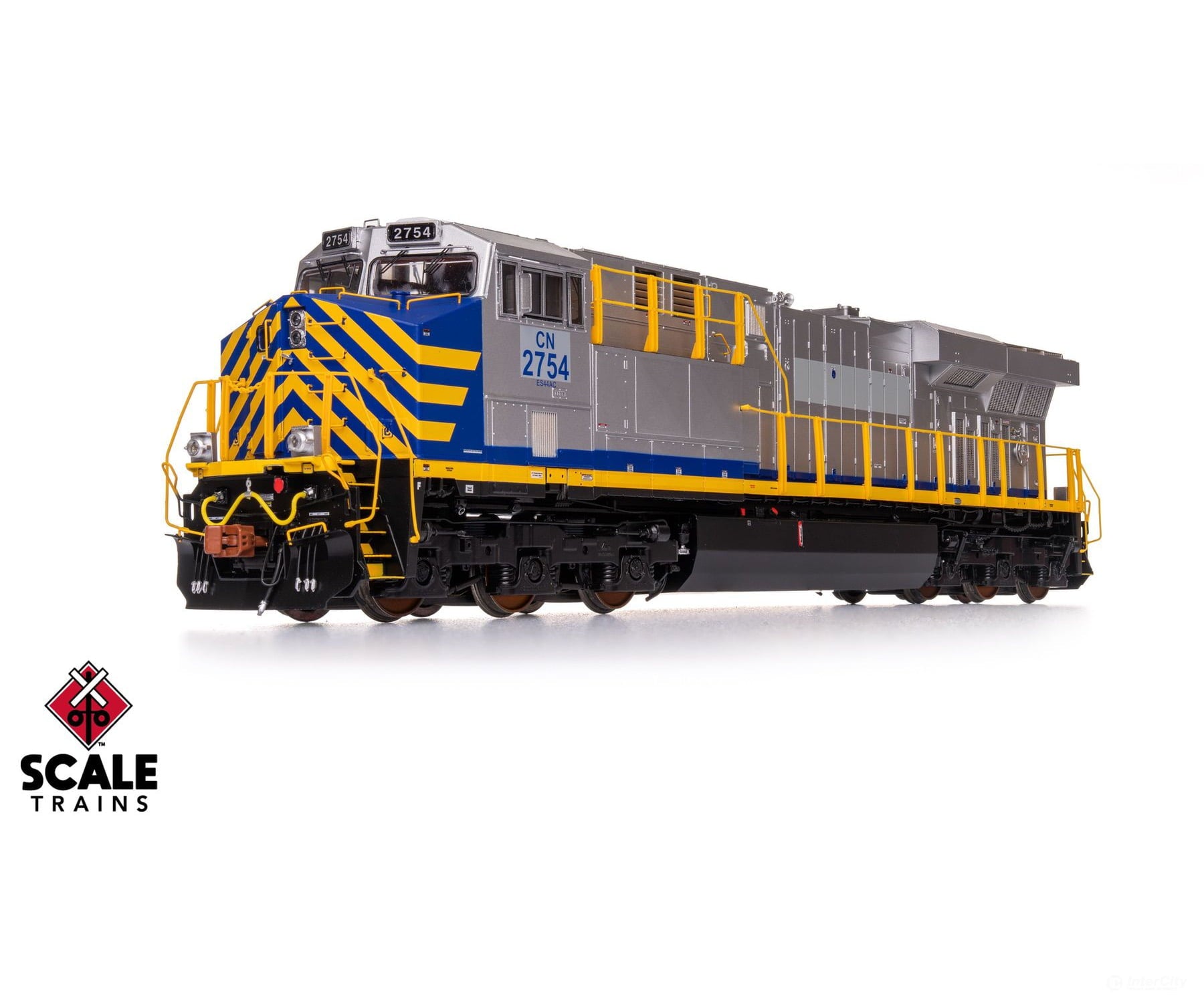

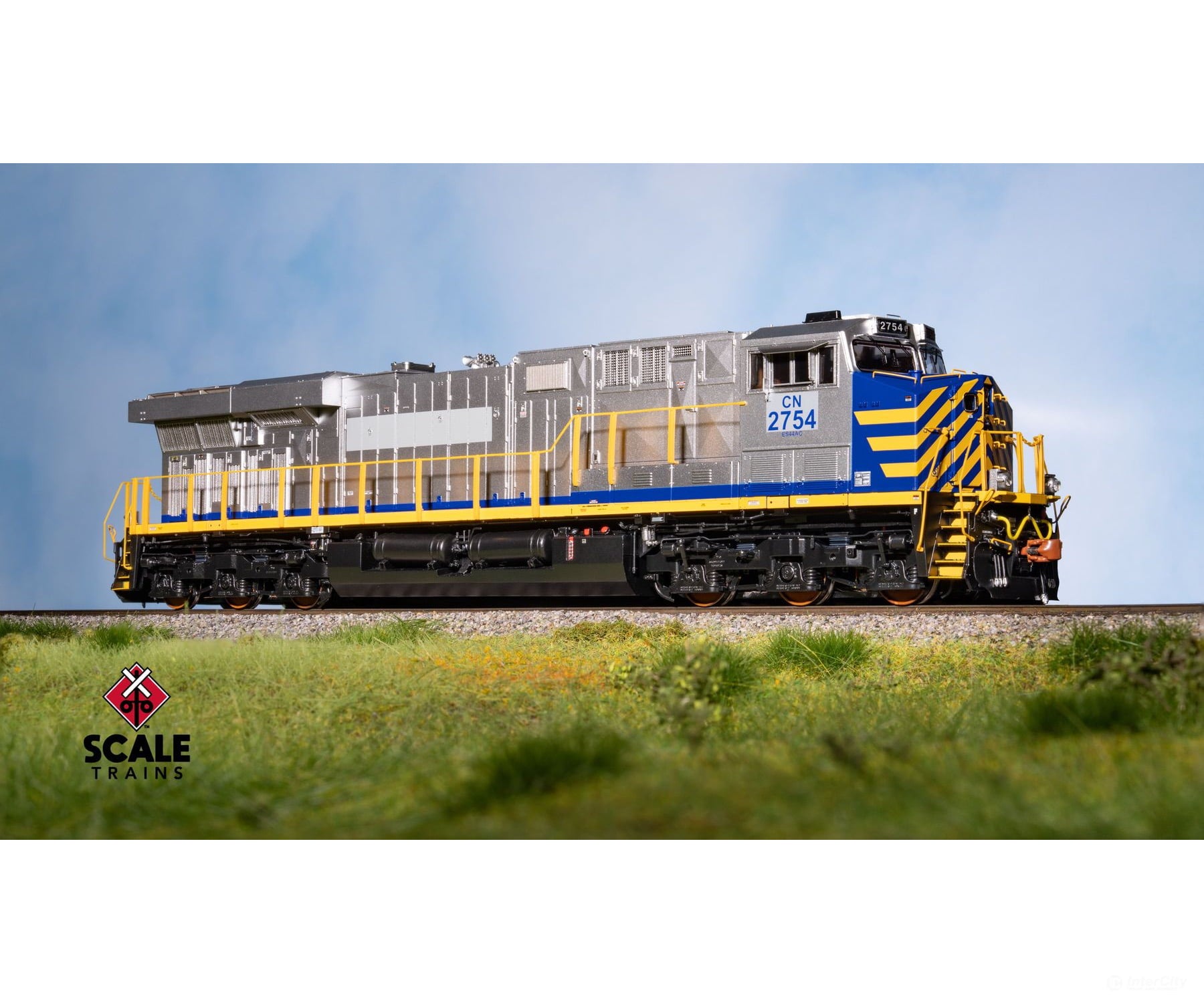

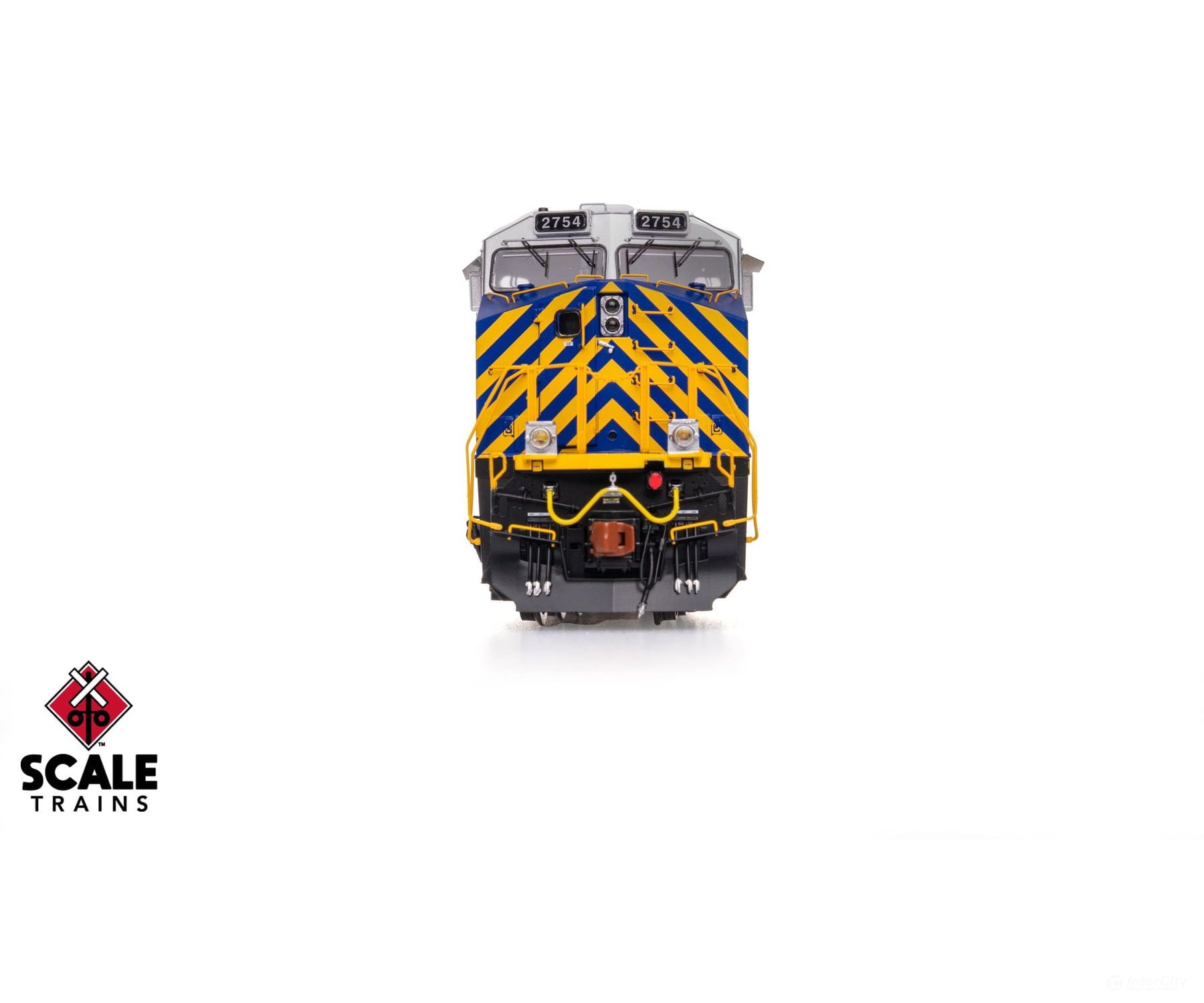

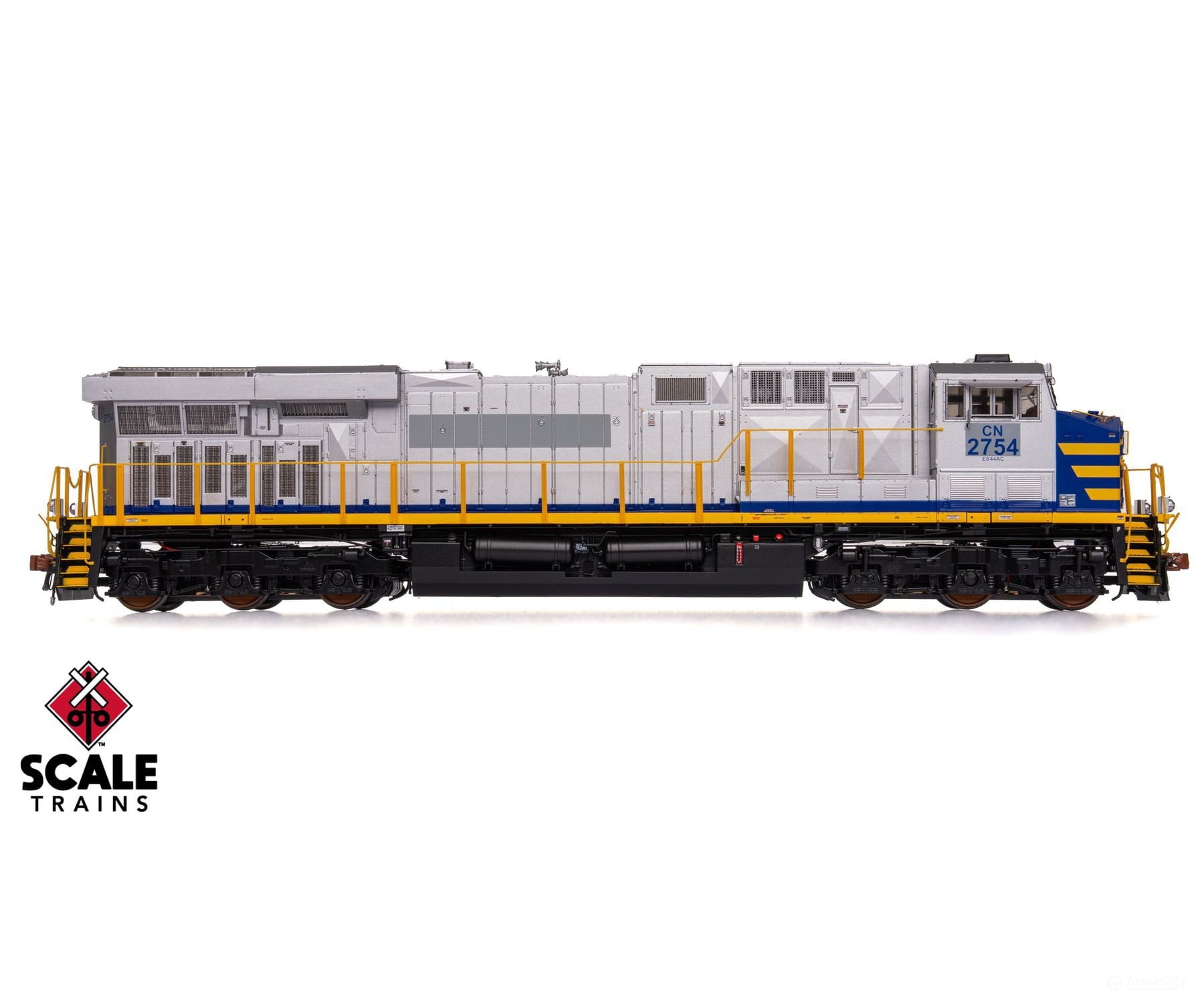

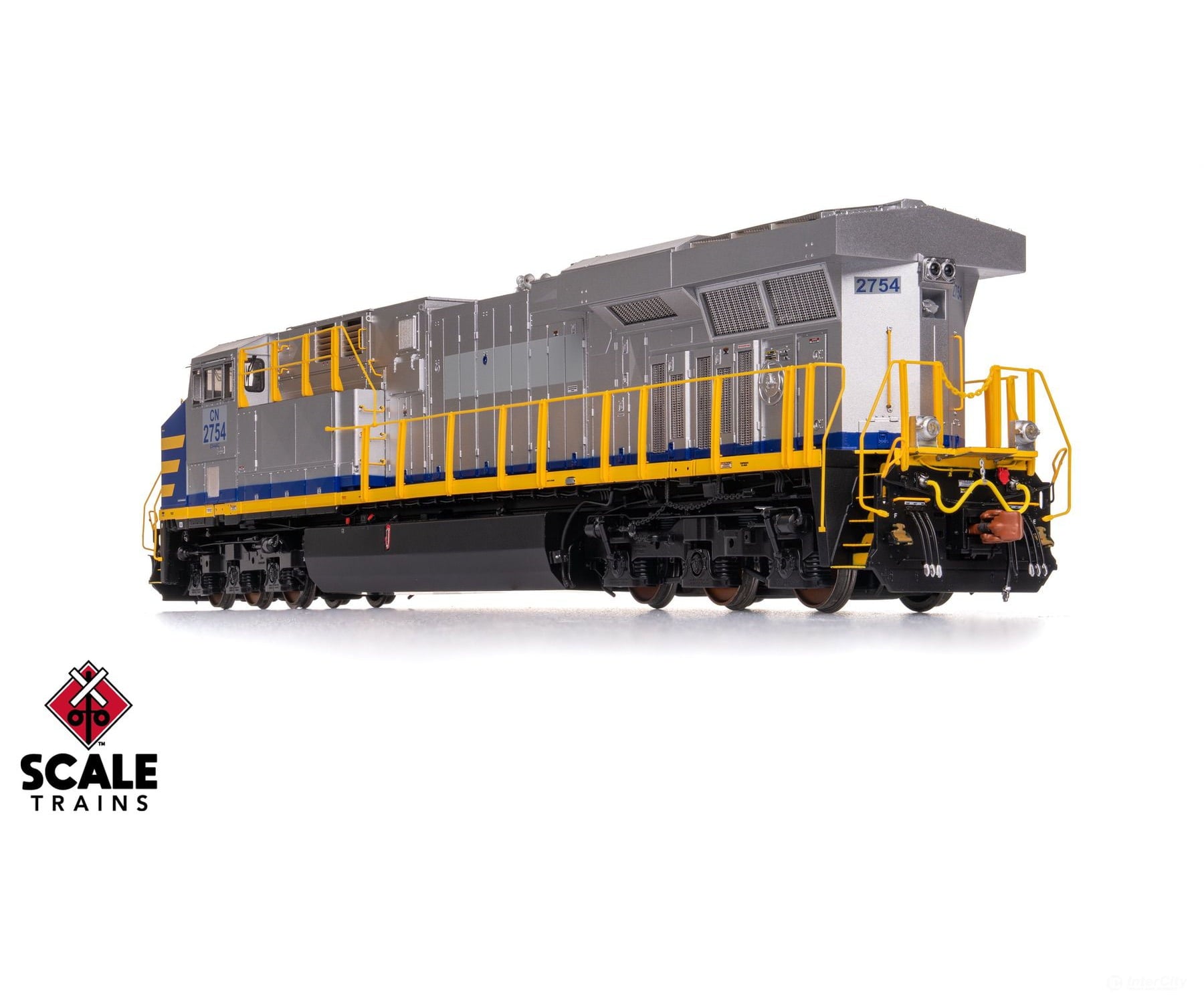

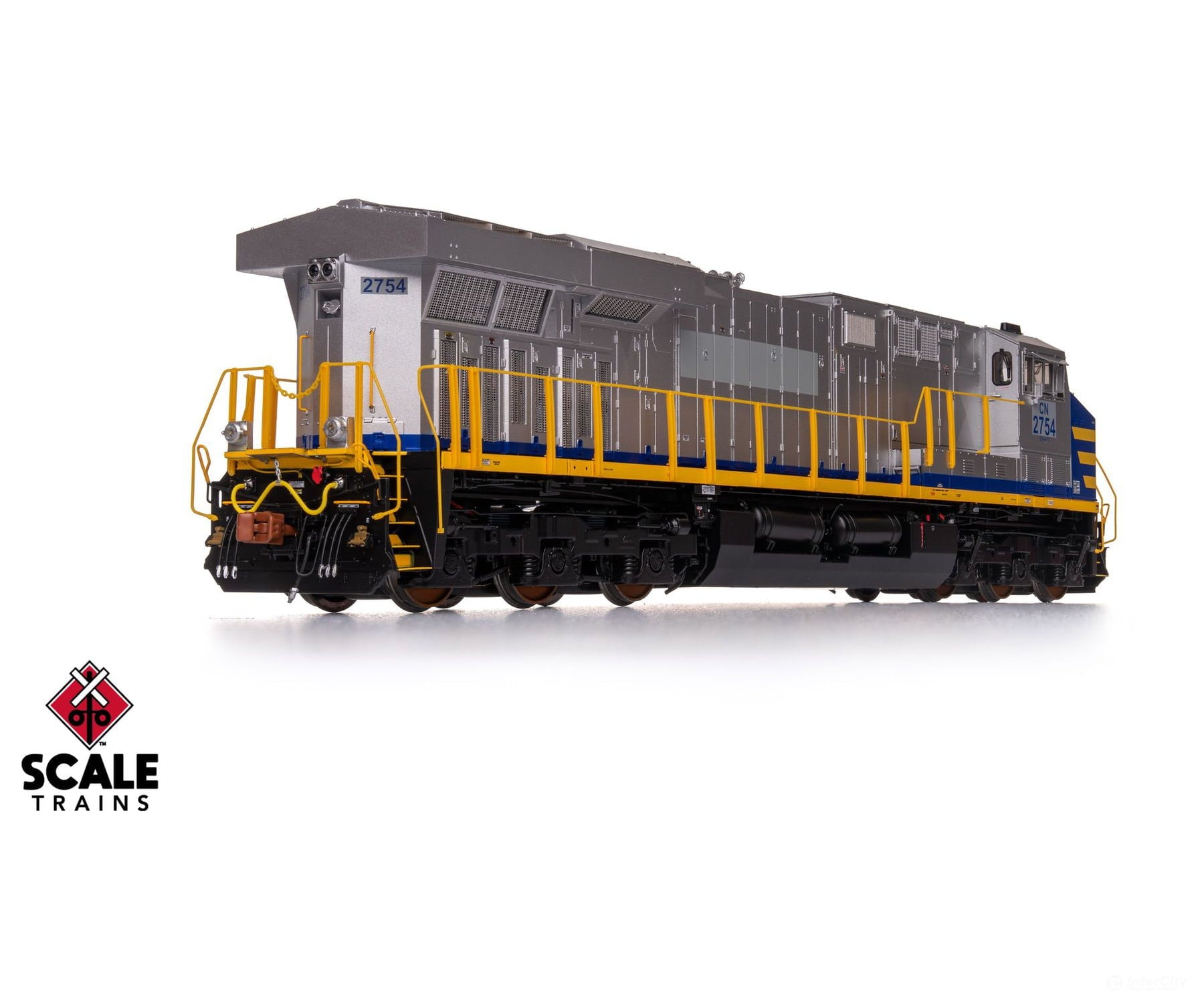

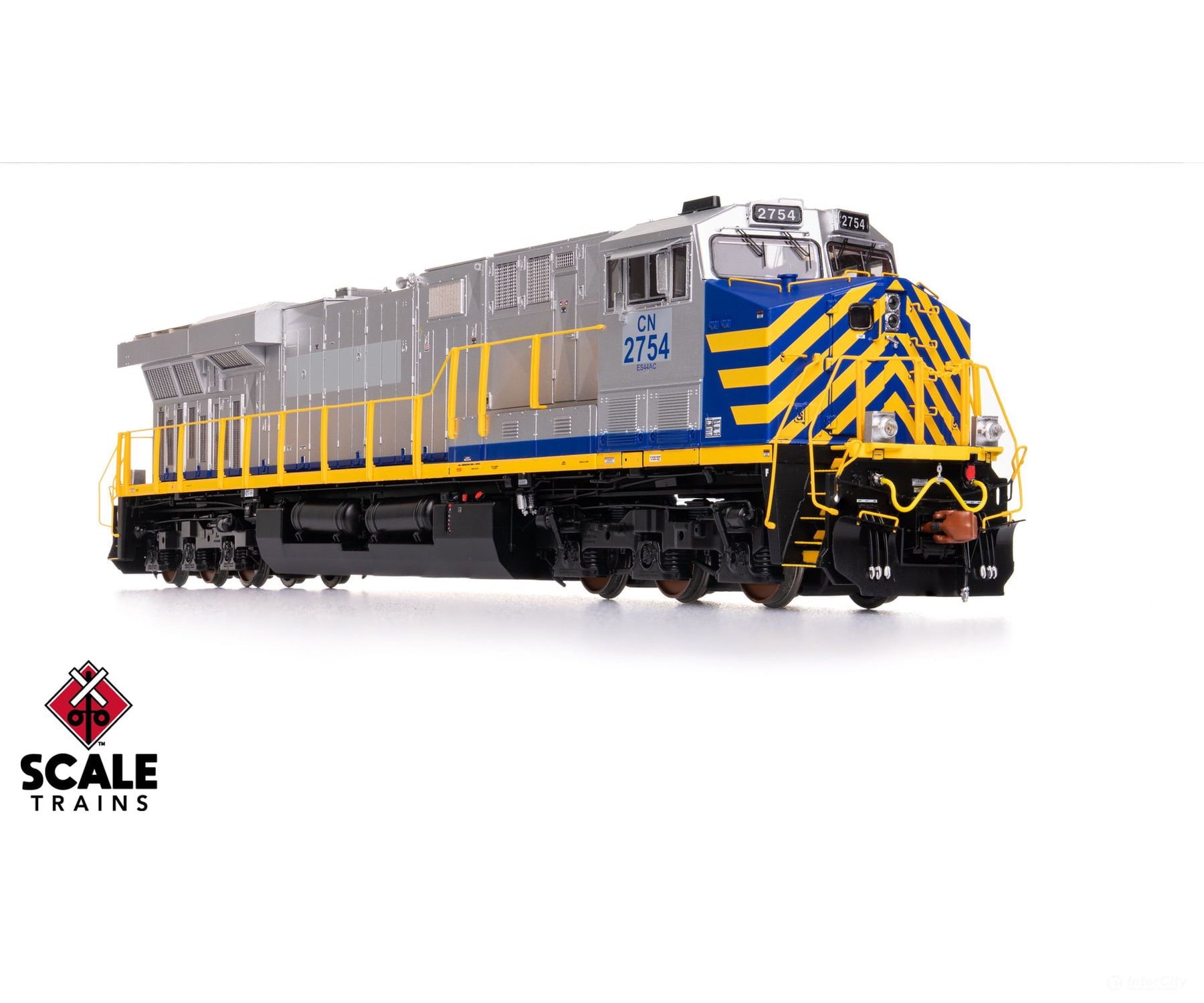

In 2002, GE introduced the “Evolution Series” of locomotives. Better known as “GEVOs” or ES44s, this series has become the best-selling line of diesel locomotives with production nearing 8,000 units. Our Rivet Counter™ series model renders numerous variations of cabs, dynamic brakes, doors, grilles, trucks, etc. We’ve also incorporated LED lighting effects including front, rear, and side walkway lights; ground lights; printed and lighted number boards; and ditch lights.
Road Number Specific ScaleTrains
- New paint scheme
- Era: 2022 to Present
- Series 2750 to 2762; ex-CREX1201 - 1215 built September - November 2012
- Fully-assembled
- Multiple road numbers
- LED-illuminated ground lights on both sides of locomotive*
- LED-illuminated front, rear and rectangle side walkway lights*
- LED-illuminated front deck-mounted ditch lights
- Printed and LED lighted number boards*
- Semi-scale coupler buffers equipped with die-cast metal semi-scale Type E knuckle couplers
- Inside loop uncoupling levers with up down brackets
- Single trainline hose with silver gladhand
- Dual front dummy Multiple Unit (MU) receptacles mounted to pilot face
- Front and rear raised pilot-mounted Multiple Unit (MU) receptacles
- Front and rear single ECP brake equipment box and cable mounted on pilot face
- See-through round-hole stepwell steps
- Walkway with front anticlimber; no support brackets
- GE “nub” pattern walkway tread
- Late handrails with U-bolt caps and narrow rear most stanchion on long side rails
- Wide profile end handrails
- Sand box clean out door with knuckle buster latch and hinge
- Front nose headlight
- Front straight grab irons mounted directly to the nose
- Right nose door with window
- Nose door grab iron
- Front high-mounted (cab) numberboard housings
- Dual cab side blue flag holder
- Left side under cab front access bolted X panel; rear door with square corrugated grille
- Late cab without barrel bolt latches on subbase doors
- Detailed cab interior with separate floor, rear wall, seats, and control stand
- In cab grade crossing camera mounted on left side
- Tinted cab side windows
- Tall mirror mounted in front of sliding cab side windows on both sides
- Switching mirror mounted between rear of sliding cab side windows and fixed rear window on engineer’s side
- Cab roof GE communications handler octagonal dome, single STI-CO PTC antenna, and small button dome antenna
- Inverter Cabinet with Bolted and hinged access door, top two X panels same size, three lower X panels with 4 - 6 - 4 Bolt Pattern
- See-through dynamic brake exhaust
- Left side dynamic brake cab: X panel front and dual blower dynamic brake with flush exhaust
- Etched metal see-through dynamic brake intake grilles with blower motors visible inside
- Right side dynamic brake cab: X panel door, small grille, door with grille, and door with grille
- Dynamic brake cab door with low door handle and low mounted door handle bumper
- Short right side air intake grille
- Left side auxiliary cab: 3 tall doors with latches on the #2 door and long auxiliary cab filter box door
- Right side auxiliary cab: 4 doors with latches on #1 and #4 doors
- ES44 style engine cab doors: latched first door in each set of three
- Three engine cab roof lift rings
- Lost wax brass cast Nathan AirChime K5HL horn mounted on engine cab roof
- ES44 style exhaust stack
- Left side exhaust cab doors: latched last door in set of three
- Flush heat exchanger housing with two-piece wide slot grille
- Late raised radiator grille
- 22 individually applied etched metal see-through radiator intake and exhaust grilles on sides and top of radiator compartment
- Left side radiator cab grille arrangement: Raised doors. Grilles - tall-short-tall-short-tall, no grille under brake wheel short front angled grille and two-piece rear angled grille
- Right side radiator cab grille arrangement: Raised doors. Grilles – tall, short, tall, short, short, tall, short, tall, short front angled grill, two-piece rear angled grille
- Flat water fill box with sight glass
- High mounted horizontal rear headlight
- Rear wide-spaced dual dummy Multiple Unit (MU) receptacles
- Accurately profiled frame with separately applied plumbing and cabling
- GE Hi-Ad trucks with unused electric parking brake mounting brackets on right front and left rear side frames and separately applied brake cylinders, air plumbing, and rotating bearing caps
- Rust-color painted wheelsets
- Curved handbrake chain bracket
- Toilet drain with interior handle
- AEI tag mounted on bracket below the right sidesill
- Dual Graham-White (Prime) finned 075 air filters
- Graham-White 994-500 air dryer
- 5,300-gallon fuel tank with internal waste retention tank, digital fuel gauge, vertical fuel gauge, and round fuel gauge
- Dual fuel fills per side with rear fill “blanked”
- Angled top left side fuel tank top box
- Digital Fuel Gauges
- EOT basket mounted on left rear of fuel tank
- Short crankcase drainpipe
- Factory-applied wire grab irons, snowplow with grab irons, spare knuckles, trainline hoses with silver gladhands, 3-hose MU clusters with silver gladhands, uncoupling levers, windshield wipers, mirrors, sunshades, air tanks, fuel tank mounted electronic bell, brake wheel, and more
- Motor with 5-pole skew wound armature
- Dual flywheels
- All-wheel drive
- All-wheel electrical pick-up
- Directional LED headlights
- Printing and lettering legible under magnification
- Operates on Code 70, 83, and 100 rail
- Packaging safely stores model
- Minimum Radius: 18”
- Recommended Radius: 22”
DCC & sound equipped locomotives also feature:
- ESU-LokSound 5 DCC and Sound decoder with “Full Throttle”
- Two (2) cube-type speakers
- Accurate GEVO-12 prime mover and auxiliary sounds, horn, bell, and more
- ESU-designed PowerPack with two (2) super capacitors***
- Operates on both DC and DCC layouts
DCC & sound ready locomotives also feature:
- Operate using DC
- DCC ready with 21-pin connector
* Lighting features operate when using an ESU decoder with appropriate programming while operating using DCC
** In DC operation, both front ditch lights illuminate; rear ditch lights (if equipped) do not illuminate
*** Compatible with appropriately programmed ESU decoders while operating using DCC
In 2002, GE released the first GEVO, a new series of locomotives that would replace the AC4400CW and Dash 9-44CW. The first two models were the ES44DC and ES44AC. The ES44C4 followed a few years later.
The new models were designed to meet the stricter diesel locomotive emissions standards imposed by Environmental Protection Agency (EPA) regulations. The EPA “Tier” emissions standards are a series, or Tiers, of allowable emissions levels based upon a locomotive’s date of manufacture. In 2005, Tier 2 took effect followed by Tier 3 in 2010 and Tier 4 took in 2015.
GE developed a new diesel engine, the 12-cylinder GEVO 12, to meet the new emission standards. Both the bore and stroke were increased to produce the same 4,400 horsepower as the older 7FDL16 16-cylinder engine.
The new prime mover drives an alternator-producing AC current that is rectified to DC. On the ES44DC, this powers the traction motors. On the ES44AC and ES44C4, the DC is “chopped” back into AC to power the traction motors. The two models share a common 73’ 2” frame and external appearance.
The external appearance is similar to the AC4400CW. The cab on early ES44s is almost identical. In 2009, GE changed the cab and nose, moving the nose door from the left side to the right side and replacing the curved seams with more square seams.
Unlike their predecessors, both the AC and DC versions of the ES44 have a large box behind the cab. The biggest visual difference is the larger “wing” structure over the radiator cab. The thicker radiators and related equipment in the radiator cab work to cool the exhaust, which reduces emissions.
Customer options and design changes have resulted in seven different dynamic brake configurations. The grilles on the sides of the radiator cab have also gone through seven configurations. The most recent units have changed the latches on the engine cab doors to match the ET44 units.
Although EPA Tier 4 standards went into effect in 2015, the ES44 series continues to be built. This is due to the Tier 4 Credits, a complicated system that allows GE to continue to build and various railroads to buy the ES44 based on the number of Tier 4 units built.
After 2 testbed units and 35 pre-production units, over 7,600 additional ES44s have been built. All of the major railroads including BNSF, Canadian National, Canadian Pacific, CSX, Norfolk Southern, and Union Pacific have fleets with 100s of units. Florida East Coast, Ferromex, Iowa Interstate, and Kansas City Southern also operate ES44s. In addition, 131 were built as lease units for Citirail.
The ES44 has become the best-selling diesel locomotive of all time.
