Description

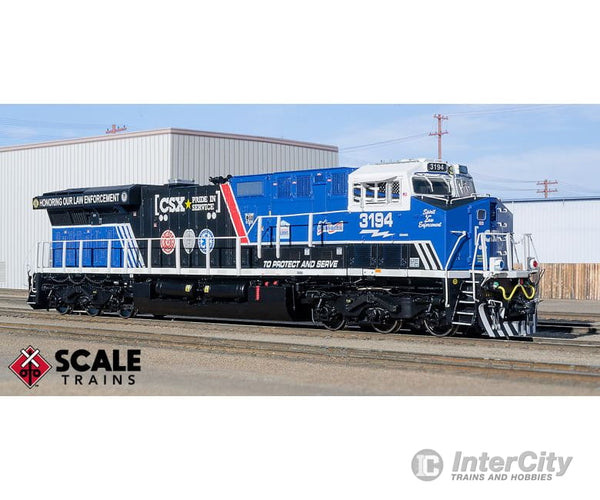

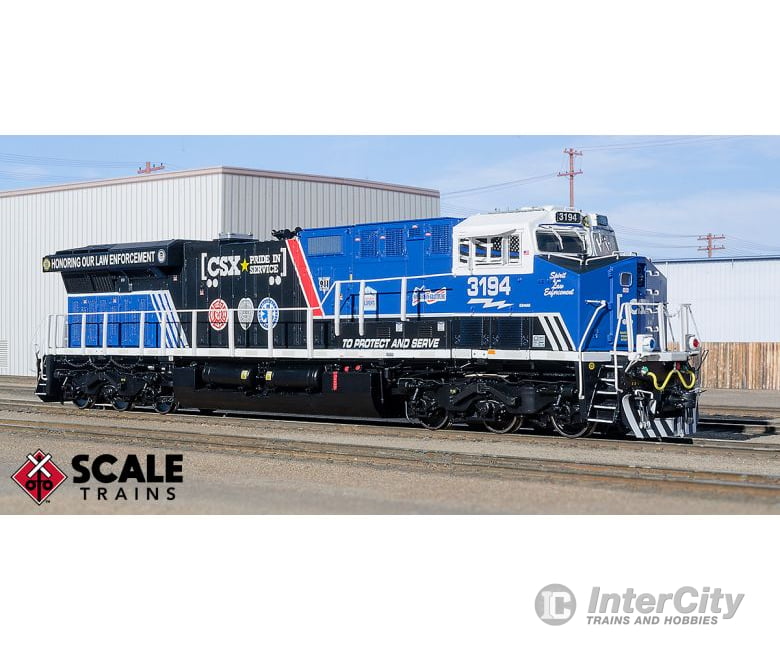

Rivet Counter HO Scale GE ES44AH, CSX/Law Enforcement #3194
In 2019, CSX partnered with Operation Gratitude, Blue Star Families, Operation Homefront, Wounded Warrior Project, and First Responders Children’s Foundation as part of their Pride In Service™ initiative. To honor our heroes, CSX painted three unique “Spirit” locomotives: Armed Forces, First Responders, and Law Enforcement. We worked closely with CSX to accurately reproduce these special locomotives in HO Scale. A portion of the model proceeds will benefit each of these exceptional non-profit organizations.
Road Number Specific ScaleTrains
** In DC operation, both front ditch lights illuminate; rear ditch lights (if equipped) do not illuminate
*** Compatible with appropriately programmed ESU decoders while operating using DCC
- Era: 2019 to present
- Series 3175-3199, built 1-4/15
- Pride in Service: “Spirit Of Our Law Enforcement”
- A portion of the proceeds from the sale of this locomotive benefit the following non-profit organizations:
- Blue Star Families
- First Responders Children’s Foundation
- Operation Homefront
- Operation Gratitude
- Wounded Warrior Project
- Officially licensed by CSX
- Paint scheme created using paint & lettering diagrams provided by CSX
- “Thin Blue Line” American flag printed on cab side windows
- Operating LED front deck-mounted alternating ditch lights**
- SXT32399/SXT32400 – red and blue ditch light lenses
- SXT32294/SXT32295 – clear ditch light lenses
- Operating LED front, rear, and side walkway lights*
- Operating LED ground light on left side of locomotive*
- See-through round-hole stepwell steps
- Walkway with front anticlimber; no support brackets
- Front and rear raised pilot-mounted Multiple Unit (MU) receptacles
- Front dummy Multiple Unit (MU) receptacles mounted to pilot face
- Single trainline hose with silver gladhand
- Rear wide-spaced dual dummy Multiple Unit (MU) receptacles
- Front and rear ECP brake equipment box and cable mounted on pilot face
- Pilot-mounted battery charging receptacles
- Sill-mounted tow chain
- Wide profile end handrails
- Late handrails with U-bolt caps and wide rear most stanchion on long side
- Front nose headlight
- Front straight grab irons mounted directly to the nose
- Front right side mounted narrow nose drop grab iron
- Right nose door with window
- Front high-mounted (cab) numberboard housings
- Late cab with barrel bolt latches on subbase doors
- Left side under cab front access bolted X panel, rear door with square corrugated grille
- Dual cab side blue flag holder
- LSL (Locomotive Speed Limiter) indicator lights on cab sides (Non-operating)
- Tall mirror mounted in front of sliding cab side windows on both sides; additional small mirror on right side
- Cab roof octagonal antenna dome with dual STI-CO PTC antennas
- Sand box clean out door with knuckle buster latch and hinge
- Large hinged inverter cabinet door
- Left side dynamic brake cab: tri blower dynamic brake with flush exhaust
- Right side dynamic brake cab: door with grille, small grille, door with grille, and door with grille
- Long right side air intake grille
- Left side auxiliary cab: 3 tall doors with latches on the #2 door
- Right side auxiliary cab: raised X panel door; 3 doors with latches on #2 and #3 doors
- Lost wax brass cast Leslie RS-5T-RRO horn with debris covers mounted on engine cab roof
- ET44 style engine cab doors: latched center door in each set of three
- Left side exhaust cab doors: latched center door in set of three
- Flush heat exchanger housing
- Raised radiator grille
- Right side radiator cab: fourth and fifth have short grilles
- Flat water fill box with sight glass
- AEI tag mounted to right sidesill
- Dual Graham-White (Prime) 075 air filters
- Graham-White 994-500 air dryer
- Late GE Steerable trucks with separately applied brake cylinders, air plumbing, rotating bearing caps, and reinforcement bar under center journal
- 5,300-gallon fuel tank with internal waste retention tank, digital fuel gauge, vertical fuel gauge, and round fuel gauge
- Dual fuel fills per side with rear fill “blanked”
- Flat top left side fuel tank top box
- Long sump drainpipe attached to the end of the fuel tank
- Semi-scale coupler buffers equipped with die-cast metal semi-scale SBE bottom shelf knuckle couplers
- Fully assembled
- Multiple road numbers
- Directional LED headlights
- Printed and LED lighted number boards*
- GE “nub” tread plate on walkways
- Detailed cab interior with separate floor, rear wall, seats, control stand, and grade crossing camera
- Tinted cab side windows
- Etched metal see-through dynamic brake intake grilles with blower motors visible inside
- See-through dynamic brake exhaust
- Separate exhaust stack
- 22 individually applied etched metal see-through radiator intake and exhaust grilles on sides and top of radiator compartment
- Accurately profiled frame with separately applied plumbing and cabling
- Factory-applied wire grab irons, snowplow, spare knuckles, 3-hose MU clusters with silver gladhands, uncoupling levers, windshield wipers, mirrors, sunshades, air tanks, fuel tank mounted electronic bell, brake wheel, and more.
- All-wheel drive
- All-wheel electrical pick-up
- Dual flywheels
- Motor with 5-pole skew wound armature
- Printing and lettering legible under magnification
- Operates on Code 70, 83, and 100 rail
- Packaging safely stores model
- Minimum Radius: 18”
- Recommended Radius: 22
- DCC & sound equipped locomotives also feature:
- ESU-LokSound 5 decoder with “Full Throttle”
- Dual cube-type speakers
- Accurate GEVO-12 prime mover and auxiliary sounds, horn, bell, and more
- ESU-designed PowerPack with two (2) super capacitors***
- Operates on both DC and DCC layouts
- DCC & sound ready locomotives also feature:
- Operate using DC
- DCC ready with 21-pin connector
** In DC operation, both front ditch lights illuminate; rear ditch lights (if equipped) do not illuminate
*** Compatible with appropriately programmed ESU decoders while operating using DCC
